1000kg/day CV1000 Ice Cube Machine For Ice Factory

FOB Reference Price:Get Latest Price
$8,000.00 - $11,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Power(W):
4Kw
Ice Shape:
plate
Dimension(L*W*H):
1800*1650*1750mm
Condition:
New
Capacity:
1000KG per 24 hours
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
KOLLER
Model Number:
CV1000
Voltage:
380V 50HZ,3P/ 220V,60Hz, 3P
Weight:
900kg
Certification:
CE
cooling way:
Air cooling and Water cooling
ice falling way:
hot gas heat exchange
material:
SUS304
compressor:
Bitzer/Copeland/Refcomp
Refrigeration components:
Castal/Danfoss
Ice making time:
about every 20 minutes
Refrigerant:
R404A/R22
Ice size:
22*22*22mm or 29*29*22mm
Expansion Valve:
Denmark Danfoss
Ice Discharger:
Semi-automatic
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
12 monrth
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
in polywood case
Port
guangzhou port
Lead Time :
30 days
Product Description

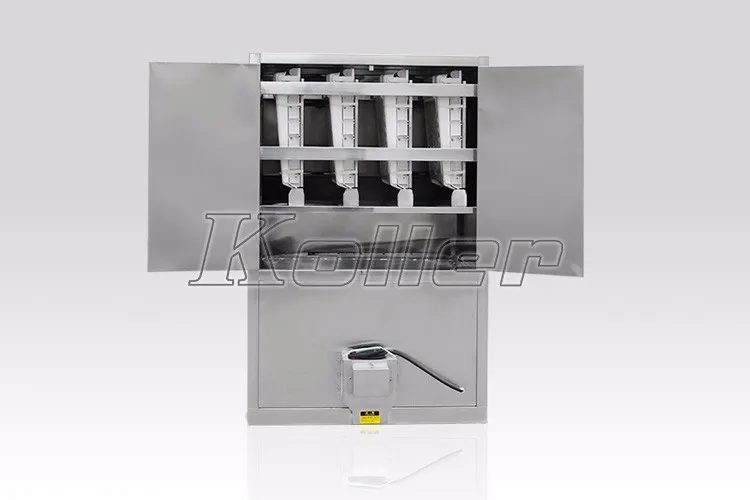

1000kg/day CV1000 Ice Cube Machine For Ice Factory

1, Reasonable design for the framework structure with stainless steel 304, save space, and easy to install;

2, Greatly save energy, only 75 KW*H are consumed to produce one-ton ice;

3, Equipped with Siemens PLC central program control, which allows multiple functions such as automatic machine start and shut down; ice stopping production when the ice bins are full, automatic water making up.

4, Special ice outlet. Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary, meanwhile, it is matched with ice packing system to package the ice by plastic bags;

5, Adopts the world's famous brand components, which will gurantee the best refrigeration effect and working condition.
SPECIFICATIONS FOR CV1000 ICE CUBE MACHINE

Nominal Working Condition Ice Capacity
Daily capacity
kg/24H
1000KG
ICE CUBE MAKING TIME
MIN
20~23MIN/BATCH
HOUR CAPACITY
kg/H
42KG

ICE CUBE SIZE OPTIONS
22mm*22mm*22mm
ICE MAKING TIME
20MIN
29mm*29mm*22mm
ICE MAKING TIME
23MIN
38mm*38mm*22mm
ICE MAKING TIME
25MIN

POWER
COMPRESSOR
HP
4HP
WATER PUMP
KW
0.25 KW
COOLING TOWER pump+fan
KW
0.75+0.18KW
ICE CUBE DISCHARGER
KW
0.18 KW
Control Way
Siemens PLC Controller + Touch Screen
Design power for
380V/50Hz/3P or 220V/60Hz/3P or 415V/50Hz/3P or 380V/60Hz/3P
Working Condition
Supply water temp
5 ℃~ 35 ℃
Ambient Temp
5℃~35℃[Dry ball]

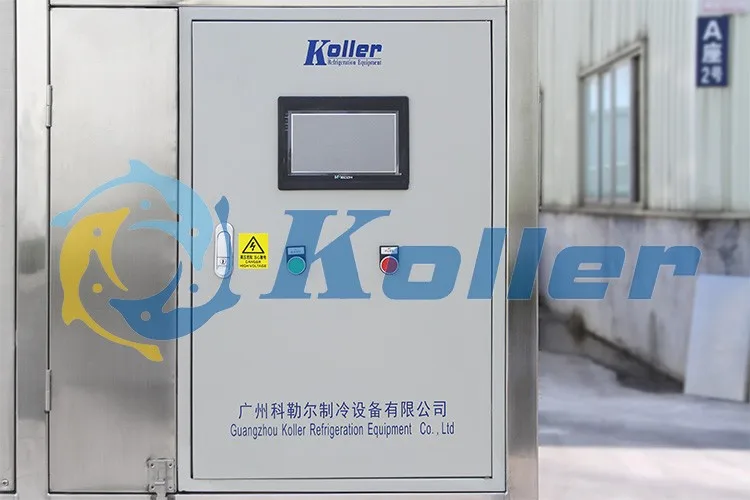

 TOUCH SCREEN

EASY UNDERSTAND OPERATION AND PARAMETER SETTING

RECORD ALL OPERATION AND FAILURE HISTORY

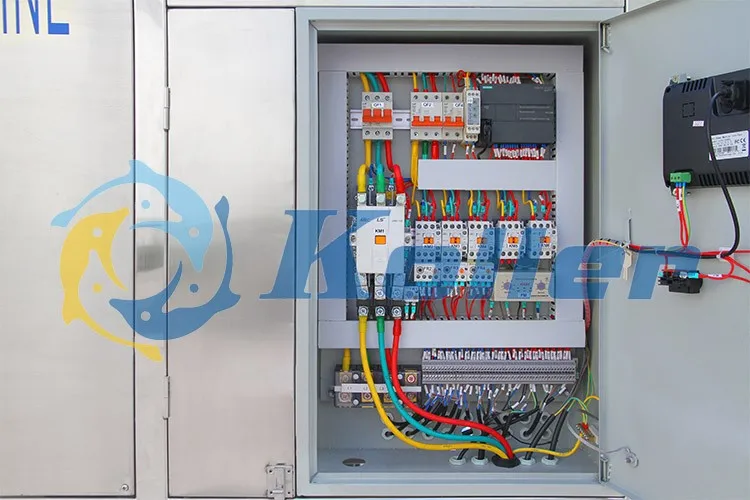

SIEMENS PLC CONTROLLING SYSTEM

ALL ICE MAKING/ICE FALLING/ICE HARVESTING CAN BE CONTROLLED EASILY.

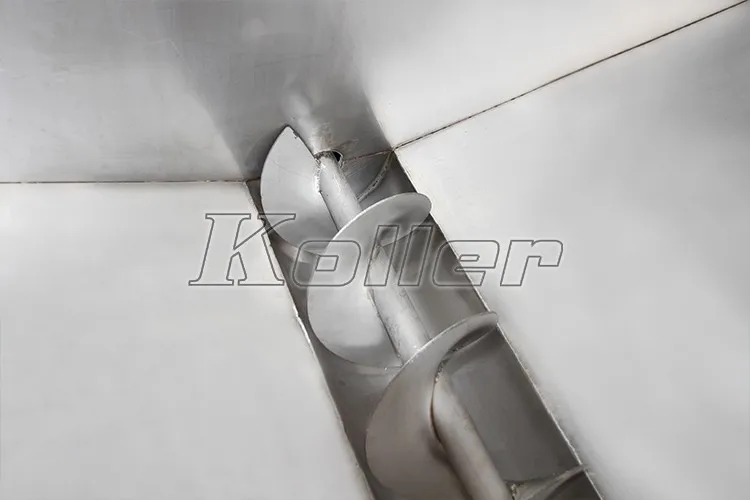

SCREWER AND DISPENSER FOR ICE CUBE DISCHARGER IN THE ICE BIN

All ice cubes will be separated into smaller granulars

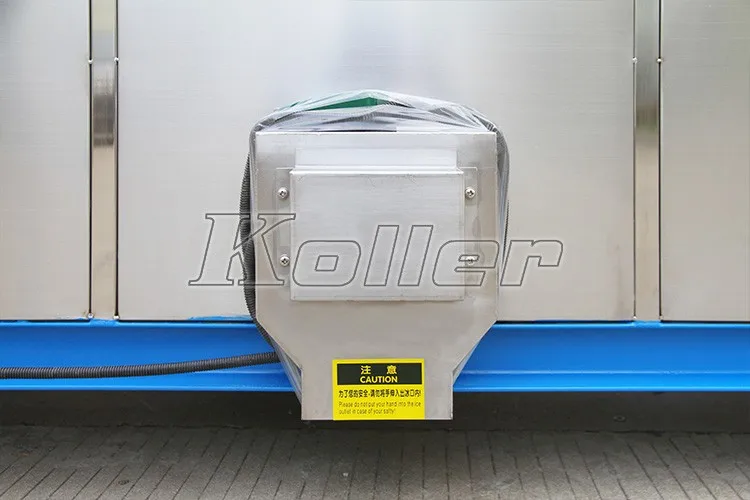

ICE CUBE DISCAHRGER OUTLET ON THE ICE BIN
Designed for easier and quicker  ice cube packing without hand touching the ice cubes, ensure the ice cube sanitary.
ICE BIN FILLED UP WITH ICE CUBES

TIP: ICE CUBE MACHINE WITH TIMER FUNCTION, IT CAN STOP ICE MAKING AUTOMATICLLY WHEN THE ICE BIN IS FILLED

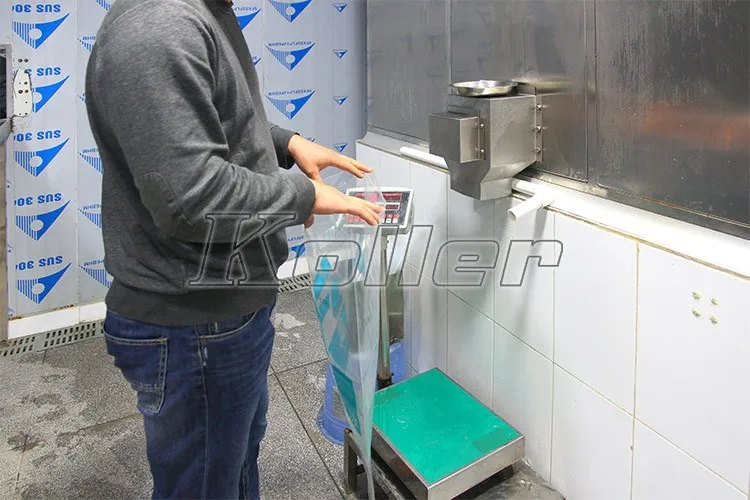

ICE CUBE PACKING WITH DIGITAL

AUTOMATIC ICE BAG WEIGHT WEIGHING

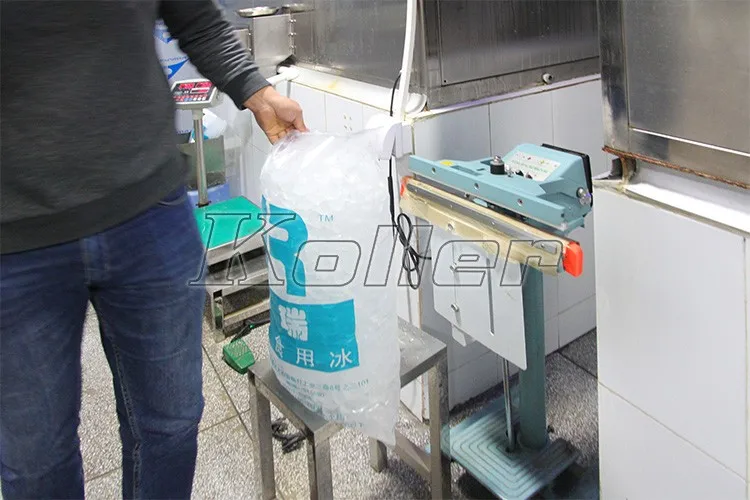

ICE CUBE BAG SEALING WITH BAG SEALER

ICE BAG CAN BE EASILY SEALED UP IN SECONDS

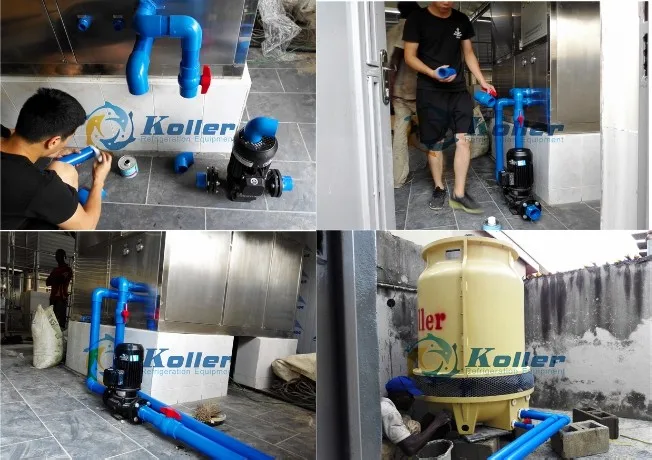

About the installation of water cooled ice cube machine

1, Ice machinery unit is to be installed indoor

2, Cooling tower to be installed outdoor

3, All pipe, pump, valves, pvc glue will be provided by us. We need only get the cooling tower and ice machine connected.

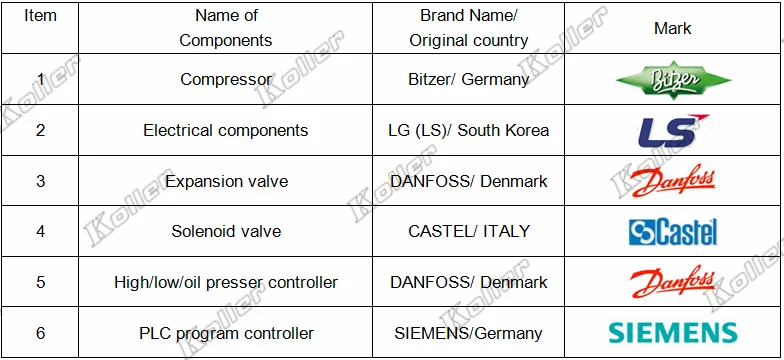

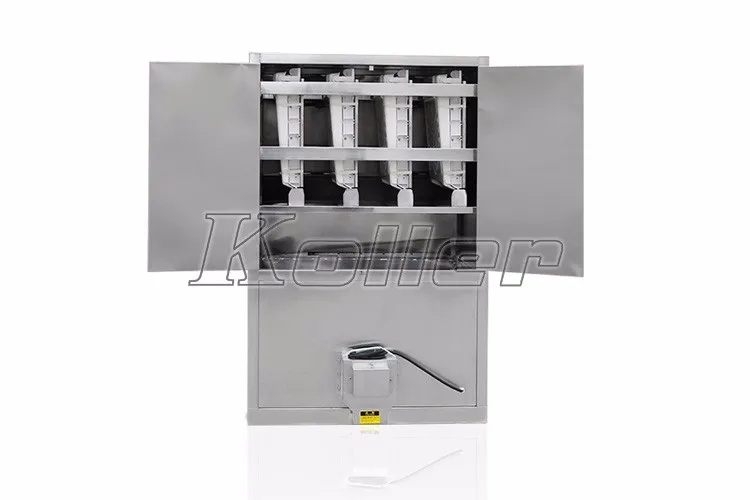

PARTS ON ON CV1000
Why choose us
1. We are a Top Refrigeration & Heat Exchange Equipment Manufacture with strong R & D capability,we can control:
-Technical scheme
-Price
-Delivery time
-Quality
2.We won the first China Ice Start Award(CISA) in China Ice Making Annual Conference in 2011.
3.We are The Drafting Committee of National Ice Machine Industry Standard,Produce & Academic Research Strategy
4.We are Cooperating Research Partner with Tsing Hua University
5.We have rich projects experience in overseas
6. We has passed ISO9001,CE,SGS,TUV and some other certificates.
Our Service
INSTALLATION SERVICE

* FREE INSTALLATION

* OPERATION AND MAINTENACE TRAINING

* ALL RELATED PRODUCT SUGGESTION FOR A ICE FACTORY

ONE YEAR WARRANTY

* ONE YEAR WARRANTY FOR ALL PARTS QUAILY ON OUR ICE MACHINE

* KOLLER AFTERSALES 24 HOURS AVAILABLE

Certifications
ABOUT KOLLER COMPANY

Koller Profile

1. Established in 2004,Guangzhou Koller Refrigeration Equipment Co., Ltd is an integrated manufacturer, specialized in the research, design, manufacture and sale of refrigeration equipments.

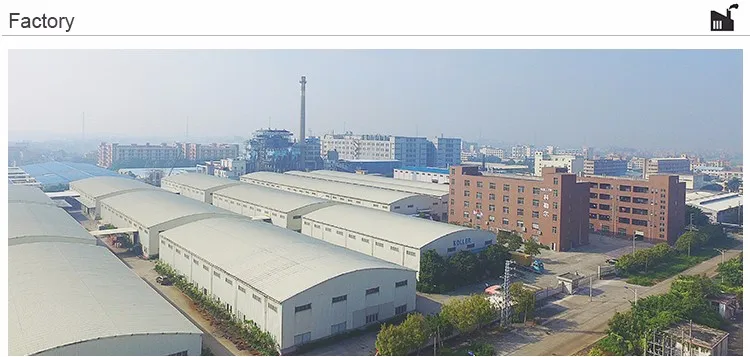

2. Koller has more than 30,000 square meters for the factory production space, more than 300 employees, including senior technical R & D team and professional sales team.

3. Koller brand products have popularly sold in Europe, Australia, Southeast Asia, Middle East, Africa, South America and South Pacific Islands. Koller has become a famous refrigeration enterprise in China, and a famous brand name with international recognition and reputation.

Koller Products

Our main products include: brine water ice block machine from 1 ton to 100 tons daily production, large edible ice cube machine, commercial ice maker, tube ice machine, plate ice machine, fresh water flake ice machine, sea water flake ice machine, direct cooling ice block machine, automatic conveying system, cold room, ice crusher machine, low temperature water chiller, automatic packing system, and other series of ice making equipments.

Koller Advantage

1. We has passed ISO9001,CE,SGS,TUV and some other certificates.

2. We has become the partner of Beijing Olympic Games in 2008,Shanghai World Expo in 2010,Guangzhou Asia Games in 2010 and London Olympic Games in 2012.

FAQ

A. Installation for ice machine:
1). Installing by the user: we will test and install the machine before shipment, all necessary spare parts, operation manual and video are provided to guide the installation.
2).Installing by Koller engineers:
   (1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user should provide accommodation and round-trip ticket for our engineer.
   (2) Before our engineers’ arrival, the installation place, electricity, water and installation tools should be prepared. Meanwhile, we will provide you a Tool List with the machine when delivery.
   (3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
   (4) 2~ 3 workers are required to assist the installation for big project.
   (5) Any delay due to customer’s reason, it will be charged from the 8th day, USD100/day for one person as installation fee. Free of charge for one week.

B. Warranty:
1) 12 months warranty after delivery.
2)Professional after-sales department to provide 24/7 technical support, all complaints should be replied within 24 hours.
3)Over 10 engineers available to service machinery overseas.
4)Free spare parts replacement within warranty period.
5)Beyond guarantee period, we will charge market price for spare parts.


Any other question, please leave your meaasage below, our salesman will reply you immediately.
