1000l 1500l 2000l 2500l 3000l 3500l Small Commercial Used Beer Brewing Brewery Machine Equipment For Sale

FOB Reference Price:Get Latest Price
$2,000.00 - $99,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment, cut-roll-weld-polish-assemble-test-warehous
Applicable Industries:
Food & Beverage Factory
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
TONSEN
Processing Types:
BEER
Voltage:
Request
Power(W):
15-70Kw Depends
Dimension(L*W*H):
User Requirements
Weight:
200KG-2000KG
Certification:
CE ISO
Warranty:
3 Years
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Name:
1000l 1500l 2000l 2500l 3000l 3500lBrewery Machine Equipment For Sale
Material:
304 or 316 Stainless Steel or copper
Application:
Beer Brewery
Heating method:
Electric or Steam or direct fire
Sizes and Parts:
Sizes and Parts details can be customized by customers
Thickness:
2.0mm ~ 3mm
Technology Advantage:
PU insulation, dimple jacket, cooling system ect
Equipment Usage:
Beer Brewery, Beer Fermentation, Beer Production ect
Supply Ability
Supply Ability:
5000 Set/Sets per Year 1000l 1500l 2000l 2500l 3000l 3500l Small Commercial Used Beer B
Packaging & Delivery
Packaging Details
PACKING & SHIPPING
1)All tanks will be packed with soft protection material and mounted on steel frame
2)All accessories and spare parts will be packed with soft protection material and then put into iron box
3)After loaded into containers, all equipment will be fixed to the containers.
Port
qingdao pot
Brewhouse details

Brewhouse is various in combination of vessels, of course to achieve the same four steps mashing,lautering, boiling, whirlpool, by special brewing intentions of brewer including wort output, wort gravity,sparging water, brews in certain time, brewing method etc. TonsenBrew Company accepts special design for these variations.

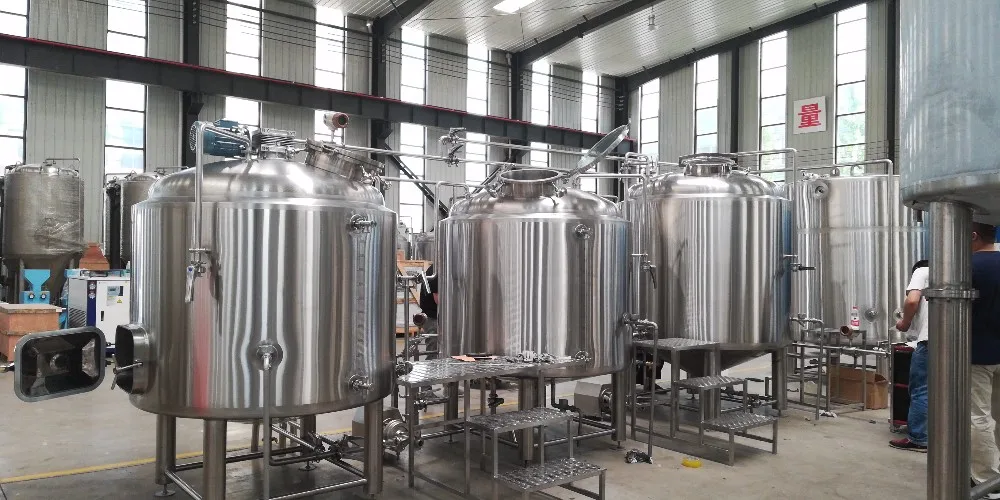

This is a three vessels brewhouse (mash/lauter tun+kettle/whirlpool tank+hot water tank)

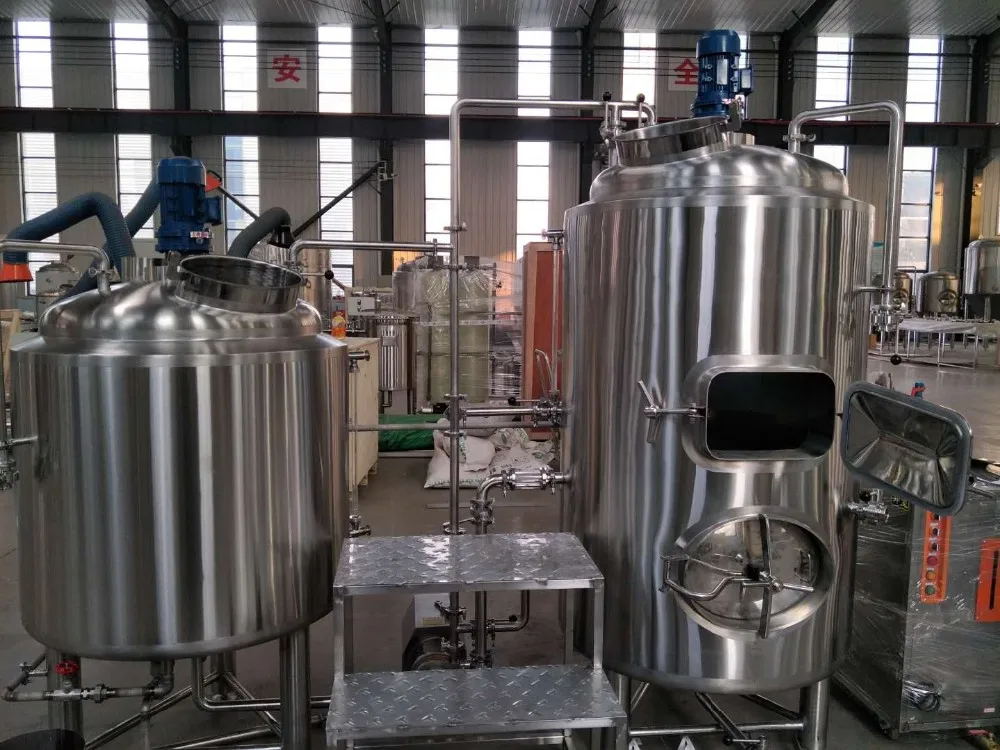

3HL /300L  combination brewhouse (mash/kettle +Lauter tun/ whirlpool tank), this is three vessels in two bodies, if you have problem with limited space, we would like to suggest you to use this type, it is space saved and cost effective than three vessles, but more working efficient than two vessles brewhouse.

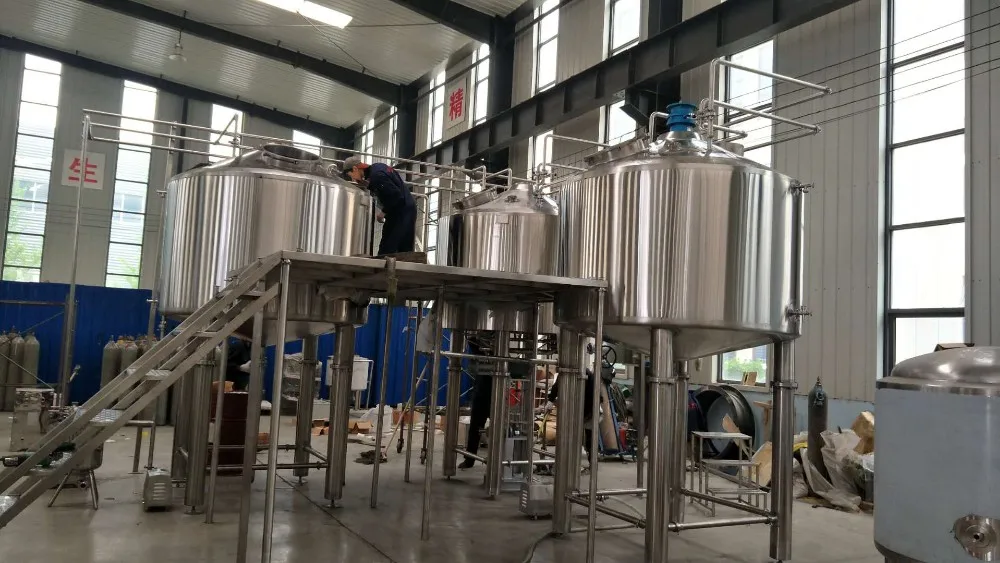

Three vessels brewhouse of 20HL /2000L brewhosue with lauter tun automaticly  grain out, this one is more labor saved!

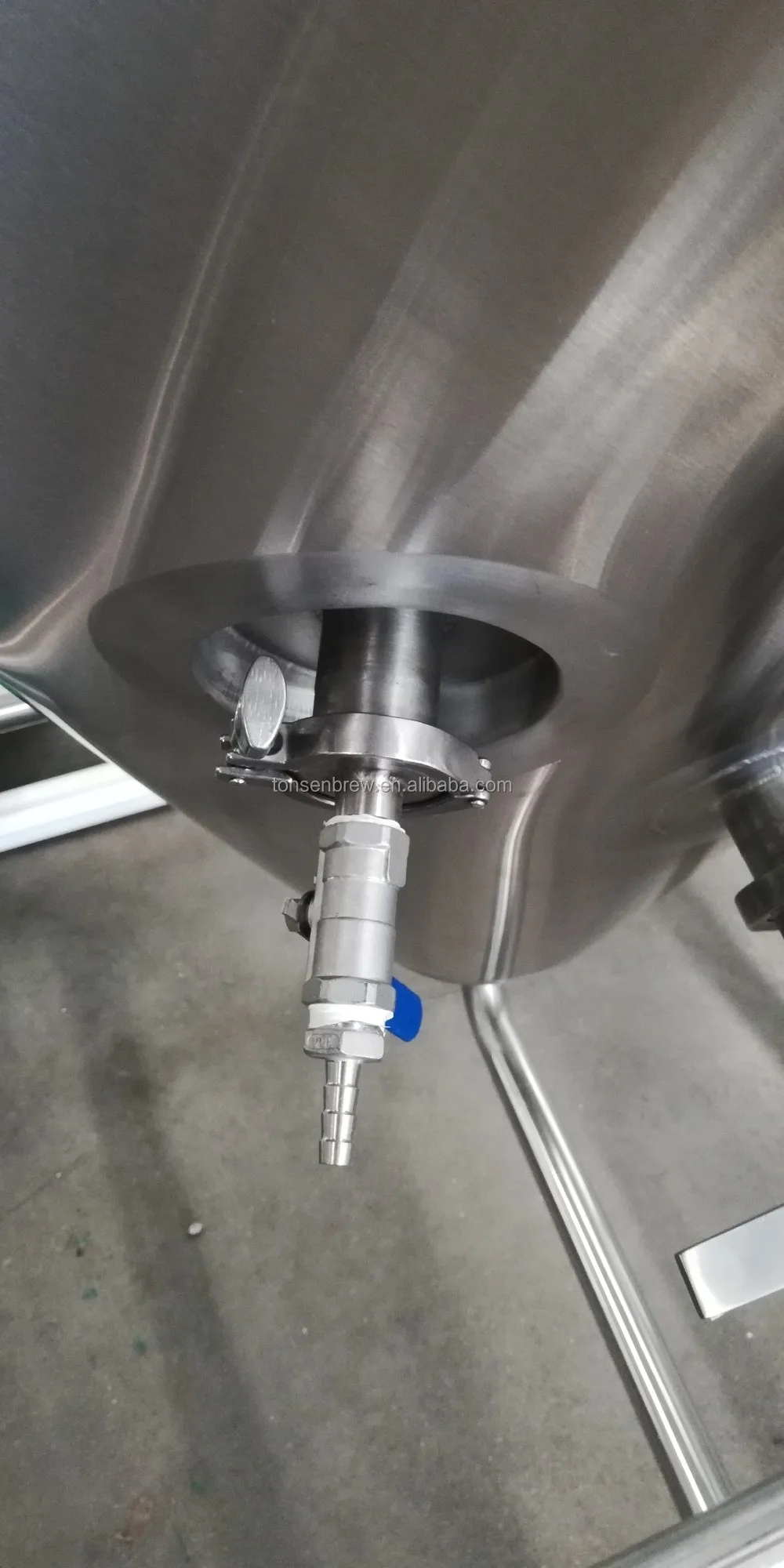

Whirlpool port and inner tank polishing from Tonsen

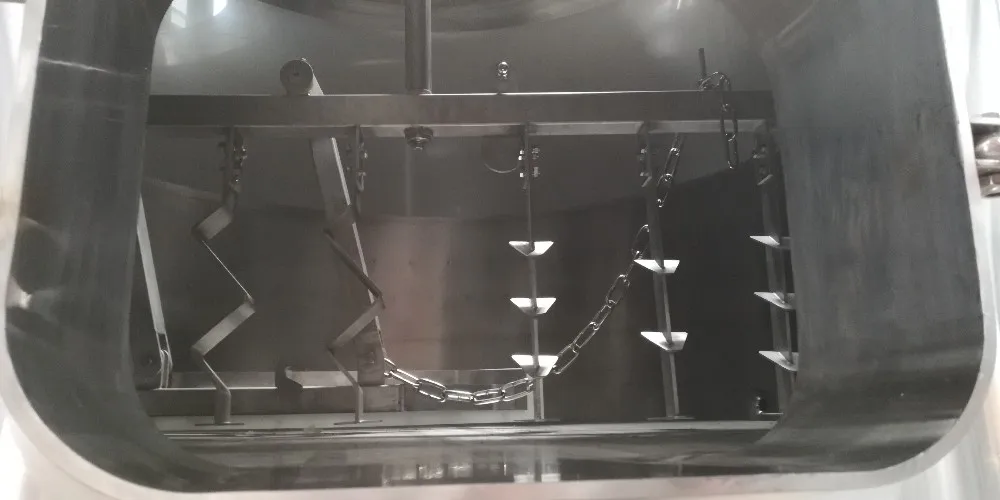

Lauter rake with manual lifted device for grain out

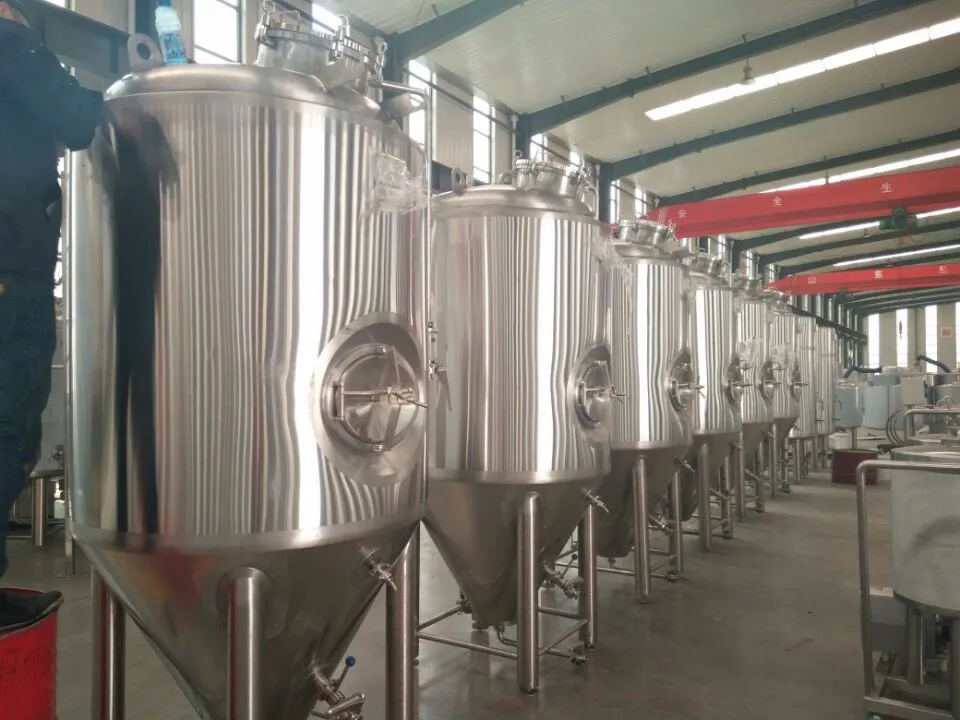

Fementation  tank /Unitank

Fermentation Tank structure is dished head and cone bottom,with Polyurethane installation and dimple cooling jackets .There is a cooling jacket on tank cone section,columnar part has three cooling jackets.
Accessories:
1.Thermowell with high accuracy temperature sensor
2.CIP, rotary spray ball
3.Inner tank mechanical polishing and out Plate Surface protection ribbon polished on welds.

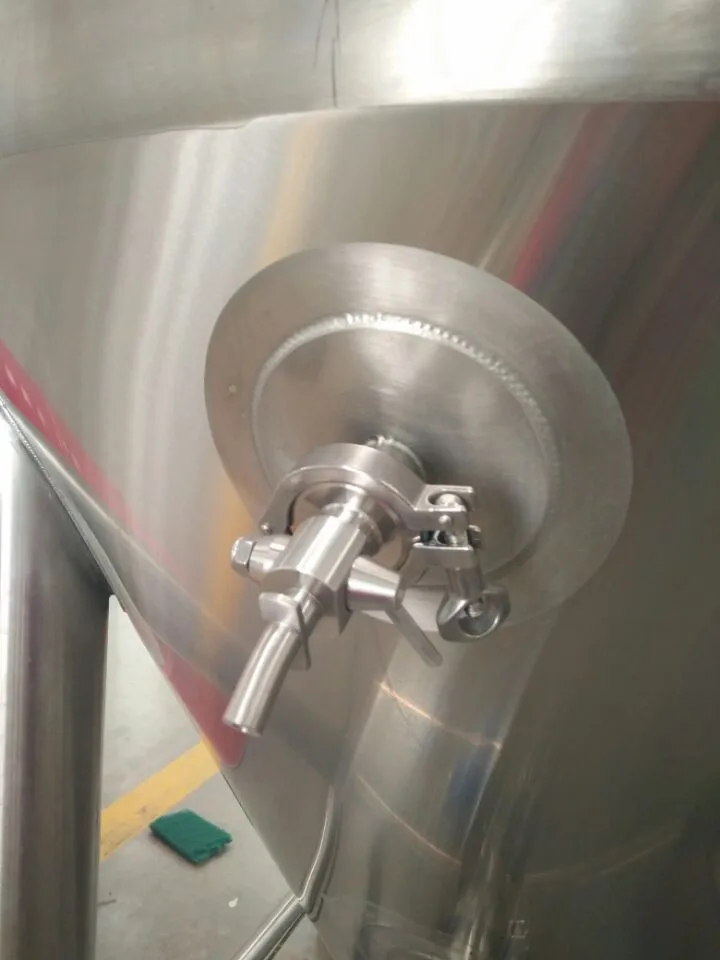

4.With Solenoid valve,breathing valve,mechanical pressure regulating valve,sampling valve,pressure gauge  and accessories matched.

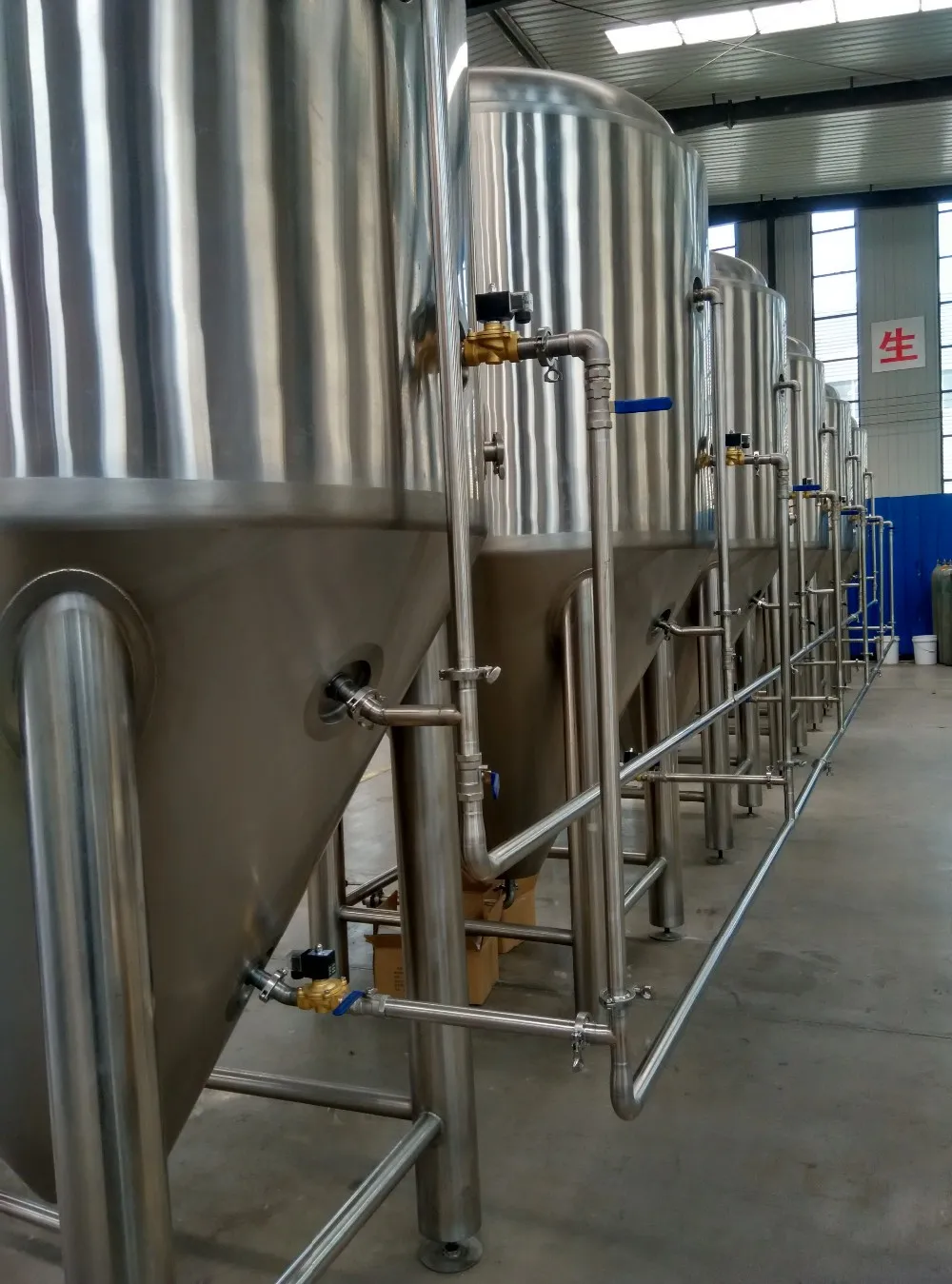

SUS glycol line upfront with soleniod valves which helps in solving MRO issues.

Top and side manway helps better cleaning and obsevation!

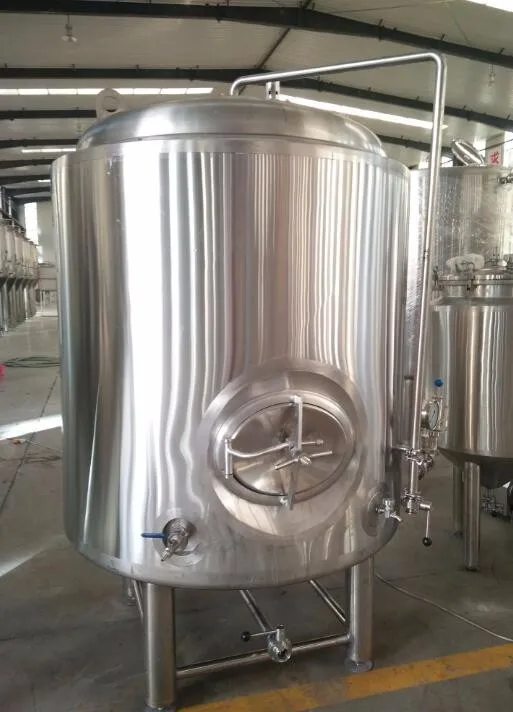

Bright beer tank

Project Recommend

Micro Beer Brewery Equipment


Whether you are creating a business or brewery renovation project, come here!
A perfect solution is always for you!

* Less capital investment, quick return
* Flexible configuration, easy follow brewing
* Health, safety life style, and potential market

* Cope with the hand-brew market demand
* Customize design,meet the diverse need
* Warranty for 3 years and lifetime repair guarantee

* Rapid production increasing
* Volume flexible,easy installation
* Small investment help business thrive

* Technical renovation and transformation
* Field design and execution
* Professional & Focused

                     For more project information please contact us Now!


Part Of Brewing equipment Information
Capacity/batch
100L
200L
300L
500L
1000L
Model
TS-100L
TS-200L
TS-300L
TS-500L
TS-1000L
Area
15M2
25M2
35M2
45M2
80M2
Power
8kw
12kw
20kw
35kw
35/15kw
Frementation cycle
8~20days
8~20days
8~20days
8~20days
8~20days

Note:1.1Hectolitre(HL)=100Liter; 1Barrel(BBL)=117Liter
            2.Water supply: water supply, for mashing, cooling, cleaning
            3. Electricity supply: 3-phase electricity
            4. Voltage/frequency adjust to your local power supply
            5.Material: malted barley or wheat, hops, water

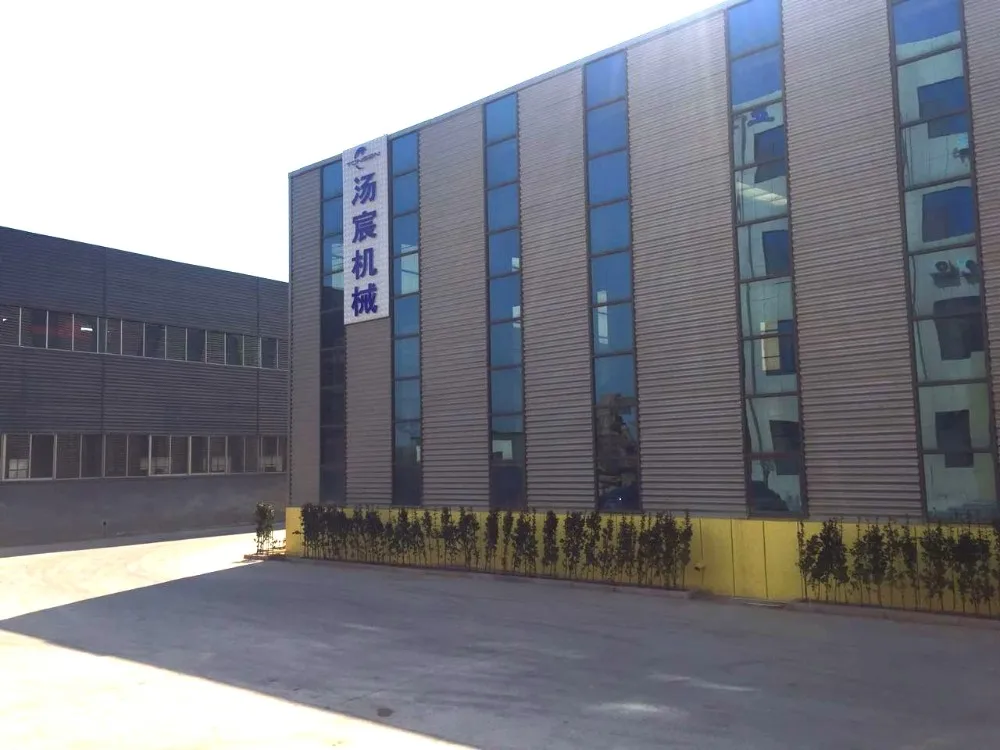

Copmany Profile
Tonsen Advatage

In Tonsen, Quality is our culture!

We'd like to share more information with you about us, about our factory, our products, our rawmaterial, manuracutring progress etc. The quality is not only shows by the tank appearance.Generally there are four main elements may have influence for the equipment quality: The raw material, the drawing of the quipments, the welding and polishing and the testing.


(1) About the raw material:

About the sanitary stainless steel 304 , we use 3mm interior shell and 2mm exterior shell.And we usually take the samples to test it from the government. We ensure its quality!

(2) About the drawing:
Generally our technician will design the suitable layout accordingly before production once our customers confirmed their orders.Then our workshop will do the manufacturing strictly according to the detailed drawing. It is normative for every order.

(3) About the welding and polishing:
We make sure the 100% TIG welding with pure argon gas shield. We use the central system of argon, instead of ordinary gas cylinder.The argon will help to reduce the oxygenation. After welding, they will be polished to arrive to 0.2~0.4 μm without dead corner firstly, then do acid pickling and passivation.Which will help to remove the oxygenation on welding line; and form protection film on the steel to avoid rust. It will help you to extend the tanks life time.

Here are our advantages:
1.We are one of the biggest pharmaceutical, beverage and brewery equipment manufacturers in China with more than 10 years experience.
2.Strong productivity of kinds vessels, we can produce satisfied product according your design.
3.Advanced technology assures strong welds and smooth seams.
4.Attention to detail at every step.
5.OEM / ODM services ,we provide one-stop services from one concept to a real product , and we can offer you very competitive prices

Our Service

Pre-sales Service:
1)Help the clients to confirm the configuration list
2)Supplying different beer craft specification
3)Designing the drawing according to the client’s floor plan and your requirement
4)Showing the detailed diagram of the tanks

After-sales Service:

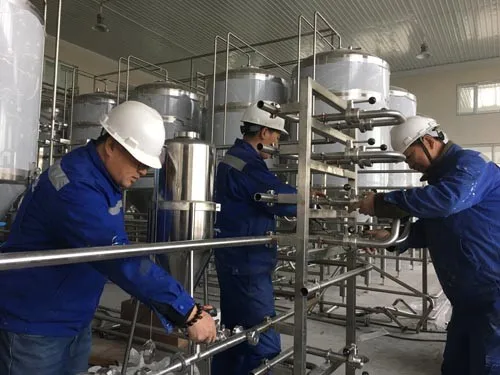

1)We provide turnkey system, onsite installation service for brewery projects.
2)It’s available for us to send engineers to guide install
3)Life time guarantee
4)Online technology consult

FAQ

1.Q: It’s the first year(1st year) for you to produce brewing equipments?
A: No. We worked in this business for many years but it’s the 1st year to generalize by alibaba

2.Q:How any years does your warranty ?
A:The main equipment for 3 years, auxiliary ones for 1 year.

3.Q;What’s your advantage ?
A:We are pioneer and know this business. Our 3 top-level technicists worked in this business over 10 years, 2 senior engineers worked over 8 years, workers average production experience is 3 years.

4.Q: Can you do OEM or ODM?
A: Yes, we can do.

5.Q: How to control temperature ?
A:PLC or digital display meter can control the temperature via connecting with the PT100 sensor.

6.Q: Is possible to supply installation in our country ?
A: Yes, we could supply engineer to supply installation guidance and training.

7.Q: Can your factory produce equipment according to our drawing or samples?
A: Yes, we can do.
