1000l industrial mixing tanks chemicals machine chemical machinery equipment

FOB Reference Price:Get Latest Price
$1,888.00 - $9,999.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Max. Loading Capacity:
1000 l
Application:
Medicine Processing, Chemicals Processing, Liquid, Glue, liquid
Condition:
New
Mixer Type:
Agitator, frame,anchor,paddle,turbine,combination
Product Type:
chemicals
Additional Capabilities:
heating or cooling
Place of Origin:
Henan, China (Mainland)
Brand Name:
Datang
Voltage:
380v
Dimension(L*W*H):
1300x1300x3100mm
Certification:
CE SGS
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Engineers available to service machinery overseas
Product name:
Glass lined Reactor
Name:
chemicals machine chemical machinery equip
Material:
SS316L,SS316
Capacity:
50-20000L
Heating method:
Oil,steam, water,electric heating
Machine type:
Chemical Batch Reactor
Motor:
Explosion Proof Motor
Power(W):
7.5-750kw
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
packed in plywood case, on tray or according to your request.
All the goods will be for safe packing, packages are strong and abrasion.
Port
qingdao shanghai ningbo tianjin or as your request
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 45 To be negotiated
Video Description

1000l industrial mixing tanks chemicals machine chemical machinery equipment

Product Description
Basic process:







Basic structure



Reactor outline dimension and parmenters table





Model

k-100

k-200

k-300

k-500

k-1000

k-1500

k-2000

k-3000

k-5000

k-6300

Nominal Capacity (L)

100

200

300

500

1000

1500

2000

3000

5000

6300

Actual Capacity (L)

128

247

369

588

1250

1720

2160

3380

5224

6735

Heat Exchange Area (m²)

0.66

1.26

1.75

2.64

4.54

5.34

7.02

8.61

13

16.4

Dimension(mm)

D1

600

700

800

900

1200

1300

1300

1600

1750

1750



D2

700

800

900

1000

1300

1450

1450

1750

1900

1900



H1

235

275

310

335

410

435

435

510

547

547



H2

500

700

800

1000

1200

1400

1740

1735

2335

2875



H

1930

2180

2520

2750

3100

3310

3700

3800

4480

5160

Speed of Agitators(r/min)

Frame(Anchor)Type

63/85





Turbine Type

130

Reference Weight(kg)

410

640

920

1150

1820

2350

2600

3550

4670

5450

Design Pressure:Vessel=0.2MPa,0.4MPa,0.6MPa,1.0MPa Jacket=0.6MPa Agitator:Different Types(Optional)

Reducer:Vertical Type

Seal:Stuffing seal(0.2MPa) Single Mechanical Seal(0.4MPa) Double Mechanical Seal(0.6MPa,1.0MPa)

Glass-lined reactors with design pressure greater than 0.6MPa inside the vessel shall be ordered seperately.

Major Dimensions of the FF type reactorsconform to the National Standard for Glass-lined Equeipment (HG/T2372-92),and modifiations have been made for improvement by our company.

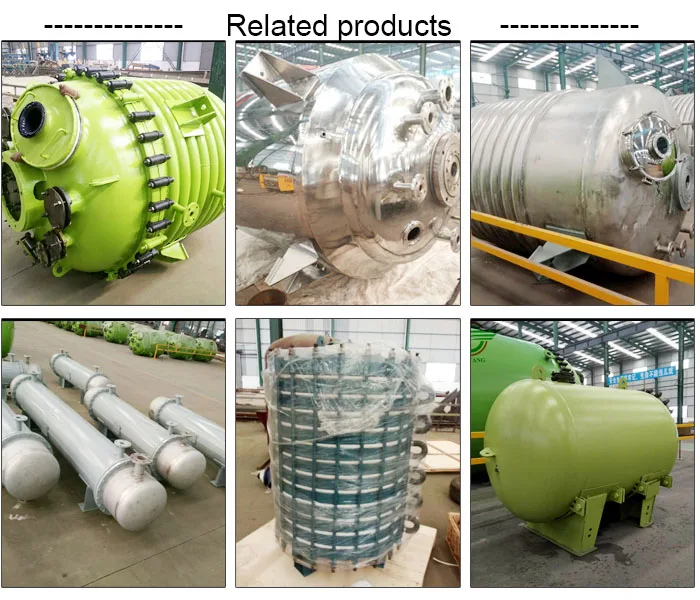

Related Products
Packaging & Shipping



1.shiping
2.By air
3.By train or truck

you can  choose the appropriate one based on your timeline and budget.

Our Services



  • We will  offer you reasonable prices and help you choose right model. we can also  make the products as your  request.
  • We will choose payment term you convienent and offer series of service,advise and video about our factory.

  • 1 year warranty service .We have professional engineers to provide professional installation instructions
Company Information
  •  We have a strong workforce and Professional engineers.
  •  Spacious workshop and production environment.
  •  A light-hearted corporate culture.
Clients Visiting

 welcome to our factory

FAQ

1,Your are manufacture factory or only trade company?



An:  we are manufacture and the largest manufacture in whole province, our workers had making experience more than 40 years.



2, If we can not sure the model,could you give us some help?



An: Yes, our engineers team is service for you, only please tell us your demands is ok.



3,What is your culture?



An: We believe that the quality is the soul of an enterprise, so QUALITY IS OUR CULTURE.



4,Could we visit your factory?



An: Sure, welcome your coming, if you have no free time come China, we could arrange Video Calling by whatspp/ wechat/qq/ skype, and take  you travel our factory online, the office building, .workshop, finished production room ect.



5, Could help install the equipments if  we need?



An: Yes, if you need our engineer oversea service for installtion, we could arrange engineer to your side help install together.

Letter to Clients

Hi dear Sir./Madam.

Welcome to Datang, and thanks for your visiting. QUALITY IS OUR CULTURE, in order to offer you a reasonable schedule about the reactor, please check the following questions firstly.



1, How many capacity reactor will you need, and the model need open or close type?

2,How many bar working pressure of inter tank and jacket tank will use? so we could design a reasonable  thickness.

3, It will be heated the reactor by steam or thermal oil or others?

4, Which kind of chemical will be treated by reactor?



Highly appreciated advanced if could get your information details about it and if you have drawing please also send us, we will design try our best to offer a COMPITITIVE ADVANTAGE PRODUCTIONS for you.

Best wishes and thanks again

Datang
