1000l micro brewery machinery turnkey beer fermenting equipment

  • 1 - 1 Sets
    $49,600.00
  • 2 - 2 Sets
    $45,500.00
  • >=3 Sets
    $41,300.00
Model Number:
HULK -1000l micro brewery machinery
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment, Fermenting Equipment
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HULK
Processing Types:
Alcohol
Voltage:
220-415V
Power(W):
72-100Kw
Dimension(L*W*H):
Capacity Request
Weight:
2000-3000KG
Certification:
CE ISO
Warranty:
3 years
After-sales Service Provided:
Field installation, commissioning and training
Material:
Stainless Steel 304/316
Function:
Brewing Beer Brewing Equipment
Heating method:
Steam/electric heating/direct fire heating
Thickness:
Inside:3.0mm Outside:2.0mm
Control system:
Temperature, Pressure auto control
Fermenter cone:
60-75 Cone Bottom
Terms of Payment:
T/T or L/C
Control method:
Manual, semi-automatic, full-automatic
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Inner stretching membrane and PE paper and outer steel frame, and other packaging for shipping.
1. Main tanks, vessels and machines will be packaged with plastic paper firstly then with painted steel frames.
2. All spare parts, accessories and fittings will be packaged with wooden box.
3. All items wrapped with soft package for protection.
Port
QingDao
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

1000L 3 vessel Beer Brewing Equipment

Brief Introduction

1000L beer equipment, widely used in restaurant, bar, hotel industry etc. with super design and best service.

Specification

Processing
Fermenting Equipment
Annual production
150,000-300,000L
Material
SUS 304 316
Power
72-100KW
Floor area
70-100
Heating method
Electric/Steam(recommended)/Direct fire heating

Features

1) Avaiable production capacity from 1-150bbl systems.
2) 304 stainless steel construction.
3) All brewhouse piping is stainless hardpiping. No plastic piping used in the brewhouse for wort or beer.
4) All control panels are pre-wired and pre-tested.
5)PLC Siemens color touch screens control system.
6)Complete mechanical engineering support, on-site installation, start-up and training support for all systems.

Other Products

Other products

Malt miller
CIP system
Cooling system
Control system
Double Rollers, Low Noise
Disinfection tank
Glycol Water tank
Single tank single control.
Roller distance could be adjusted.
Alkali tank

Chiller
Manual control, semi-automatic control and automatic
Cleaning pump
Ice water pump
control handover.
On a movable platform.
Cooling pipeline
PID or PLC control system available.

Auxiliary systems

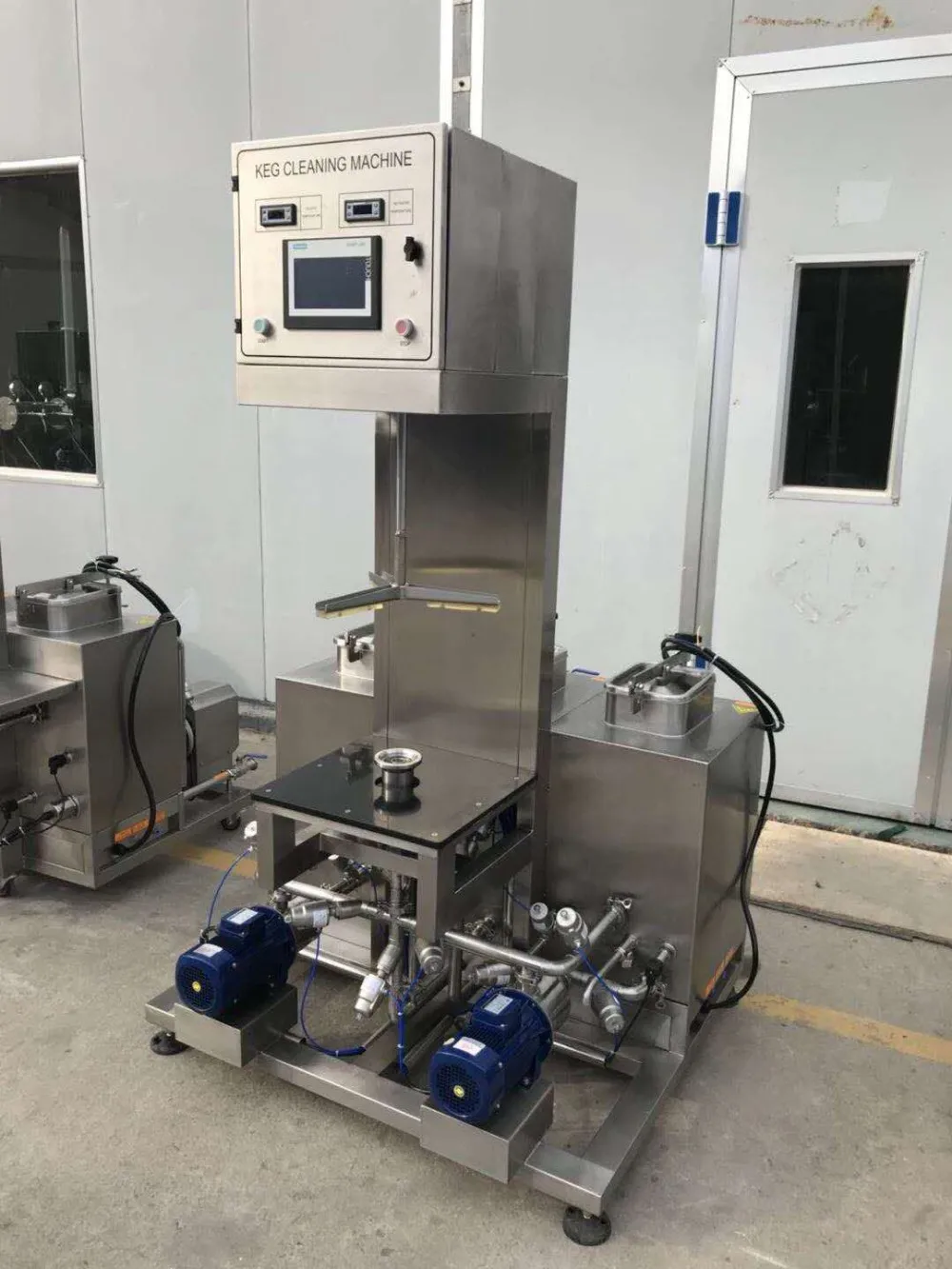

Single head keg washer

Diesel & gas generator
Detailed Images

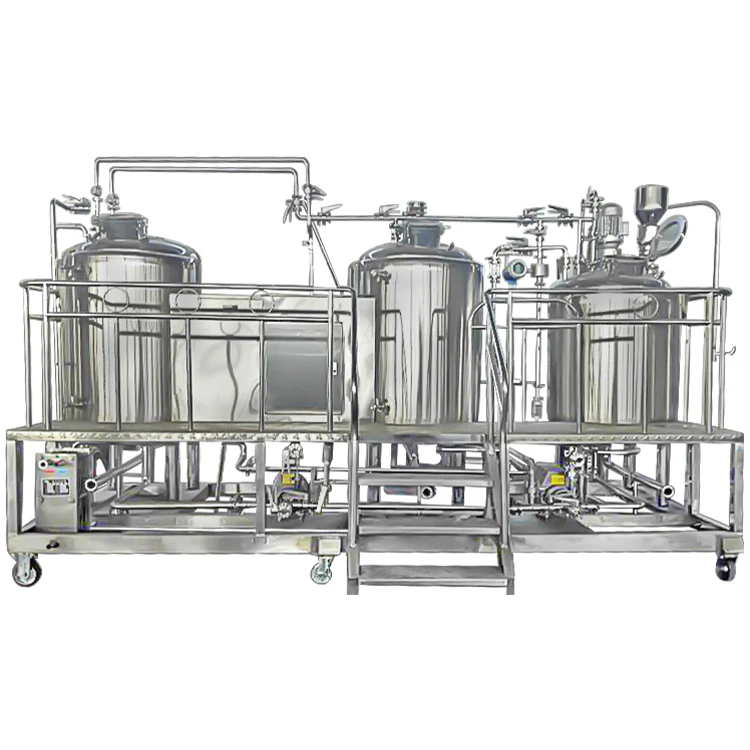

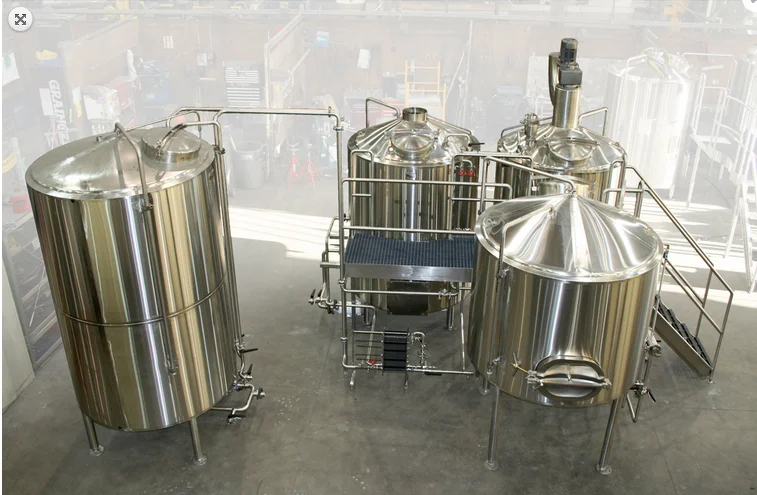

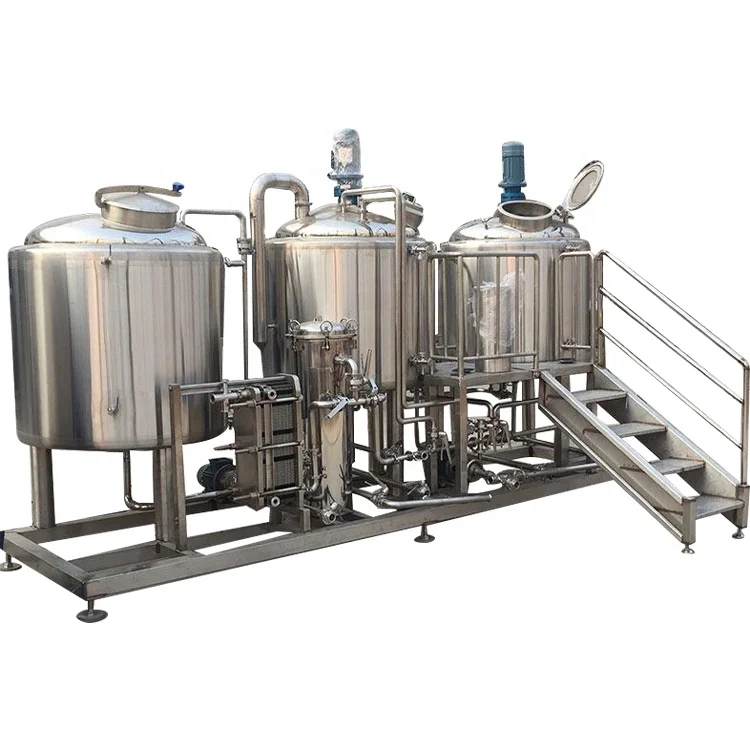

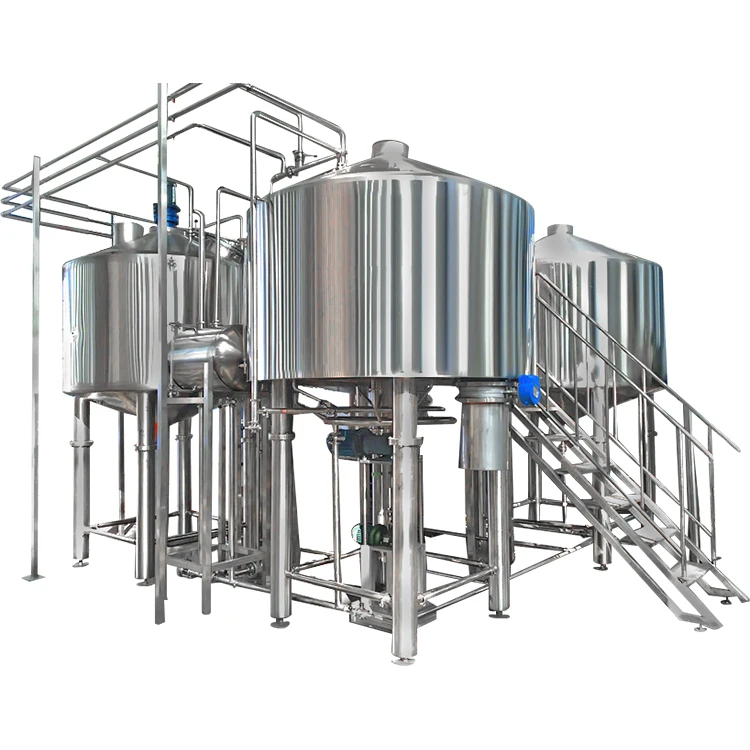

Brewhouse 3 vessel

Items
Components
Capacity
Technical specifications





Brewhouse
Mash tun
1000L
Raker with VFD
Agitator
Sparging spray ring
Anti-rinser
Milled sieve plate
Oxygen filling device

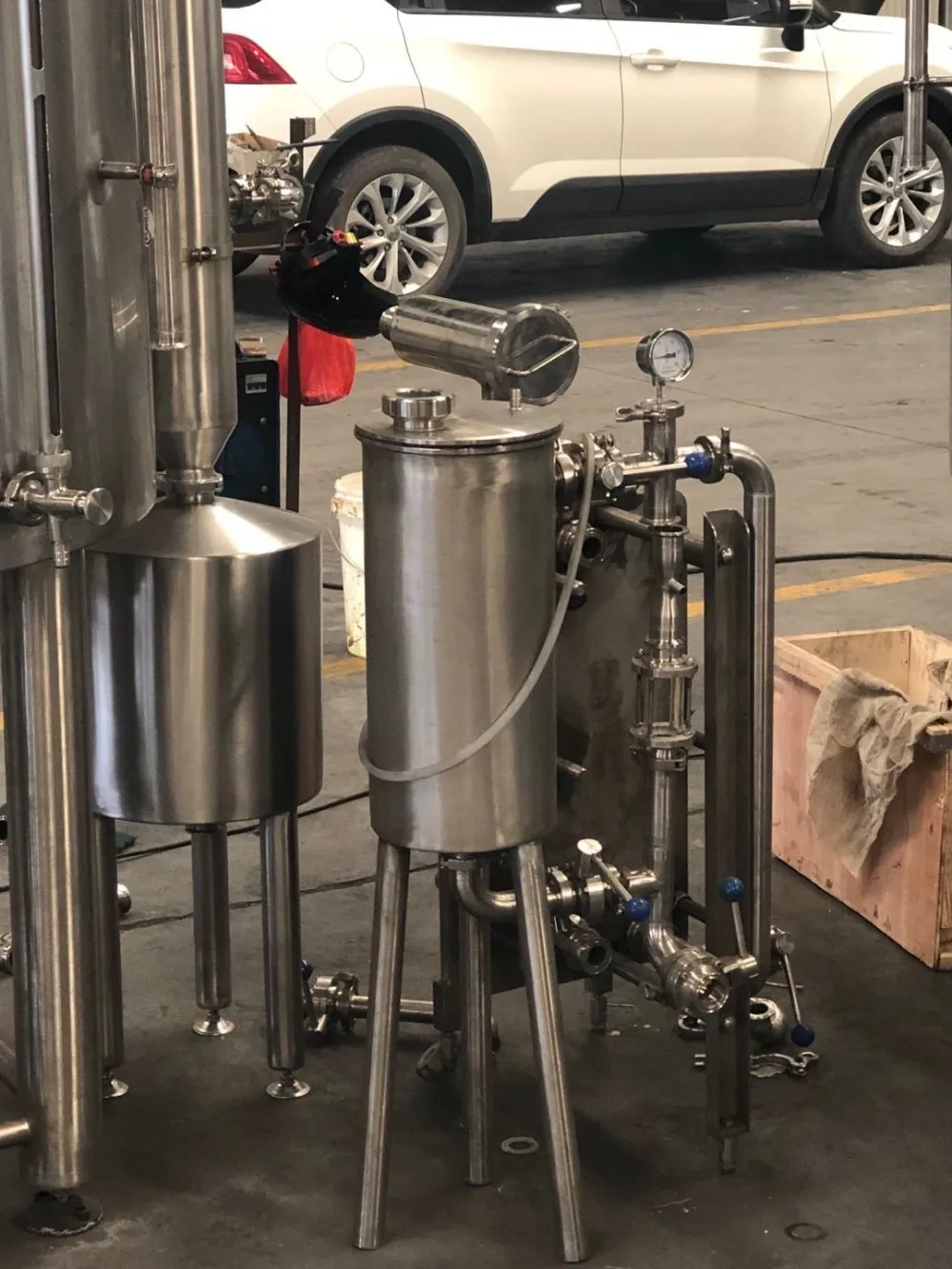

Hops back
Plate heating exchanger
Temperature probe: PT100
Tangential whirlpool inlet
Indoor condensate system
Lauter tun
1000L
Kettle/Whirlpool tank
1000L
Hot water tank
2000L
Items
Features
Thickness
Tank inside 3.0mm, tank jacket 2.0mm.
Temperature measurement method
With intelligent temperature probe, centralized digital display control.
Cleaning method
With ring cleaning coil for Lauter tun and all tank equips cleaning ball, 304 stainless steel material.
Whirlpool method
Tangential whirlpool inlet design.

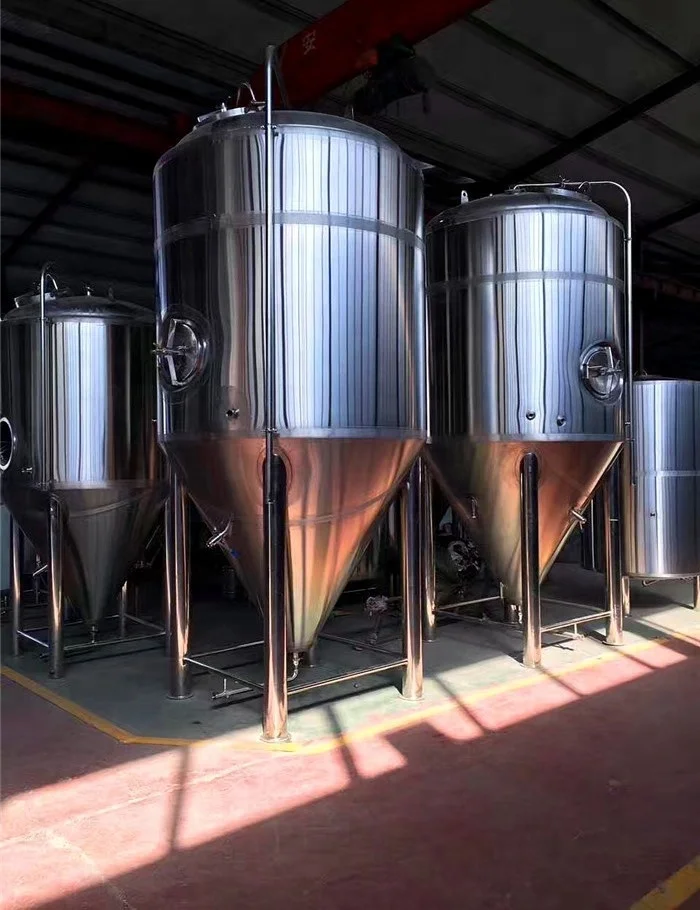

Fermenters

Items
Components
Capacity
Technical Specifications

Fermentation system
Fermenter
1000L/2000L
Yeast Adding Tank
Dry hops port
Rotating racking arm
Brite beer tank
1000L/2000L

Accessories

Technical details

Anti-rinser(optional) & Wort collect tube


Equipped in the under of Lauter tank.


Function:

Anti-rinser is mainly to flush the milled sieve plate.

Wort collect tube is to collect the wort.

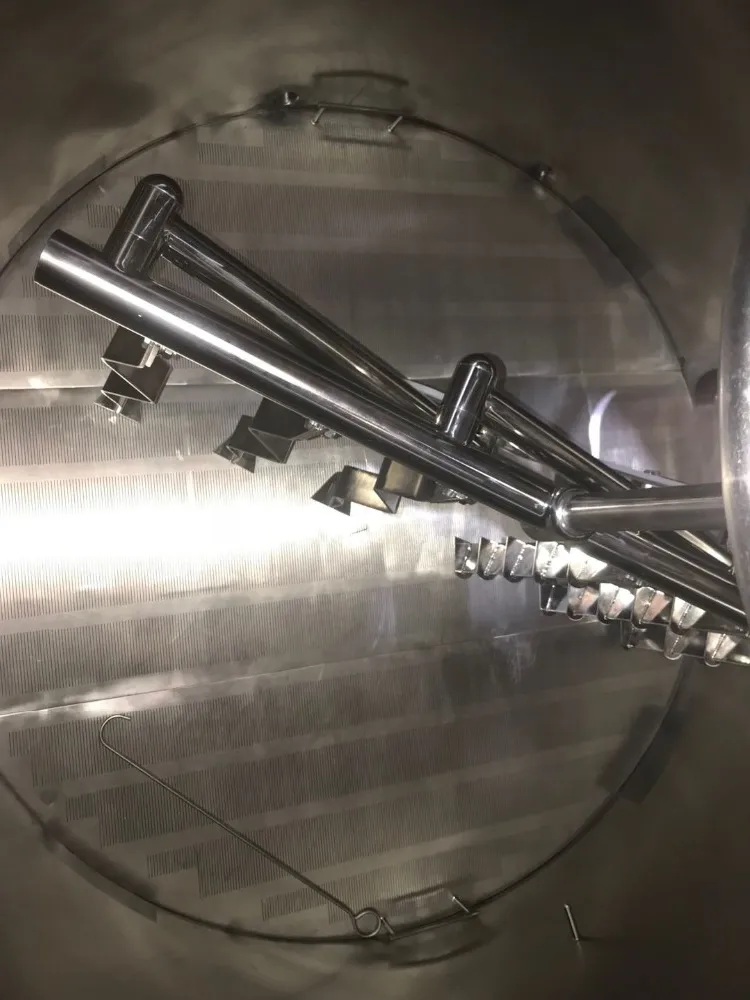

Plow knife/Raker knife

Equipped in Mash/Lauter tank, use for stiring the wort, and mashing.

Stir evenly and fast, to make the wort generate a high concentration.

It's operation will be controlled by the motor and the reduction gear.

Based on our brewery formula, filtration will cost 1 hour.

Welding method

All the use of argon arc welding method, fight the seam with argon arc welding gun welding method, the nozzle to take argon way single-sided welding double-sided forming.

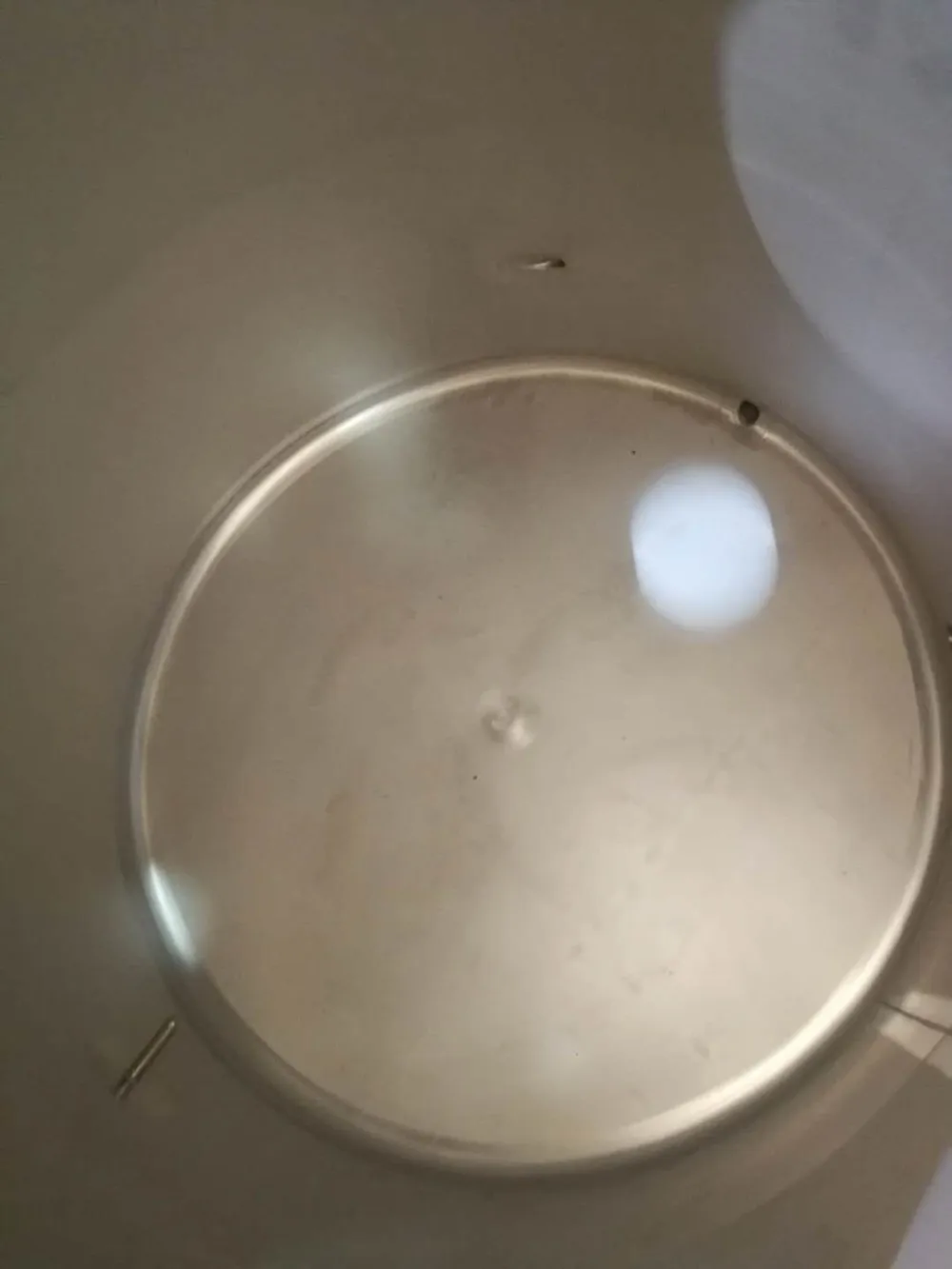

Plate bottom/Filter plate

Equipped in Mash/Lauter tank, Laser cutting T-wires, Plate gap: 0.8mm


This filter plate is made on a complete stainless by CNC lathe, it is strong, filter fast and leak no anty grist.

Function: Use for Separating wort and impurities.

Brewing Process

Process of brewing

Crushing

At first, we pour little water into the barley in order to make them fresh and wet, and then crush them with malt miller to get complete barley husks and grains.

Mash

We boil the water in the hot water tank to get the hot water for start. Next what we should do is to transfer part of hot water to the mash tun exactly, in which soak the grains we crushed sufficiently with agitator worked at specific temperatures such as 55℃, 65℃. After that, we will transfer some hot water boiling from hot water tank at first into the mash tun that has been emptied in order to wash grains.

Lauter

In this step, the wort is separated from the macromolecular particles through the milled sieve plate to keep itself clear. After the transformation of first wort to kettle tank, we transfer hot water from hot liquor tank to the lauter pot to proceed with first grain washing and later go on the second time to obtain second grain washing. Finally, pull out the grains.

Kettle

In this step, the wort is separated from the macromolecular particles through the milled sieve plate to keep itself clear. After the transformation of first wort to kettle tank, we transfer hot water from hot liquor tank to the lauter pot to proceed with first grain washing and later go on the second time to obtain second grain washing. Finally, pull out the grains.

Whirlpool

The wort that comes from kettle tank usually goes into the whirlpool tank from tangential whirlpool inlet by sanitary transfer pump, after which there will be a self-circulation in the whirlpool tank. After half an hour of whirlpool, the hot condensate collects into the middle of the slanting bottom. At the same time, the hops are separated from the wort with the hops back, and the remaining clear wort is cooled by the plate heat exchanger , and then oxygenated by the oxygenation filling device to enter the fermenter finally.

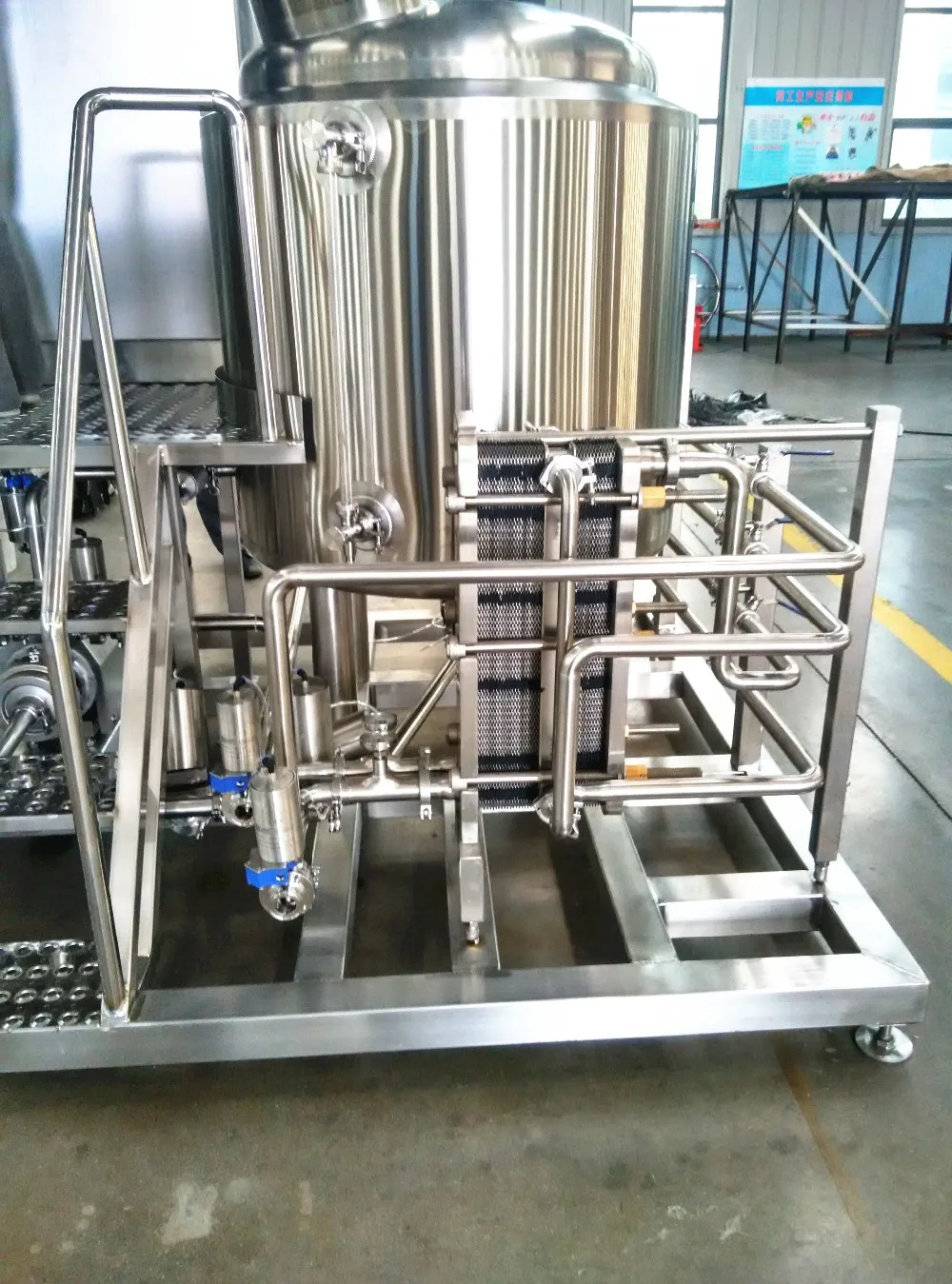

Wort cooling

After the whirlpool, the wort must be brought down to fermentation temperatures 20–26 °C (68–79 °F) before yeast is added. In modern breweries this is achieved through a plate heat exchanger.

Fermentation

In this step, we only need to add yeast and wait, however some kinds of beer need to add hops during the fermentation.
The maturity time varies with the type of beer, usually between 12 and 21 days.

Our Company

Company Introduction

Hulk Equipment Company is one of the manufacturers specializing in R & D, production, sales and services of beer equipment. We have a batch of engineering and technical personnel engaged in the research and development of the beer brewing equipment, with more than 10 years' work experience in the industry.

Advantages

1. The material of brewery equipment is food grade SUS304,316.
2. The layer of our tanks is 3 layers, which are inner jacket that is 3.0mm and by pickling and passivating polish, dimple jacket plate and external jacket that is 2.0mm by ink wires drawing plate.
3. Our brewhouse and fermenters are equipped with sparging spay ring, cleaning ball and CIP arm.
4. As for fermenter, there is side manhole and upper manhole available.
5. We also configure the CIP car when you are discontented with the cleaning system I said before.
6. The whirlpool are equipped with tangential whirlpool inlet in the lower 1/3 of tank.

Packing & Delivery

Packaging and delivering
1. LCL/FCL ( 20GP/40GP/40HQ )
2. Packed with plastic film in fumigation free wooden case or fixed with iron frame
3. Up to export standard, Suitable for delivery.
4. By bulk carrier or independent containers, the size and quantity rely on the configurations and capacity.
5. Customers' requirements of the packages are available, Please tell us in advance.

Our Service
FAQ

How to Order?

Consult
we will recommend the most suitable equipments to you after being informed by your requirements, such as the per day producing capacity you want, the appearance of the equipment, the site size (Length*Width*Height) which you place your brewing equipment and other requirements.
Quotation
We will supply you with our detail quotation according to our consulted Beer Brewing equipments which with best quality and competitive price.
Process Evaluation
Both sides carefully evaluate and discuss all the details(including technical parameters,specifications and business terms) of the order, in case to exclude any misunderstanding.
Placing Order
If without any doubt, we will send you the PI(Proforma invoice), after you pay the payment, please send us the bank slip.
Production
We will send you the latest news and pictures about your equipment each step during the production.
Quality Control
The whole production procedure will be under regular inspection and strict quality control. And also we can apply the certificate you want.
