100w 130w auto feeding 3d Co2 laser engraving machine for fabric rubber plywood glass acrylic cnc

  • 1 - 4 Sets
    $6,000.00
  • >=5 Sets
    $4,500.00
Model Number:
O-C 1006/1309/1610/1812
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 >5
Est. Time(days) 8 35 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Laser Type:
CO2, co2 sealed laser tube
Engraving Speed:
0-20000mm/min
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, PLT
Application:
Laser Engraving
Engraving Area:
1000*600mm/1300*900mm
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Oree laser
Certification:
CE, ISO, GS, SGS, UL, CCC
Produce keyword:
Cnc Laser Cutting Machine
Laser tube:
80w/100w/120w/150w/180w
Laser output control:
0-100% set by software
Min.Engraving Size:
Chinese:2.0mm*2.0mm;English Letter:1.0mm*1.0mm
Control system:
DSP control system
Software:
RD software
Function:
non-metal engraving and cutting
Laser tube brand:
YongLi laser tube
Color:
White-Green
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
200 Set/Sets per Month Cnc Laser Cutting Machine
Packaging & Delivery
Packaging Details
Wooden case for CO2 Laser Engraving Cutting Machine for 100w 130w auto feeding 3d Co2 laser engraving machine for fabric rubber plywood glass acrylic cnc.
Port
Qingdao Port
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 >5
Est. Time(days) 8 35 To be negotiated
Product Description

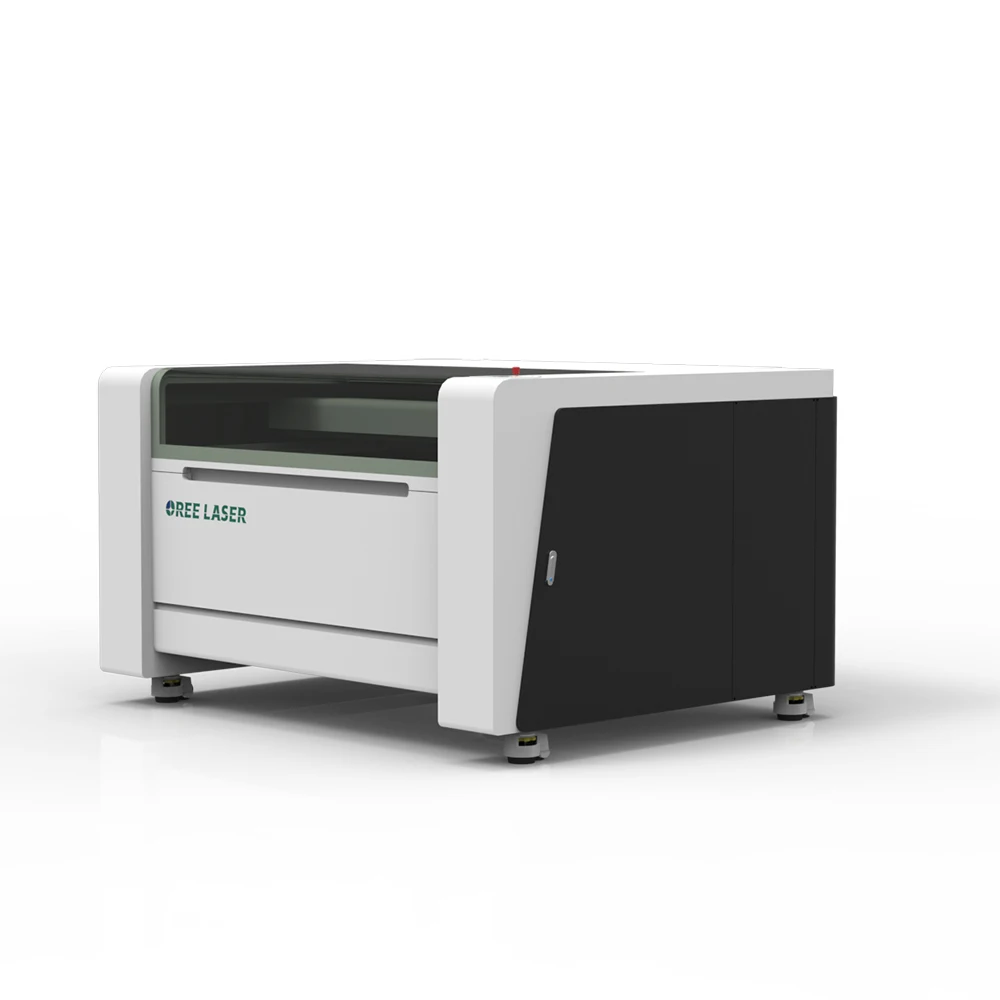

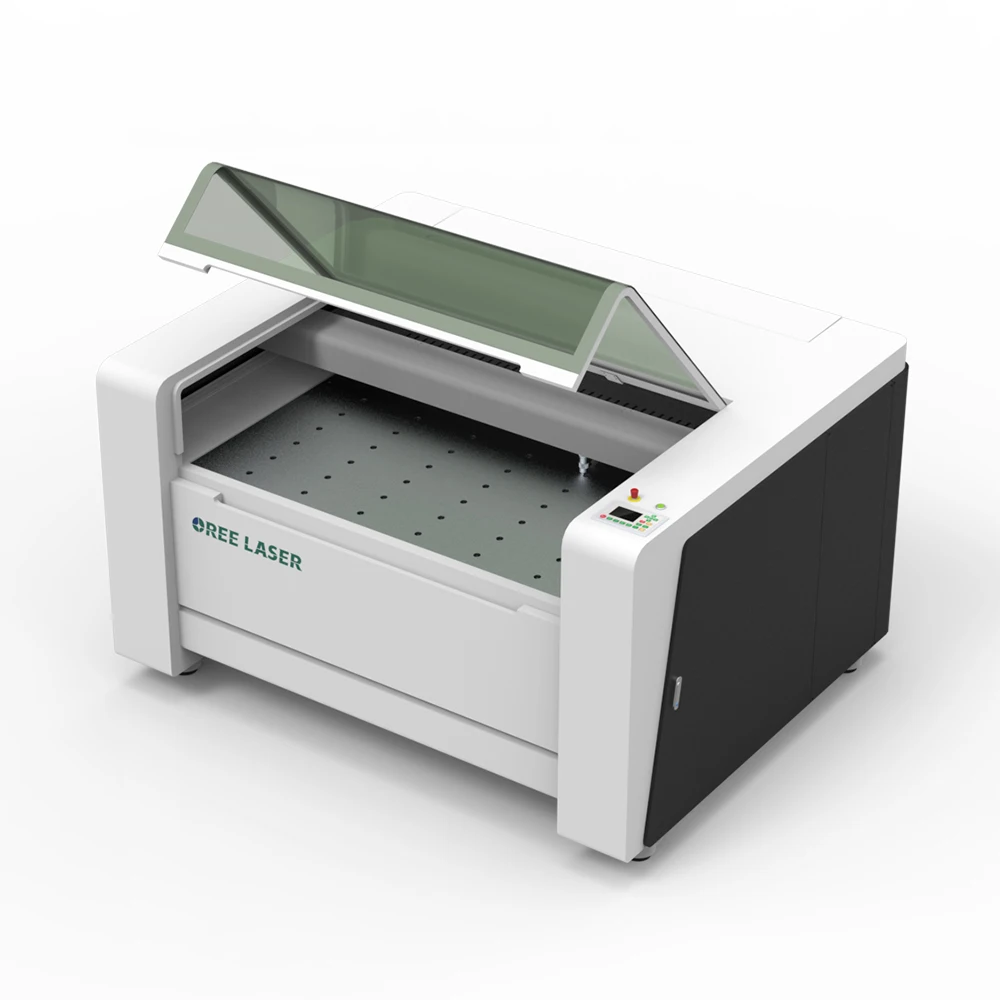

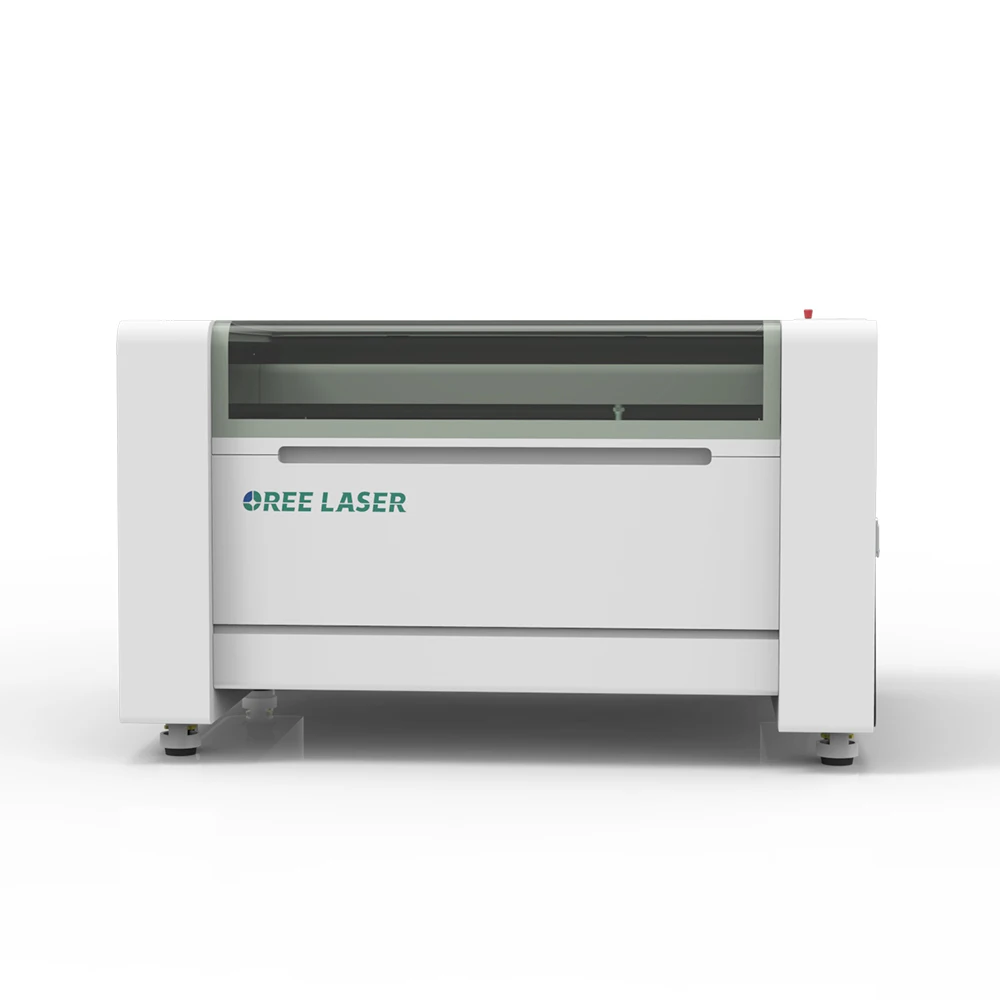

100w 130w auto feeding 3d Co2 laser engraving machine for fabric rubber plywood glass acrylic cnc

Laser Engraving Cutting Machine

· Patent designed: Has been grantted of the patent designed in appreance and technology;
· Red cross accurate positioning: Convenient and quick in finding working position;
· Three reflectors work with one focal lens: Make the light path stable for outstanding finishing effect;
· Manual focused laser head: Flexible and accurate, the machine can adjust the focus position according to engraving

  and cutting alternation and the material characteristics and thickness of the plank, to ensure sculpture quality;
· industrial grade steel structure: The thicker base can make the machine running stable and smoothly;
· Patent technology: Unique automatic convulsions smoke dust removal system blow air protection.

Model
O-C 1006
O-C 1309
O-C 1610
O-C 1812
Working Area
1000*600mm
1300*900mm
1600*1000mm
1800*1200mm
Laser Power
80W/100W/120W/150W/180W
Laser Type
CO2 Sealed Laser Tube, 10.6μm
Cooling Type
Water Cooling
Engraving Speed
0-20000mm/min
Laser Output Control
0-100% Set by Software
Min. Engraving Size
Chinese: 2.0mm*2.0mm; English Letter: 1.0mm*1.0mm
Highest Scanning Precision
2500DPI
Locating Accuracy
≤+0.01mm
Controlling Software
DSP Control System
Graphic Format Supported
Compatible with DXF, AI, PLT, DST, DSB and vector file such as BMP, JPG, GIF, PNG, MNG, equipotential graphic format
Compatible Software
TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,ALL TYPE OF AUTOCAD SOFTWARE IN CLOTH
Drive System
High-precision Stepper Motor
Auxiliary Equipments
Exhaust Fan and Air Exhaust Pipe
Power Supply
AC110V/220V±10%, 50HZ/60HZ
Working Environment
Temperature: 0-45℃, Humidity5-95%(No Condensate Water)
Option
Up&Down Table, Blade Worktable, Honeycomb Worktable, Rotary Device, Red Dot Position System, Auto-focus Device
Detailed Image

Control Pannel

Direct check and edit make the process easier.

OMRON Electronic Components

Sensitive, security and longer service life.

WIFI Control

Convenient - Wireless control.
High efficiency - One PC can control several machine at one time.

High-precision Step Motor Driver

High torque, low vibration, low heat, more reliable.

CORELDRAW&CAD

Advanced working software which can be imbedded into CORELDRAW and CAD, use can operate the machine by CORELDRAW or CAD software directly.

Universal Caster, Adjustable Feet

Move easily, stable and reliable.

Door Sensor Interlock

Safety Operation.
Interlocking door with auto-shutdown protection device.

Application & Sample
Material
Cut
Engrave
Acrylic, Plexiglass, PMMA, Perspex,Organic Board, Double Color Plate

Plastic, PP, PET, PC, PMMA, PS, PES, PA, Plastic Foils&Films, Polycarbonate, Polyester or Polyimide Membrane Keyboards

Wood, Bamboo, Veneer, MDF, Blasa Wood, Plywood

Leather, Pig Leather, Cow Leather, Sheep Leather

Textile, Cotton, Silk, Felt, Lace, Synthetic&Technical Textiles, Aramid, Polyester, Fleece

×
Foam&Filter, Mats Polyester(PES), Polyethylene(PE), Polyurethane(PUR)
×
×
Neopren
×
×
Paper, Cardboard, Chipboard, Press Board

Stone, Ceramic, Granite, Marble, Natural Stone, Pebble Stone, Slate
×
Rubber Stamps, Synthetic&Silicone Rubber, Natural Rubber, Microporous Foam

Silicone Rubber, Synthetic Rubber

Glass, Pressed Glass, Float Glass, Crystal Glass, Mirror Glass
×

Sample

-----------------------------------------------------------------------------------------------------------

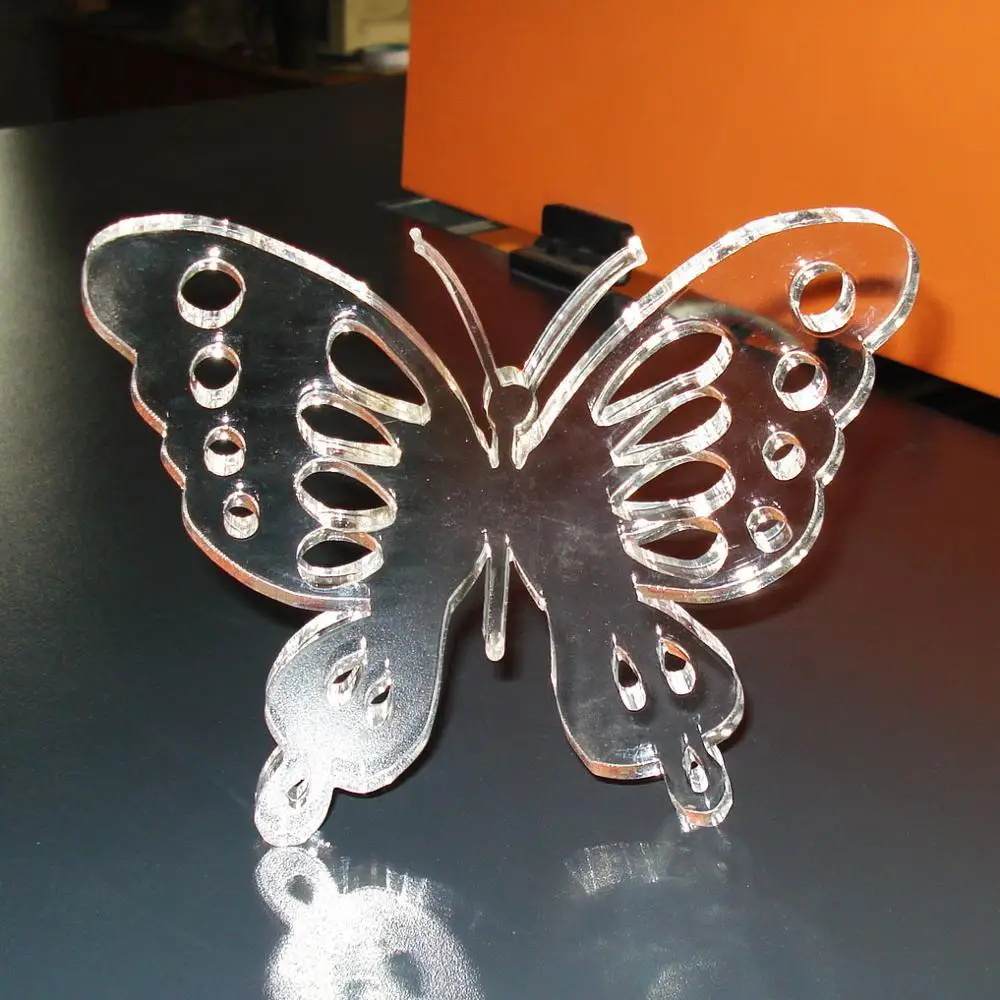

laser engraving cutting for acrylic       laser engraving cutting for plastic            laser engraving for glass                  laser engraving for USB disk

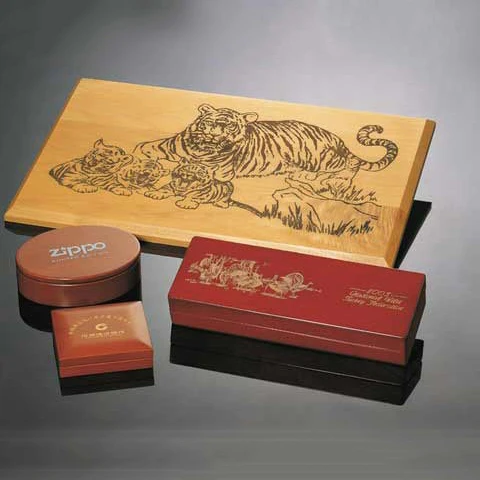

        laser engraving for leather                   laser engraving for bottle              laser engraving cutting for paper        laser engraving cutting for wood

Packing & Delivery

1)Packaging:
Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.

2)Shipping:
We cooperate with SINOTRANS company whose experience in the ocean transportation will guarantee your machine safety. We also provide train transport, especially to Russia, Ukraine and other inland countries.

3)Payment:
We support T/T, L/C, VISA, Mastercard payment terms with Alibaba Trade Assurance

Our company

Company Profile


We are the subsidiary company of Shandong OYADE group, located in Jinan North economic development zone, JiYang industrial park, owns 300 employees, 1000 square meters research and develop center, 42000 square meters workshop.

Oree Laser has several machine models, including Laser Cutting Series, Laser Engraving Series and so on.

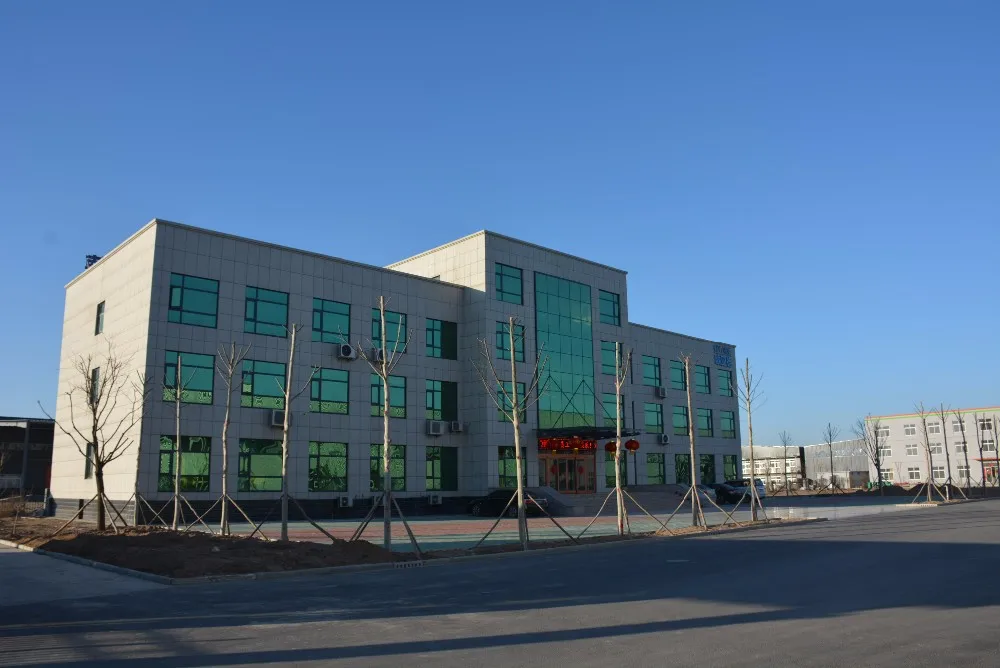

Office building

Satisfaction and honest are the principle of OreeLaser.

Oree Laser focus on customer value, creates more superior cusotmer value than competitors. Our products are sold to USA, Canada, Australia, Europe, South east Africa ect, more than 80 countries and area.

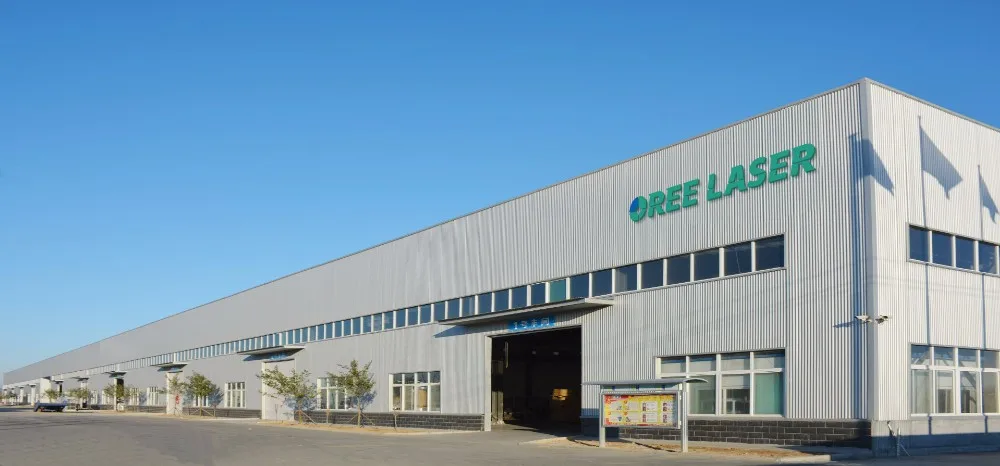

Factory

Qualities are at the heart of every OreeLaser.

Each product from Oree Laser is strictly examined according to ISO9001 (QCS) standard before it is put on to the market. Many laser equipment series have acquired CE,FDA certificate

FAQ

Q1: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.


Q2: When I got this machine, but I don’t know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.


Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.


Q4: Before sending me an inquiry on our fiber laser, it is better for you to provide me the following information
1)Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2)Your materials.
Metal/Acrylic/plywood/MDF?
3)You want to engrave or cut?
If cut, could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier
.
