1024x600 capcaitive waterproof touch screen 7 inch tft lcd panel for raspberry pi 3

FOB Reference Price:Get Latest Price
$47.80 - $86.30 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
HX0701703
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Screen Size:
7''
Type:
Capacitive
Interface Type:
USB, IIC, LVDS
Resolution:
1024*600
Brand Name:
Grahowlet
Place of Origin:
Zhejiang, China
Product name:
waterproof touch screen 7 inch tft lcd panel for raspberry pi 3
Size:
7 inch
Touch Screen:
Capacitive Touch Optional)
Touch points:
10 Points
Certificates:
ROHS
Structure:
Glass+Glass
Operating System:
XP Win7 8 Android Linux ect
Application:
Industrial Application
Shipping ways:
UPS.FEDEX.DHL Etc
warranty:
One year
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month touch screen lcd
Packaging & Delivery
Packaging Details
Standard anti-static packaging or as per customer's requirement.
Port
Domestic major ports
Video Description

1024x600 capcaitive waterproof touch screen 7 inch tft lcd panel for raspberry pi 3

Product Description

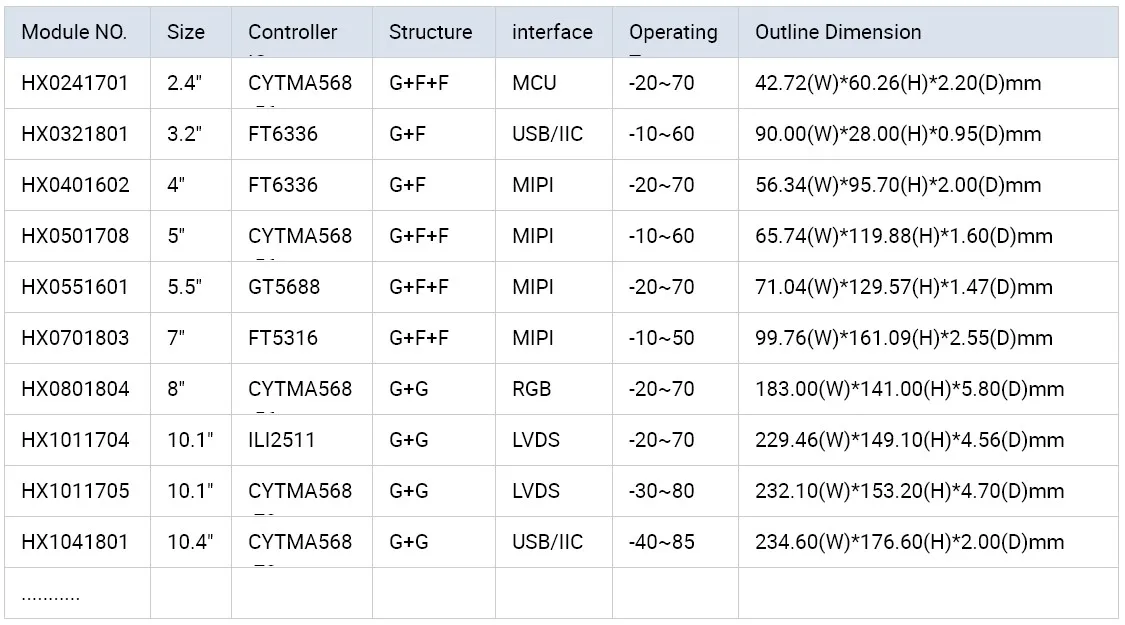

Customize CTP/CTP+ LCD DISPLAY 1.3-65 inch

Full range of standard product in stock (no need customization)



    MODULE PRODUCT DETAILS

    Model Number:HX0701703
    Size:7.0 inch
    Operating Temperature:-20℃ ~ 70℃
    Outline Dimension:165.00(W)x100.00(H)x7.90(D) mm
    Viewing Area:154.88(W)x86.72(H) mm
    Active Area:154.21(W)x85.92(H) mm
    Support Systems:Windows/Android/Linux etc
  Light Transmittance:≥85%
  Surface Hardness:≥6H
  Interface Type:IIC to USB (Plug and Play)
  Controller IC:Cypress
  Touch Points:1-10 Points
  Power Supply Voltage:5V



   TFT LCD DISPLAY

    Resolution:1024X600
    Interface Type:LVDS to HDMI
    Luminance:500 cd/m²
    Viewing Angle:80/80/60/70
    Warranty:1 year



This product includes: touch screen module ( PCAP and LCD display), " I2C to USB" bridge board, USB cable and " LVDS TO HDMI" driver board. Does not include HDMI cable.Our products can be connected to raspberry pi  by USB and HDMI interface.





Product Features



GLOVE FUNCTION

Support gloves made of various materials such as nylon,latex,
cotton,plush and leather and of different thickness,6mm the thickest.



  WATER FUNCTION

  Support touch with water,oil,
  oil-water mixture and brine

 THICKNESS

 Support normal touch with thick   cover like tempered glass,8mm   the thickest

Need to be reminded: : This product supports special features, but the configuration program is not currently imported. If your product has special functional requirements, such as; waterproof, explosion-proof, touch with gloves,etc, please contact me.



Related Products

Model Number:HX0501801
Size:5.0inch
Resolution:800x480
Interface Type:RGB
Luminance:350 cd/m²
Viewing Angle:70/70/50/70

Model Number:HX0701706
Size:7.0inch
Resolution:800x480
Interface Type:RGB
Luminance:1000 cd/m²
Viewing Angle:70/70/50/70

Model Number:HX0801704
Size:8.0inch
Resolution:800x1280
Interface Type:MIPI
Luminance:300 cd/m²
Viewing Angle:ALL



Model Number:HX0701702
Size:7.0inch
Resolution:800x480
Interface Type:RGB
Luminance:300 cd/m²
Viewing Angle:70/70/50/70

Model Number:HX0801809
Size:8.0inch
Resolution:800x600
Interface Type:RGB
Luminance:900 cd/m²
Viewing Angle:70/70/50/70



Model Number:HX1011704
Size:10.1 inch
Resolution:1280x800
Interface Type:LVDS
Luminance:350 cd/m²
Viewing Angle:ALL





We can provide USB controller , "MIPI TO HDMI" bridge board and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please Click here.



Custom Service

  Programme evaluation : 1 to 2 working days
  Drawings:2 to 3 working days
  Customized products:3 to 4 weeks(after drawings confirmed)
  Pruduction delivery :3 to 5 weeks
  Capacity: 100K per month(10.1 inches as a reference)
  Process capability: G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 )Cover glass surface treatment AR, AG, AF
  Technical support :Engneers to privide door-to-door or remote access service within 24 hours
  Stable supply chain for at least 3~5 years guarantee
  One year warranty time for all of our product
  Quality Assurance:Quality Control: Full-inspection of Function and Appearance by OQC
 Efficient Customer Service : respond to quality complaint and returns in one day
 Reliability Test: high and low temperature storage test, cold and hot shock test, ESD servo motor disturbance test, etc.

Application

Why Choose Us

RFQ

 Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry.  From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
