Field installation, commissioning and training, Engineers available to service machinery overseas
100l 200l 300l 500l 600l 1000l 3000L
SUS304 red copper
customize ( 110v 380v 415v)
1.5mm ~ 3mm
beer brewing equipment
6000 Set/Sets per Year
Packaging & Delivery

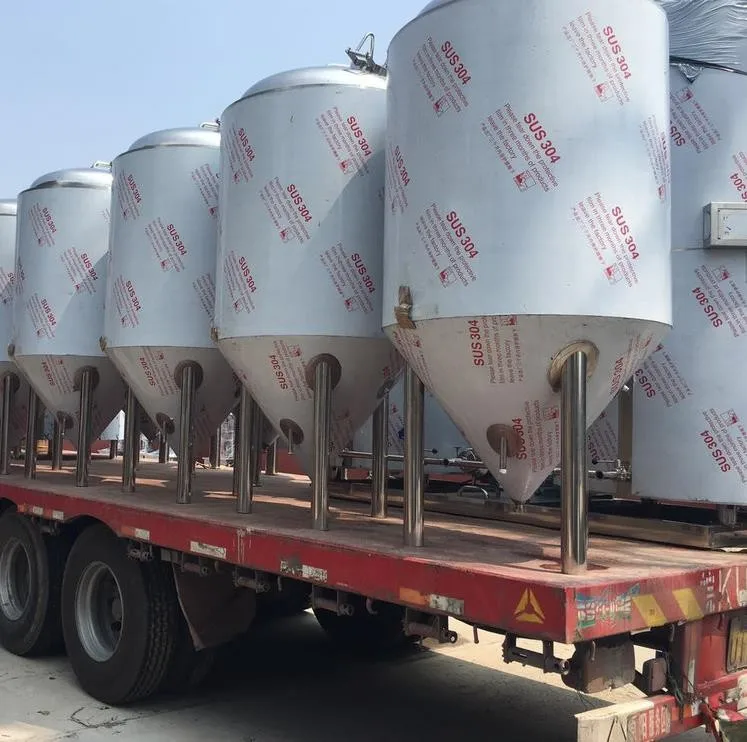

1)All tanks will be packed with soft protection material and mounted on steel frame
2)All accessories and spare parts will be packed with soft protection material and then put into iron box
3)After loaded into containers, all equipment will be fixed to the containers.

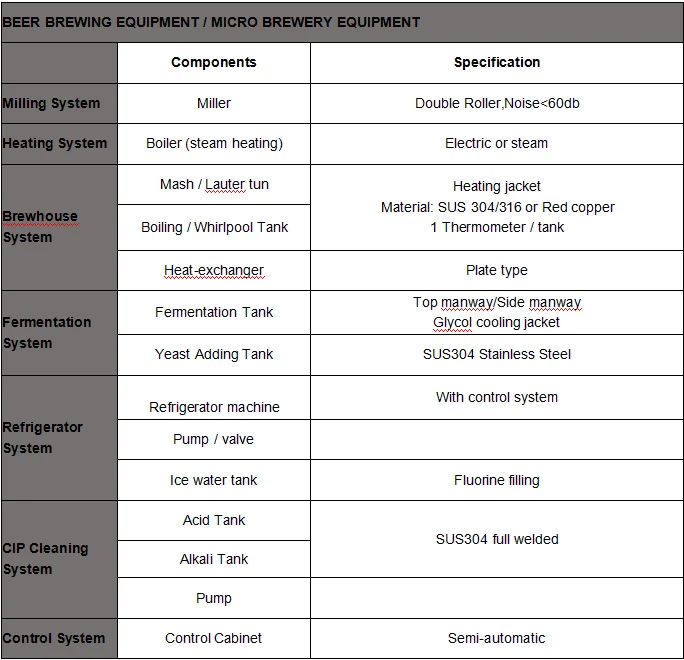

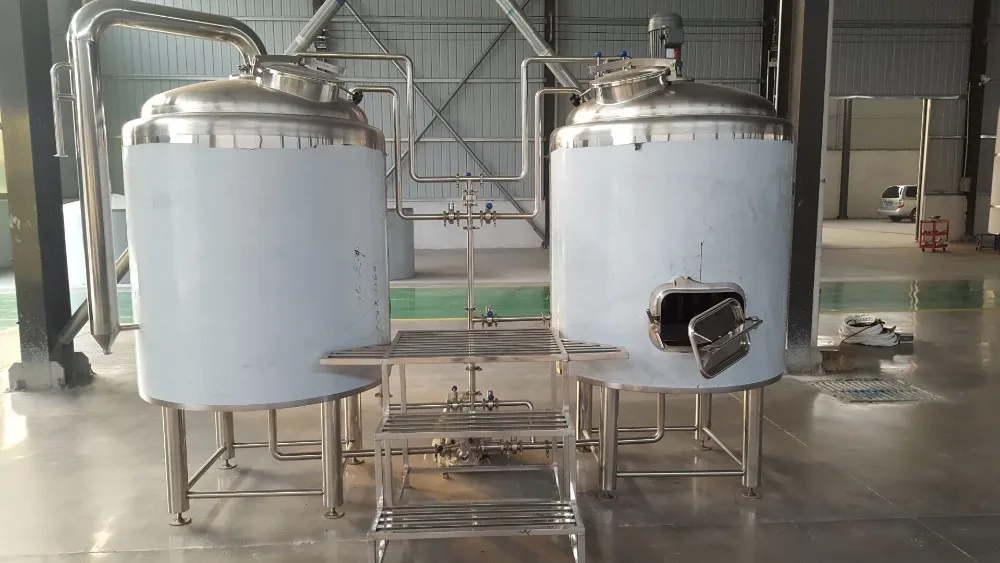

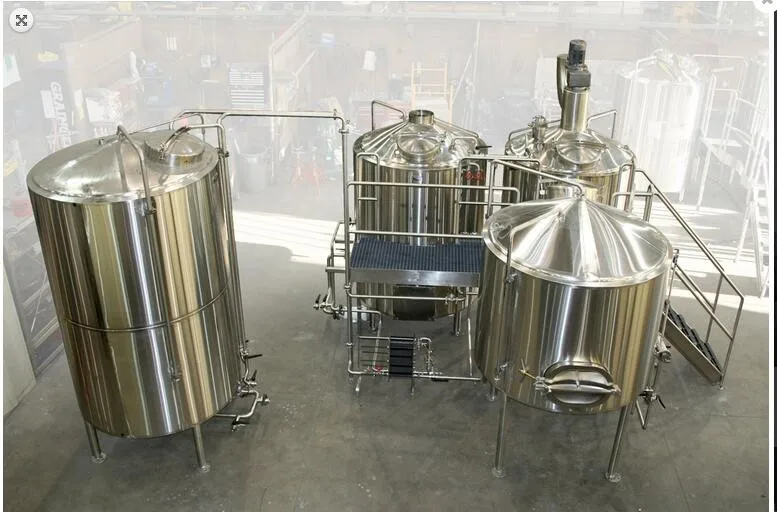

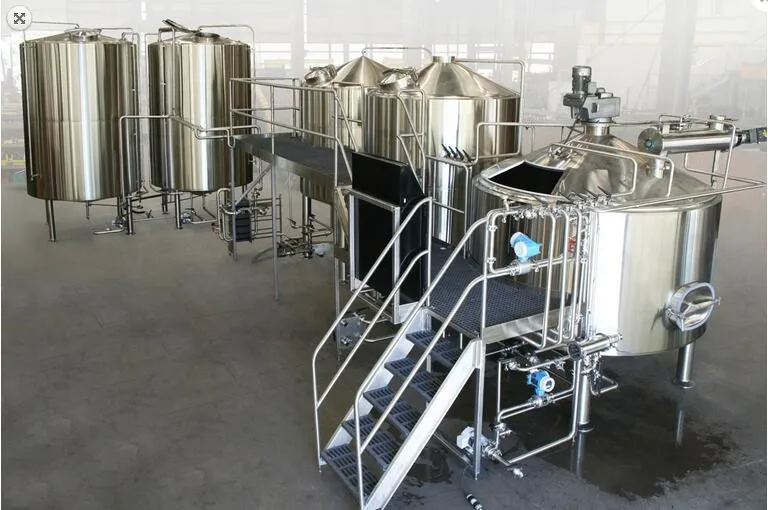

Our brewhouse system separated to 2 vessels, 3 vessels, 4vessels and 5 vessels, capacity from 100L to 20000L, use electric or steam heat. Semi-automatic control and easy to operate.
1)Desiging tanks and heating system according to craft, mash tank warming≥10℃/min
2)Energy saving stir structure : large cross-section impeller, 15r/min speed
3)Sieve plate of filter tank includes welding sieve plate and milling sieve plate.
4)Plow knife of filter tank separated to one foot, feet and bow plow knife
5)Wort boiling heat way includes steam jacket, interior heating and exterior heating.
6)Material includes stainless steel 304, 316 and red copper.

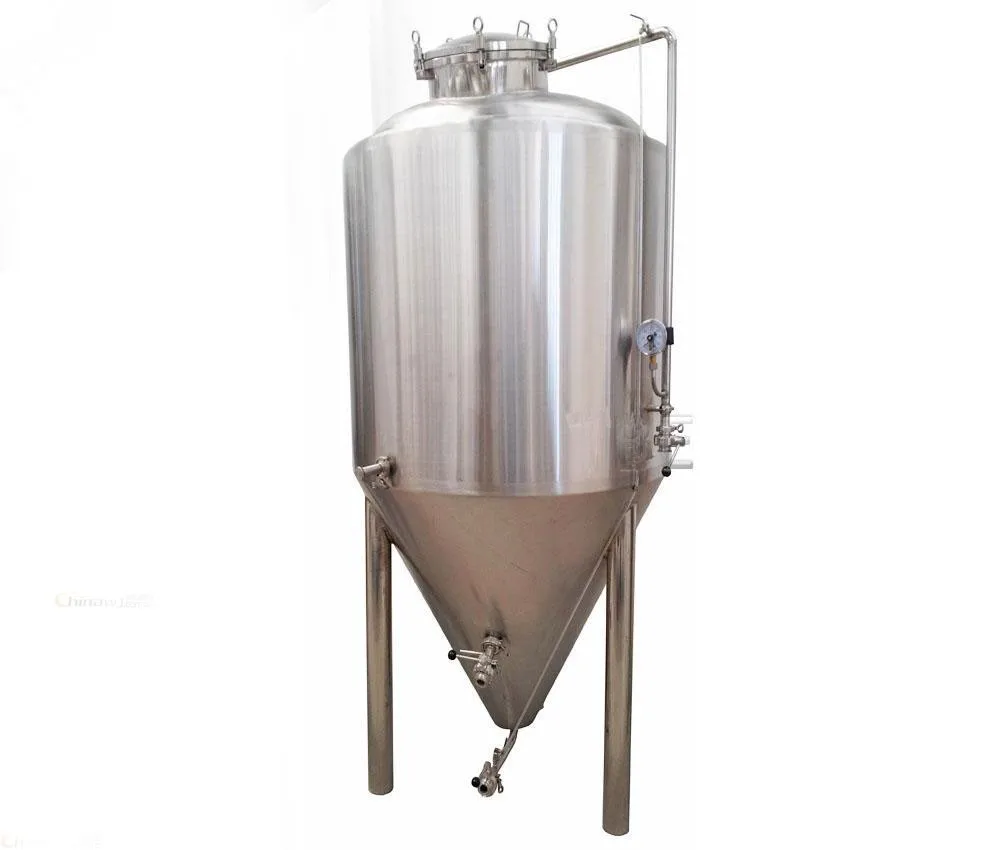

Fermentation tanks body is provided with a sandwich or cold, heating, cooling temperature. Fill the tank with the top and bottom head(or cone) are used spinning R-angle-grinding, polishing tank wall, no health corners, and fully enclosed design ensures that the material is always under a pollution-free status of the mixing, fermentation, air breathing apparatus with hole, CIP cleaning nozzles, manholes and other devices.
1)Our Fermentation tanks/tun available from 100L to 20000L (1 gallon to 20 gallon) and average 25% Head Space.
2) All tanks have a Dish top,
3)Cylinder body & 60/70° Cone Bottom.
4)Certified stainless steel(304,316) material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish.
5) Dimple Plate jacket for Glycol cooling & high efficient Polyurethane foam insulated.
6)All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30 PSI.
7) We can customize fabricate any tank to meet your brewery's space and height restrictions.

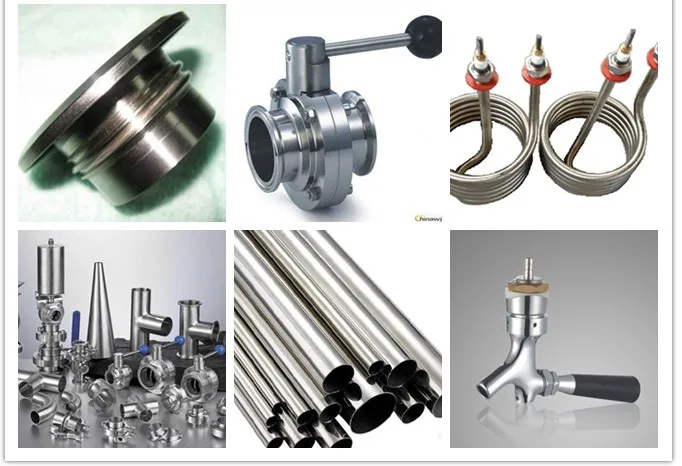

1.All auxiliary system and spare parts purchased from famous manufacturers who worked in this business over 10 years.

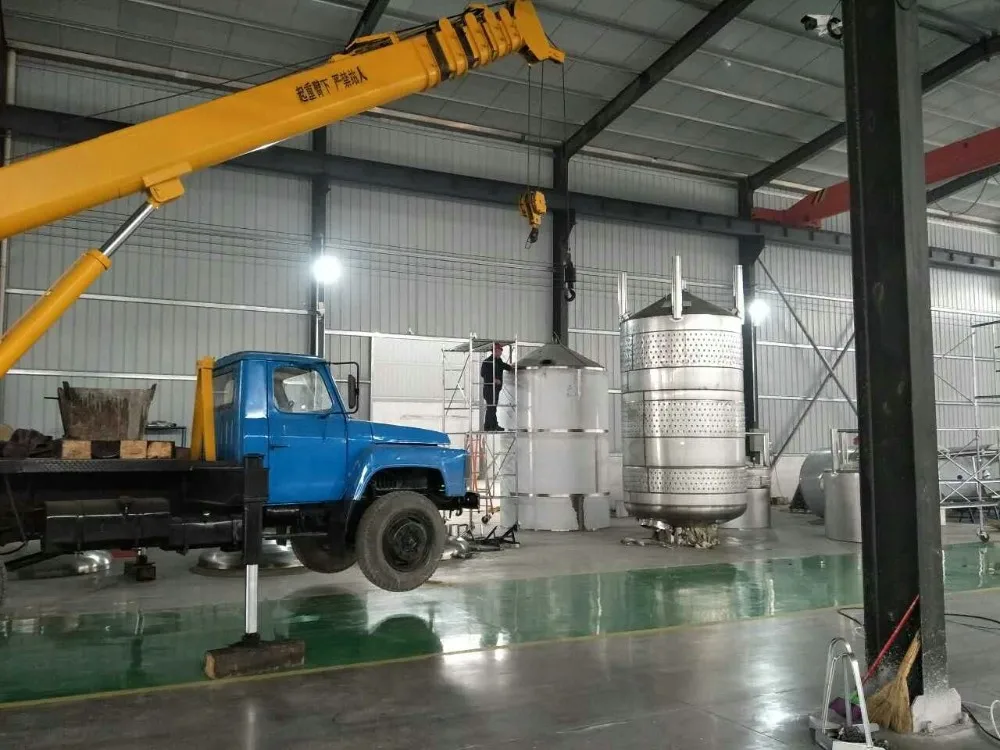

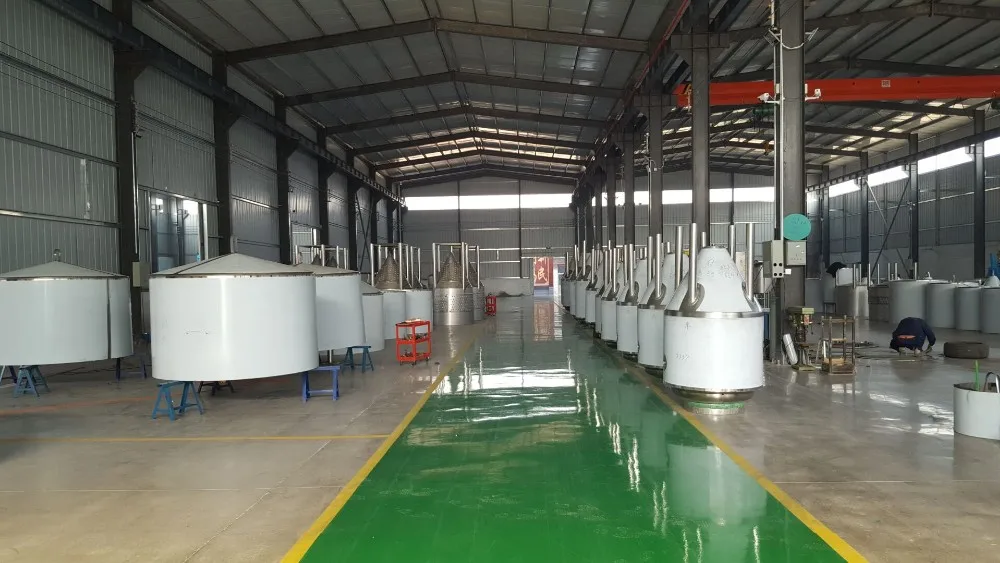

Tonsen company introduces the advanced German beer technology,equipped with industry-leading of equipment,include automatic longitudinal seam and girth welding equipment,large automatic polishing equipment,automatic laser cutting machine,spinning equipment,automatic welding equipment,CNC lathes, milling machines,guillotine shear,bending machine and other high-end manufacturing equipment,adopt imported high quality sanitary stainless steel material,follow strict production processing, we produce fermentation equipment with excellent performance, luxurious appearance,smart and cheap .
1.We supply the complete turnkey beer brewery equipment include the bottle and barrel filling system 2.The detailed floor plan,CAD drawing and 3D drawing of the brewery,installation pipeline connection drawing,the operation manual 3.We can transport the goods to your delivery place 4.Support sending engineer to install and training technology on site and supervised-installation with remote support 5.We supply the beer recipes,brewing technology 6.3 Years Guarantee service for the beer brewery equipment
Packing & Delivery
1)All tanks will be packed with soft protection material and mounted on steel frame 2)All accessories and spare parts will be packed with soft protection material and then put into iron box 3)After loaded into containers, all equipment will be fixed to the containers.
