10KV 11KV 15KV 20KV 33KV 35KV Outdoor Compact Package Transformer Substation

FOB Reference Price:Get Latest Price
$10,000.00 - $50,000.00 / Set | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Boerstn
Model Number:
YB
Product Name:
11KV 33KV Outdoor 3 Phase Mobile Power Substation
Application:
Electric Power Transmission
Keyword:
Mobile Power Substation
Certificate:
ISO9001
Standard:
IEC1330
Type:
Distribution Box Electrical Boxes
Frequency:
50/60Hz
Advantage:
Environmental Protection
OEM:
Offered
Phase:
Three
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Suitable for any sea transport or as per your required; As for the very big transformers, we will order special containers to ship them
Port
Ningbo/Shanghai China

11KV 33KV Outdoor 3 Phase Mobile Power Substation / Kiosk Power Distribution Station

Product Description

 The European type substation, is a complete set of new power transformer equipment developed by our company on the basis of transformation of national urban network making the optimal combination for the oil-immersed sealed power transformer and high and low voltage electrical components. Through structure optimization, the switchgear shall be miniaturized to extreme extent which greatly reduce the occupied area of the combined transformer whose volume is only equivalent to 1/3-1/5 of the European box-type transformers with such advantages as small volume, low noise, reliable power supply, reasonable structure, blexible for installation, easy for operation and capable of going deep into the load center to maximum extent, etc. It is widely used in residential quarters commercial centers stations industrial and mining enterprises airports railroads schools hospitals, high-rise buildings and places.



Main technical specifications



Name

Unit

HV equipment

Transformer

LV equipment

Rated voltage

kV

11/15/20/33

(11/15/20/33)/0.4

0.4

Rated current

A

630

depend on kVA

Less than 4000

Frequency

Hz

50

Rated capacity

kVA

50-2500

Prf withstand

kV

42/50/75/95

2.5

BIL

kV

75/125/170/185



Crust protection grade



IP23

Oil type 55

Dry type 65

IP23

Noisy Grade

dB







Appearance dimensions

mm

According to primacy wiring circuit schema

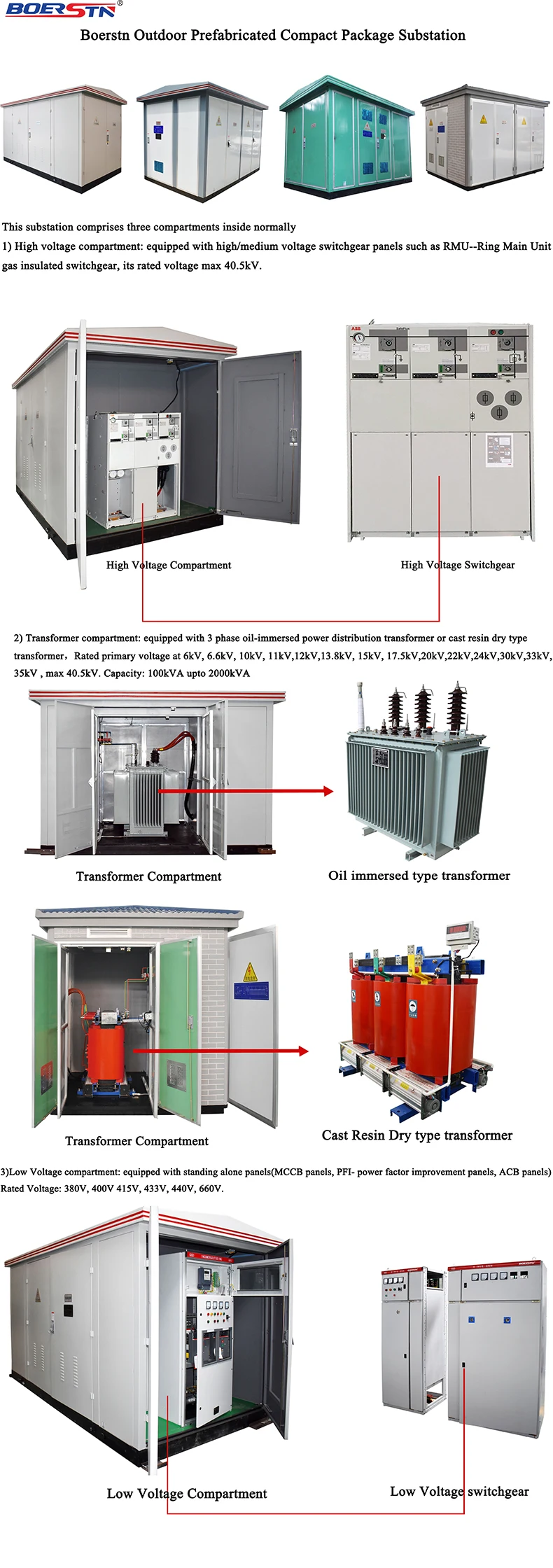

11KV 33KV Outdoor 3 Phase  Mobile Power Substation / Kiosk Power  Distribution Station.jpg
