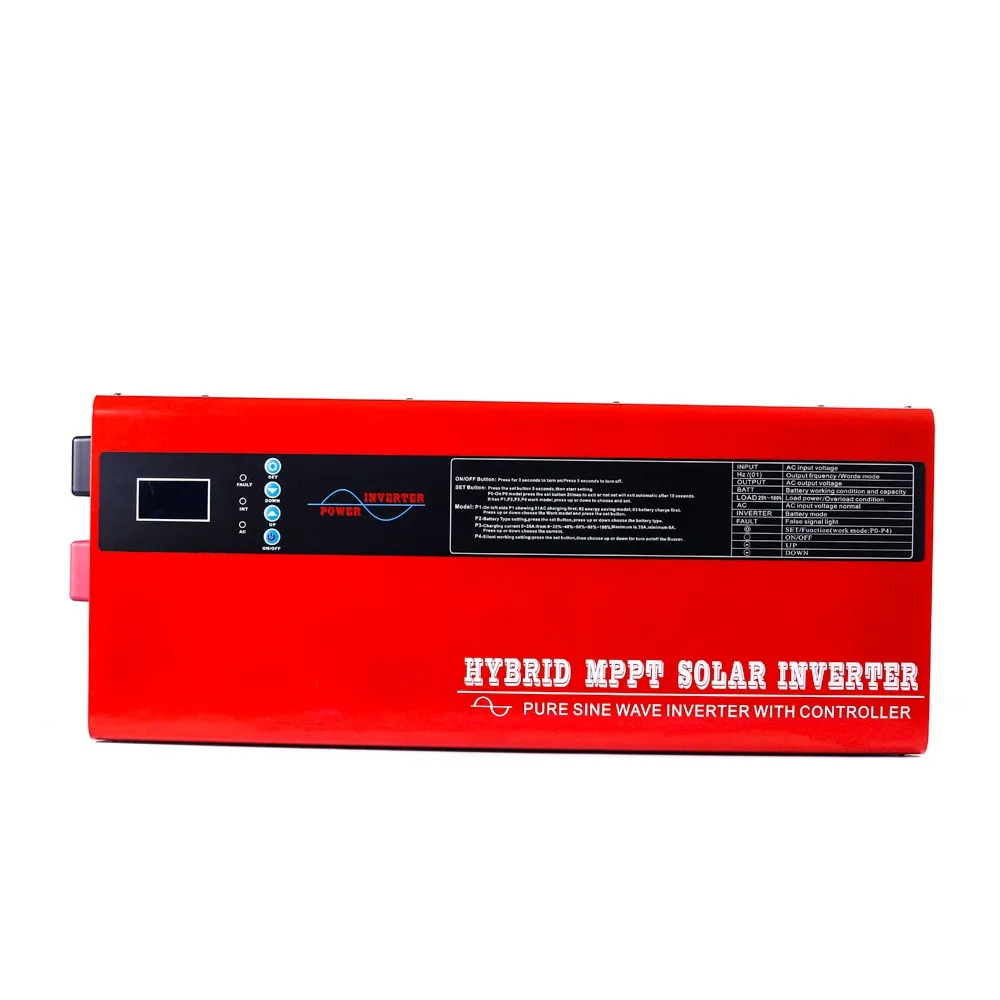

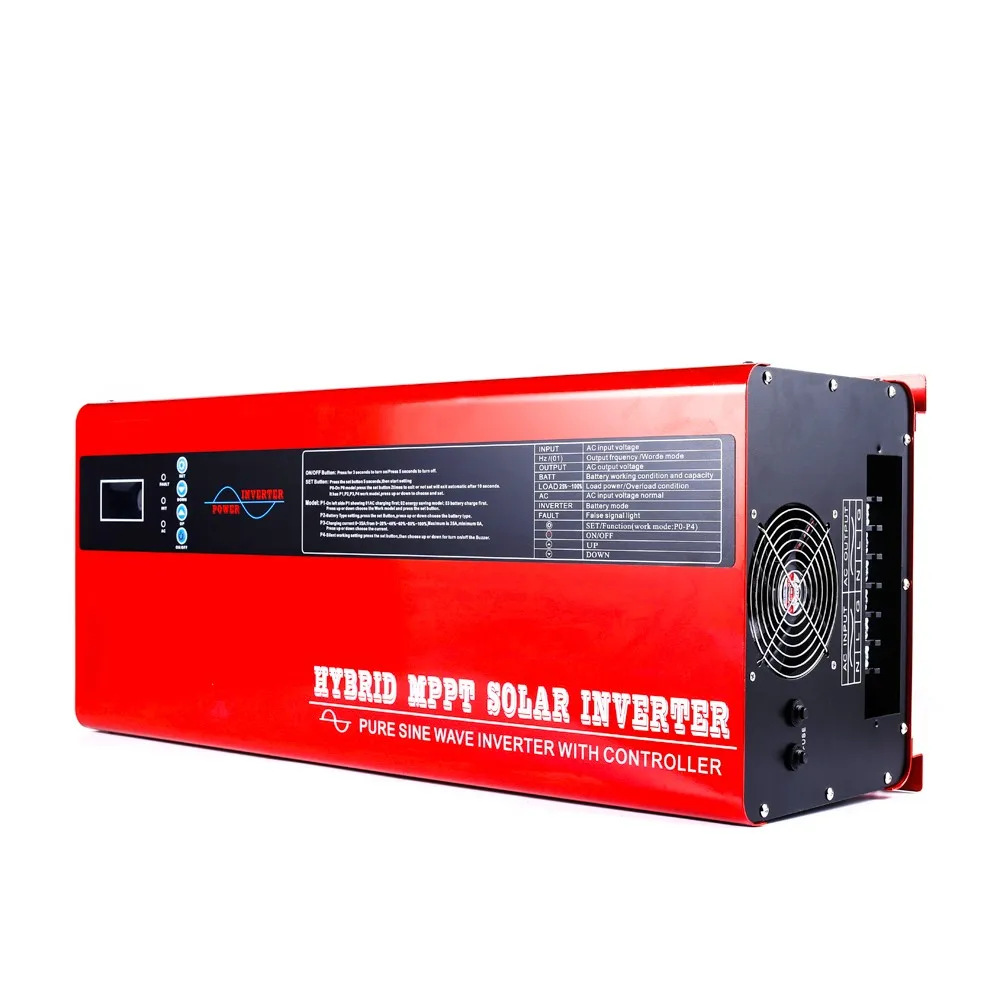

10KW Solar Inverter Off Grid Inverter Solar Power System Pure Sine

FOB Reference Price:Get Latest Price
$857.00 - $950.00 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 10 11 - 100 >100
Est. Time(days) 7 20 Negotiable
Customization:
Customized logo (Min. Order: 20 Pieces)
Customized packaging (Min. Order: 50 Pieces)

More

Graphic customization (Min. Order: 20 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
AMPLEC or OEM
Model Number:
AP-R10KW
Output Power:
1 - 200KW
Output Type:
Single
Size:
650*260*200mm
Weight:
56Kg
Input Voltage:
48V/96V/192V DC
Output Voltage:
110V or 220V
Type:
DC/AC Inverters
Output Frequency:
50/60HZ±1%
Output Current:
45.4A
Wave form:
Pure Sine Wave
Rated capacity:
10KW
Peak Power:
30000W
Nominal battery voltage:
48V/96V/192V DC
AC charger:
35A
Efficiency:
98%
Comnunication:
RS232:optional
Output voltage range:
Tracking automatically
Display:
LCD
Thermal method:
Cooling fan in intelligent control
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1pcs packed by carton box, product size 660*275*205mm, 56KG
Port
shenzhen port
Lead Time :
Quantity(Pieces) 1 - 10 11 - 100 >100
Est. Time(days) 7 20 To be negotiated
Product Description

10KW Solar Inverter Off Grid Inverter Solar Power System Pure Sine

1.Pure sine wave output

2.CPU control technology; SCM control
 3.Strong ability of impact resistance
4.Have UPS function and AC charger function
5.Wide input voltage range: 170-275V(AC220V); three step AVR (two step -up, one step -down)
6.Protection against overload, short-circuit, overvoltage, under-voltage and over-temperature, etc.
 7.Anti reverse connection protection and high-low voltage protection
8.Special overload protection: when it is overload, it will lock the unit automatically,when it restores,it will restart the unit automatically again.
 9.Strong inverter ability. It can change frequency immediately and it is able to drive the inductive load such as air conditioner, refrigerator, motor, etc.

 10.LCD display

11.Meet the need of different power supply
12.Use MOSFET
13.Mains supply priority mode/energy saving mode/battery priority mode are settable
14.Battery Type/ utility charging current(0A-35A) are settable,meeting different types of battery charging management

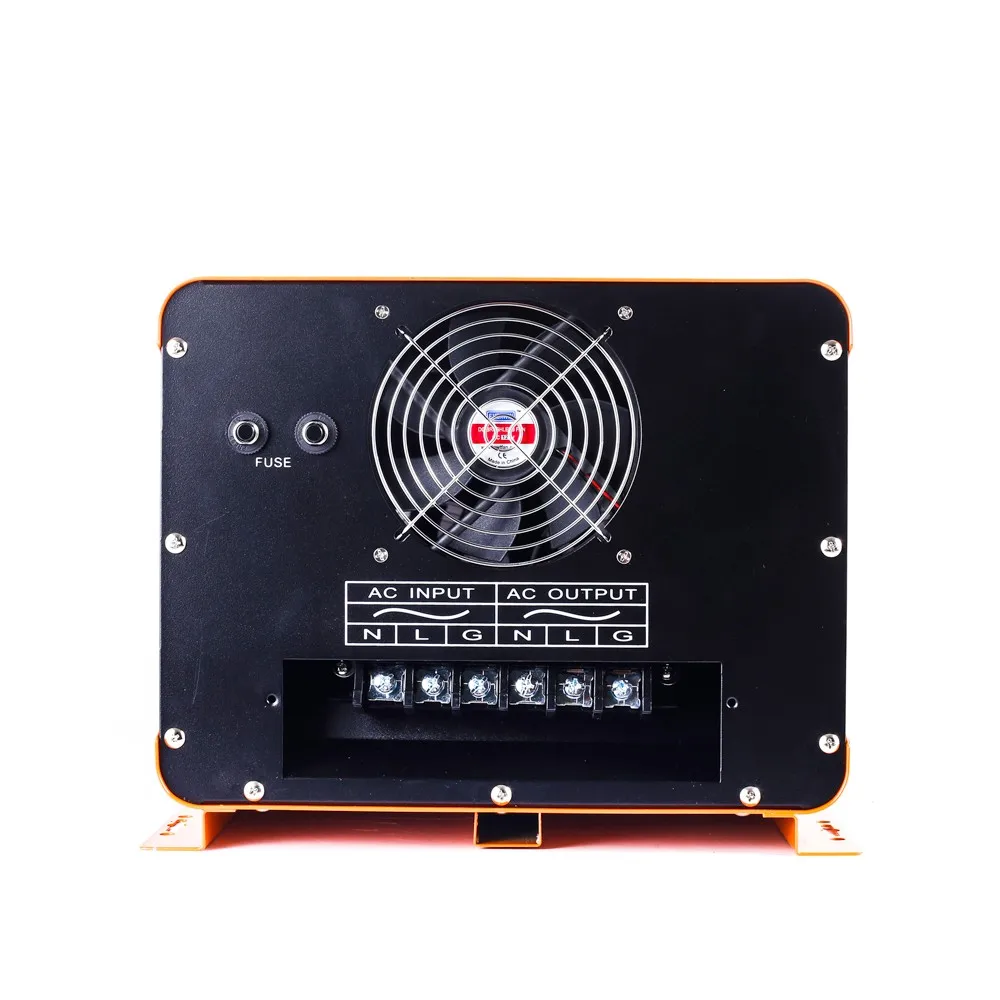

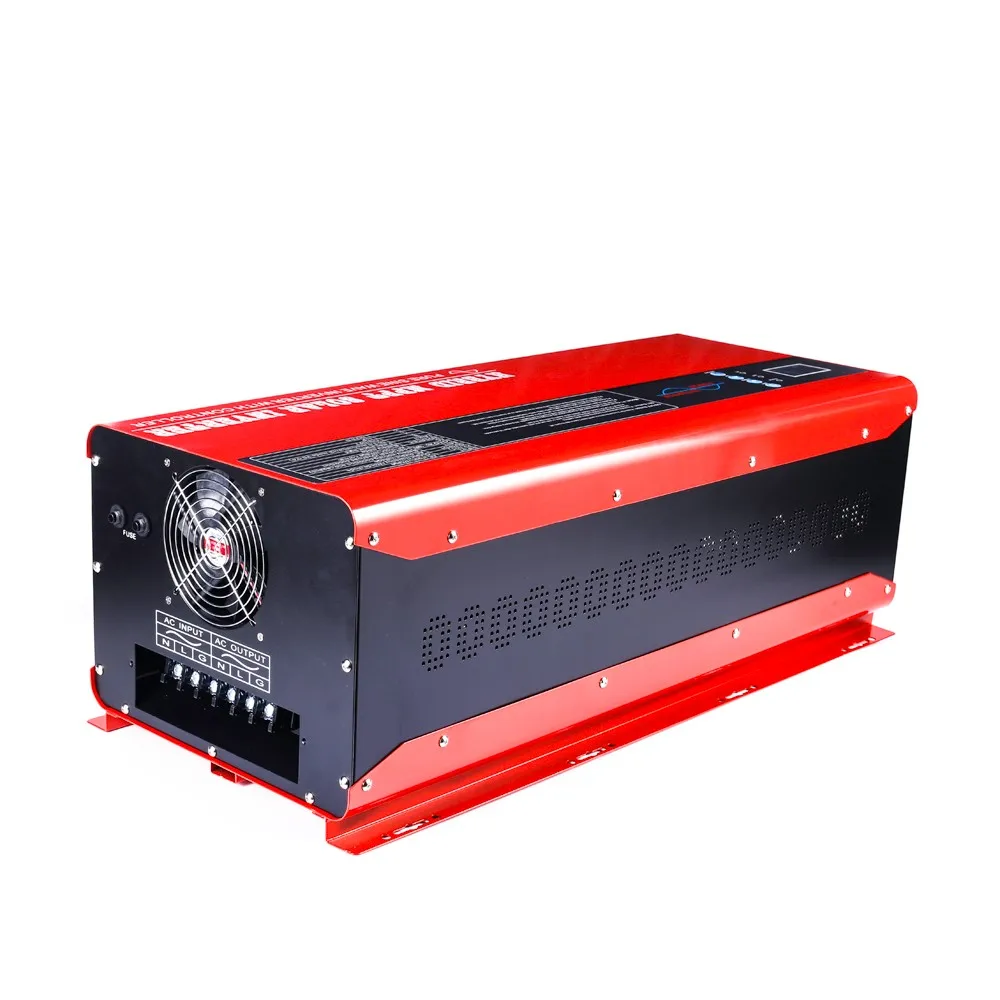

Detailed Images
Specifications
Model
10000W
10000W
10000W
Rated capacity
10000W
10000W
10000W
Peak Power
30000W
30000W
30000W
battery voltage
48VDC
96VDC
192VDC
Input
Battery voltage
48VDC:42-60VDC 96VDC:84-120VDC 96VDC:168-240VDC
Mains input voltage range
AC220V:180-270VAC
Mains input frequency range
45-65HZ
Battery low voltage alarm
48VDC:42V 96VDC:84V 192VDC:168V
Battery low voltage protection
48VDC:40V 96VDC:80V 192VDC:160V
Battery over voltage protection
48VDC:66.8V 96VDC:133.6V 192VDC:267.2V
Battery over voltage alarm
48VDC:60V 96VDC:120V 192VDC:240V
110% more than rated capacity
110% more than rated capacity
Temperature protection
≥85℃ alarm ≥90℃ machine shut off
Output Efficiency
Output voltage (battery mode)
220VAC±2%
Output frequency (battery mode)
50/60HZ±1%
Output wave form
pure sine wave
Output voltage range (mains mode)
Stabilization output:220VAC±10%
Output voltage range (mains mode)
Tracking automatically
Transfer time
≤8ms
Display
LCD
Thermal method
Cooling fan in intelligent control
≤42℃ fan rotates slowly to ≥45℃ fan rotates fast
Working mode
P1-p4
inverter alarm setting
when setted to be inverter alarm ON,alarms every 2s-5s;when setted to be inverter alarm OFF,alarms every 3s-5s,it will not alarm
Charging current
0A-35A
Comnunication
Rs232
Working Mode
P1-P4
01
Mains Priority mode(default working mode)
Mains priority mode with AC charging
02
 Energy saving mode
Load power≤10% machine turns off, ≥11%-100% machine turns on
03
Solar power priority( Solar power priority without AC charging)
When charging: Battery voltage≥13V, turn converting mode;when converting: Battery voltage≤10.5V, turn mains mode.
04
when setted to be inverter alarm ON,alarms every 2s-5s;when setted to be inverter alarm OFF,alarms every 3s-5s,it will not alarm
Packing & Delivery
Size
650*260*200mm
Packing Size
660*275*205mm
N.W
52KG
G.W
56KG
Our Service

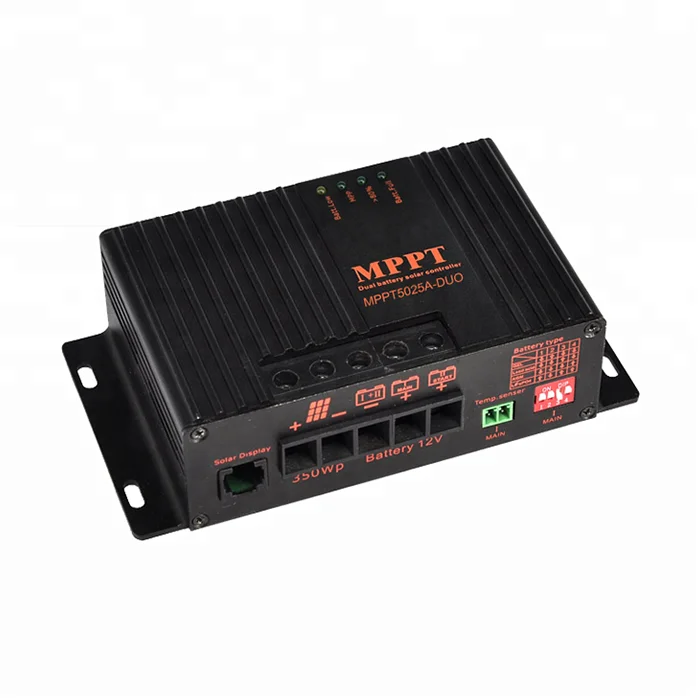

   MPPT Solar Charge Controller 12V 10A


                      MPPT Solar Charge Controller 20-60A


           20W Solar Power Lighting System

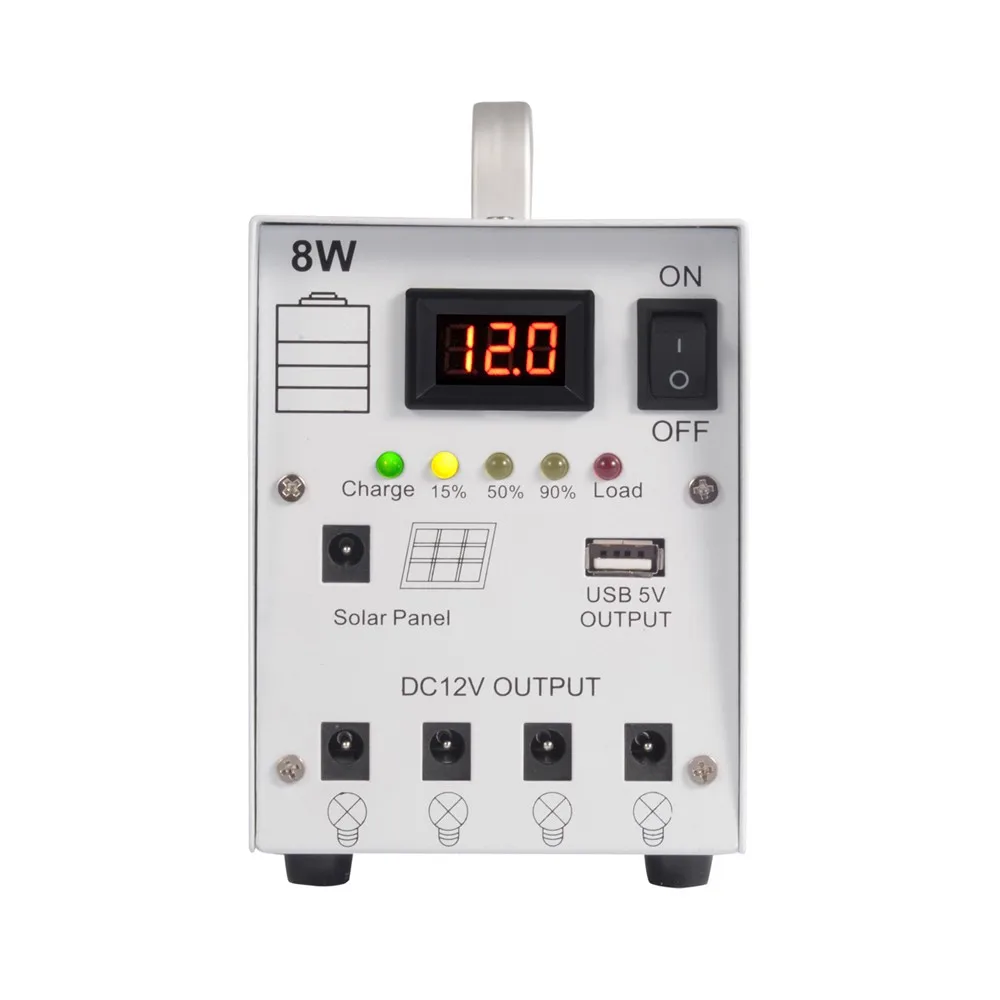

                     DC 8W solar power system
