10L Factory Price Lab Jacketed Glass Reactor

  • 1 - 4 Sets
    $1,569.00
  • >=5 Sets
    $1,459.00
Model Number:
S-10L
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 3 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Condition:
New
Automatic Grade:
Automatic
Type:
Reaction Kettle
Place of Origin:
Guangdong, China
Brand Name:
FBL
Voltage:
220 V
Power(W):
120 W
Dimension(L*W*H):
600*540*1370 mm
Weight:
76 Kg
Certification:
CE ISO
Warranty:
One Year
After-sales Service Provided:
Video technical support, Online support
Application:
Labs Research
Glass material:
GG17 high borosilicate glass
Structure:
304 Stainless Steel Frame
Heating method:
Circulating Water
Capacity:
10 L
Explosion proof:
Optional
Other auxiliary:
Vacuum System
Packaging:
Wooden case
Price:
Negotiable and reasonable
Name:
10L Factory Price Lab Jacketed Glass Reactor
Supply Ability
Supply Ability:
300 Set/Sets per Month 10L Factory Price Lab Jacketed Glass Reactor
Packaging & Delivery
Packaging Details
(10L Factory Price Lab Jacketed Glass Reactor)
1.Carton+wooden cases.
2.Customized packaging can be available.
Port
Guangzhou/Shenzhen/Shanghai/Tianjin/Qingdao, etc.
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 3 To be negotiated
Video Description
Product Description

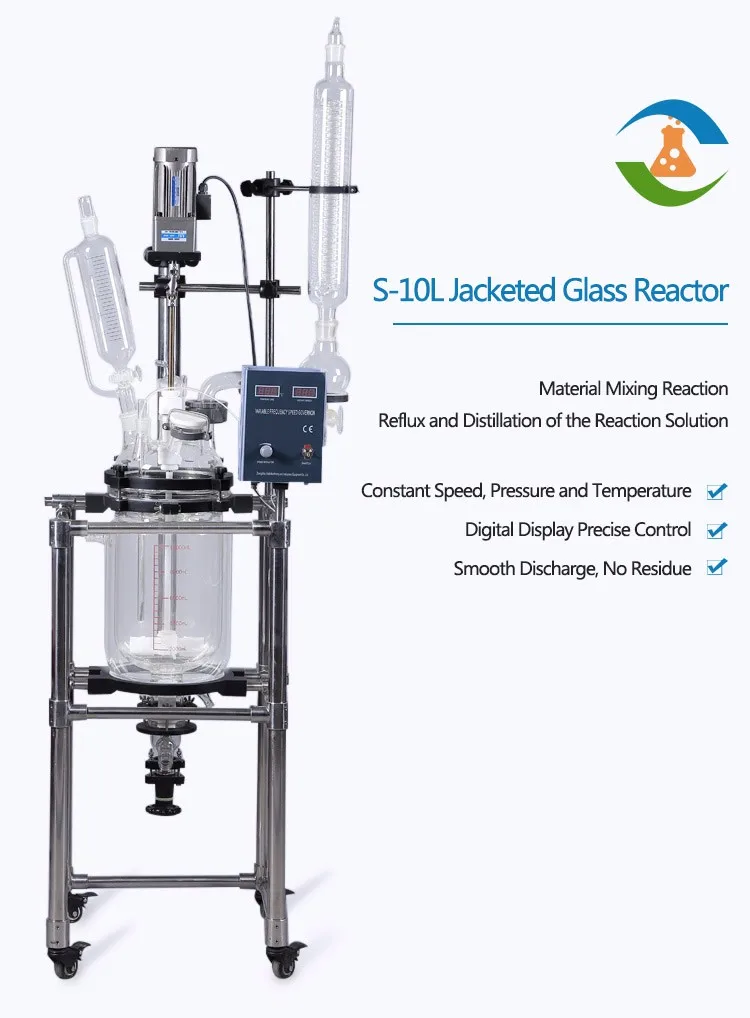

10L Factory Price Lab Jacketed Glass Reactor

10L Jacketed Glass Reactor are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.This Jacketed glass reactor can be used for vacuum stirring reaction, high temperature and low temperature reaction, constant speed operation mixing reaction, distillation, reflux, concentration reaction,negative pressure operation and so on.

FBL jacketed glass reactor capacity range:1L,2L,3L,5L,10L,20L,30L,50L,100L,fully meet the request of small laboratory experiments and pilot production in plant.

Main Features

1) Dual jacketed model allows you to draw vacuum from the outer jacket, thus protects your recirculating fluid temperature and gives you best control over your work. It also help prevents frost to form on the outside of the vessel, allowing you to see clearly into your material.

2) Solvent-resistant PTFE on all sealing components ensures long time durability and operation.

3) All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant

4) Adjustable stirring rate provides great torque or high speed.

5) PTFE stirring rod bearing for reliable and quiet operation.

Model
S-10L
S-20L
S-30L
S-50L
S-100L
Power supply
AC220V
Stirring power(W )
120 1/3
Gear Motor
180 1/3
Gear Motor
Rotary speed(rpm)
0~600
(Max. 1400)
Torque(g/cm)
1000
1200
1200
1500
3000
Capacity(L)
10
20
30
50
100
Discharge method
Discharge from bottom, discharge valve
Detailed Images

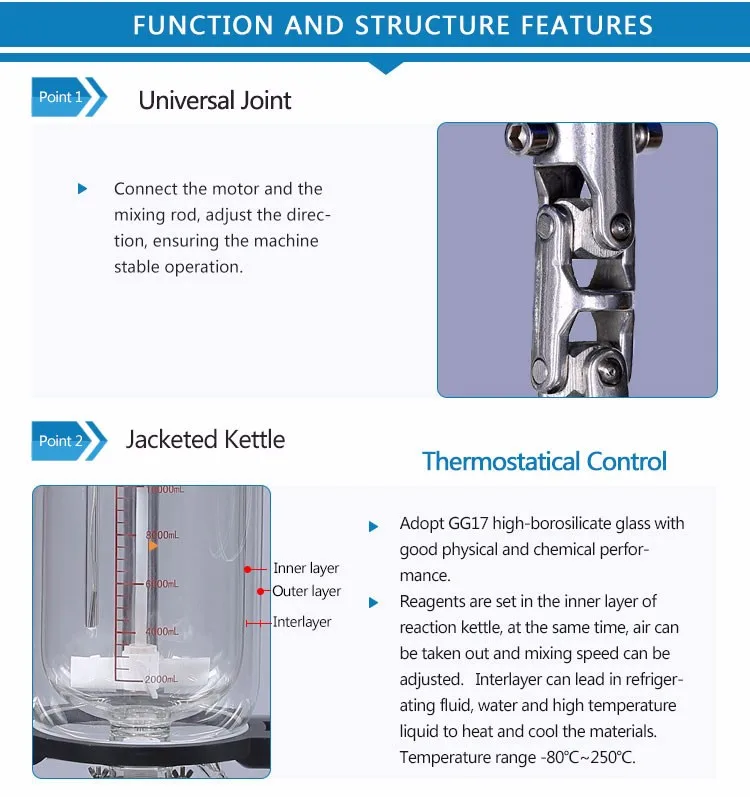

Machine Parts

Glass Reactor

Universal jointand theng rod,

adjtion, ensuring the machine

Main Features

Speed Requlator
More convenient. more intuitive. more accurate
Temperature speed digital display. Easy to observe and adjust material reactions
Point 6 Constant Pressure Funnel Hollow Plug
Temp. range-100-400
High acid and alkali resistant borosilicate
high temperature resistant, high strength and hardness
Feed rapidly, no residual and easy to clean

Machine Parts

Point Big bottle Mouth Glass Discharge Valve Easy Clean Complete Discharge
Glass discharge valve, easy to emove and without dead corner Discharge
Solid/iquid material can be easily released from the bottom

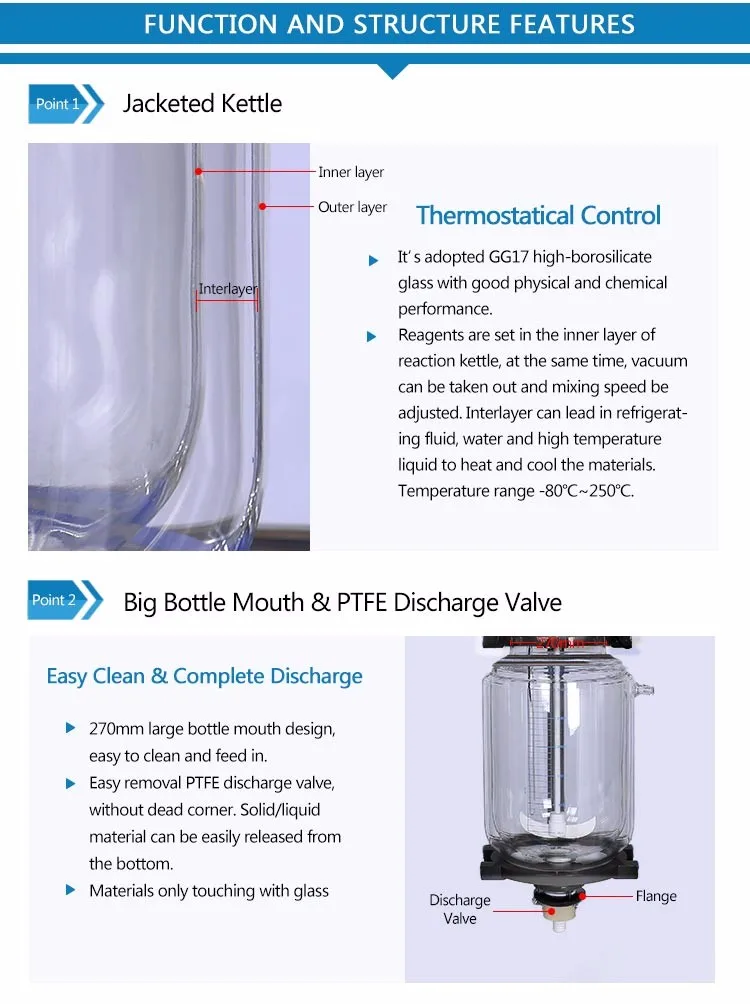

Main Features

Name: Bliwing Cylinder
Jacketed Kettle Inner lay Thermostatical Control Outer layer it's adopted GG17 high-borosilicate glass with good physical and chemical erformance Reagents are set in the inner layer of reaction kettle. at the same time vacuum can be taken out and mixing speed be
ing fluid, water and high temperature luid to heat and cool the materials
Temperature range-80~250

In chemical engineering, a jacketed vessel is a container that is designed for controlling temperature of its contents, by using a cooling or heating "jacket" around the vessel through which a cooling or heating fluid is circulated. Agitation can be also used in jacketed vessels to improve the homogeneity of the fluid properties (such as temperature or concentration).

Vacuum stirring reaction;
High and low temperature reaction;
Constant speed operation blending reaction;
Distillation, backflow, concentration;
Negative pressure operation, skimming function;
Rectifying by assembling rectifying column;
Phytoextraction has better process effect in concentration;
Stirring separating, equipping with skimming device, effect is obviously;
Conduct reaction and production of ultrafine powder, sanitation class made medicine is extremely clean;
Be able to replace rotary evaporator to do high purified material concentration, equipped ultrasonic stirring reduced reaction time multiple;

Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Our Company

Guangzhou Fan Bo Lun Import and Export Trade CO.,LTD. is a professional laboratory equipment supplier. We work hard to provide high quality and low cost laboratory products to our customers in universities, research labs and production facilities.We are a reliable laboratory equipment manufacturer with a history of more than 30 years for China domestic trade, so we can assure the stable good quality and professional service to our valued customers from the worldwide.

Main Products List:

Rotary Evaporator, Jacketed Glass Reactor, Single Layer Glass Reactor, Circulating Water Vacuum Pump, Vacuum Drying Oven, Blast Drying Oven, High-pressure Reaction Kettle, Freeze Dryer(Lyophilizer), Low Temperature Reaction Bath (Slot),Low Temperature Cooling Fluid Circulating Pump(Cooling Chiller), Water/Oil Bath, Magnetic Heating Stirrer, Hydrothermal Synthesis Reactor, Heating Mantle, Lift Platform,Ultronic Cleaner, Mircowave Reactor,Ultronic Homogenizer,etc.

Short Path Distillation.

(Hot-selling products, the most efficient and straightforward extraction machine)

Certifications
Packing & Delivery

1. Depends on different goods, the package will use carton case or fumigated wooden case.
2. Acooding to your schedule and budget, we can ship the goods by air, by sea, by express, or by train.
3. If there's any broken during the shipment, we will send  you new parts for free.
4. Different countries has different requirements for customer clearance, if you know it, pls tell us.

Our Service
FAQ

1.What's the difference between single-layer and double-layer glass reactor?
Single-layer glass reactor can directly heating or cooling, it is similar to water or oil bath, inferior in temperature control aspect; while double-layer glass reactor has interlayer between two layers, we can inject water or oil through temperature control equipment and form circulating system, in this way, no matter cooling or heating, its temperature control property is better.
2.How to decide which glass reactor I should buy? Single-layer or double-layer?
According to first question, please depend on specific heating or cooling requirements.
3.What is the glass texture?
Full set of glass part is produced by G3.3 borosilicate glass, owns excellent chemical and physical properties.
4.What's the loading capacity of double-layer glass reactor?
Loading capacity of glass reactor generally is 1kg, use hot water and oil to do negative pressure heating.
5.What environment it applicable for?
It can be used between -80 to 200
6.What types do you have?
We have the most complete type of double-layer glass reactor in market at preset.
7.What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
8.How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea..
9.How to package the products?
We package products in dedicated carton, you can order Non Fumigation wooden case if has special requirements.
