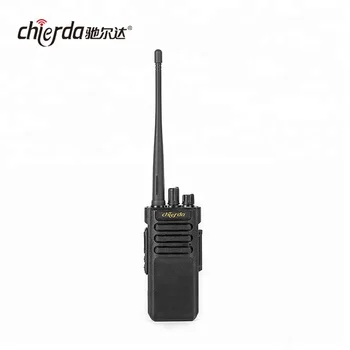

10Watt 50kms Long Range Radio IP67 VHF UHF Waterproof Walkie Talkie
-
10 - 49 Pieces
€45.85
-
50 - 499 Pieces
€43.30
-
>=500 Pieces
€41.60
- Color:
-
- Samples:
-
- Lead Time:
-
Quantity(Pieces) 1 - 10 11 - 50 51 - 500 >500 Est. Time(days) 3 5 15 Negotiable
- Customization:
-
Customized logo (Min. Order: 50 Pieces)Customized packaging (Min. Order: 200 Pieces)
More
OEM/ODM Service (Min. Order: 500 Pieces) Less
Overview
Quick Details
- Certification:
-
FCC, ce
- Place of Origin:
-
Fujian, China
- Brand Name:
-
Chierda
- Model Number:
-
CD-A8
- Type:
-
Handheld
- Dimensions:
-
118*54*31mm(without antenna)
- Frequency Range:
-
VHF136-174MHZ/UHF400-480MHz
- Storage Channel:
-
16
- Talk Range:
-
10-15kms
- Battery Capacity:
-
2900mAh
- Weight:
-
0.35kg
- Warranty:
-
12 Months
- Output Power:
-
10watts
- Battery type:
-
Li-ion Battery
- Radio Type:
-
single band walkie-talkie
- Operating Voltage:
-
7.4V DC
- Standard Accessory:
-
Antenna,Battery,Charger,Belt Clip,Hand Strap,User Manual
- Channel Spacing:
-
12.5KHz/25KHz
- Function:
-
IP67 Dust&Waterproof
Product Certification
- CE Certified.
Supply Ability
- Supply Ability:
- 100000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details

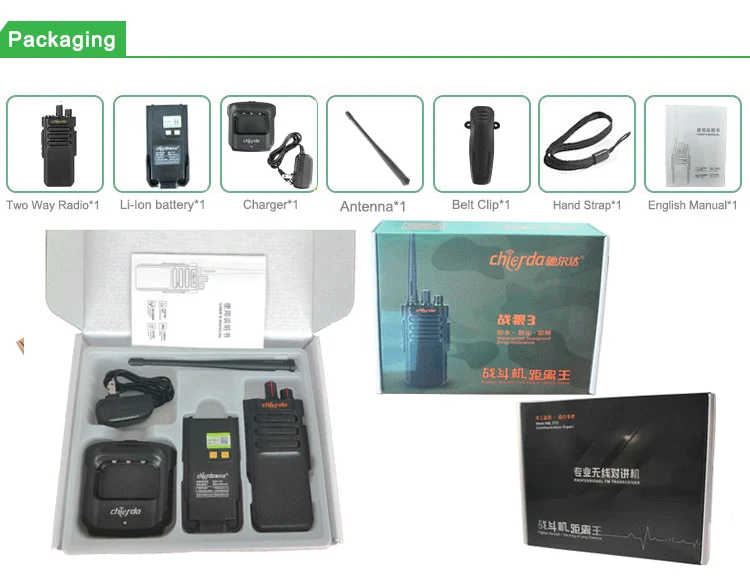

- Box Included:
1* Radio
1* Antenna
1* Li-ion Battery
1* Charger
1* Belt Clip
1* Hand Strap
1* User Manual
- Port
- Xiamen
- Picture Example:
-
- Lead Time :
-
Quantity(Pieces) 1 - 10 11 - 50 51 - 500 >500 Est. Time(days) 3 5 15 To be negotiated
Products Description

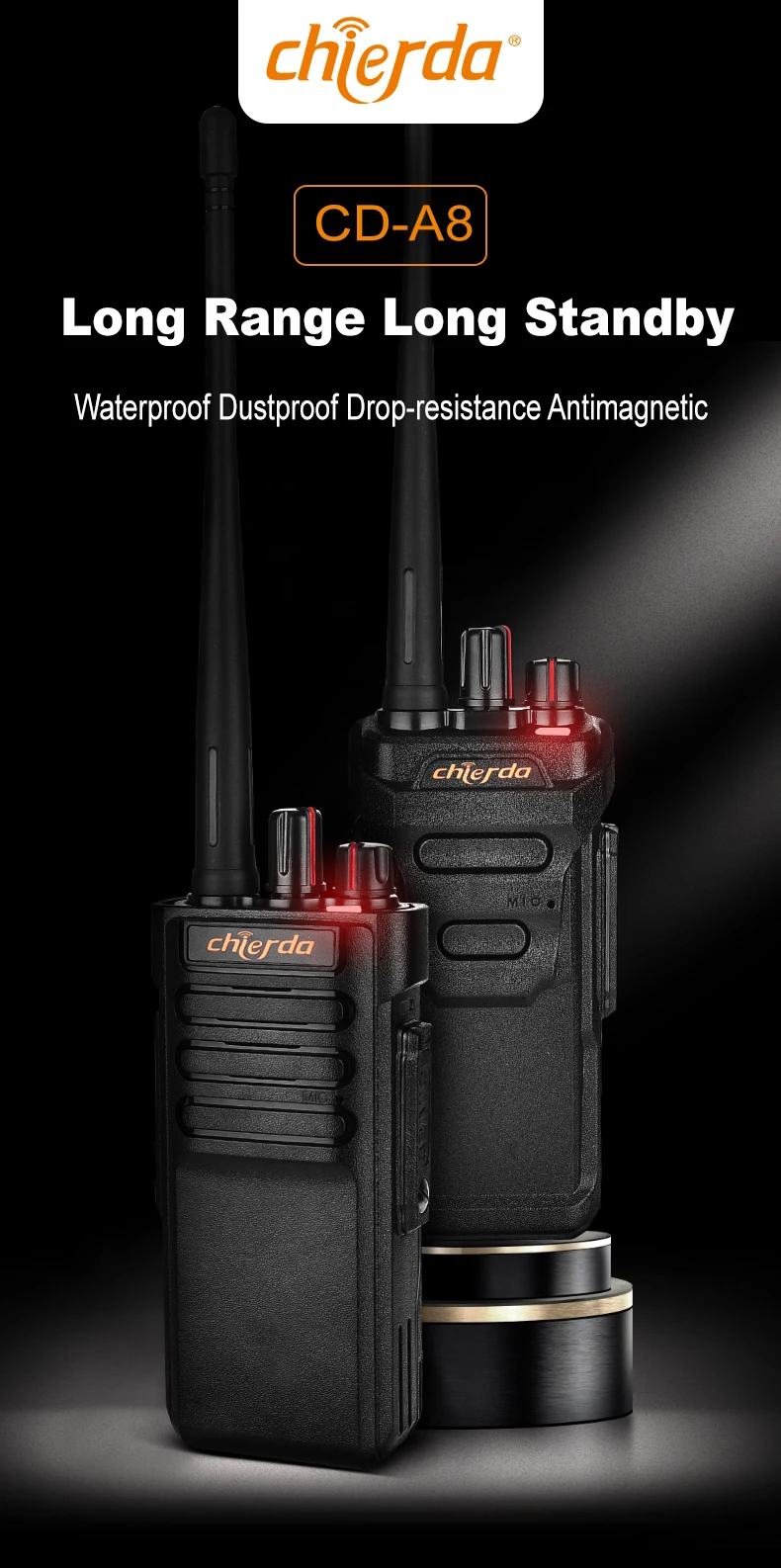

Introduction
IntroductionIt is a 10W high-power walkie-talkie with a long talking distance and a very strong body. The sturdy structure thatmeets military standards can withstand long-term friction and use.it is equipped with a fully waterproof and high-quality speaker
microphone to ensure that you have it from start to finish Loud and clear voice.
It supports IP67 dustproof and waterproof, which can effectively protect the safety of the machine (if your work needs to be exposed to water).
The products have passed FCC and CE certification. Large battery capacity and long standby time.
Features

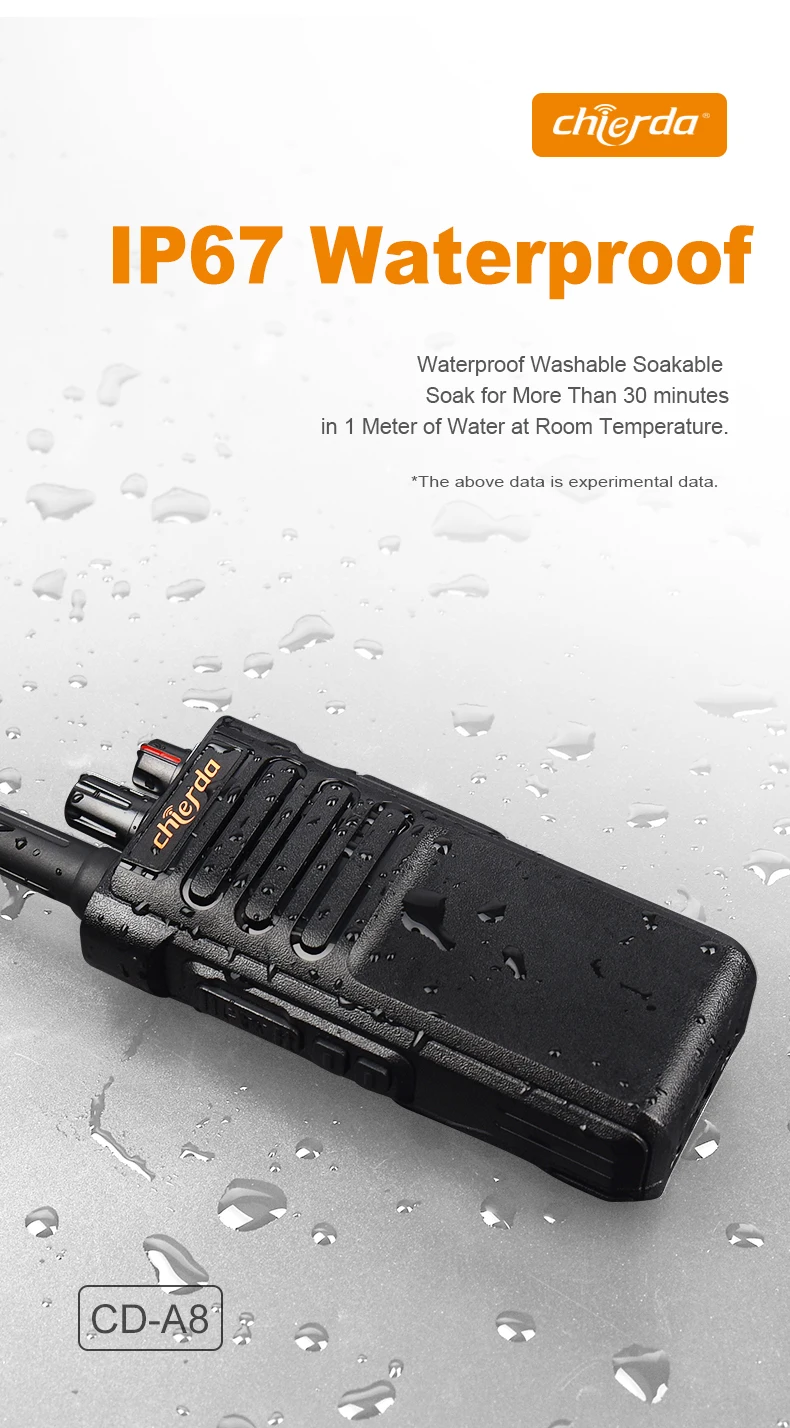

1.IP67 Waterproof(Optional)
100% IP67 waterproof walkie talkies means it still work well even if being soaked in 1 meter of water for 30 minutes and can resist the harsh environment such as heavy rain and snow;rugged design eliminate the intrusion of dust
2.10W High Power
High power and strong penetrating power of walkie talkies greatly enhance its coverage so that you have accurate transmission without dead ends
3.4200mah Battery capacity
Enable this radio has far more usage time and service life than other models of the same type

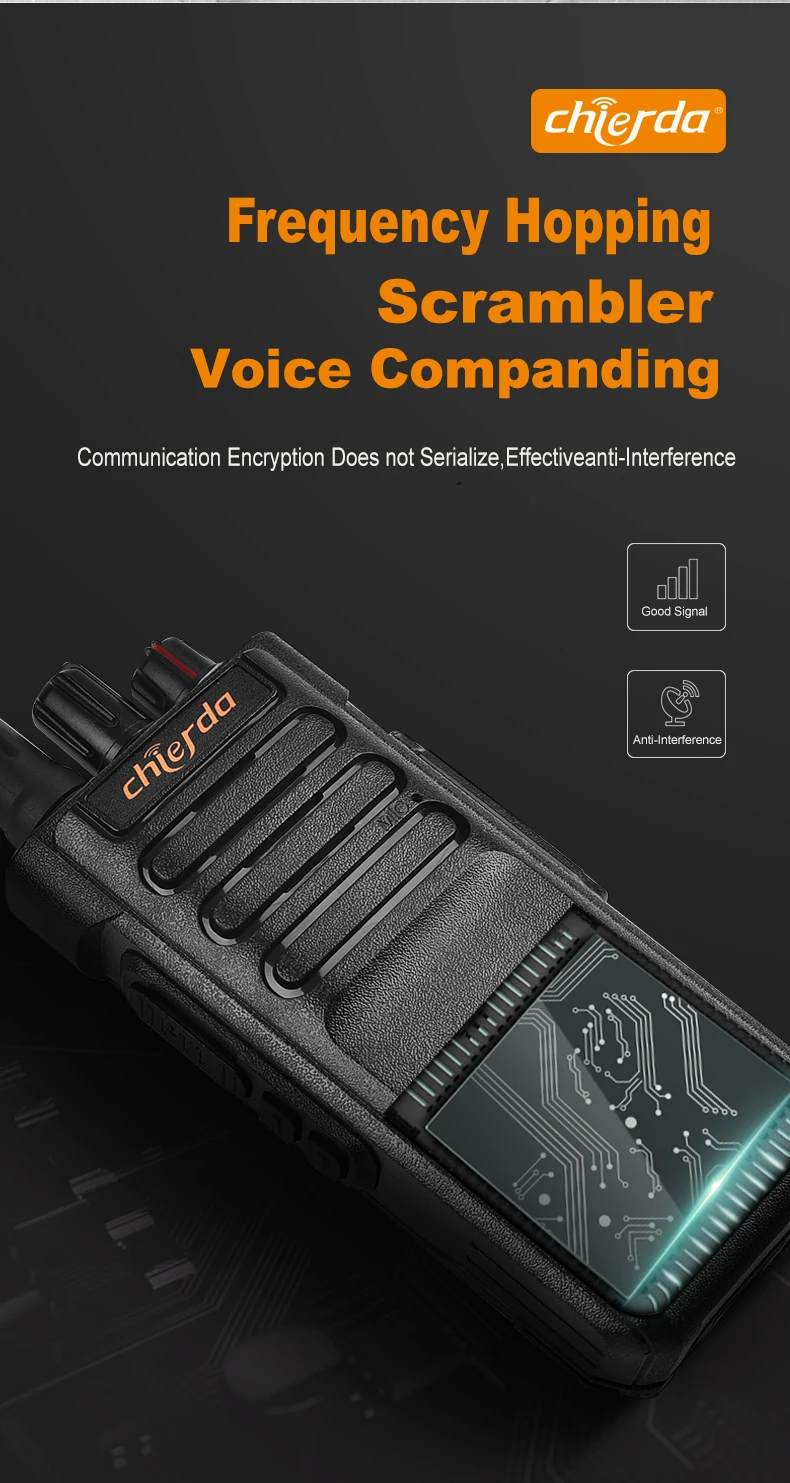

4.Scrambler Function
Unique encryption options to keep your calls from being disturbed by irrelevant signals
Unique encryption options to keep your calls from being disturbed by irrelevant signals
5.COMP
Squelch and private codes blocking background noise and other conversations enable you have crystal clear sound transmission without static and distortion under its range
6.Strong Body
Well solid build that meets military standards can withstand long run of friction and use;Equipped with full water resistant and high quality speaker microphone to ensure that you have a loud and clear voice from beginning to end
Squelch and private codes blocking background noise and other conversations enable you have crystal clear sound transmission without static and distortion under its range
6.Strong Body
Well solid build that meets military standards can withstand long run of friction and use;Equipped with full water resistant and high quality speaker microphone to ensure that you have a loud and clear voice from beginning to end
Parameters: | ||
Frequency Range | 136-174MHz/400-470MHz | |
Operating Voltage | 7.4V DC | |
Channel | 16 | |
Battery Capacity | 4200mAh | |
Antenna Impedance | 50Ω | |
Working Temperature | -20℃~+55℃ | |
Channel Spacing | 12.5KHz/25KHz | |
Frequency Stability | ±2.5ppm | |
Size(without antenna) | 116x55x32mm | |
Transmitter: | ||
Output Power | 10W | |
Current | ≤2.5A | |
Modulation Mode | 16KφF3E/11KφF3E | |
Maximum Frequency Deviation | ≤5KHz/≤2.5KHz | |
Remanent Radiation | ≤7uW | |
Remanent Modulation | ≤ -35dB | |
CTCSS Frequency Deviation | 0.75KHz/0.35KHz ± 50Hz | |
Receiver: | ||
RF Sensitivity | ≤0.25uV/≤0.3uV | |
Silent Sensitivity | ≤0.2uV/≤0.25uV | |
Audio Frequency Power | ≥500mW | |
Audio Distortion | ≤ 5％ | |
Modulation Receiver Bandwidth | ±7KHz | |
Spurious Rejection | ≥55dB | |
Selectivity | ≥65dB | |
Inter-modulation | ≥60dB | |
application
--Service industry (restaurants, hotels, supermarkets, high-speed rail, etc.)
--Warehouse, transportation, logistics,etc.
--Public Safety Industry
--Construction industry, manufacturing industry, etc.
Recommend Products
Our Advantages
Production details
Company Profile
Company Profile
Quanzhou Chierda Electronic Telecom Co., Ltd. founded in 1988, is located in Quanzhou city, Fujian province of China.
Chierda have already got national CMIIT type approval and international CE, FCC and IC certifications, and also we got ISO9001 , Sedex certifications.
Based on our strong designing, researching and developing ability, we are offering OEM and ODM service to meet different customer‘s requirements. Our customers are all over the world.
Our Services
Packaging & Shipping
Shipping | Recommend | Delivery Time | ||
Express | DHL | widely recommend | 3-7 business days | |
UPS | widely recommend | 3-7 business days | ||
FEDEX | recommend | 5-7 business days | ||
TNT | recommend | 5-7 business days | ||
Pose mail | for sample order | 7-60 business days | ||
Airfreight | for large quantity | 5-7 business days | ||
By sea | for large quantity | 7-35 business days | ||
Warranty
12 months for body radio; 6months for accessories.
Sample time
If with our logo,within 3 days.Please if you need,please contact us at soon as possible.
Cooperatively
OEM service is offered,we can design packing box and logo mark as your requirement.
Payment term
T/T,Western Union,Paypal and Trade Assurance.
FAQ
Q. Why sometimes your partner's voice is intermittent?
A. Please note that you are within normal communication range, If you want use radio in distance range, please change otherantenna
Q. Can't turn on talky and even it is switch on, it often shuts off automatically?
A. Please check the battery contacts on the walkie talkie. If it is broken or twisted, please return the radio to your
authorizeddealer for maintenance during warranty.
with a bigger output power.If still same problem, please send the radio back to your authorized dealer repair.
authorizeddealer for maintenance during warranty.
with a bigger output power.If still same problem, please send the radio back to your authorized dealer repair.
Q. Why sometimes received voice from other groups?
A. Two way solutions.You can change another channel or change another channel frequency by PC software.
Q. Can't transmit or receiver signal with other members?
A. First, please verify that the channel frequency and the CTCSS you are used the same as those of your group members. Please make
sure that you and your partners are all within the radio coverage, If the channel frequency and the CTCSS are the same.
sure that you and your partners are all within the radio coverage, If the channel frequency and the CTCSS are the same.
Q. Which is better – VHF or UHF?
A. Depends on the terrain. The UHF signal is attenuated or absorbed by foliage, rough terrain and trees, VHF does better
outdoors.The VHF has difficulties penetrating steel and concrete, UHF does better in and around buildings. If you use the radios
in bothenvironments, we prefer using UHF band.
outdoors.The VHF has difficulties penetrating steel and concrete, UHF does better in and around buildings. If you use the radios
in bothenvironments, we prefer using UHF band.
