10g / h ozone generator ozone water treatment ozone parts

$135.00 - $155.00 / Unit | 1 Unit (Min. Order)
Model Number:
KHT-10GORA1 (AC 110V) KHT-10GORA2 (AC 220V) KHT-10GD12 (DC 12V) KHT-10GD24 (DC 24V)
Processing Capacity:
- +
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customized logo (Min. Order: 100 Units)
Customized packaging (Min. Order: 1000 Units)


Graphic customization (Min. Order: 1000 Units) Less
Contact Supplier
Report Suspicious Activity
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, farms, restaurant, HOME USE, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service:
Video technical support, Online support
Local Service Location:
Showroom Location:
Video outgoing-inspection:
not available
Machinery Test Report:
not available
Marketing Type:
Hot Product 2019
Warranty of core components:
Place of Origin:
Shanghai, China
Brand Name:
Input Voltage:
AC 110V/220V DC 12V/24V
For Air or Water Treatment
Cooling Method:
Double Air Cooling
Gas Feeding:
Dry Air or Oxygen
Discharge material:
Ozone generating way:
Corona Discharge
Ozone output:
Core Components:
ceramic tube core
180 days

Packaging & Delivery

Selling Units:
Single item
Single package size:
35X22X18 cm
Single gross weight:
3.000 kg
Lead Time :
Quantity(Units) 1 - 1000 >1000
Est. Time(days) 15 To be negotiated
Product Description

10g/h generador de ozono tratamiento de agua de ozono

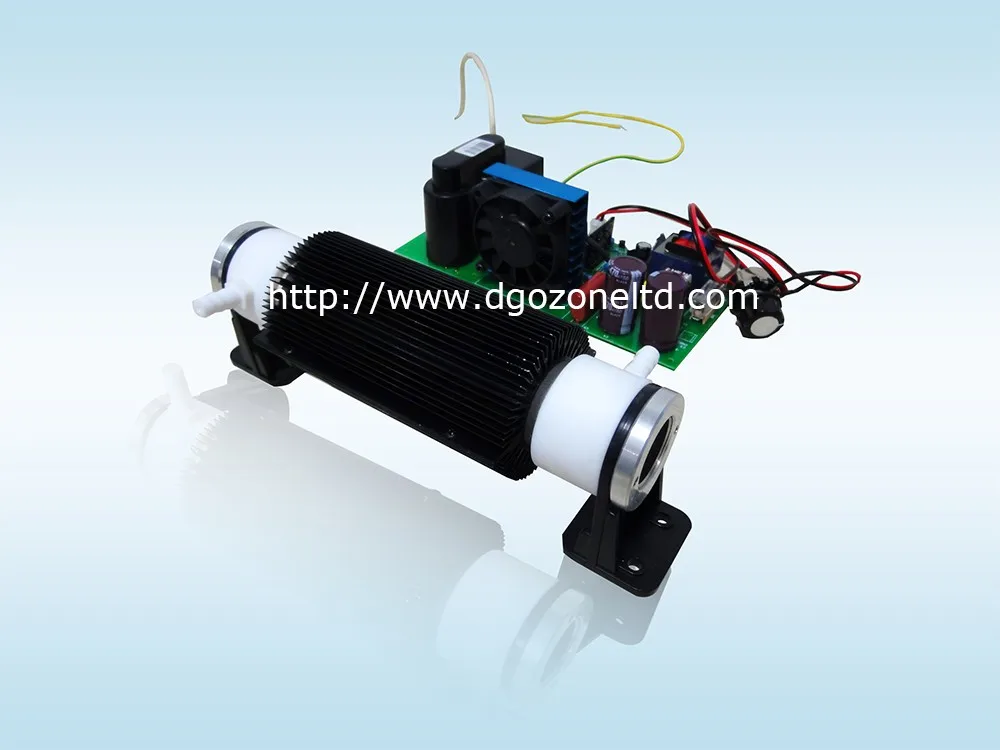

KHT-10GORA2 (AC220V) 10G Double Air Cooling Ceramic Tube Ozone Generator for Air and Water Treatment is a very good unit for big ozone machines.

Open type transfomer.
Adjustable ozone output.

The ozone tube is newly-developed, double air cooling design, can work 7*24hours only under AIR COOLING. Besides, the electrode inside the tube is improved to change into titanium alloy, this makes the longlife of ozone tubes longer than former tubes.

One set includes one ozone tube and one transformer.

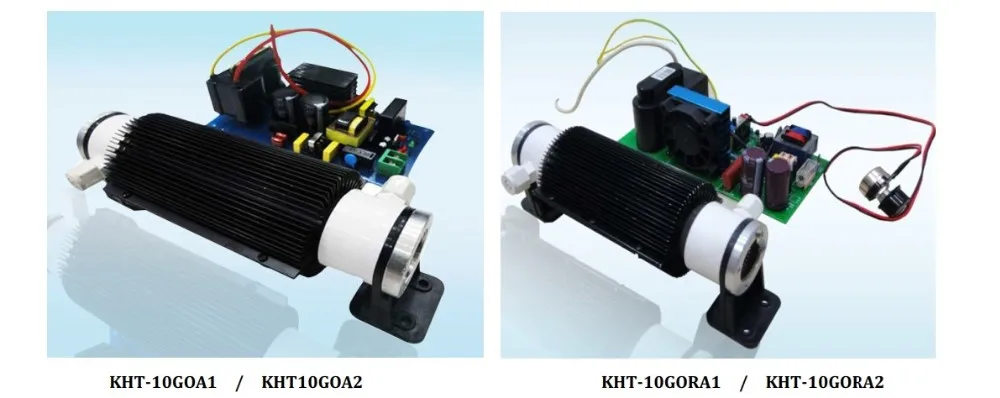

Ceramic Tube Type

10G/H ceramic tube ozone generator units (double air cooled)



A1: AC110V~130V 50/60Hz          A2: AC220V~240V 50/60Hz
Oxygen flow
Ozone concentration
based on oxygen feeding



Ozone output
based on
oxygen feeding



Output high voltage
2.5~3.5KV 12KHz
2.5~3.5KV 12KHz
Ozone output adjustable




Anti-interference circuit,
Corrosion proof
Slow-start function(to limit inrush current),
Acousto optic warning,
Short circuit protection,
Open ciruitprotection,
Overcurrent protection,
Overvoltage protection,
Overheat protection,
Anti-interference circuit,
corrosion proof
Cooling method
Air cooling for internal and external electrode

Test conditions

1. Using the ultraviolet absorption method to test the ozone output and concentration.
2. Oxygen purity: >95%, Dew point: >-45℃.
3. Ambient temperature: ≤10℃, Humidity: <10% (Different temperature and humidity in the environment will affect the ozone output and concentration.)
Possible Reference

Ozone Applications

Ozone is a strong oxidant, with instability. Under normal temperature and pressure it is a light blue grass smell of gas. Ozone has efficacy such as disinfection, deodorant, decolonization and preservation. The ozone sterilization is faster than the ultra-violet disinfection, chlorine disinfectants or even 100 or 3000 times faster, and after the use of ozone to oxygen to break down, there is no residue. Therefore, the ozone was hailed as a "green" disinfectant.

Ozone' s main role is reflected in

(1) The sterilization in the air or water;
(2) Decomposition pesticide residues in fruits and vegetables;
(3) Cold preservation;
(4) Decomposition most of the harmful air decomposition of organic matter, such as: ammonia, nicotine, formaldehyde, xylene, and other harmful substances;
(5) Ozone water suppresses all types of skin disease;
(6) Application in medicine with the analgesic effect;
(7) High concentrations of ozone - oxygen mixture can be injected as treatment of cervical hyperplasia;
(8) Decomposition of the BOD, COD in the sewage, and so on;
(9) Suppress water scale when water heated. Make water activated and improve the taste of water;
(10) Oxide removal of metal ions in water, such as iron, manganese, lead ions.

(11) The greenhouse vegetable repellent, reducing pesticide use.

The structure drawings of ceramic ozone tubes


1. Narrow discharge gap, high ozone output and concentration, low noise.

2. High-voltage and high-frequency corona discharge, small size transformer, low consumption rate of electricity.

3. The ceramic tubes are with low working voltage but high dielectric constant, not easy to be breakdown.

4. Dielectric materials are made by imported high purity aluminum oxide that are sintered through high temperature, two times high-precision internal and external burnish, thus discharge uniformity. Besides, 316L stainless steel internal electrodes and tightness firmwares make its performance better. The end caps of ozone tube and ozone outlets are made of polytetrafluoroethylene, high-purity corrosion resistant fluorine rubber seal rings, with aluminum alloy external radiator, an very effective way to heat radiation.

5. Ozone decrease is lower than 5% if work for a long time, while life time is more than 20,000 hours.

6. Easy to maintain and install.

Attention must be paid to the following

1,The inlet of cooling water should be higher than the ozone tube to ensure the ozone tube is full of cooling and flowing water.

2,When the ozone generator work, it is necessary to have cooling fans to blow the ozone tube and ozone power supplies. When installing the power supply, please make sure there is 2-3cm high space between its bottom and the fixed board, so that heat on the bottom of the power supply can be radiated quickly.

3,This is a high voltage product. Do not touch it when it is working.

4,Usually after ozone sterilization, it needs 20-30 minutes to diffuse ozone before anyone enters. And only when the ozone concentration is or below 0.15ppm, it is permitted to enter.

5,If you use ozone for water sterilization, please make sure the ozone outlet must be above the water surface.

6,Please use suitable air dryers when the environment is humid. It will be much better if you equip the oxygen concentrators. If the ozone generator doesn't work because of moisture, please open the ozone tube and take out the ceramic tube, then put the CERAMIC TUBE into an oven or microwave oven(Function Reference : barbecue) for about 20 minutes. After that, please re-install the ceramic tube, the ozone generator will work again.

7,The ozone output test data is based on 95% pure oxygen feeding and dew point -45 ℃ through the ultraviolet absorption method. Different temperature and humidity in the environment will affect the ozone output and concentration.

8,When two high voltage wires are very close to each other, especially under moist circumstances or they touch, the wires will make a light and possibly lead that the insulation becomes discoloured even melts. The way to avoid this matter is to keep the two high voltage wires parallel or separate, at least untouched.

9,Usually when ozone generator is used for test, it will be better if the interval time between two tests is half an hour. It is because the output voltage and start-up electric current is very very high, if it is started up and closed down frequently within several minutes, power supply is possible to be burned due to instant or instantaneous high current.

10,Deoxidized materials or objects should not be contacted with ozone for a long time in order not to cause damage or corrosion, such as rubber, iron, and copper and so on. The corrosion will accelerate when iron, copper pieces without coating are in the moist.

Contact Us

If you have any questions or concerns about our products, please feel free to contact:


QQ: 852800888
Skype: malinglz94
WeChat: MLH110817

Our Company

Located in the east of China, Shanghai .DGOzone Ltd. is one technical listed company, who professionally designs, develops, distributes ozone generators for civilian and industrial air and water treatments.

DGOzone majors in ozone generator units, ozone generator machines and accessories. Ozone generator units include ceramic plate ozone generator units and ceramic tube ozone generator units. The accessories cover venturi, check valve, air dryer and so on. Our ozone generator units are certificated through CE and RoHS, honored by nice clients from home and abroad, which are widely used in houses, hotels, schools, offices, mansions, swimming pools, food factories, bottled water fill lines and fields of medical treatment and public health.

Much respect is paid to the talent and much to science and research of ozone high-tech and environmental protection materials by DGOzone. Most effort is made on meeting requirements of different customers with positive service, quality products and favorable prices. OEM service offered, Design service offered, Buyer label offered.

Ozone is 100% eco-friendly and chemical-free, leaving no chemical residue or harmful byproducts. For the benefit of worldwide people and the environment, now DGOzone is doing best to be well positioned as an Efficient, Excellent and Entire supplier in this wonderful sector.

Now DGOzone has been one of the biggest exporter for ozone generators and accessories in China. Besides, DGOzone is also one of the biggest donator in national ozone fields to China Pavilion in Expo 2010 Shanghai.

Packing & Delivery

DGOzone Ltd. has a direct and strategic cooperation with DHL, 60% OFF via DHL Express Shipping. This will make all buyers benefit from low shipping cost.

Meanwhile, other shipping ways are available such as FedEx, UPS, TNT, EMS, China Post or Sea. Just let us know which one is best for you, we do all the left work.


Q: Are you a trading company or a manufacturer ?
A: We are a manufacturer.

Q: How long is your delivery time?
A: Generally it is 5-10 days if goods are on stock. if not, according to quantities, it takes 15-20 days .

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer samples free of charge but the buyer needs to pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, 70% before shipment.
