10mw 10km Manufacturer fiber optic visual fault locator FTTH networking support OEM

FOB Reference Price:Get Latest Price
$9.00 - $16.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China
Brand Name:
Xingcheng
Model Number:
YF-VFL32
Product name:
Fiber visual fault locator
Material Body:
plastic
Power Supply:
above 60hours
Output PW:
10mw...
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
one pcs in one box
Port
Shanghai,China
Product Name

Funway Manufacturer fiber optic visual fault locator FTTH networking


Product Description



Specificaiton
Product Name
Visual Fault Locator
Output Power
1mW,5mW,10mW can be optional on customer request
Wavelength
650nm±10nm
Emitter Type
FP-LD
Optical Connector
2.5mm Universal connector, 1.25mm connector
Operating Model
CW,2HZ
Battery Operating Time
65 hous/650nm@1mW
Power Supply
2 pcs of AA battery
Operating Temperature(°C)
-10~+45
Storage Temperature(°C)
-40~+70

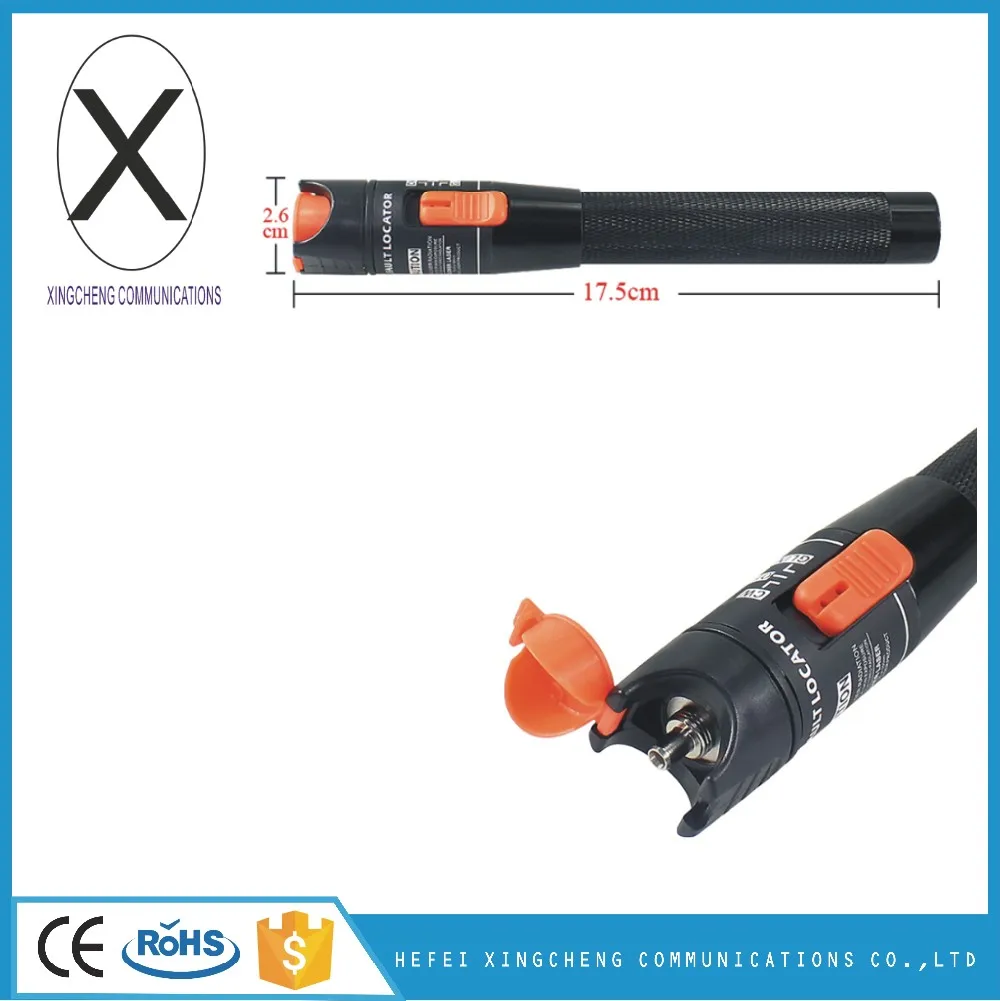

Dimensions(mm)
φ15*180
Weight(g)
160g

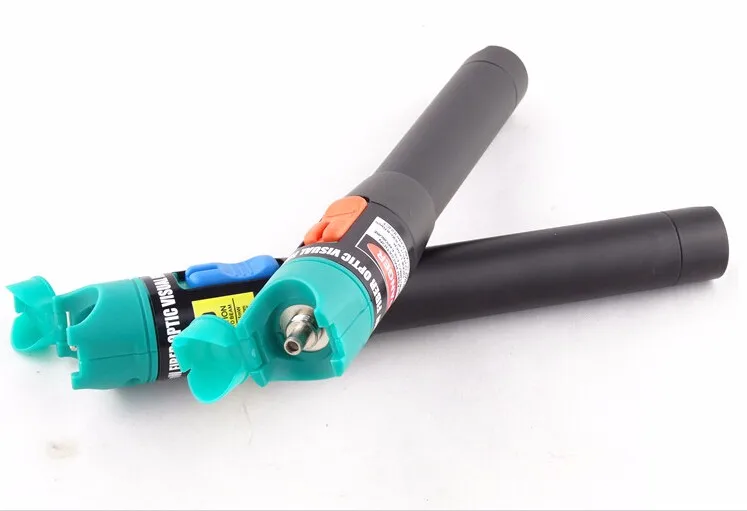

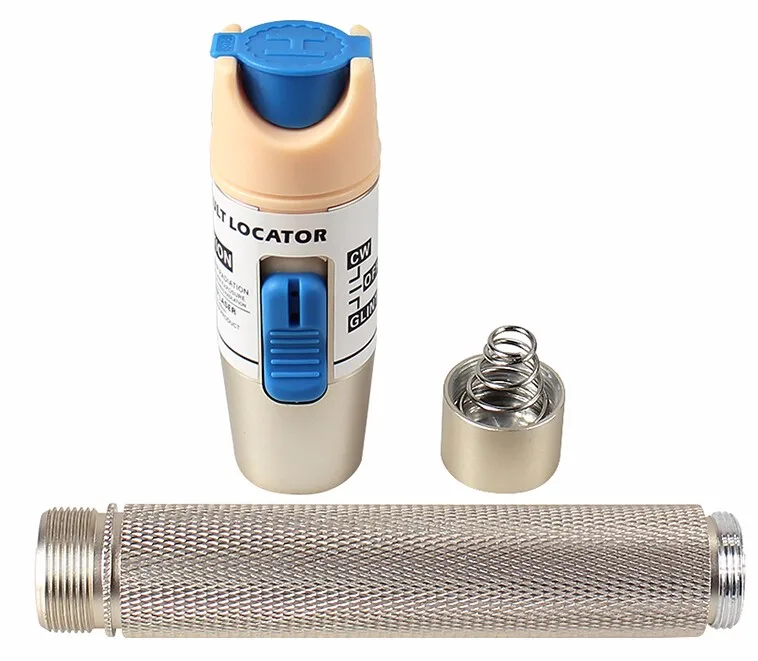

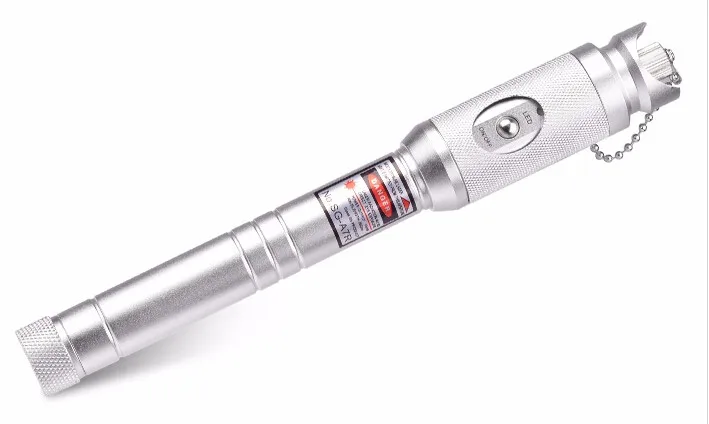

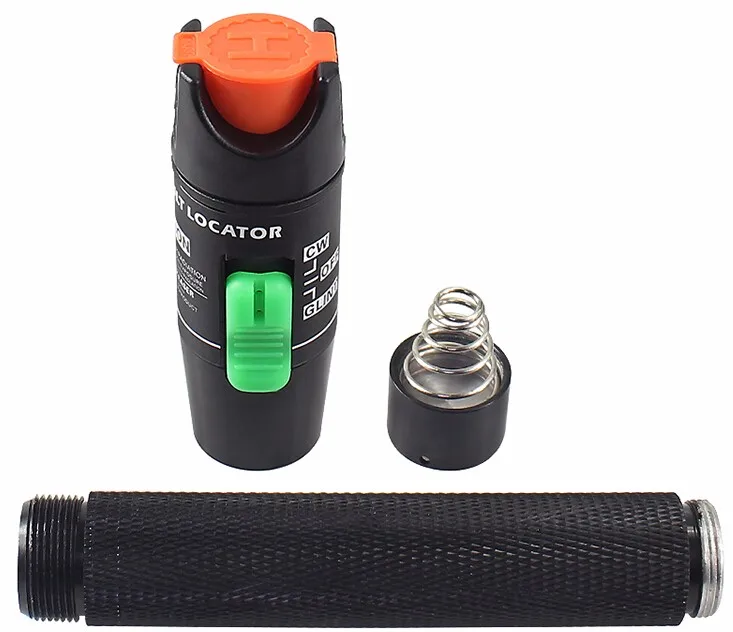

Optical Fiber Pen-type Red Light Source

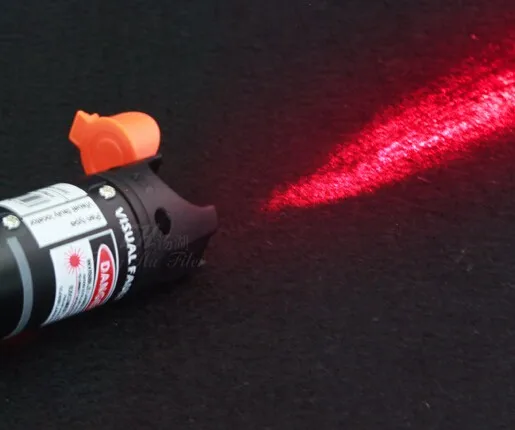

pen-based red light source, which use 650nm semiconductor laser as a light emitting device, through the constant current drive, transmit the red light which power is stable. After connecting with optical interface, the red light can enter into the multimode and single mode fiber, achieve detecting function of optical fiber fault. It is an indispensable tool for fiber-optic construction, fiber-optic network maintenance, optical device production and research.

Applications


1.Fiber fracture and bending fault location;

2.OTDR shadow of the failed inspection;

3.End to end fiber identification;

4.Maintenance in telecom, CATV;

5.Test Lab of optical fibers;

6.Fiber routing and continuity checking in optical networks.

Features

1. 2.5mm universal connector, for 1.25mm connectors;

2. FC (Male)-LC (Female) convertor can be provided on requests;

3. Operates either in CW or Pulsed;

4. Constant output power;

5. Lower Battery warning;

6. Long battery life (up to 60 hours);

7. Crash-proof and dust-proof design for laser head;

8. Laser case ground design prevents ESD damage;

9. Burning testing to ensure the reliability;

10. Portable and rugged, easy to use;

11. Guarantee to CE standards include EMC, EMI, ROHS.


About Delivery

We hope goods arrive on time, but since this is an international delivery, shipping time will be highly depended on the deliver company and local customs/duties. Thank you for your kindly understanding.
