1108 taper bush for pulley in ht250 material

Feedback Ratings
  • 1-49 Pieces
    $2.00
  • 50-99 Pieces
    $1.80
  • >=100 Pieces
    $1.60
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction works
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
CPT
Model Number:
1108
Type:
Sleeve
Material:
cast iron
bushing:
inch/mm
Bore Type:
Bush Type
Bore Range (inch):
3/8" ~ 1-1/16"
Bore Range (mm):
9mm ~28mm
Surface treatment:
Black phosphating
Keyway:
Standard & Shallow
screws quantity:
2
screw specification:
1/4-20BSW*1/2
Standard:
ISO9001:2008
Samples:
Avaliable

Packaging & Delivery

Selling Units:
Single item
Single package size:
8X8X7 cm
Single gross weight:
0.8 kg
Package Type:
Plastic bag with cartons
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(days) 3 To be negotiated

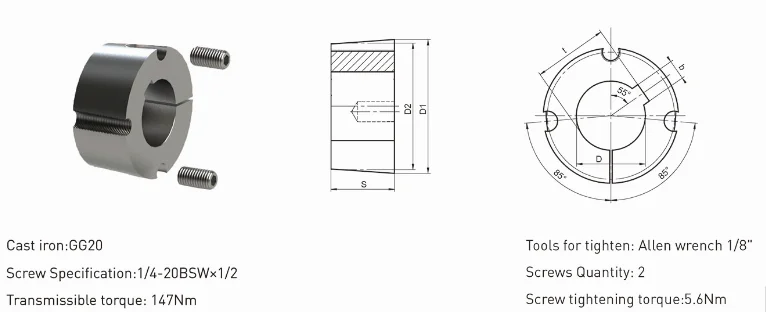

1108 taper bush for pulley in ht250 material

Pulley Dimension











Part No.D1D2



S
D(G7)bJs9t
1108-9mm

38.32



















36.92

22.3

9

10

3±0.0125D+1.4
 1108-10mmD+1.4
1108-11mm

11

12

4

±0.015D+1.8
1108-12mmD+1.8
1108-14mm

14

15

16

17

5D+2.3
1108-15mmD+2.3
1108-16mmD+2.3
1108-17mmD+2.3
1108-18mm

18

19

20

21

22

6D+2.8
1108-19mmD+2.8
1108-20mmD+2.8
1108-21mmD+2.8
1108-22mmD+2.8
1108-24mm

24

25

26

28

8±0.018D+3.3
1108-25mmD+3.3
1108-26mmD+3.3
1108-28mmD+3.3
B
H BUSHING H BUSHING CPT 2AK20 Two Groove A Type 2 inch Cast Iron Sheaves for 3L, 4L or A belts CPT 2AK20 Two Groove A Type 2 inch Cast Iron Sheaves for 3L, 4L or A belts CPT Single groove fixed bore AK64 three ribs spoke type fashionable 6 inch v belt idler pulley 3/4 bore CPT Single groove fixed bore AK64 three ribs spoke type fashionable 6 inch v belt idler pulley 3/4 bore CPT aluminum timing pulley v belt pulley CPT aluminum timing pulley v belt pulley Cast iron adjustable variable speed motor pulley Cast iron adjustable variable speed motor pulley Cast Iron J L M profile 6 10 16 20 grooves poly-V belt pulley sheaves Cast Iron J L M profile 6 10 16 20 grooves poly-V belt pulley sheaves LOCK 1 Shaft to Shaft coupling Shaft Clamping Devices Mechanism LOCK 1 Shaft to Shaft coupling Shaft Clamping Devices Mechanism HRC FLC Spider Motor Coupling for oil pump HRC FLC Spider Motor Coupling for oil pump Finished bore Simplex chain drive sprockets for sale with keyway Finished bore Simplex chain drive sprockets for sale with keyway
Factory Display

Certificate Display

Q: What sheaves you have?
A: We manufacture v belt sheaves SPA, SPB, SPC, SPZ, AK, BK, 3V, 5V, 8V, etc.
Timing pulleys - 3M, 5M, 8M, L, H, XH, etc.
Variable pitch sheaves - VP, VL
Poly v belt sheaves - J, L, M
Q: What's the delivery time?
A: Usually 1~ 3 business days for standard parts, 15 ~30 days for customized parts.
Q: What is your MOQ?
A: 1 pc for standard parts.
Q: What other products you produce?
A: Taper lock bushing, QD bushing, STB bushing, XTB bushing, bushing hubs, gear, sprockets, coupling, locking assembly, etc
Q: What's the bore type of sheaves you can offer?
A: Prebore, pilot bore, taper bushed bore
Q: What's the material of your sheaves?
A: Steel, cast iron, ductile cast iron, aluminum.
Q: Do you supply ODM/OEM service?
A: Yes.
