12.1" fully enclosed resistive wide voltage temperature China industrial hmi with rs485 manufacturer

FOB Reference Price:Get Latest Price
$539.00 - $662.00 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 1 2 - 100 >100
Est. Time(days) 2 5 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Display Size:
12.1" TFT
CPU:
J1900 Quad-core processor
RAM:
4GB
Storage:
16GB SSD, up to 128 G
Power Supply:
9-30V DC
Resolution:
1024*768
Luminance:
400cd/㎡
Touchscreen Type:
4-wire resistive
Operating System:
Win 7, 8, 10
Net Weight:
3.5kgs
Supply Ability
Supply Ability:
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1, Polyfoam + carton
2, According to customers' requirements.
Port
Beijing
Lead Time :
Quantity(Pieces) 1 - 1 2 - 100 >100
Est. Time(days) 2 5 To be negotiated
Product Description

TPC-8121s

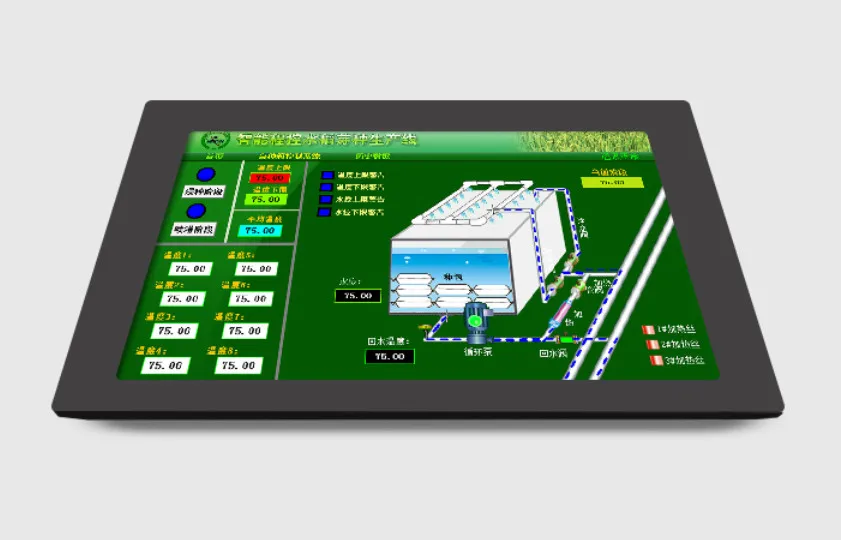

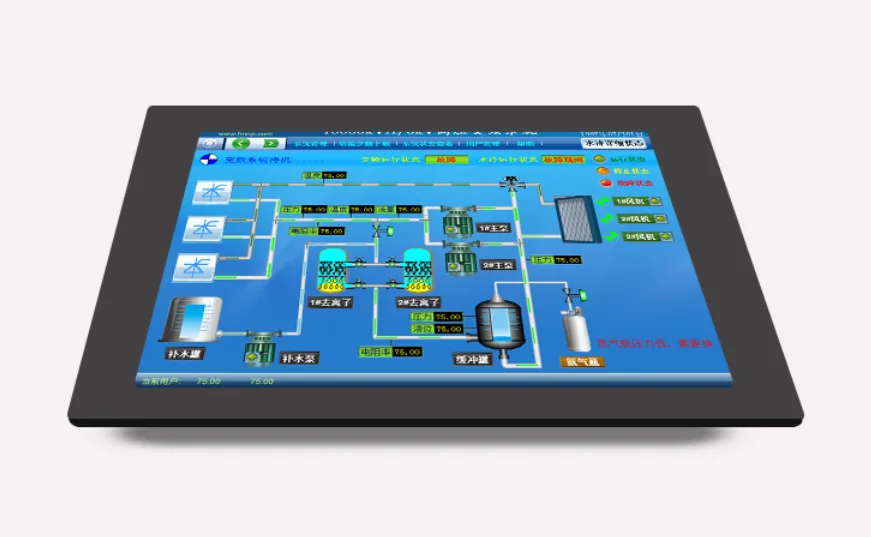

12.1" fully enclosed resistive wide voltage temperature China industrial hmi with rs485 manufacturer

12.1" TFT LCD Screen
Completely isolated I/O interfaces
Intel Quad Core J1900,  low-power consumption Processor
Compact fanless design with aluminum magnesium alloy enclosure
Resistive touch screen

General
Display Size
12.1" TFT-Panel
CPU
Embedded Quad core J1900
Chipset
Intel Bay Trail
BIOS
SPI 64M
Graphics
Intel® HD4000/ 5000/ 6000 Graphics
Display memory
Shared memory with RAM
RAM
4GB onboard
Storage
16GB SSD, up to 128 GB
Network
2 x Intel I210 GbE LAN
I/O interface
4 x USB2.0 Port
1 x RS232/RS485, 3 x RS232
1 x support HD-MI, 2 x GigaLAN
Expansion
GPIO 12 bit programmer,3.3V@24mA
1 * Mini-PCIe socket, Support 3G/4G Module
Watchdog Timer
Programmable 1 ~ 255 sec; Support System Reset
Mounting
Panel, VESA 75*75, 100*100
Power supply
9-30 V DC
Power Interface
2pin Phoenix
Operating System
WIN7 / 8 / 10
Dimension (WxHxD)
318*248*48mm
Net Weight
3.5 kgs
Touch screen
Type
4-wire resistive
Knocking life
≧106 times with a silicone rubber R8 finger,
writing rate is by 250g at 2 times/s
Stroke life
≧100000 times
LCD
Type
12.1" TFT
Resolution
1024*768
Luminance
400cd/㎡
LCD life
50,000 hours
Backlight life
30,000 hours
Environment
Operation Temperature
-20 - 70°C
Storage temperature
-30 - 80°C
Relative Humidity
5%~90%@50℃
Shock
peak acceleration 150m/s²
Vibration
Displacement amplitude of 10~57Hz is 0.075mm
Peak acceleration of 57~150Hz is 9.8m/s²
Impulse width
10ms, half sinusoid

Wireless, All in one motherboard

wireless & "All in one" desgine
stable opearation


High definition diplay

12.1" Industrial display, XGA TFT LCD 1024*768



Solid aluminum alloy enclosure: Cold-rolled sheet enclosure, strong hardness, strong anti pressure beautiful appearance



Resistive touch screen: millions times of tests, stable fast accurate touch, no blind spot


Deal with hostil environment


Wide Temperature -20° - 70°                    Wide Voltage 9 - 30V DC                 Fully isolated interfaces

Suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication
network, power automation, aerospace, etc.


Support Win7, Win8, Win10

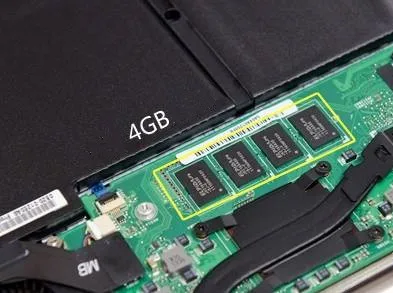

Onboard RAM 4G

Ultra-high seismic performance, electromagnetic proofing, anti-static, anti convex wave chip interference


Dimension

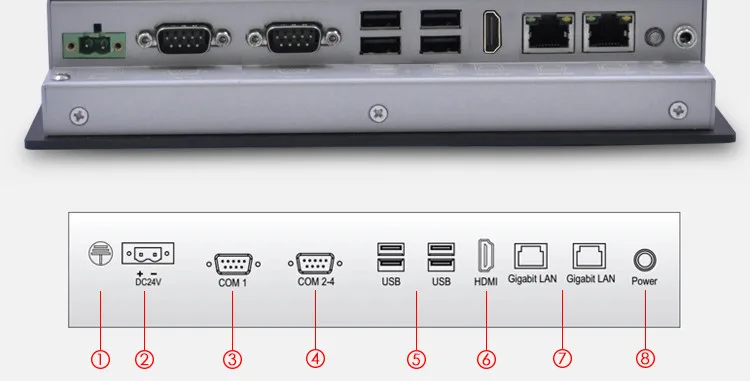

Rich interfaces

1, GND                   2, 9-30V DC                 3, COM1 (RS232/485) Surge & Optocoupler Insulation
4, COM2-4 (RS232) Surge & Optocoupler Insulation
5, 4×USD2.0         6, Surport HD-MI          7, 2×GigabitLAN (INTEL I210 Gigabit nics)         8, Power Button

Quality

Why Xingtac's quality is more reliable?

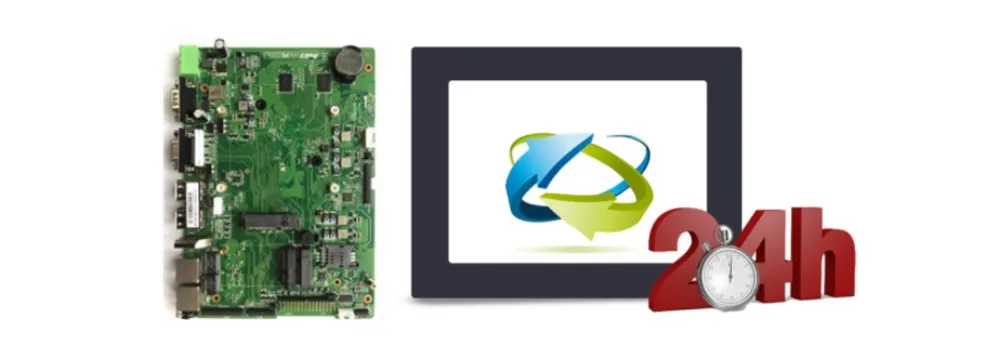

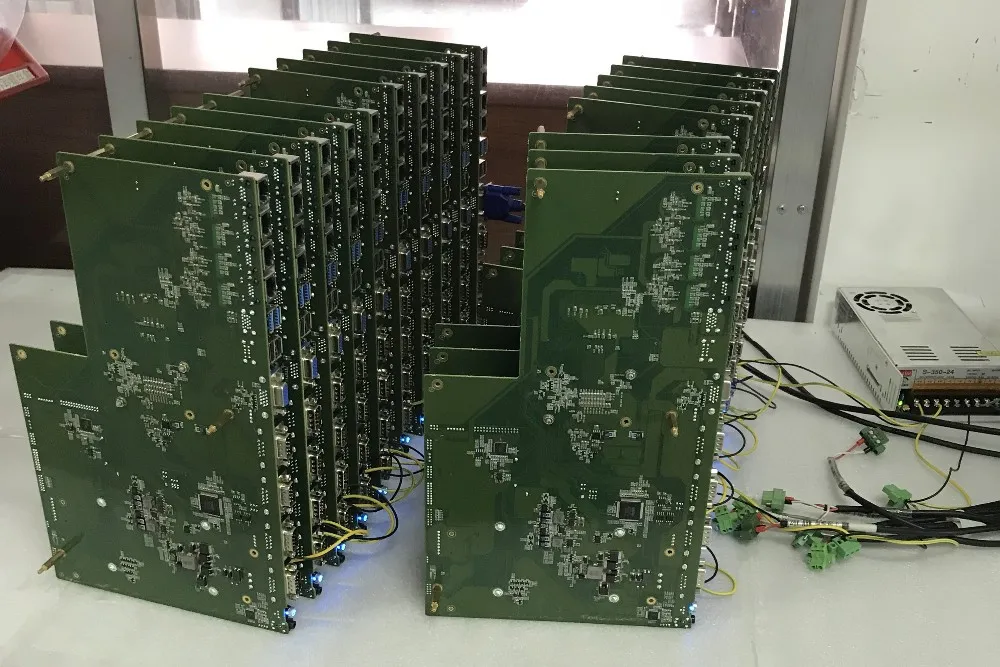

Main board Test

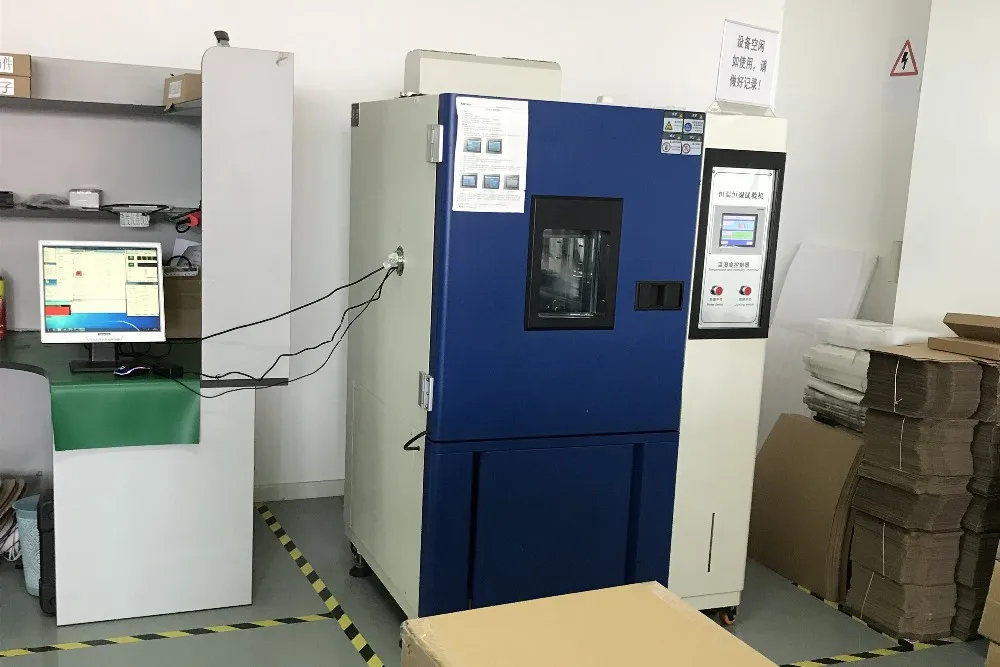

Steady Temperature Damp Test

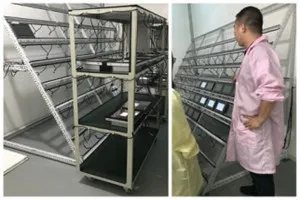

Continuously Test

Assembled by experienced workman

These certifications are real, NOT FAKE!!! Please contact us to show you.

Quality Guarantee
1, Warranty 1 year. The next and third year, we repair freely, charge for the replaced parts.
2, We accept the third-party inspection company quality check.



After-sale service department
Ensuring quality problems been solved quickly. If you

received the products with quality problem, we will

provide solutions via phone or video. Or please send

products back to us, we repair.

Customazition

1, Fast response: Providing solution in 1 day. Structure customization takes 15 days. Circuit customization take 1 month.
2, MOQ is 1 piece/ set, free design.
3, We can customize:

Packing & Delivery

Safe packing. Customized packing is available

We can arrange international express or air transport.

Packing List

TPC-8121s × 1, Ground wire × 1, User manual × 1

About Us

Xinghua Co. Ltd., established in 2006, which is wholly owned subsidiary of Luchengtech Co., Ltd, specializes in tailored

solutions of rugged and automation industry. We have standard products of rugged computer, industrial panel computer,

embedded PC and industrial monitor.

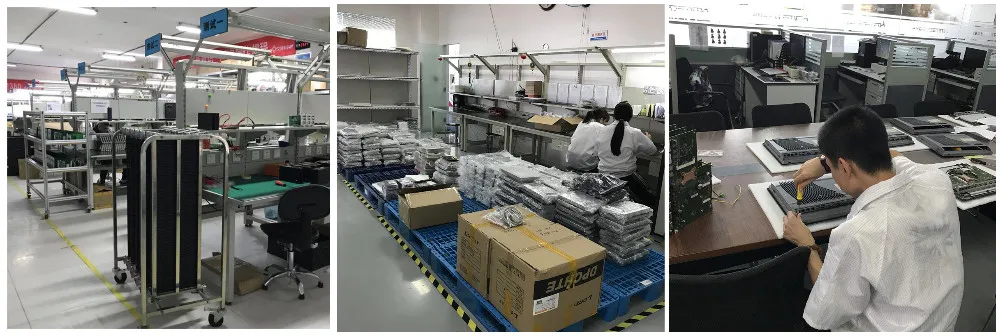

Workshop
