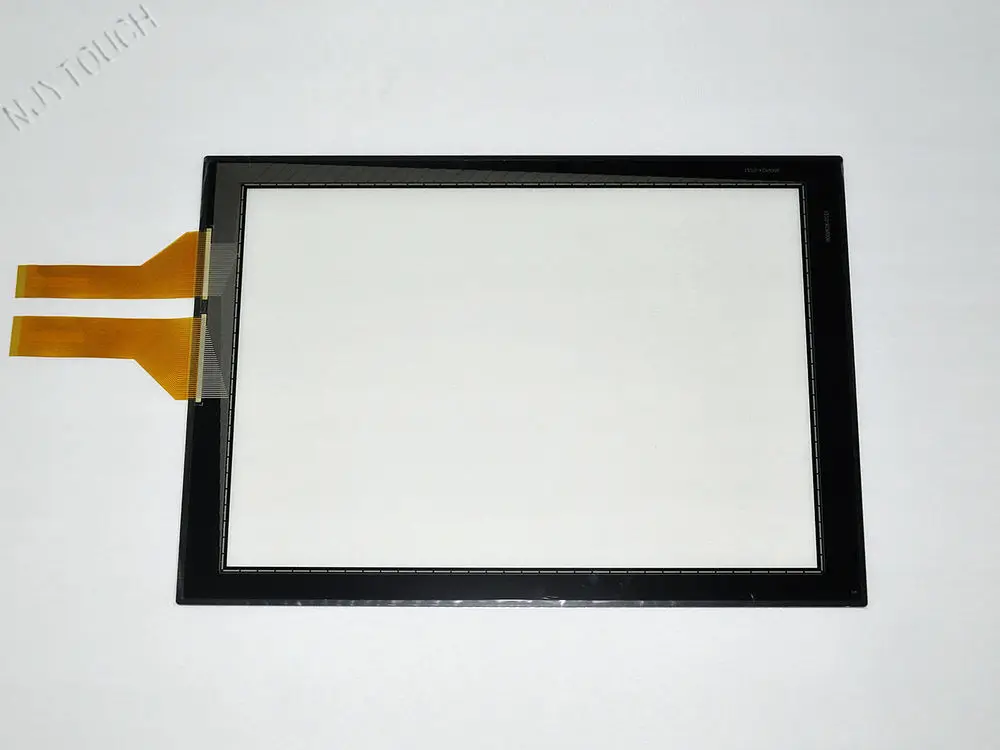

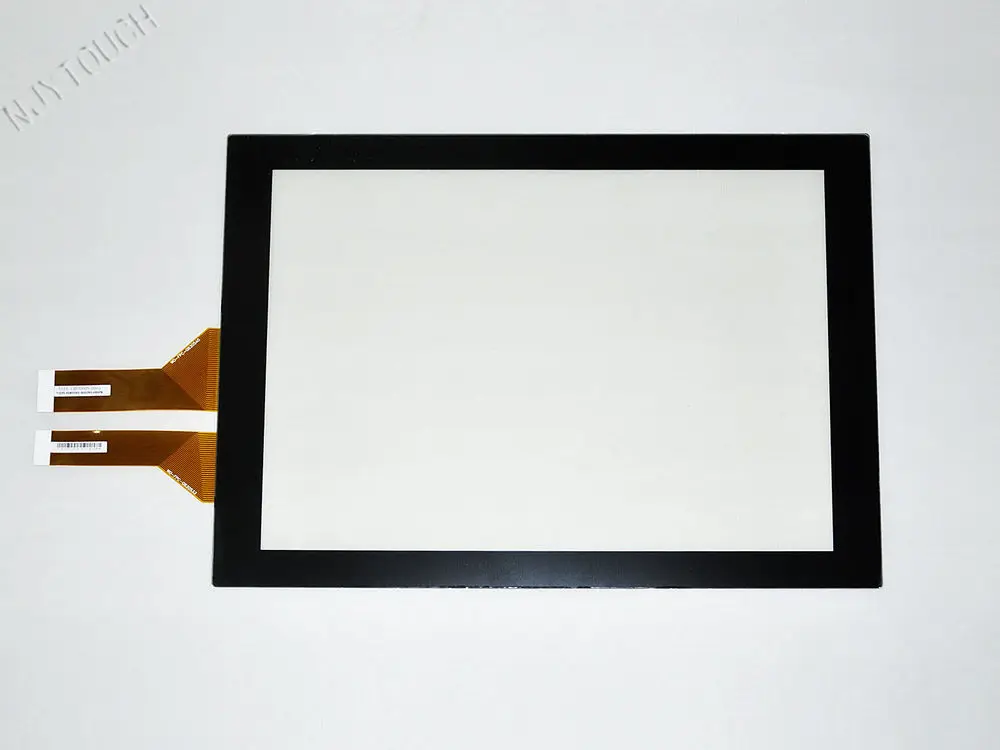

12.2" Dual Touch Multi-point Capacitive Touch Screen panel with USB Controller FPC

FOB Reference Price:Get Latest Price
$35.00 - $55.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Screen Size:
12.2 inch
Type:
Capacitive
Interface Type:
USB
Resolution:
4096*4096
Brand Name:
OEM
Model Number:
NJY-1220-CP
Place of Origin:
Guangdong, China
Product name:
Multi-point Capacitive Touch Screen
Max. Support Points:
Max,10 points
Control Type:
PCBA control board
Available Size:
7"-22"
Input Mode:
Finger or Cap. Stylus
Connector:
FPC
Operating system:
Windows7,Windows8,Windows XP......
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Pearl wool with master carton
Port
Shenzhen
Lead Time :
Subject to quantity.

12.2" Dual Touch Multi-point Capacitive Touch Screen panel

with USB Controller FPC





Product Description



Feature:

Item

Specifications

Type

Projective Capacitive

Input Mode

Finger

Connector

FPC

General Specification:

Item

Specifications

Frame Size

289.47±0.30 x 222.00±0.30mm

View Area

247.87±0.20 x 186.40±0.20mm

Active/Precision Area

250.87±0.20 x 189.40±0.20mm

Total Thickness

2.45±0.30mm

Tail Length

80.00±3.00mm

I/O Channel

X=40pin/Y=33pin

Environmental Characteristics:

Item

Specifications

Temperature

Humidity(Non Condensing)

Operation

-20℃~+70℃

20%RH~85%RH

Storage

-40℃~+80℃

10%RH-90%RH

Note:

Testing environment is under normal atmosphere pressure.

When the ambient temperature is above 65℃, the humidity is allowed to be below

50%RH

Optical Characteristics:

Item

Specifications

Transparency

90%±3%

Haze

<2%

Electrical Characteristics:

Item

Specifications

Response

According to Integration time of controller

Insulation

>100MΩ/25V(DC)

Linearity

X<1.0%,Y<1.0%

Durability:

Item

Specification

Knock Test

100,000,000 times











Supported OS: Windows 7; Windows 8; Windows Vista; Windows 9X/Me;

Windows NT4.0; Windows 2000/XP; Windows CE.Net(4.x/5.0);

Windows CE 6.0; Windows CE 7.0; Windows Embedded; Dos; Mac OS 9.x;

Mac OS X; Mac OS X(Intel CPU); Linux; QNX Neutrino RTOS V6.3





Drawing:











Package includes:

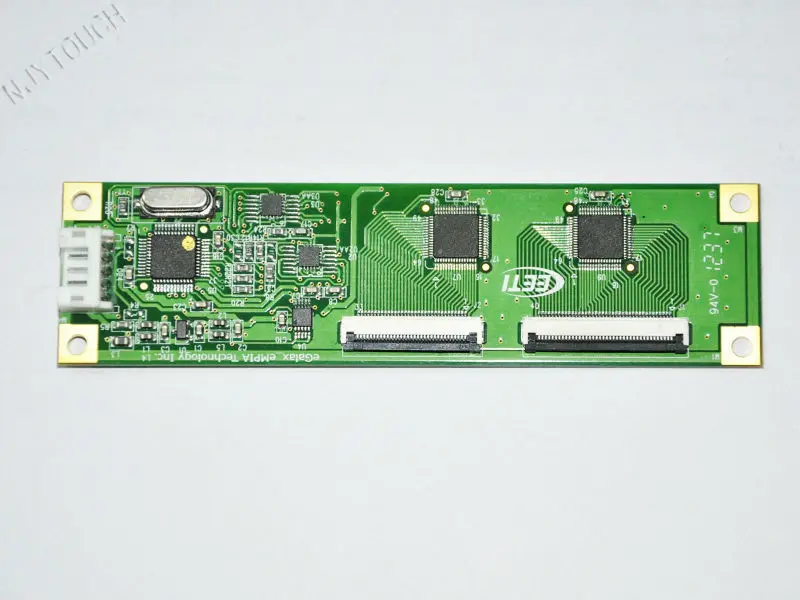

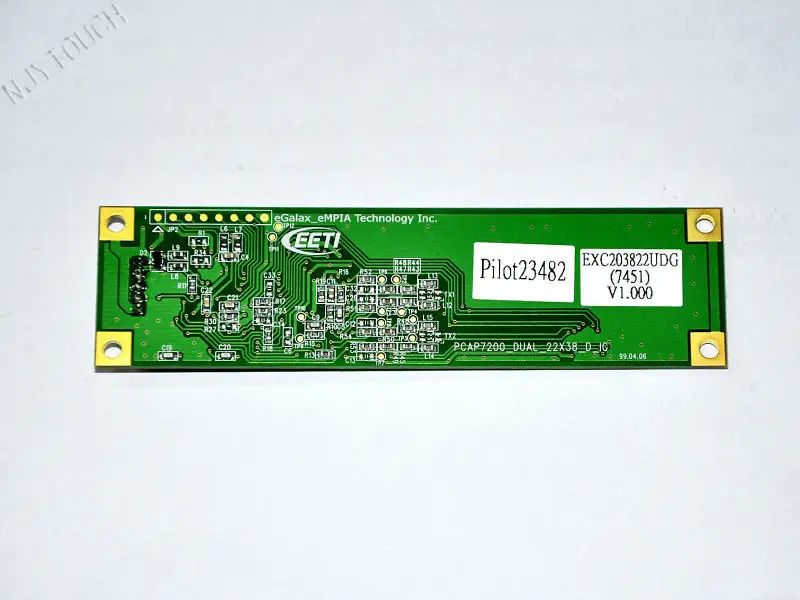

Projective Capacitive Touch Panel; USB controller, USB cable











Typical Application


Public access, gaming machines, POS (Point of Sale), kiosks, ATM,

industrial controls.







Other related items:





Packaging & Shipping











Our Services





Company Information



    NJY Technology Co.,Ltd, founded in 2005, specializes in manufacturing touch panels and LCD

controller boards. We have rich experience on designing, developing and selling these products.

With high effective management and skillful staffs, we are striving to provide clients excellent

productsand superior service.

And we can offer OEM/ODM promptly within 15 days, and some kinds of touch panel’s MOQ can

bereduced to 50pcs.

At present, our products include Resistive touch panels, Capacitive touch panels, Infared touch

panels, SAW touch panels and LCD controller boards, which is sold quite well at both home and

abroad. We are the supplier of public company like Hydrix ( Australia), QIWI (Russia), PECO,

 Intel(America) and Mitsubishi etc.









FAQ



Q1: What is the response time of the LCD screen?

A:According to the reaction time of human eyes, if the response time is more

than 40ms, hyof most laptop LCD screens is 25 to 30ms.



Q2: Is the brightness enough?

A:The brightness of general LCD screen, enough for the daily use, is about 150lm.

The higher one is around 250lm. Moreover, the brightness of NEC screen, adopting

WSSV tech, achieves 320lm.



Q3: Are there any problems we need to notice when using the screen?

A:LCD screen is fragileso please do not press it with heavy goods.

For the surface, it would be better if covered a protective film.

Please turn off the screen when you dont need to use it, so that it can extend the life time.



Q4: When switching on or off, the interference signal appears on the screen.

Is this normal?

A:This situation, which is caused by signal interference of the graphics card, is normal.

Ana it can be solved by adjusting the phase automatically or manually.steresis of the

moving image will appears. Nowadays,  the response time
