12-48V DC Input DIN Rail Industrial Grade Gigabit Media Converter with 100/1000M SFP Port

  • 1-9 Pieces
    $65.00
  • 10-99 Pieces
    $55.00
  • >=100 Pieces
    $50.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 50 Pieces)
Samples: $65.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $65.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
E-link
Model Number:
LNK-IMC3012-SFP
Input Power:
12~48VDC, 2-pin terminal block
Power Consumption:
3W Max.
SFP:
1000Base-X or 100Base-FX (auto detection)
Dimensions (WxDxH):
96 x 80 x 31 mm
Weight:
0.25Kg
Mounting Options:
DIN-Rail / Wall-mount

Packaging & Delivery

Selling Units:
Single item
Single package size:
9X7X3 cm
Single gross weight:
2.0 kg
Package Type:
12-48V DC Input DIN Rail Industrial Grade Gigabit Media Converter with 100/1000M SFP Port Standard export package
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 10 To be negotiated

12-48V DC Input DIN Rail Industrial Grade Gigabit Media Converter

with 100/1000M SFP Port

Product Description

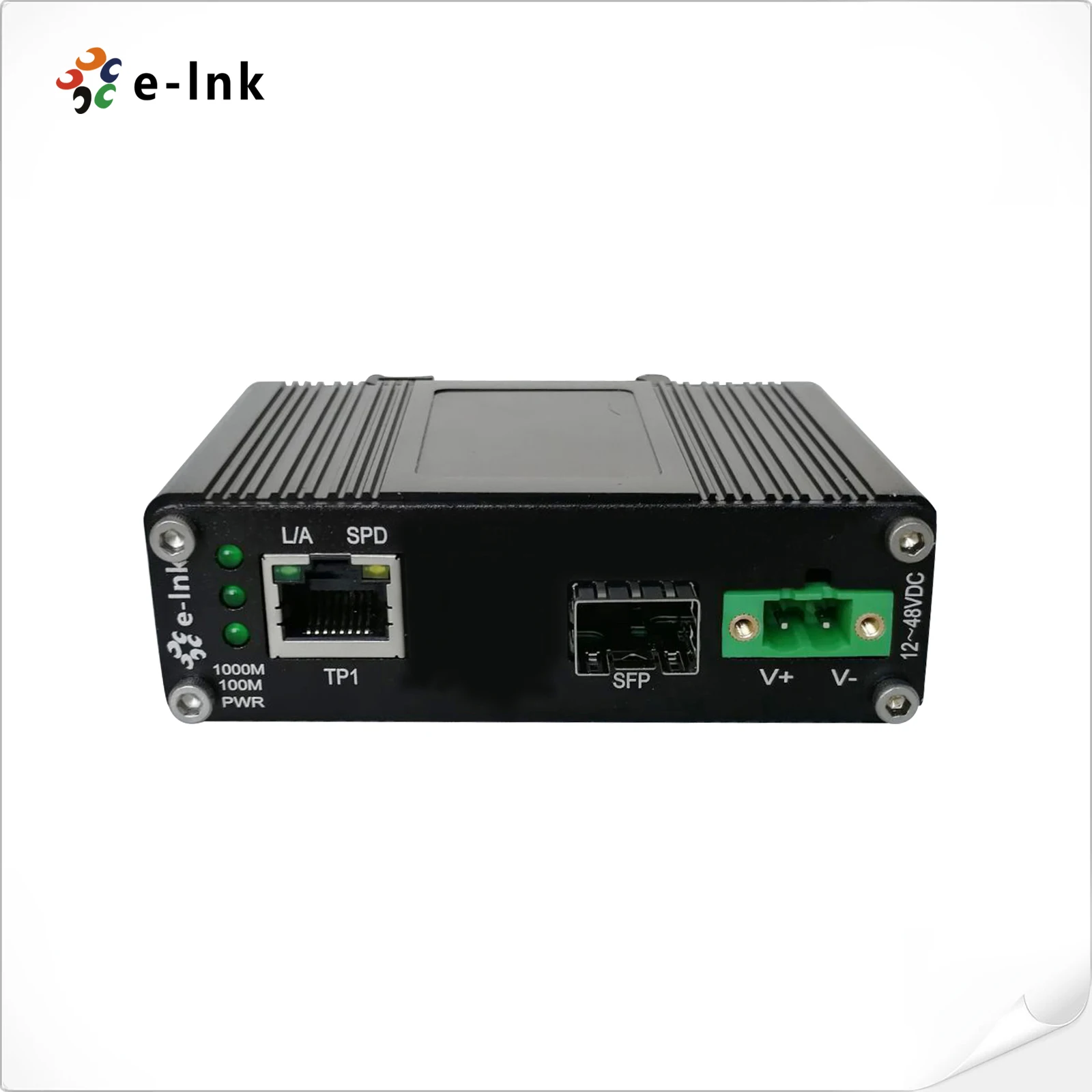

Model: LNK-IMC3012-SFP Series



Overview

LNK-IMC3012 is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK-IMC3012 supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.





Features

1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

Supports Link Fault Pass Through

Supports Full/Half-duplex, Auto-negotiation

9K Bytes Jumbo Frame

Extensive LED indicators for network diagnostics

12~48VDC Terminal Block Power Input

Supports DIN-Rail & Wall-mount installation

Environmentally hardened -40°C to 75°C
        (-40°F to 167°F) operating temperature



Technical Indexes

Ethernet

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

Processing Type:

Store-and-Forward

Forward Filter Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

1 Mbit

Max Packet Length:

9K Bytes

Address Table Size

2048K MAC Addresses

Interface

Connector:

1x RJ45

Optical Port:

1 x SFP 1000Base-X or 100Base-FX (auto detection)

Electrical and Mechanical

Input Power:

12~48VDC, 2-pin terminal block

Power Consumption:

3W Max.

LED Indicators:

PWR:

Power Status

RJ45:

LINK/Activity

SFP:

LINK

Dimensions (WxDxH):

96 x 80 x 31 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Environmental

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs
