12-48VDC Power Input 30W PoE Power Output Industrial PoE Media Converter

  • 1-9 Pieces
    $70.00
  • 10-99 Pieces
    $65.00
  • >=100 Pieces
    $60.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized packaging (Min. Order: 100 Pieces)
Graphic customization (Min. Order: 20 Pieces)

More

Customized logo (Min. Order: 20 Pieces) Less
Samples: $70.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $70.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
E-link
Model Number:
LNK-IMC3012P
Product name:
PoE Media Converter
Connector:
1x RJ45
Optical Port:
1 x SFP 1000Base-X
Input Power:
12VDC, 24VDC or 12~48VDC Optional
Output Power:
12VDC, 24VDC or 48VDC Optional
Power Consumption:
36W Max
Dimensions (WxDxH):
96 x 80 x 31 mm
Weight:
0.25kg
Casing:
Aluminum Case
Mounting Options:
DIN-Rail / Wall-mount

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X10X10 cm
Single gross weight:
1.0 kg
Package Type:
1 pieces in 1 carton box. Support OEM Service
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 5 To be negotiated

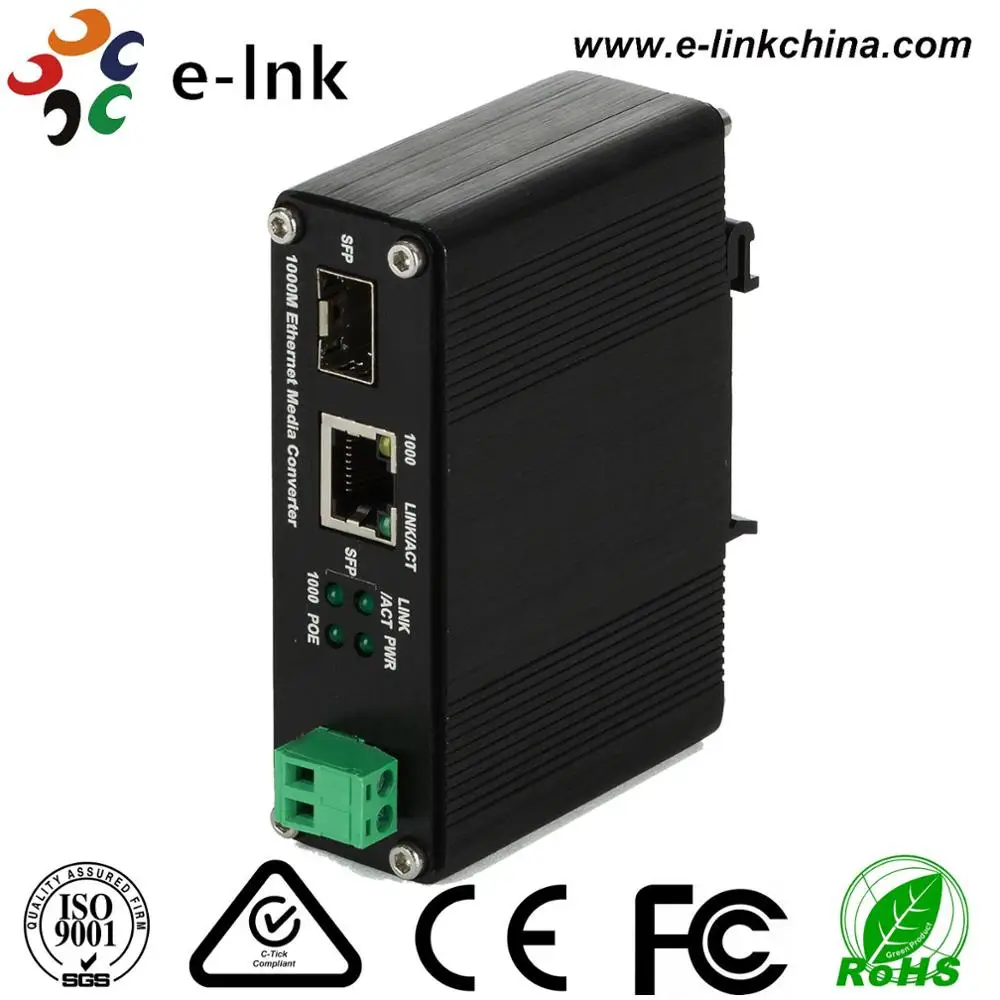

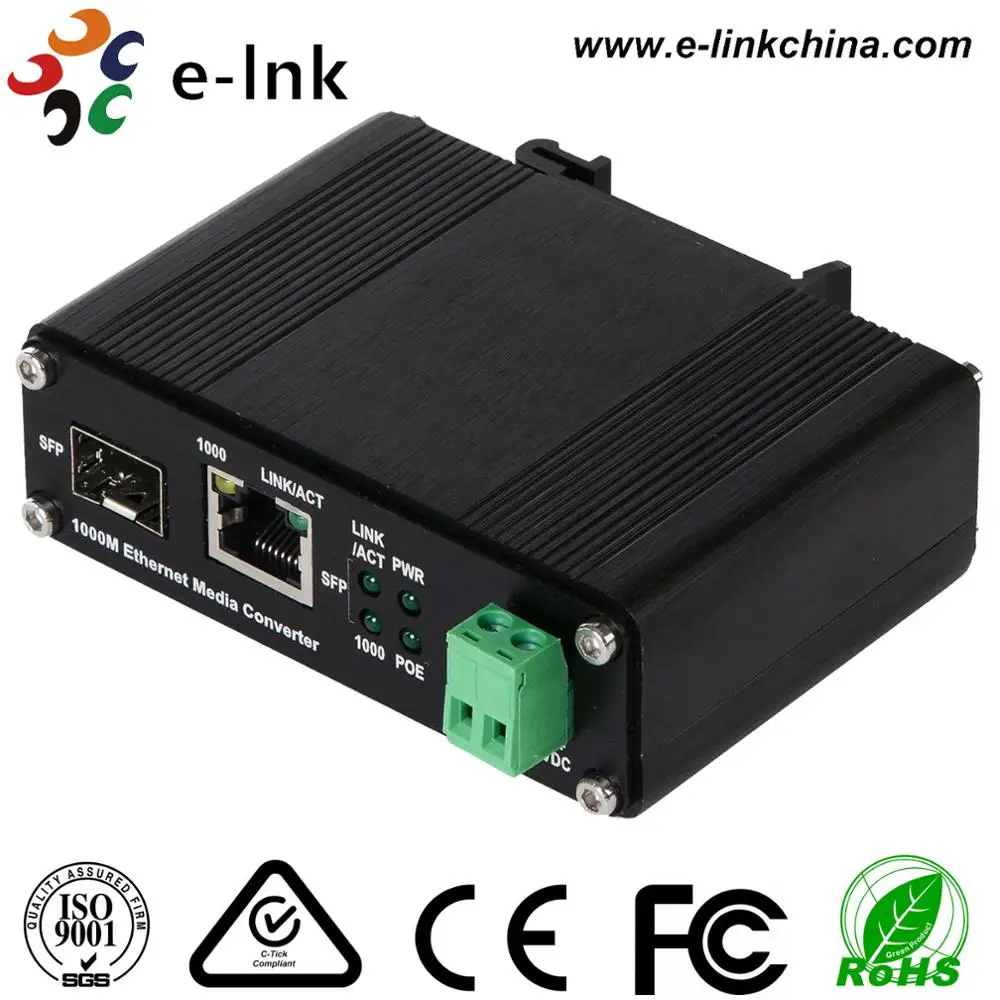

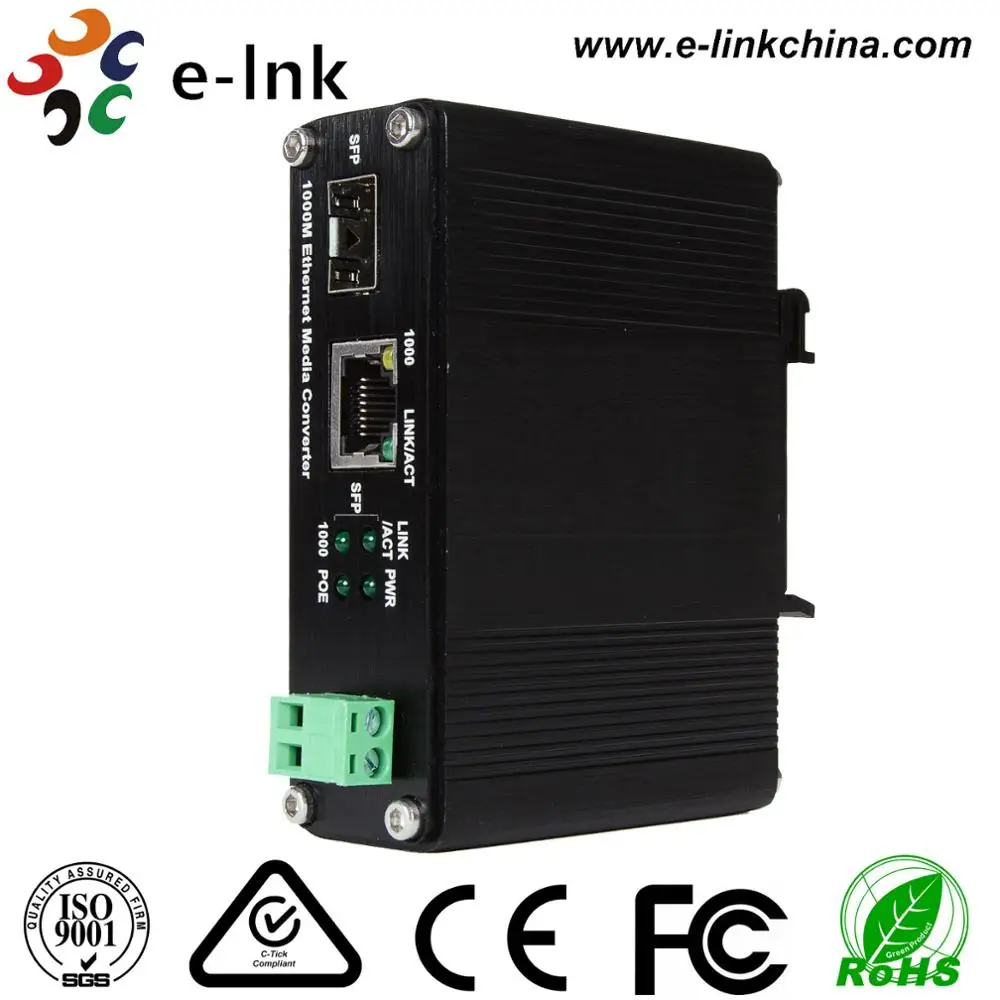

12-48VDC Power Input 30W PoE Power Output Industrial PoE Media Converter

Product Description







Model: LNK-IMC3012P Series

Overview

LNK-IMC3012P is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It is a hardened grade product whose operating temperature range is -40°C to +80°C. LNK-IMC3012P supports 10/100/1000M Ethernet Port and 1000M SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.



Features

  • Converts 10/100/1000Base-T to 1000Base-FX
  • Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+(30W)
  • Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
  • Supports external 1000Base-X SFP
  • 9K Bytes Jumbo Frame
  • 12~48VDC Terminal Block Power Input, 12V, 24V, 48VDC PoE Output Optional
  • Supports DIN-Rail & Wall-mount installation
  • Extensive LED indicators for network diagnostics
  • Environmentally hardened -40°C to 80°C
    (-40°F to 176°F) operating temperature

Warranty

  •  5-Year Warranty

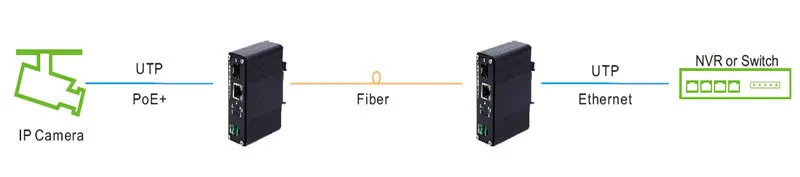

Typical Application


Technical Indexes

Ethernet

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Processing Type:

Store-and-Forward

Forward Filter Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

1 Mbit

Max Packet Length:

9K Bytes

Address Table Size

2048K MAC Addresses

Interface

Connector:

1x RJ45

Optical Port:

1 x SFP 1000Base-X

Electrical and Mechanical

Input Power:

12VDC, 24VDC or 12~48VDC Optional

Output Power

12VDC, 24VDC or 48VDC Optional

Power Consumption:

36W Max.

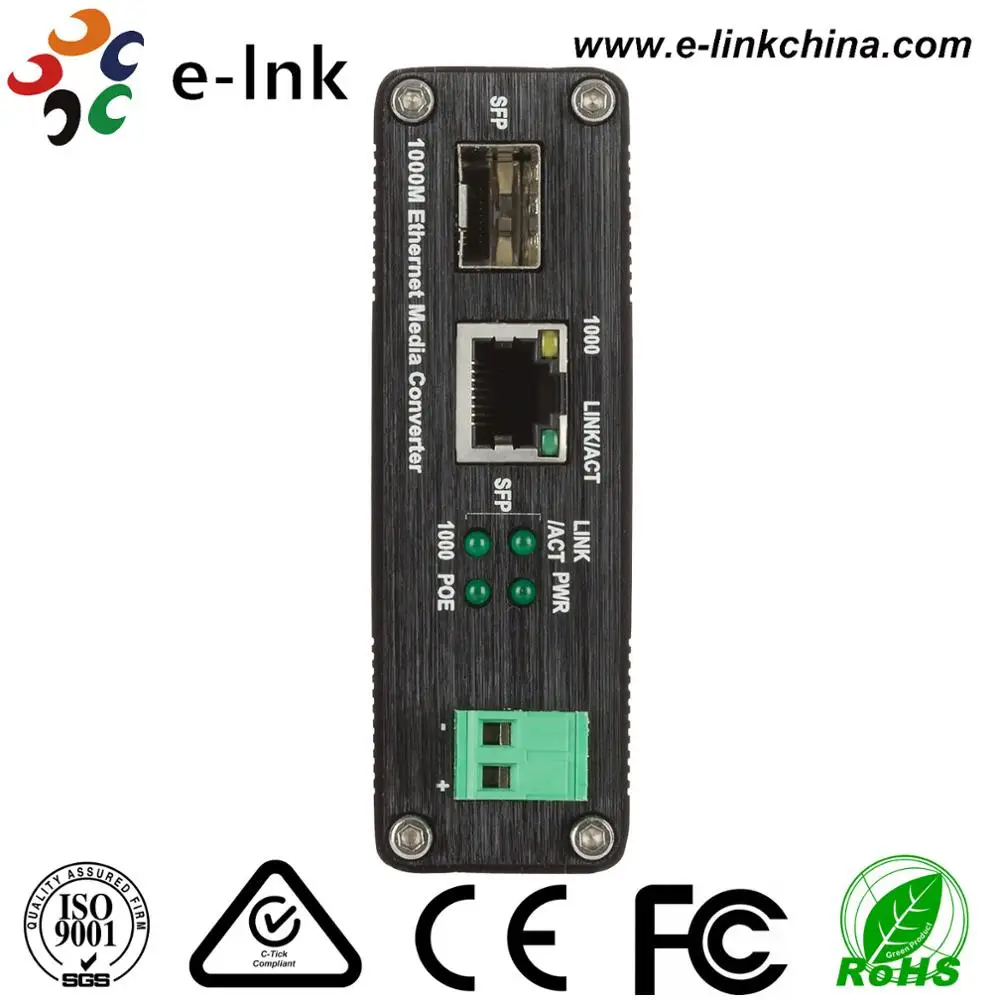

LED Indicators:

Power:

Power Status

PoE:

PD Plug Status

RJ45:

LINK/Activity

SFP:

LINK

Dimensions (WxDxH):

96 x 80 x 31 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024:2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

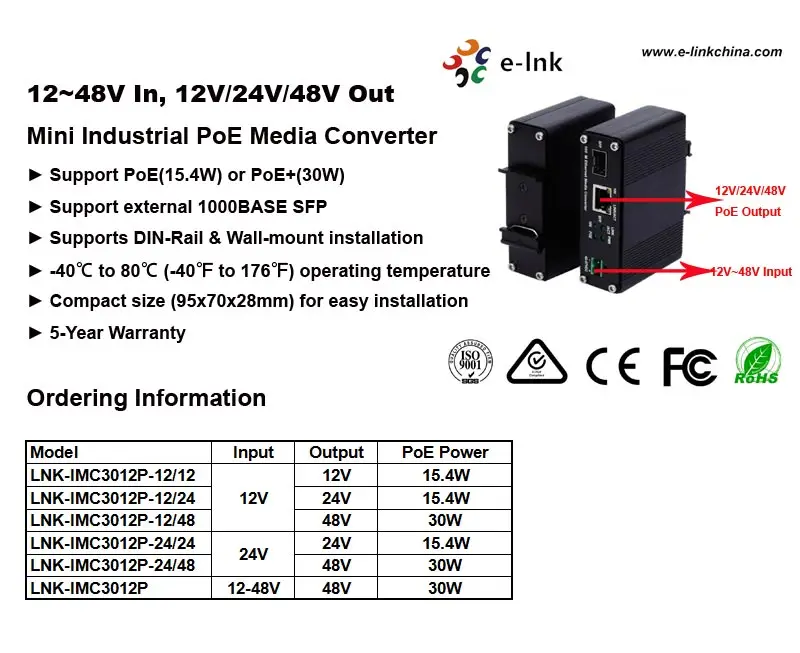

Ordering Information

Model

Input

Output

PoE Power

LNK-IMC3012P-12/12

12V

12V

15.4W

LNK-IMC3012P-12/24

24V

15.4W

LNK-IMC3012P-12/48

48V

30W

LNK-IMC3012P-24/24

24V

24V

15.4W

LNK-IMC3012P-24/48

48V

30W

LNK-IMC3012P

12-48V

48V

30W
