12 inches 200 m3/h 20 m 25HP large flow farm irrigation submersible pump

Feedback Ratings
  • 1-9 Pieces
    $382.50
    $425.00
  • 10-49 Pieces
    $364.50
    $405.00
  • >=50 Pieces
    $346.50
    $385.00
10% OFF Discount ends in : : :
Horsepower:
25
Maximum Flow Rate:
250
Maximum Head:
240
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Samples - $425.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Xinkang, Prime pump
Model Number:
300QJ200-20/1
Structure:
Multistage Pump
Usage:
Water
Application:
Submersible
Power:
Electric
Fuel:
Power
Pressure:
High Pressure
Product name:
12 inch 200 m3/h 20 m 25HP large flow farm irrigation submersible pump
Motor:
100% Copper Rewinding wire
Certificate:
ISO9001 CE TUV UL
Color:
Customer Specifications
Warranty:
One Year
Voltage:
380V~415V, 50HZ, 3 Phase
Material:
Cast Iron Stainless Steel, Bronze
OEM:
Applicable
Visit Factory:
You are welcome always

Packaging & Delivery

Selling Units:
Single item
Single package size:
145X38X45 cm
Single gross weight:
185.0 kg
Package Type:
Packed into the polyethylene packing, Entangle with a rope. Export Standard Plywood Bo

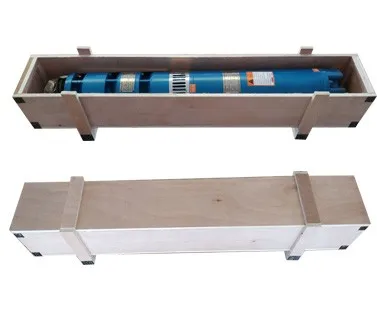

Picture Example:
package-img
package-img
Lead Time :
Quantity(Piece) 1 - 10 11 - 30 31 - 100 >100
Est. Time(days) 5 10 15 To be negotiated
Video Description
Product Description

12 inches 200 m3/h 20 meters head 25HP large flow farm irrigation submersible pump Product Application

Technical Data

Flow range: Q = 2 - 500 m3/h
Discharge head: H = 5 - 1000 meters
Liquid Temperature: Max.+45 °C / Max. +85°C for hot type
Power supply: 3-phase,380V~415V/50Hz, 3 phase, 415V/60Hz, 440V/60hz, 460V/60Hz also is available.
Insulation class: B
Protection grade: IP68

Motor power: 0.55 - 450 KW

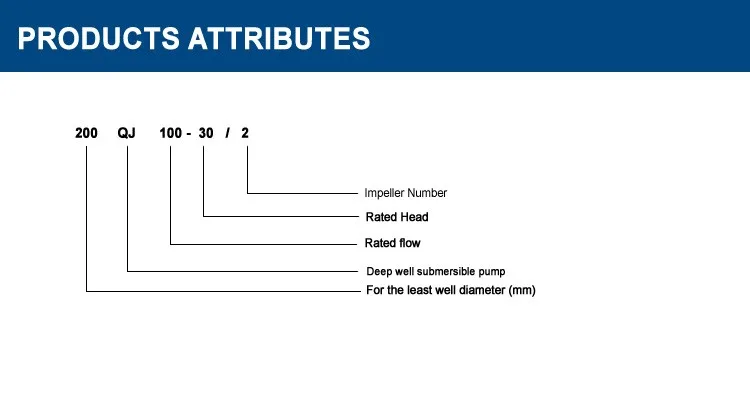

NO.
Model
Well Dia.(mm)
Flow (m3/h)
Stage
Head(m)
Power(kw)
Outlet dia.(mm)
1
300QJ200-20/1
300
200
1
20
18.5
150
2
300QJ200-40/2
300
200
2
40
37
150
3
300QJ200-60/3
300
200
3
60
55
150
4
300QJ200-80/4
300
200
4
80
75
150
5
300QJ200-100/5
300
200
5
100
90
150
6
300QJ200-120/6
300
200
6
120
100
150
7
300QJ200-140/7
300
200
7
140
125
150
8
300QJ200-160/8
300
200
8
160
140
150
9
300QJ200-180/9
300
200
9
180
160
150
10
300QJ200-200/10
300
200
10
200
185
150
11
300QJ200-240/12
300
200
12
240
220
150
Certifications

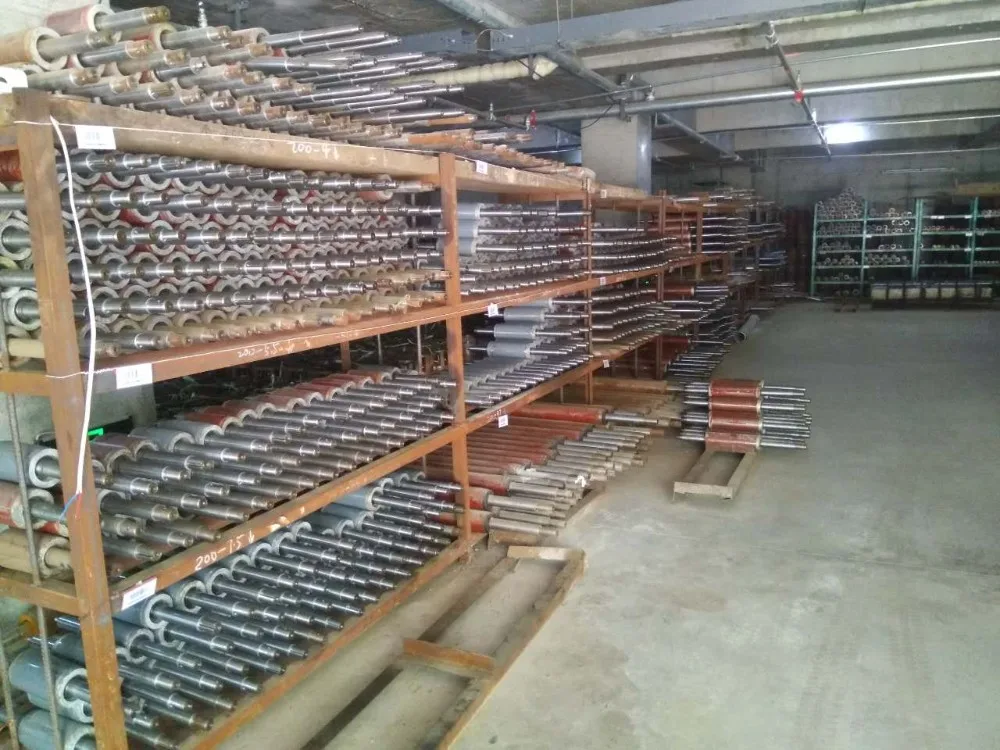

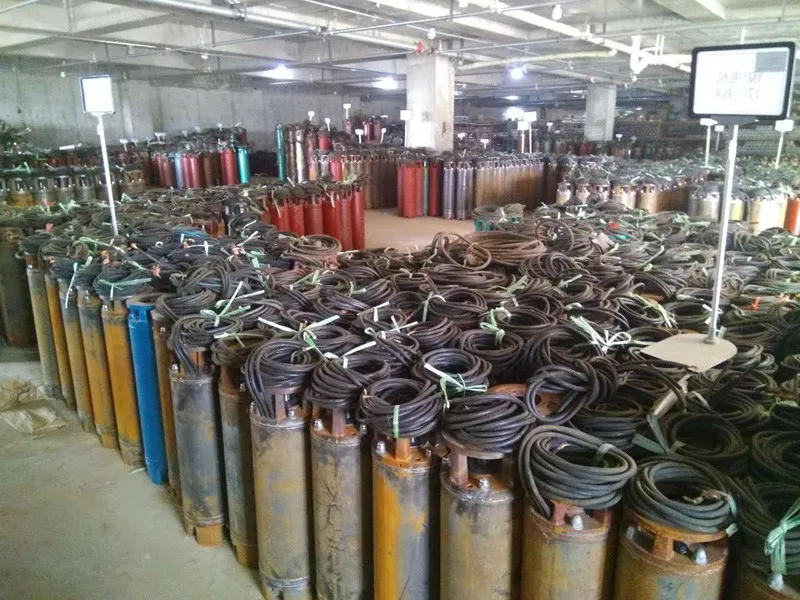

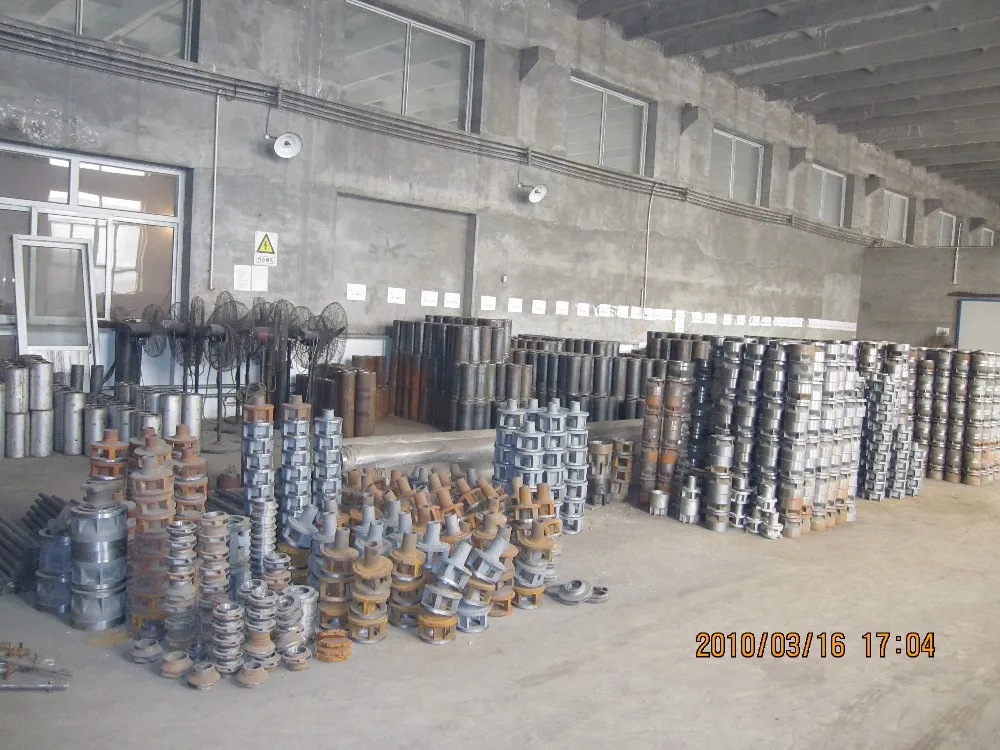

Products Details

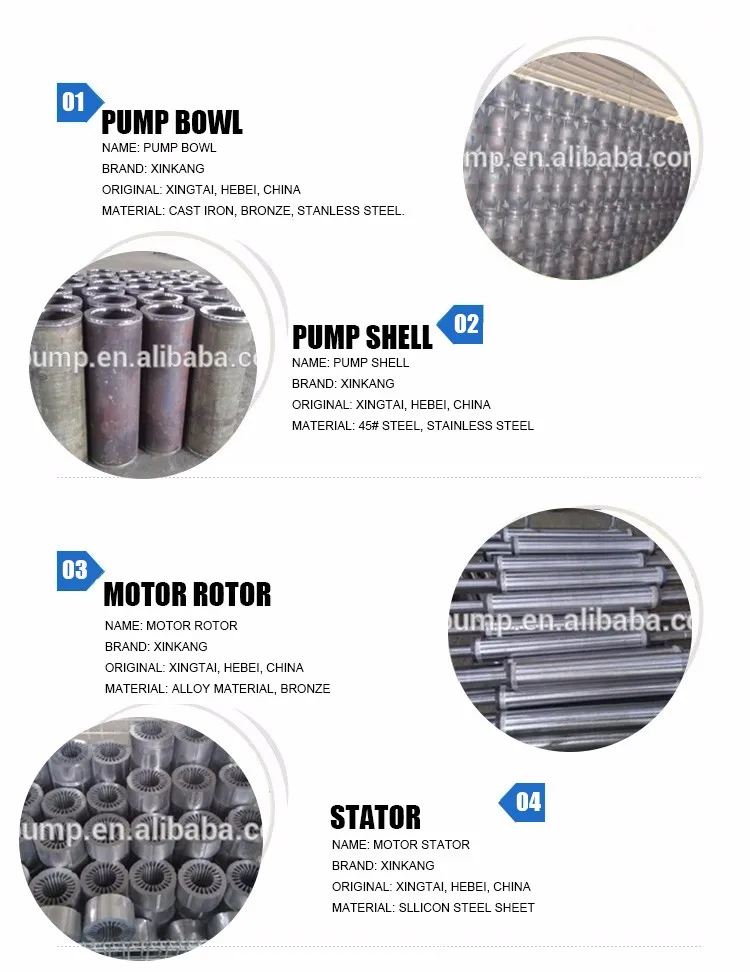

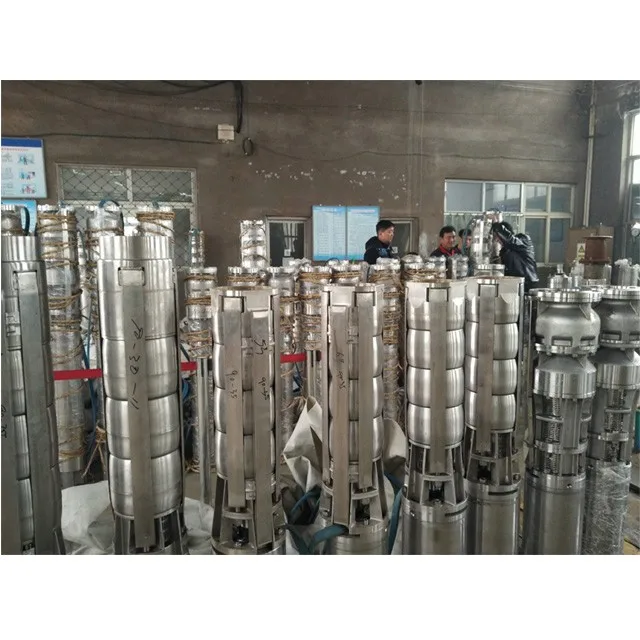

PRODUCTS

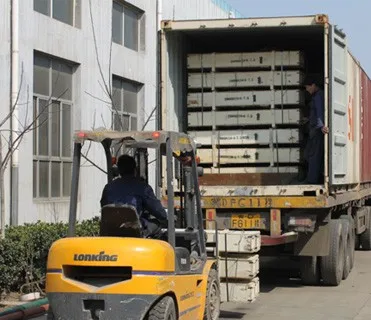

Packing & Delivery
INSTALLATION

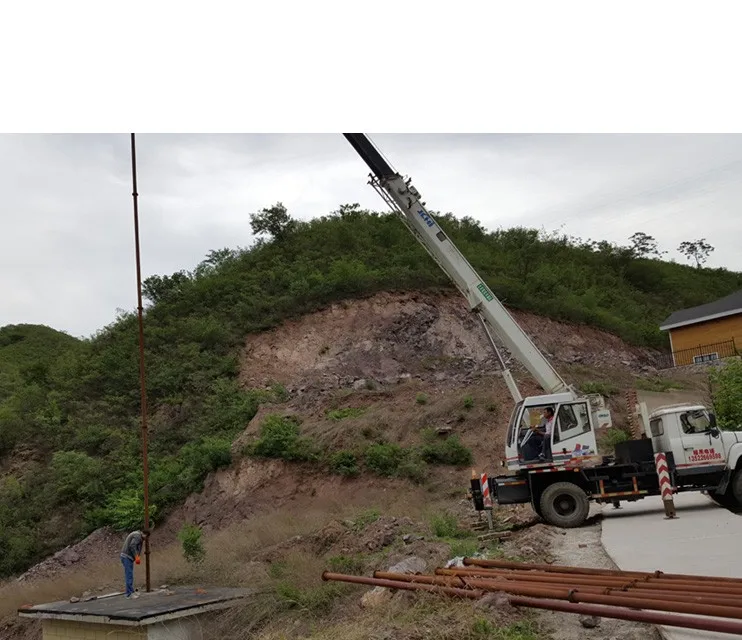

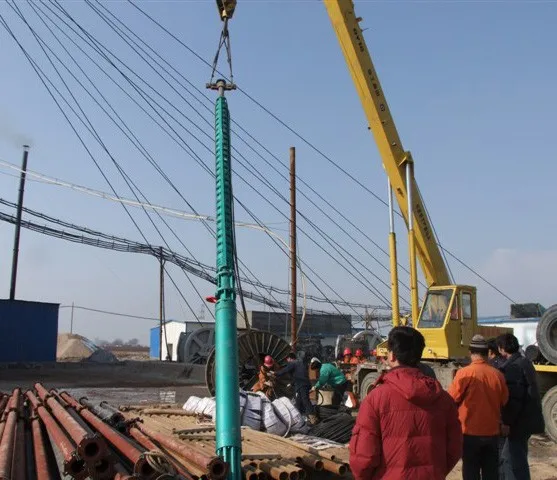

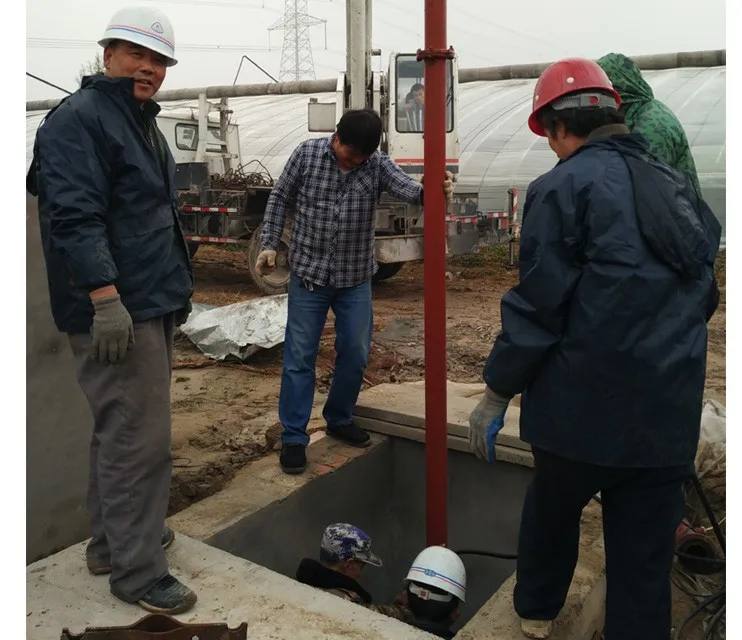

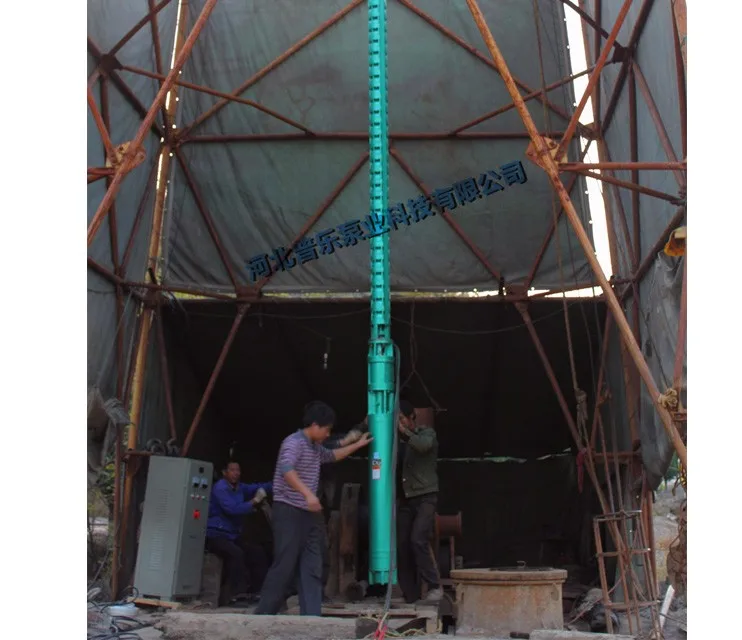

Installation Sites

These are soem installation sites that our installation teams installated pump sets for our customers.

Our Technical department can arrange installation team to Installate the pumps sets for you. Or our technical will come to your site to installate pump sets. Our technical have come to Senegal, Russia, Dubai etc forgin country and  demestic to installate pump sets for our customer.
