12 volt switching power supply AC DC adapter 12V 8A with CE UL/CUL 96w

FOB Reference Price:Get Latest Price
$15.80 - $17.70 / Pieces | 500 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HF-FYD
Model Number:
FY1208000
Output Type:
DC
Connection:
Plug In
Output voltage:
12V
Output current:
8A
Warranty:
2 Years
Color:
Black White
Input voltage:
AC100~240V
Output power:
96W
AC cable:
1.2m
DC cable:
1.2m
Certificate:
CE FCC ROHS UL PSE SAA RCM GS
Type:
single output
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
1.Inner package: PE bag/ white box/ blister package or as your demand
2.Outer package:50pcs/ctn,.50*44*20.5CM or as your demand
Port
Shenzhen
Product Description

Factory wholesale AC DC Power adapter 12V8A 96W desktop type

 switching supply power adapter

Application

Widely used in medical,digital,communication,security,lighting, DVD players, LCD and TFT TVs, MP4 players, digital cameras, surveillance video camera,other A/V products,cell phone charger,network information,security equipment,small home appliances,etc.

Protection

1.Over-voltage protection: 120%min
2.Over-current protection: 120%min
3.Short-circuit protection: automatic recovery
4.over protection
5.Load regulation: ±5%

Advantage of the product

1. Range voltage: AC 90-264V 47/63HZ
2. High efficiency and low operation temperature
3. AC input power suitable for the world
4. Soft-start current can reduce the AC input impact efficiency
5. Compact size ,light weight
6. With short-circuit and overload protection
7. 100%full-load burning test
8 Installed with EMI filter ,minimum wave

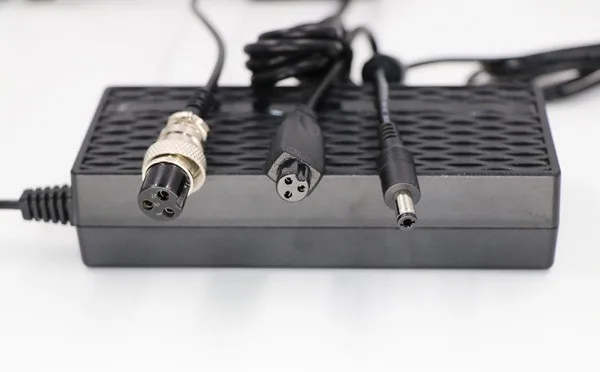

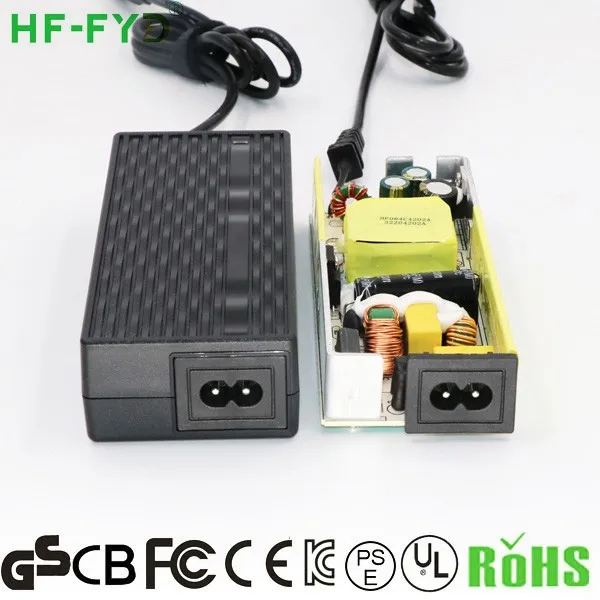

Detailed Images
Specification
Model
FY1208000
Input Votage
100~240V
Brand
HF-HYD
Input Votage and current
12V8A
Input Frequency
47~63Hz
Standard
Meet IEC60950-1 (information technology and similar electric apparatus -safety requirement) standard requirement.
Efficiency
80%
Type
Desktop
Overshoot at turn-on/ turn-off
Any overshoot at turn on or turn off shall be less than 150% of rated output voltage.
Over Current Protection
The power supply shall meet the limitation requirement as below table without any damage, the unit shall recover and function automatically after the protection is removed.
Environmental and reliability
Operating Temperature
0℃~40℃
Storage Temperature
- 20℃~+80℃
Operating humidity
10~90%RH
Storage humidity
5~90%RH
Leakage Current
0.25mAmax
Withstanding Voltage
3000VAC 1 minute 10mA max
Burn-in
100% full load, 40±5℃ 4Hrs min
MTBF
meet MIL-hdbk-217F over 50K hours ,full load 25℃
Insulation Resistance
500Vdc 100MΩ min between AC plug and DC plug and case
Packing & Delivery

Basic Terms

1. MOQ (Min Order Qty): 500PCS / 1 CT or 50PCS/CT
2. Lead-Time: 7-15 Working Days Normally
3. Warranty Period: 2 years
4. Payment Methods: T/T, Paypal, Western Union, etc
5.Shipping Mode: Express Courier, Air, Sea or as your demand

Our Service

1.Delivery Time:USA/UK/Canada/Australia/West and North Europe 7 Business Days, Other country 1.5 weeks
2.Shipping freight are quoted under your requests
3.Shipping port: Shenzhen, Mainland China
4.Note:If you don't receive items over 10 business days , please notify us

Our Company

About Us

We are a professional adapters factory for more than 5 years
Quality control:our defective products rate is 0.01%
Economically priced, exquisitely made Experience&responsible QC that you can reply on
Adequate supply capacity, Punctual delivery time
Best after sales service are provided

Contact Us

Xavier Wang
TEL:86-0755-33148601
Fax:86-0755-61159968
Mobil:86-13418464112
Skype:
Xavier.9034
ADD :8F,Building A9,TianRui Industrial Park,1st Fuyuan Road,Xinhe,Fuyong,Baoan 518103
