8 series 8 parallel for 3030 led, 4 series 16 parallel for 2835 leds
64pcs 2835/3030 leds
lens+pcb welding leds
Packaging & Delivery
Single package size:
Single gross weight:
1 - 500
501 - 1000
1001 - 5000
To be negotiated
Lens Beam Angle
Dia 93mm ,T 1.5mm
8 series 8 parallel for 3030 leds, 4 series 16 parallel for 2835 leds .
Garden Light , Street Light

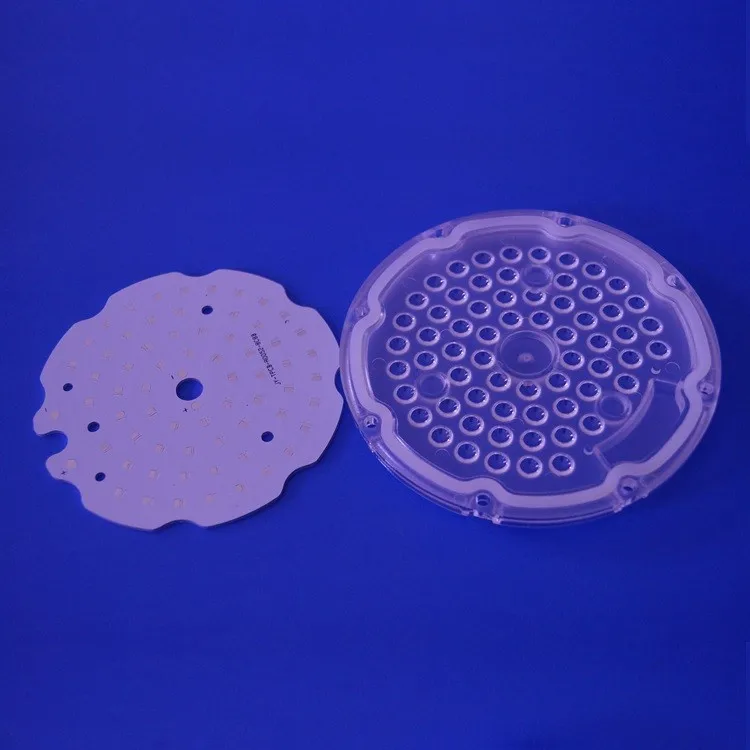

This smd 2835/3030 led light module can meet India market for 10W/20W/30W led light with 120 degree led lens and waterproof gasket requirements .
Product feature : 1, This product can welding mid-power 2835 leds to meet 10W,20W,30W requirments. 2, Dia 110mm Mini size . 3, 120 Degree lens with silicon gasket, 4, Whole module can support 12VDC for Solar light. 5, Better Heat Dissipation, It would be a good idea to replace the cob led with glass lens .
Product combined with Geometric Surface Design,High light efficiency;
On the basic character of SMD 2835/3030 series light, show the application of the Combination of optical and construction.
PCB circuit :
8 series 8 parallel for 3030 leds, DC 48V,
4 series 16 parallel for 2835 leds, DC 12V.
Dia 93mm ,thickness 1.5mm ,
Lens ( 120 degree)Optics Report
The lens has high light transmittance and is not easy to yellow.
