1200 degree 80L large Muffle furnace

FOB Reference Price:Get Latest Price
$600.00 - $1,200.00 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Classification:
Laboratory Heating Equipments
Brand Name:
HEB
Model Number:
PXL-1200-80
Place of Origin:
Shaanxi, China (Mainland)
Item:
1200 degree 80L large Muffle furnace
Furnace chamber (D x W x H):
500*400*400mm
Volume:
80 Liter
Furnace shell structure:
Double shell
Furnace chamber material:
vac-sorb forming high quality alumina polycrystalline fiber
Working temperature:
Continuous working temperature ≤1000℃
Heating Rate:
Max. :30℃/min; Recommend: 10℃/min
Temperature control accuracy:
±1℃
Thermocouple:
N model thermocouple
External dimension:
900*800*800mm (DxWxH)
Supply Ability
Supply Ability:
100 Unit/Units per Month
Packaging & Delivery
Packaging Details
Standard export package
Port
Xi'an, China
Lead Time :
5~10 days
Product Description

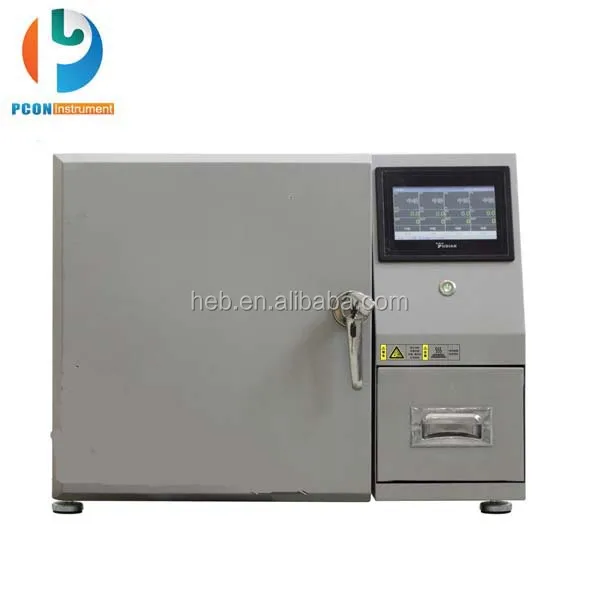

 1200℃ Muffle furnace 80 L





 PXL-1200 box-type laboratory muffle furnace, using unique touch-screen controlling system, intelligence operations, graphic interface operation more convenient; unlock the door will power off, experimental operation more safer; pull-out lockers can be placed experiments necessary accessories, improve work efficiency; intelligent temperature control system program, phase trigger, SCR control, high precision; Japanese technology vacuum molding quality polycrystalline alumina fiber, high-quality Kanthal Sweden alloy wire cured in the furnace, the experimental process without dregs, oxidation and other foreign matter.






Main function and features:



1. Heating elements (electric resistance wire) embedded in three sides or more sides,  temperature field uniformity.



2. Operator can preset multiple heating curve, assigned to different sintering materials, direct call when needed, without disturbing each other, without having to repeat the modified temperature parameters;



3. Setting data and operations are graphic interface, easy to operate;



4. Data storage, output, use a U disk can be copied to your computer, save in Excel format as report;



5. Furnace chamber adopted Japanese technology vacuum molding quality polycrystalline alumina fibers, good insulation effect, durable energy conservation;



6. High-quality Swedish Kanthal alloy wire as heating elements , with a high surface load, high resistivity, good oxidation resistance, durability and other characteristics, the maximum temperature up to 1200 ;



7. Air insulation technology with intelligent thermal sensing technology-driven air-cooled system, when the surface temperature of the furnace shell reach to 50 , the cooling fan working automatically, quickly and effectively reduce the case temperature, improve the heating efficiency;



8. Over temperature and thermocouple damage power off automatically with alarm, leakage protection, ensure safe and reliable operation.







Technical Parameters:



Model

PXL-1200

Chamber size

300*200*200mm / 400*300*300mm (D*W*H)

Instrument size

730*600*550mm / 850*740*740mm (L*W*H)

Power supply

AC220V, 50/60Hz / AC380V, 50/60Hz

Rated power

4kW / 8kW

Furnace chamber

Japanese technology vacuum molding of high quality polycrystalline alumina fiber curing furnace chamber

Heating elements

High-quality Swedish Kanthal alloy wire

Thermocouple

N mode thermocouple

Temperature control

Touch screen temperature control, PID regulator, can preset many temperature curves, 30 segments heating and cooling program

Continuous working temp.

≤1150℃

Max. Temp.

1200℃

Max. Heating rate

≤30℃/min.

Recommend heating rate

10℃/min.

Constant temp. accuracy

±1℃

Standard accessories

Crucible tongs: 1 pc

Optional purchase accessories

Furnace hobs, a variety of corundum crucible, computer controlling software.









Certifications



Packaging & Shipping



Company Information

Company information



Xi’an HEB Biotechnology Co.,Ltd. Established in 2004, mainly manufacture circulating water bath,  drying ovens, growth incubator, rotary evaporator, cylindrical jacketed reactor, cryostat etc., our products had passed ISO Certificate.



The factory located in High Tech Zone, Xi'an City, Shaanxi, China, area 8000m2, we own advanced technology and talent professional specialists to produce first-rate product and improve shortage of previous product, and we can customize it, and we can finish OEM order.

In 2006 year, we associated with QiXin instrument, develop commonly new production line, now, we can manufacture CO2 Incubator, Cooling Incubator, Shaker Incubator, Blast Oven,Vacuum Oven,etc. and those products.



In recent year, we established good friendship with oversea customers, Europa-American and Asian-African countries. HEB Biotechnology annual quantity break thought 10000 units, and we have service team to provide train and installation service.



Our motto: First-Rate Service, First-Rate Quality
