1200mm 25W listing ip66 led ring light enclosure electrical engineering project led tri proof light

FOB Reference Price:Get Latest Price
$10.00 - $45.00 / Pieces | 2 Piece/Pieces (Min. Order)
Color:
Emitting Color:
White
Lamp Power(W):
40
Lead Time:
Quantity(Pieces) 1 - 5 6 - 1000 1001 - 50000 >50000
Est. Time(days) 7 15 25 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Type:
led tri-proof light
Certification:
TUV, SAA, UL, CUL, DLC, CE
Model Number:
A2002-XX
Application:
shop office warehouse aisle
Power:
40W
LED source:
SMD2835
Lamp Luminous Efficiency:
120lm/w~160lm/w
Lamp Body Material:
Aluminum
Input voltage:
AC100~240V AC/DC 12-36V
Beam angle:
120 degree
Working Temperature:
-20-+45℃
Installation:
Suspended or Ceiling-mounted
Warranty:
5 Years
keyword:
electrical engineering project Mini Led tri proof light
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
6pcs/Ctn, natural packing, comes with polybag, 1pc per inner box
Port
Shenzhen port
Lead Time :
Quantity(Pieces) 1 - 5 6 - 1000 1001 - 50000 >50000
Est. Time(days) 7 15 25 To be negotiated
Specification

1200mm 25W listing ip66 led ring light enclosure electrical engineering project led tri proof light

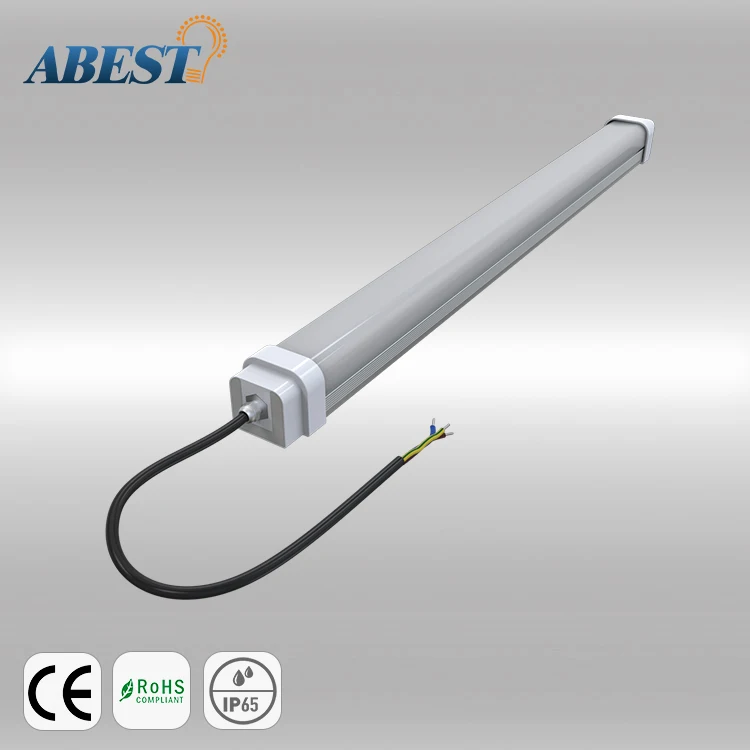

A2002 Mini LED Tri-Proof Lights are simple structured and elegant designed, using aluminum profiles to reduce weight. Two sets of installation provide customer convenience, improve light utilization. Get all customers' recognition and acceptance with its functional features.

Widely used in Shop office warehouse aisle parking garage food processing manufacturing. Education, Healthcare, Gyms, Industrial & Warehouse and Grocery (supermarket).


Function Optional: 0-10V Dimming | TRIAC Dimming | Supports solar power (12~36V Input)

Setting Information
Type
40 Watts mini led tri-proof tube light
Voltage
AC100-240V, AC.DC 12-36V
Power
10W 16W 20W 25W 30W 40W
light color
white, 3000-6500K customized available

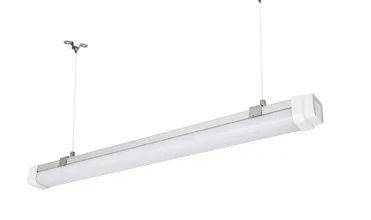

installation
suspension / Ceiling-mounted
Size
2ft 3ft 4ft 5ft
Warranty
5 years
Product Description

Product Features

-- IP65
-- Durable high-impact 6063 aluminum alloy shell & PC cover
-- LM80 LED SMD2835 chips, High CRI, Ra >80,120 lm/w at the milky cover, Max. 160lm/w


-- High-quality CE driver, PF>0.95, THD<12, flicker-free
-- CE and RoHS Certificates

-- 5-year warranty

Product Advantages


>>No glare, No flick, quick Start instant 100% luminous flux

>>Up to 50% energy saving compared to tradition lights

>>Environmentally friendly, no mercury, No UV, No IR

>>Suitable for 3~8 meters high
>>Free workshop ( freight house/warehouse)
>>Sports center ( gym / tennis court / dressing room)
>>Service area(supermarket / hospital/ subway / tunnel )
>>General illumination within temperatures from -25ºC~+40ºC

Data of Led Tri-proof Light - TUV/UL&cUL/CE

LED Tri-proof Light
2ft/0.6m-10W 16W
3ft/0.9m-20W 25W
4ft/1.2m-25W 30W
5ft/1.5m-40W
Dimension(mm)
600*45*40 mm
900*45*40 mm
1200*45*40 mm
1500*45*40 mm
Efficiency(lm/W)
120lm/W, Max.160lm/w
Input voltage(V)
AC 100-240V, AC/DC 12-36V
Lumen(lm)
1400lm~2250lm
2800lm~3500lm
3500lm~4200lm
4800lm~5600lm
LED chips
LM80 SMD2835
PF
>0.95
CRI(Ra)
>80
CCT
3000-6500k

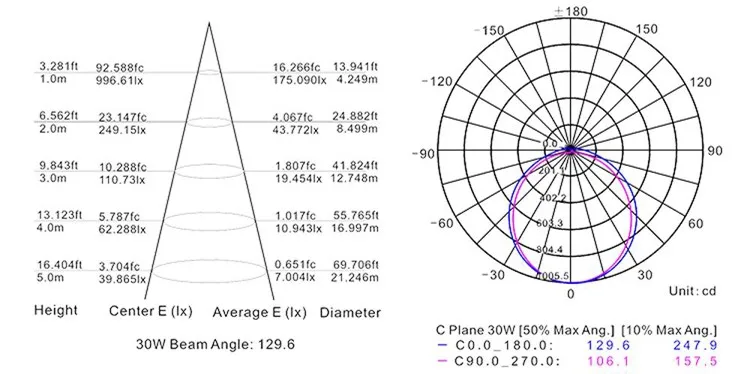

Beam Angle
120°
Driver
Meanwell, flicker-free
IP rating
IP66
Optional Function

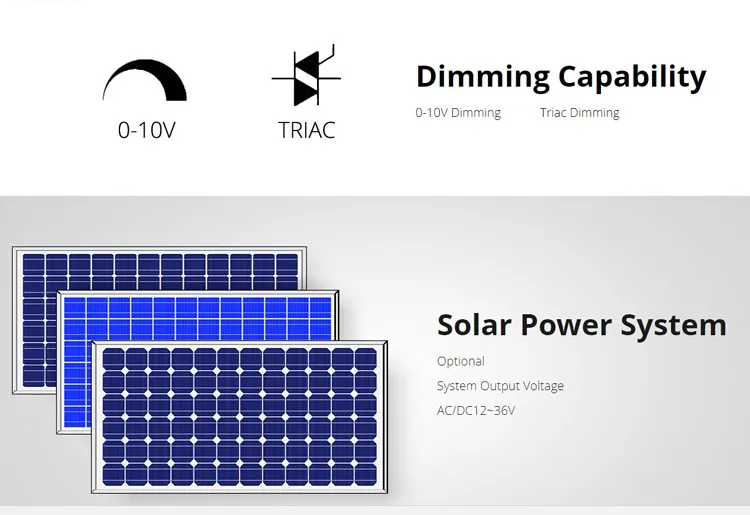

0-10V Dimming | TRIAC Dimming | Supports solar power (12~36V Input)
Certificates
 CE  RoHS
Lead time
7~15 working days for sample order, 15~20 working days for formal order.
Product structure
Function Optional
Applications
Certifications
