120kph max speed, 140N.M torque 48v-90v ebike hub motor kit 5000w motor 5kw wheel rim

FOB Reference Price:Get Latest Price
$250.00 - $650.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Voltage:
48v-96v
Design:
Brushless
Wattage:
> 400w
motor power:
5000w
speed:
120kPH
magnet:
50mm Height
sator:
aluminum alloy sator
widdings:
copper
net weight:
11.3KG
design:
for ISO disc brake and freewheel
controller:
programmable
color:
black
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Materil of box : foam with box pack list for 5kw electric bike conversion kit , hub motor 5kw .
1x 16"/20"24" : 55cm x 55cm x 24cm
1x 26" : 60cm x 60cm x 24cm 1x
28"/700c : 65cm x 65cm x 24cm The above size is not included the tires, it is 5 cm bigger length if u want the tires with motor wheel .
Port
shanghai
Lead Time :
7 days for one sample, and 15 days for bulk order .





120kph max speed, 140N.M torque 48v-90v ebike hub motor kit 5000w motor 5kw .

Some informations for you before buying the 3kw or 5kw ebike motor for your bicycle .

1. Our motor is 3kw or 5kw motor, it is strong enough, so please make sure your bicycle is strong enough before buying.

2. Our motor is designed for the bicycle , its drop out is 150mm for mounting the ISO bicycle disc brake and 16tooth freewheel for the bicyle chain .  And if your bike is the motocycle with a big drop out, we also could provide the no-freewheel with the motorcycle disc brake for your motorcycle .

3. The 26" motor wheel max speed is 100kph at the 72volts , so we recommend the Hydraulic disc brake with the electric brake sensor, also it is better to come with a good Hydraulic fron fork if possible .

4. We provide the 20" 24" 26" sunrigle brand MTX33 rims and the motorcycle rims 16" , 17" 18" 19" and 21" .  So i think one of them will suit for you .

For more informations, please contact me, my telephone number is+86-13196702312, skype is jasonwang.1234

Thank you!



Package content for ebike hub motor kit 5000w  :

1x 5kw hub motor wheel , included the spokes and rim .

1x programmable controller .

1x electric brake levers or electric brake sensor for the  Hydraulic disc brakes

1x twist throttle or thumb throttle with three levers speed controle.

1x plastic ties and good package .



1. 5000W brushless hub mtoor spec.

  • Speed : 900rpm/min, we could do the 700-1000rpm/min as the requirements .
  • Out wire: 10mmwire will bear max 300amp current accoriding to the Temperature
  • Net weight : 11.3kgs
  • Efficiency: 85%
  • Magnet: 50mm Height new magnet .
  • two hall sensors, if one set is broken, the other set will work .
  • loading: 300kgs
  • Torque : 140N.M max

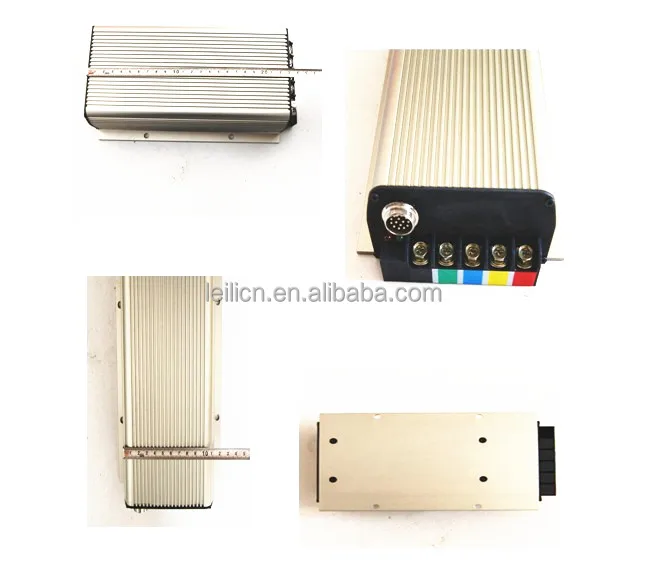

2.New programmable controller for the ebike hub motor kit 5000w .
                                             Small size, light weight (less 2kgs )
                                     Sine wave, noise, and small starting current
                                 Through a computer program all functions and a
                     bluetooth function coming, program functions via your mobilephone .
           Electronic braking, anti-charge function, search function navigation, Voltage programable ,
current programable, speed programable, throttle voltage programmable, Regen. braking function, Current of the Regen.braking function programmable .

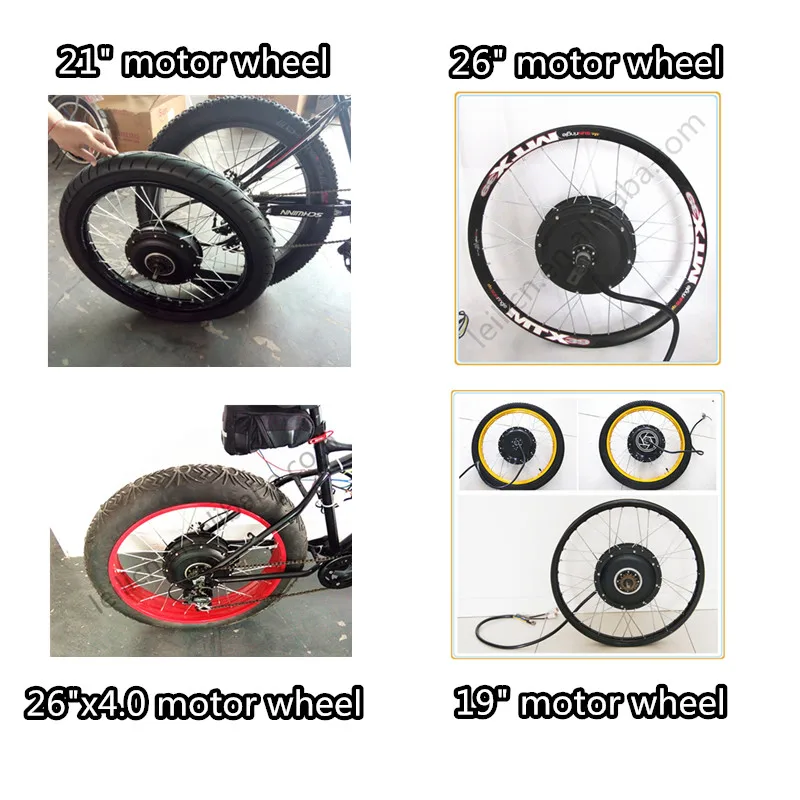

3. powerful 5kw motor's wheel size

  • double wall aluminium alloy sunrigle brand MTX33 rim , 20" 24" 26"  , using the 1.75-2.25 tires.
  • fat double wall aluminium alloy rim , 24"x 4.0, 26" x 4.0
  • motorcycle rim : 16" 17" 19" 21"

4.  Package & Shipping of ebike hub motor kit 5000w

  • Materil of box : foam with box . pack list for 5kw hub motor wheels.
  • 1x  16"/20"24" : 55cm x 55cm x 24cm 5000w electric bicycle convertion kit
  • 1x 26" : 60cm x 60cm x 24cm
  • 1x 28"/700c : 65cm x 65cm x 24cm
  • The above size is not included the tires, it is 5 cm bigger length if u want the tires with motor wheel
