12LPM 12/24V sailflo stainless steel water pump/ solar submersible pump for project agriculture

Feedback Ratings
  • 1-99 Pieces
  • 100-999 Pieces
  • >=1000 Pieces
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Model Number:
Positive Displacement 3 Chamber Diaphragm Pump
solar power
High Pressure
Product name:
solar submersible water pump
Body Material:
Stainless Steel Fastener
Run dry without damage
Pump Design:
Positive Displacement 3 Chamber Diaphragm Pump
Permanent Magnet Thermally Protected
720 LPH
Internal Bypass::
105-110 PSI Max. (7.2-7.5 BARS)
Application scope:
inlet size:
Reciprocating Pump
Standard or Nonstandard:

Packaging & Delivery

Selling Units:
Single item
Single package size:
41X41X15 cm
Single gross weight:
11.0 kg
Lead Time :
Quantity(Piece) 1 - 100 101 - 500 >500
Est. Time(days) 10 15 To be negotiated

12LPM 12/24V sailflo stainless steel water pump/ solar submersible pump  for project agriculture




Specifications: pump included:

 A high-efficiency positive-displacement diaphragm submersible solar water pump. The system is designed for off-grid households as a near zero recurring cost replacement for diesel.This pump max flow rate can be 720LPH(189GPH), the Max head can be 100M.
Its unique water-tight power connector stops water wicking and prevents potential condensation problems.
Great for livestock watering.irrigation,pondaeration,remote homes and cabins


1. For 4" wells or larger

2. Quick disconnect with "Watertight-Gland" Design Pat Pend
3. Corrosion-proof housing with stainless-steel fastener
4. Run dry without damage
5. State of the art solid diaphragm
6. Stainless Steel Pump case
7. Pump Design: Positive Displacement 3 Chamber Diaphragm Pump
8. Motor: Permanent Magnet Thermally Protected

9. Wire Length:3M

Technical Data:

Pump DesignPositive Displacement 3 Chamber Diaphragm Pump
MotorPermanent Magnet, Thermally Protected
Voltage24VDC Nominal
Amps5.0A Maximum
Max flow rate
Maximum Lift328 feet Maximum (100 Meters)
Maximum Submersion100 Feet Maximum (30 meters)
Outlet Port1/2'' (12.7mm) Barbed Fitting
Inlet:50Mesh Stainless Seel Screen
MaterialsHigh Strength Engineered Plastics,Stainless Steel Fasteners
Typical ApplicationsPotable Water Well Pump



   Flow rate








Packing Size



  ( kgs)

HY1260-30   12    12.0   100        30   5.0  355*130*1103.5/4.0
HY2460-30   24    12.0  100         30  10.0    355*130*1103.5/4.0

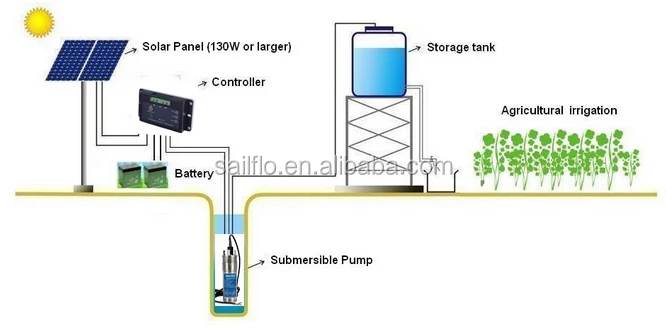

The controller function:

This controller can be use for12/24V pump automatic identification,It is designed according to the YM1240-30/2440-30 duty cycle specially.
Feature: Setting the pump working time: work 2.5hours, resting 30 minutes.If work with battery together, the rest time can charge the battery.When the sunshine is not good or at night, the pump can work with the battery automatically.
If you use the pump without battery, you can connect the solar panel wire to the battery button in the controller directly, it also can work in 2.5hours rest 30 minutes duty cycle






 1. Q: Are you a manufacturer or trading company?
A: : We are a manufacturer that specialized in diaphragm water pump and bilge pumps, our products have abtained the SGS-CE and RoHS certificate.


2. Q:What's your products MOQ?
A: Different model has different MOQ, pls check with salesman.

3. Q: How can I get some samples?
A: Usually we can’t offer free sample, pls pay the sample and express fee, the sample costing can be deducted in your first large order.

4 Q: What's your delivery time?
A: 1.The samples can be sent to you within 3-5days.
2.The batch order can be shipped to you within 5-15days after order confirmation

5 : Q:What's your warranty & after service policy?
A: 12 Months for all products, and some products warranty is 24months. Usually offer 1% spare parts free to you
6 Q: How many qty so I can get your OEM service with myself brand name?
A: Different Models have different MOQ requirement, pls consult our salesman.
7 Q: What's the payment can you accept?
A:Usually we accept T/T ,Western Union, PayPal and Alipay, also RMB transfer in China
