12V 2.5A Screw Terminal Output Switching Power Supply Security Protection Adapter with U L,FCC,CE Certification

FOB Reference Price:Get Latest Price
  • >=500 Pieces
    $1.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ZB
Model Number:
ZB-A120025A-N
Output Type:
DC
Connection:
Plug In
Product Name:
Switching Power Supply / Ac Dc Adaptor
Input Current:
0.8A Max.
Input Frequency:
47-63HZ
Regulation:
Line Load<5%
Ripple and Noise:
<2% Max.
Turn-on Delay Time:
5S Max.
Start Inrush Current:
<50A/240V
Color:
White
Input Voltage:
100~240VAC
Supply Ability
Supply Ability:
300000 Piece/Pieces per Month ac dc adaptor
Packaging & Delivery
Packaging Details
75pcs per carton
Port
SHENZHEN

12V 2.5A Screw Terminal Output Switching Power Supply Security Protection Wall Mount Adapter with UL,FCC,CE Certification

Product Description

This model can be customized as 5V to 29V; 1A to 3A ;depend on your requirement to choose.









This 12V 2.5A Swtiching Power Supply Adapter with Screw Terminal Output, Parameters Specification Details as below:

  Model No.:ZB-A120025A-N
  TECHNICAL PARAMETERS SMPS APPLICATION
  Environmental Temp:at 25℃  Telecom&Networking
  Input Parameter  Electric Tools
  Input Voltage:100-240 Vac  Security&protection
  Range:90-264Vac  Home Electronic Equipment
  Input Frequency:47-63Hz  Medical Equipment
  Input Current:0.8A max  Office Equipment
  Start Inrush Current:<50A/240V  Others
  Output Parameter
  Regulation:Line Load<5%
  Ripple and Noise:<2% max
  Turn-on Delay Time:5S max
 PRODUCT DESCRIPTION ENVIRONMENT PARAMETER
  Principal Characteristics  Operating Temperature:0℃...+45℃
   AC to DC  Storage Temperature:-20℃...+85℃
  Wall mount Vertical Type, Horizontal Type  Insulation Intensity:3000VAC 1min inp.<->outp.
  Streamline,Fully sealed  Insulation Resistance:Pri.to sec.>50MOhm 500VDC
  OVP,OCP,SCP  Over Current Protection:120%-200%,Auto reboot
  RoHS,Reach Compliance  Over Voltage Protection:150%,Auto reboot
  Efficiency Compliance CEC,ERP,LEVEL:V
  MTBF:50,000 hours

ModelI/P conditionVoltageCurrentEfficiencyRipplePower
ZB-AXXXYYYA-N
XXX=005-030
YYY=033-290
100-240Vac
50/60Hz
0.8A max.
DC(V)(A)min./%P.P(mV)max.(W)
536510015
92.57510022.5
122.58015030
2418420024
2918520029







Packaging & Shipping

 1. Packing Detail: Each 12V SMPS Adapter Individual packing in small inside box, normally 75pcs per carton

 2. Shipping: Express, By air, By Sea, EXW, FOB Shenzhen









Our Services



 1.  Proffessional Swithcing Power Supply/ Linear Actuator Power Adapter / Security Protection Adapter Manufactory

 2.  Custom-made products / Professional R&D Team support OEM ODM

 3.  Excellent quality: Most products pass certificate like CE,UL,GS,TUV,FCC,PSE,SAA,KC,CCC

 4.  Perfect Service

 5.  Responsible After-sales Service

 6.  Favorable Price

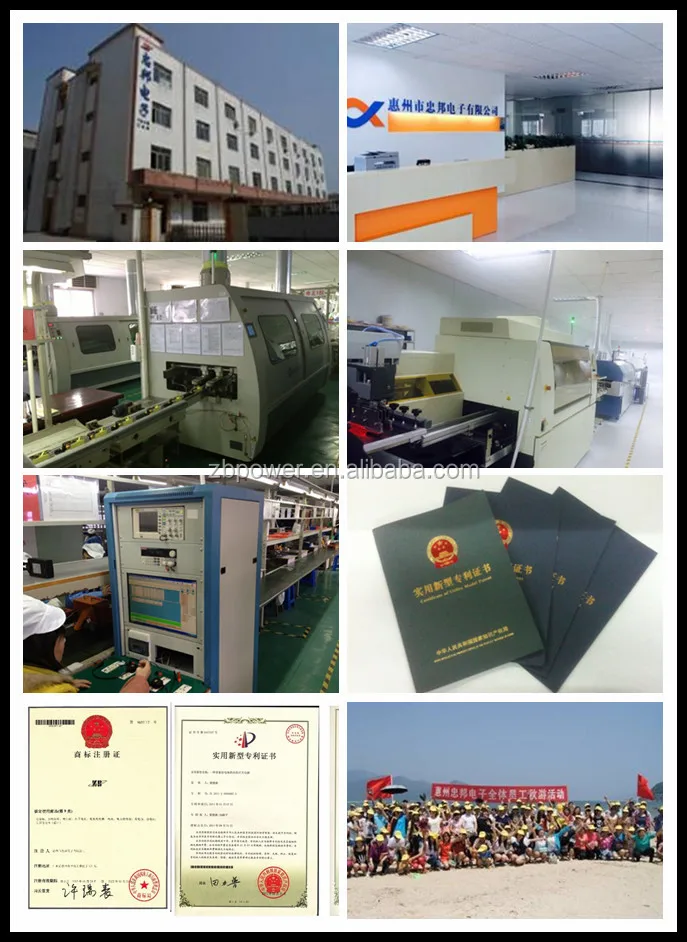

Company Information



Huizhou Zhongbang Electronics Co., Ltd., found in 2001, is a member of ZBPOWER LIMITED, and specialized in manufacturing of switch power supply. We insist on enterprise value of “quality first for existence and for benefits”, the company keeps absorbing advanced experience, keeps advanced design. We established a quality management system according to ISO9001 requirements and has acquired ISO9001 certificate since 2003.



 Our products including Linear Actuator SMPS, mobile phone chargers, portable battery and chargers, AC/DC convertors, LED driver. We especially focus on the market of Linear Actuator SMPS take it as an important market. We can offer quickly response to our customer. The products were certified by UL, CCC, CQC, TUV, GS, CE, CB, FCC,PSE, SAA, and C-tick. All products comply with requirements of RoHS orders. We have equipped more and more safety and electric testing instruments to ensure product reliability.



With scientific management, excellent quality, perfect service, and favorable price, we has always been providing our extensive customers with high quality service. Our goal is to pursue the excellence with the customer being the first. We are always looking for cooperating with all customers around the world.











FAQ



1. Shippment Terms: Express, by air, by sea, EXW or FOB shenzhen

2. MOQ: 500/1K~5K

3. L/T: 4Weeks~6Weeks
