12V polyimide film heater engine block heater

FOB Reference Price:Get Latest Price
$2.00 - $18.00 / Pieces | 10 Piece/Pieces polymide kapton heater (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Air Heater
Power Source:
Electric
Dimension(L*W*H):
customized
Weight:
According to the design
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
BAOJUN
Model Number:
polymide kapton heater
Voltage:
12v/24v/220v/240v
Power(W):
0.45-0.8w/cm2, or customized
Certification:
CE,ISO,SGS,ROHS
Name:
12V polyimide film heater engine block heater
Material:
Ployimide
Thickness:
0.13-0.4mm
Max size:
450*450mm
Heating element:
Ni-Cr or FeCrAl
Thermocouple:
K or J type
thermostat:
with or w/o
Lead length:
Customized
Operation temperature:
180c
Application:
Industrial heating parts
After-sales Service Provided:
Overseas third-party support available
Warranty:
one year, 6000hours
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month polymide kapton heater
Packaging & Delivery
Packaging Details
carton or plastic for the polyimide heater; 12V polyimide film heater engine block heater
Port
Shanghai
Lead Time :
Shipped in 7 days after payment
Product Introduction

12V polyimide film heater engine block heater


Polyimide is a thin, translucent material, has excellent dielectric strength. In the narrow space or require lighter, heater exposed to vacuum, oil or chemicals application environment, polyimide heaters are ideal. Compared with silicone heating film, PET film or ceramic electric heating film, polyimide is more compact.

Polyimide Film Heater Characteristics

1) Heater thin and light so you can just position on the need for heating without heating part can be avoided.
2) Etched foil heating technology provides fast and efficient heat transfer and uniform heating surface, the temperature difference is minimal.
3) Customization options (for example: SMT components, flex cable and connectors) can provide the perfect complete solution that can significantly reduce assembly time and increase productivity.
4) Custom configured to provide balanced heating output performance to improve process yield and productivity, in accordance with requirements of additional temperature control device and temperature sensing devices.
5) There FEP adhesive can be 200 ° C (392 ° F)
6) Suitable for vacuum environments (NASA-RP-1061)
7) Resistant to most chemicals: acids and alkaline solvents erosion
8) If you are using polyimide insulated wires (custom option) can resist 106 rads of radiation, PSA adhesive stickers can be installed or epoxy adhesive, silicone adhesive installation.
9) Providing a variety of complex shapes design, and different power designs. Membrane in the same piece electrically heated heating circuit can be designed and holding circuit
10) Providing a liquid immersion design (non-standard)

Product Parameters
Heater
12V polyimide film heater engine block heater
Operating temperature range °C(°F)
-60C(-76)-220C(428)
Dielectric strength at 20°C as per ASTM KV/mm
205
Thermal conductivity at 100°C W/m.k
--
Bending radius,min.mm
0.8
Resistance tolerance
±7.5% or ±5%
Max size mm
W:500, L:900
Thickness mm
0.13-0.4
Working life
10Khr at 180°C

Main Application

1.Medical diagnostic tools: heating sample tray, reagent vase and etc.
2.Heating secondary planet component.
3.Protecting the mechanical and electronic equipment of plane in cold air.
4.Testing or simulating IC.
5.Outdoor electronic equipment such as card reader and LCD.
6.Keep constant in analysis instrument

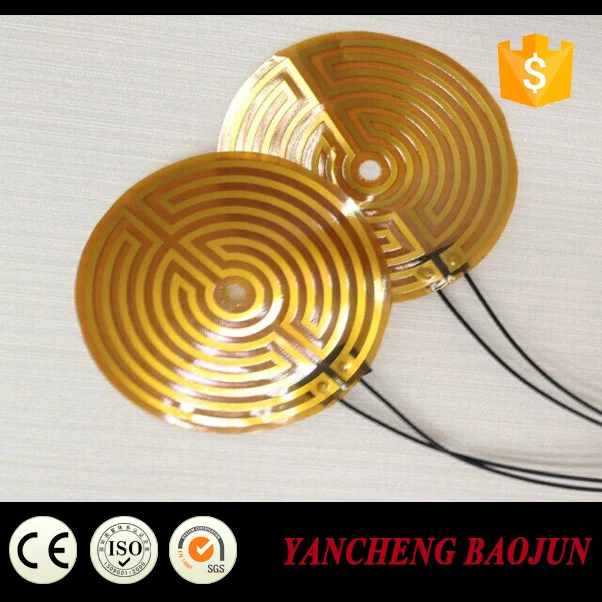

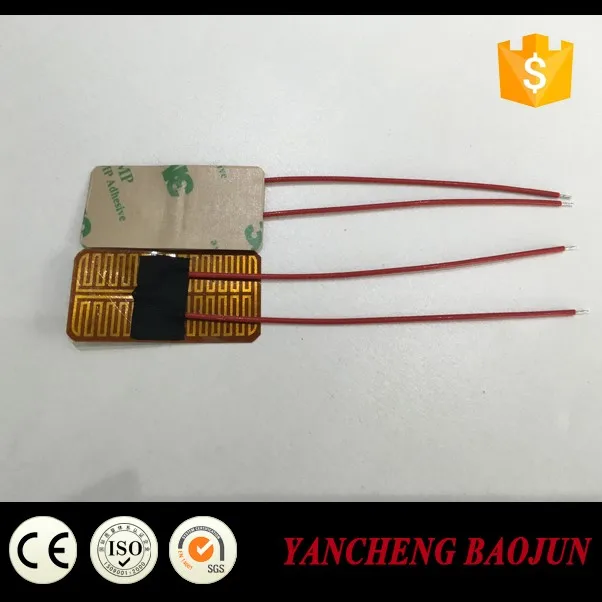

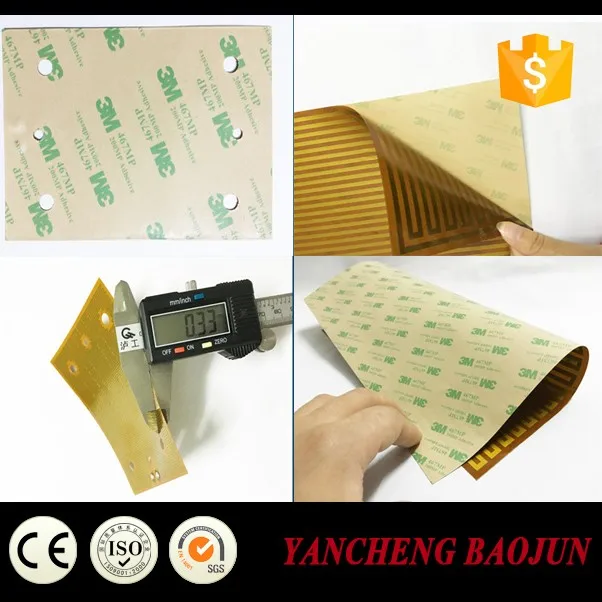

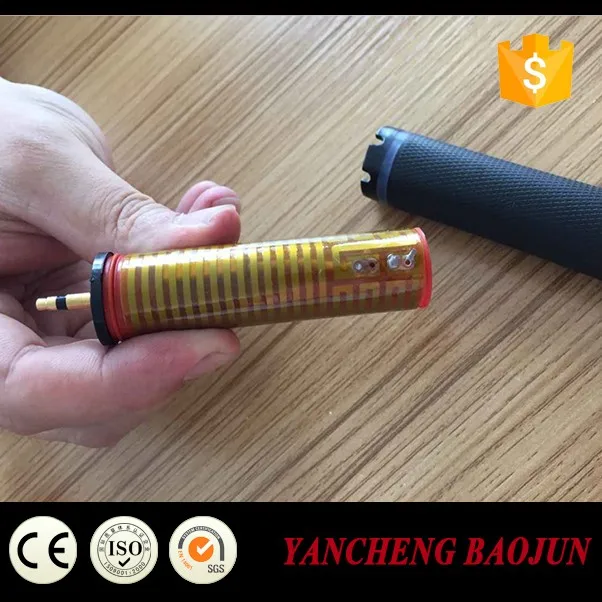

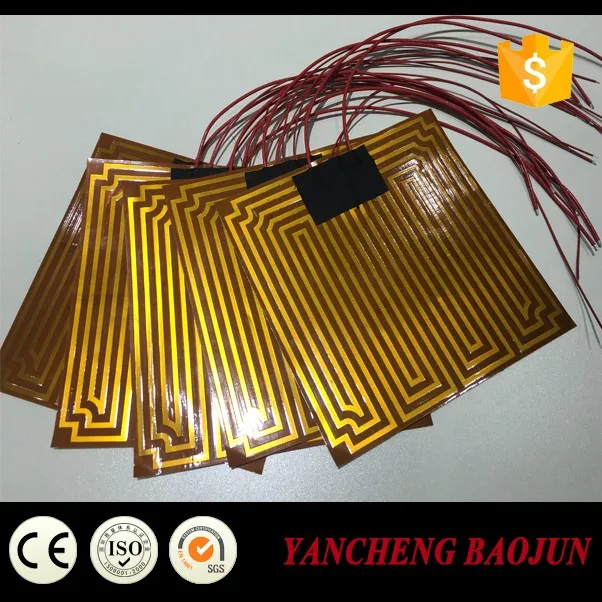

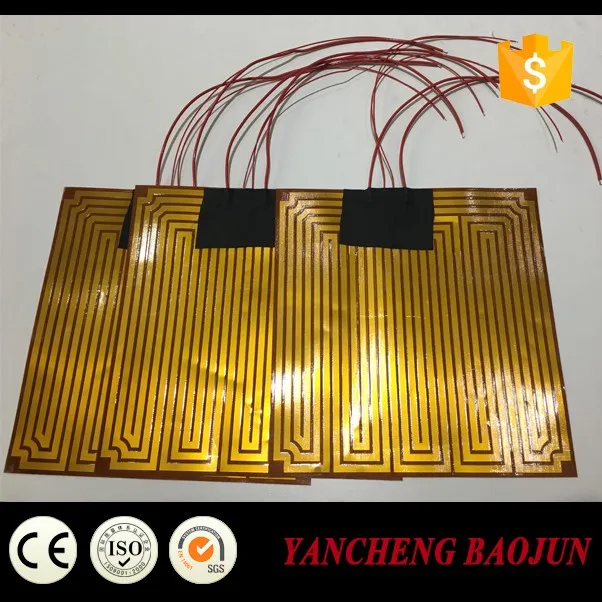

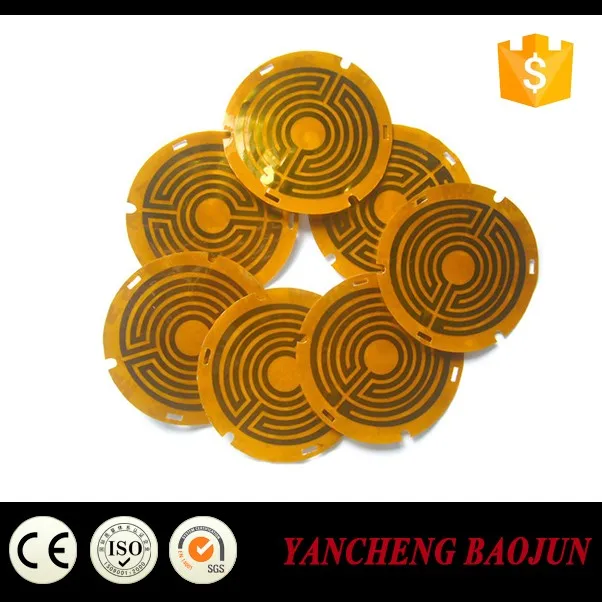

Product Details Show
Packing & Delivery
Name
12V polyimide film heater engine block heater
Package:
Carton or plastic for polymide kapton heater
Delivery:
7 working days of polymide kapton heater
Monthly Output:
10000 pieces of polymide kapton heater
Payment :
30%T/T in advanced+70% balanced; Paypal, Western Union
Remarks:
All-risk insurance and accept the third party test
Certifications

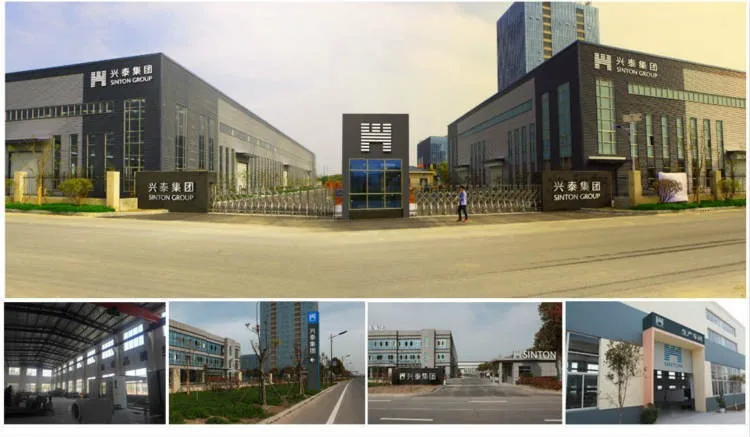

Our Company
