12uf 250V 300V 350V 400V 450V 500V CBB61 Motor Run Capacitor for generator

FOB Reference Price:Get Latest Price
$0.08 - $1.07 / Pieces | 100 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 3 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China (Mainland)
Brand Name:
SaiFu
Model Number:
CBB61
Type:
Polypropylene Film Capacitor
Application:
AC / Motor,Ceiling Fan, Fan
Package Type:
Through Hole
Capacitance:
1~35 μF
Rated Voltage:
250VAC/370VAC/440VAC/450VAC
Operating Temperature:
40/70/21,40/85/21
Product name:
CBB61 AC Motor Capacitor
Material:
Metallized Polypropylene Film
Capacitance tolerance:
1~35 uF
Material of Case:
Plastic
Terminal:
Lead wire, Tabs, Pins
Certificate:
CQC/TUV/UL/VDE, RoHS/SGS/ISO9000
Supply Ability
Supply Ability:
3000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Packing As Export Standard.
Port
Shanghai/Ningbo
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 3 To be negotiated
Product Description

Features:

Widely applied to the starting and running of AC single-phase motors at 50Hz/60Hz frequency power.
Self-healing property
Good stability and reliability
1. Rectangle flame retardant plastic case, epoxy resin sealed;
2. Small size ,light weight ,convenient for installation;
3. Low dissipation factor, high insulation resistance;
4. Self-healing property, high stability and reliability;

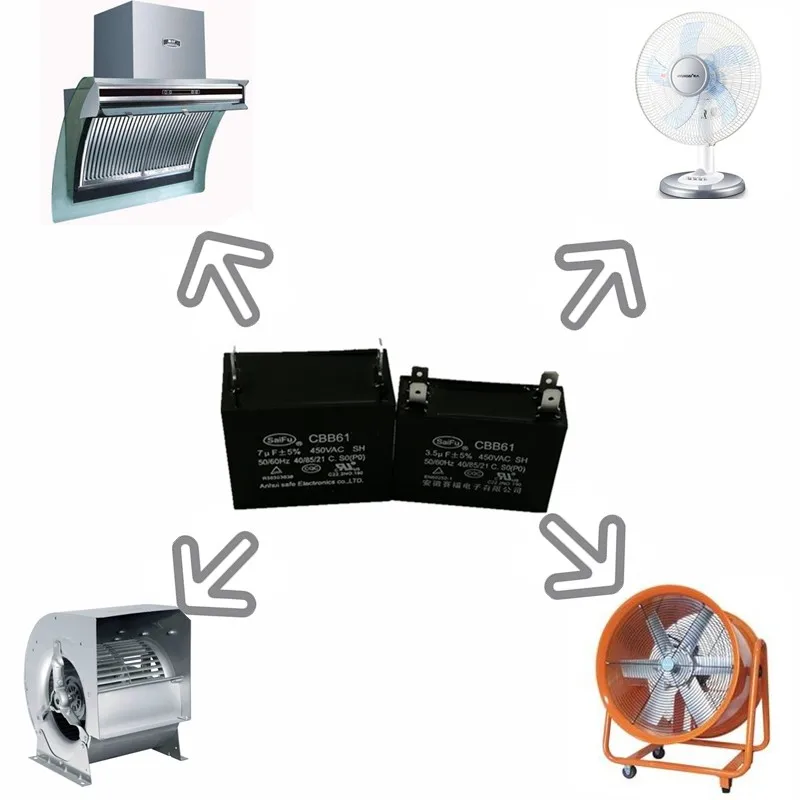

5. Suitable for electric fan, exhaust fan, electric sewing machine, water pump etc., beneficial to the starting and running of AC motor.

Application:
This capacitor widely used for air-conditioners refrigerators,generators,illuminating lamps etc.

Specifictions
Reference standards
GB/T 3667.1(IEC60252-1)
Climatic category
40 / 70 / 21,40 / 85 / 21
Class of operation
Class B (10000h) Class C (3000h)
Class of safety protection
S0/S3
Voltage range
250VAC,370VAC,440VAC,450VAC
Capacitance range
1~35 μF
Capacitance tolerance
± 5% , ± 10%,± 15%
Dissipation factor
20 x10-4 (100Hz,20°C)
Test voltage terminal to terminal UTT
2 Un for 2 seconds
Test voltage terminal to case UTC
(2Un+1000)VAC or 2000VAC- 50Hz for 60 seconds
Insulation Resistance
≥3000s (100Hz,20°C,1min)
Dimensions
Capacitance
450VAC
250VAC
1μF
37x13x23mm
37x13x23mm
1.2μF
37x13x23mm
37x13x23mm
1.5μF
37x14x25mm
37x13x23mm
2μF
37x16x28mm
37x13x23mm
2.5μF
37x18x28mm
37x14x25mm
3μF
47x18x29mm
37x16x28mm
3.5μF
47x18x34mm
37x16x28mm
4μF
47x18x34mm
37x16x28mm
4.5μF
47x22x34mm
37x16x28mm
5μF
47x22x34mm
37x16x28mm
5.5μF
47x22x34mm
37x16x28mm
6μF
47x22x34mm
47x18x29mm
6.5μF
48x26x38mm
47x18x29mm
7μF
48x26x38mm
47x18x29mm
8μF
48x26x38mm
47x18x34mm
10μF
58x26x44mm
47x18x34mm
12μF
58x26x44mm
47x18x34mm
15μF
58x26x44mm
47x18x34mm
16μF
58x26x44mm
48x26x38mm
20μF
58x35x49mm
48x26x38mm
25μF
58x35x49mm
48x26x38mm
30μF
Negotiable
58x26x44mm
35μF
Negotiable
58x26x44mm
40μF
Negotiable
58x26x44mm

Note: Other specifications and size,terminal outside table are negotiable.

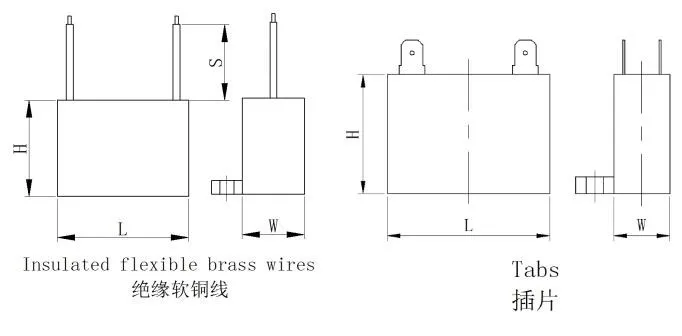

Outline Drawing

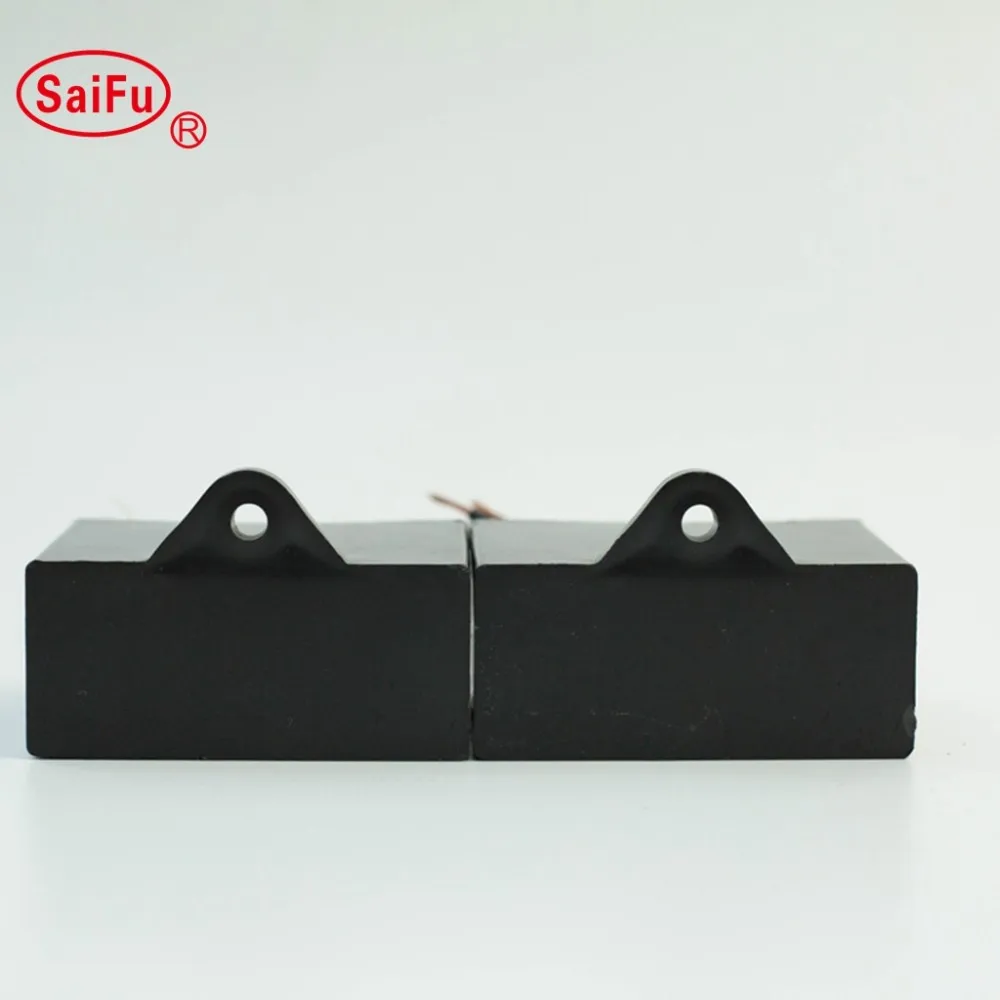

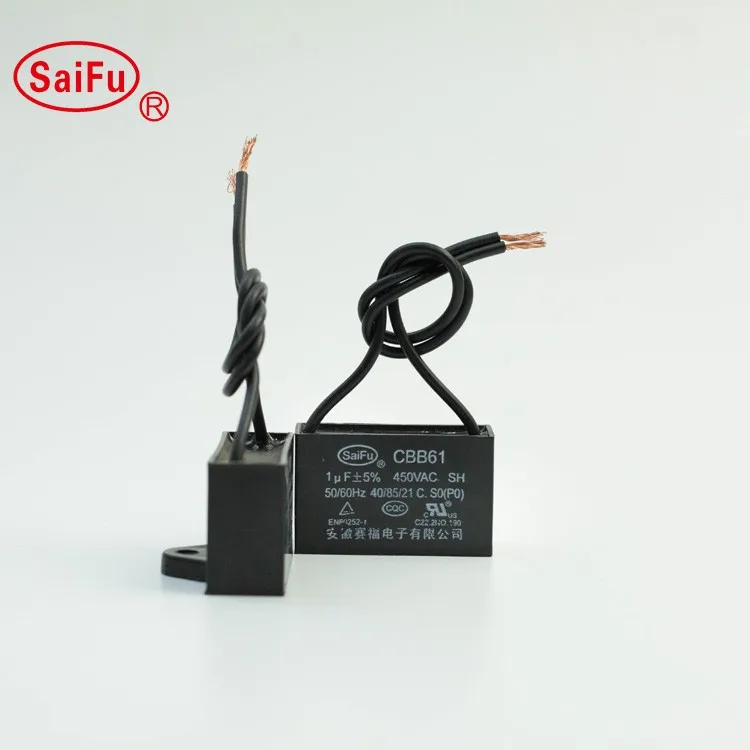

Detailed Images

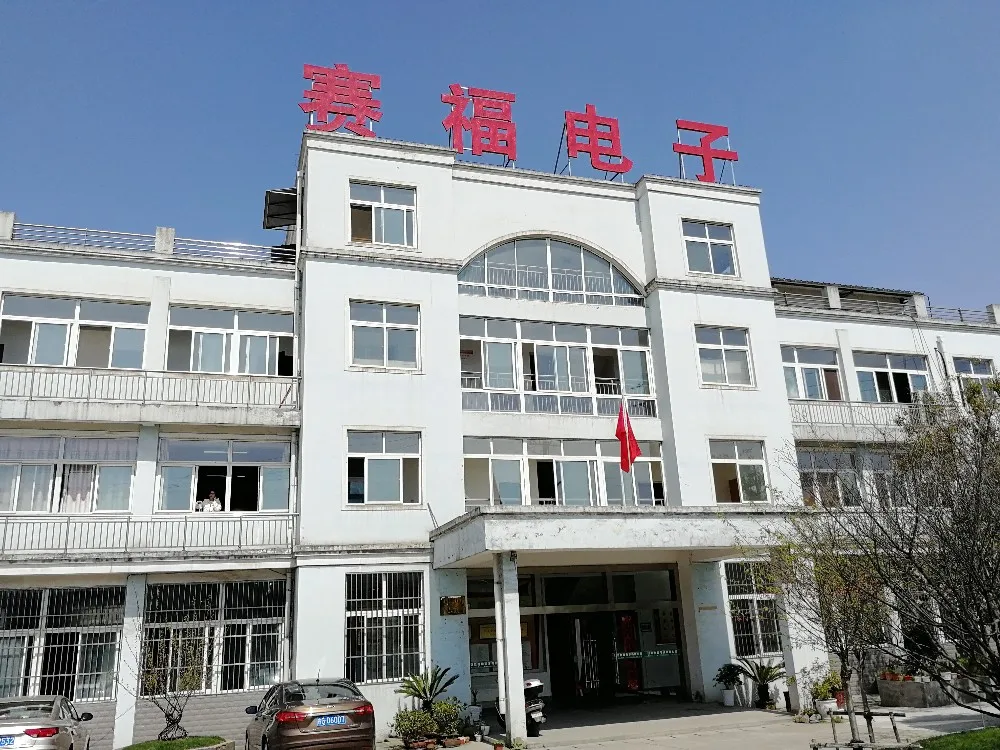

Our Company
Anhui Safe Electronics Co.,LTD., was founded in February 2007. The company is located in Tongling City, Anhui Province, China, specialized in manufacturing metallized film for capacitor use and metallized film capacitors. Now it's a member of CCOIC.

Our quality management system are certified by ISO9001 and our products have CQC, TUV, UL, VDE and other performance certifications, compliance with EU RoHS directive, with SGS report. The company has a powerful R & D team, a total of nearly 80 patents, including twelve invention patents. It has established a close cooperation relationship with Anhui Province Optoelectronic Applied Engineering Technology Research Center
Workshop:

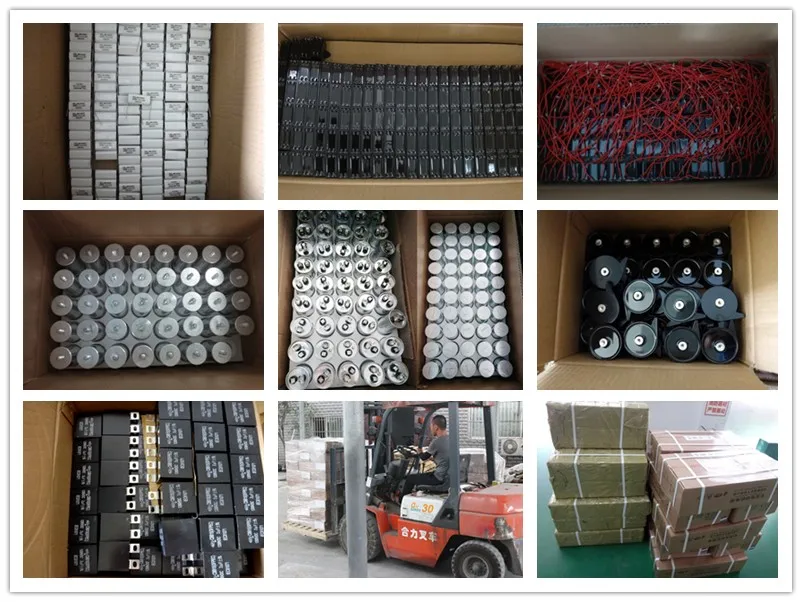

Packaging&Delivery

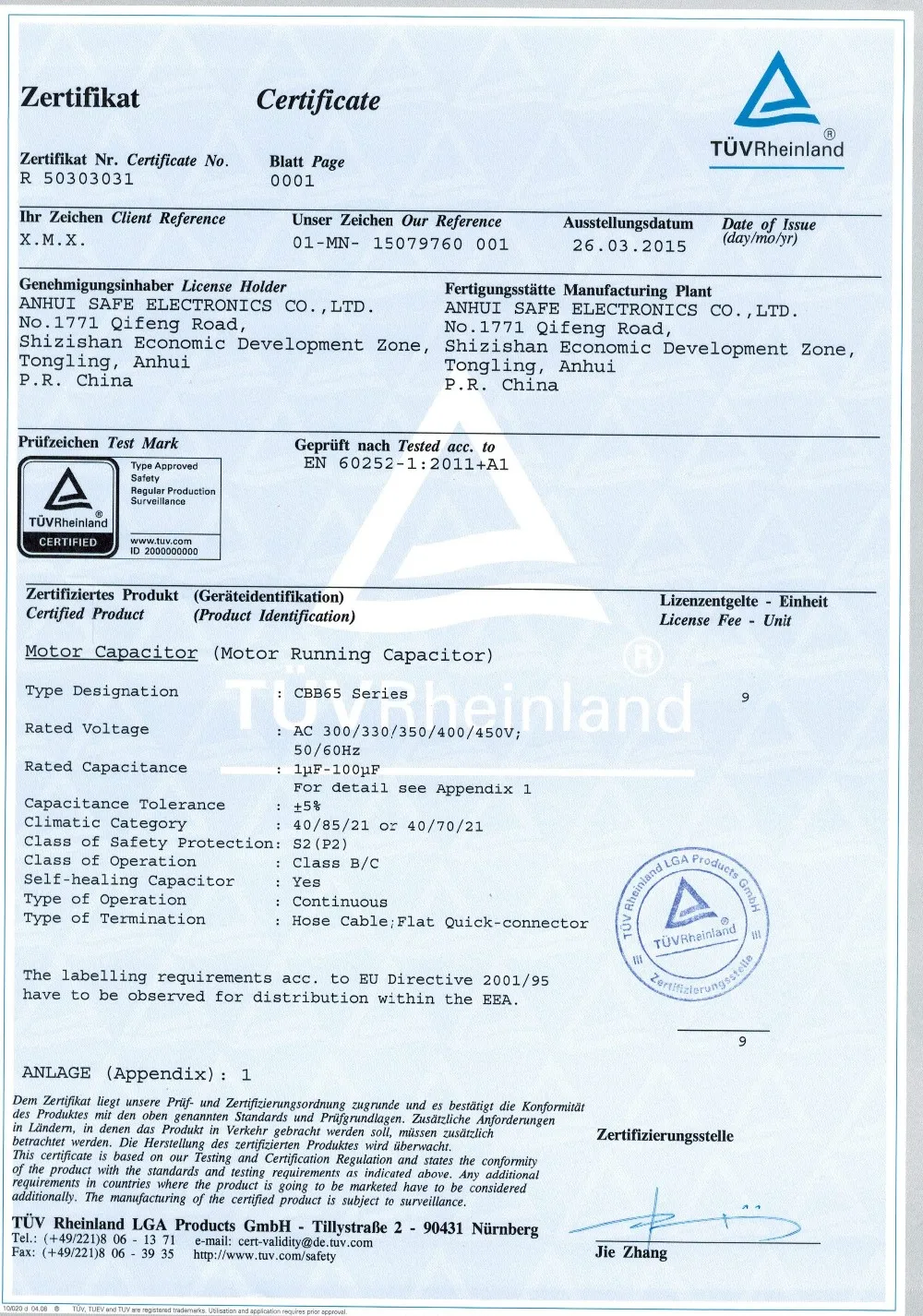

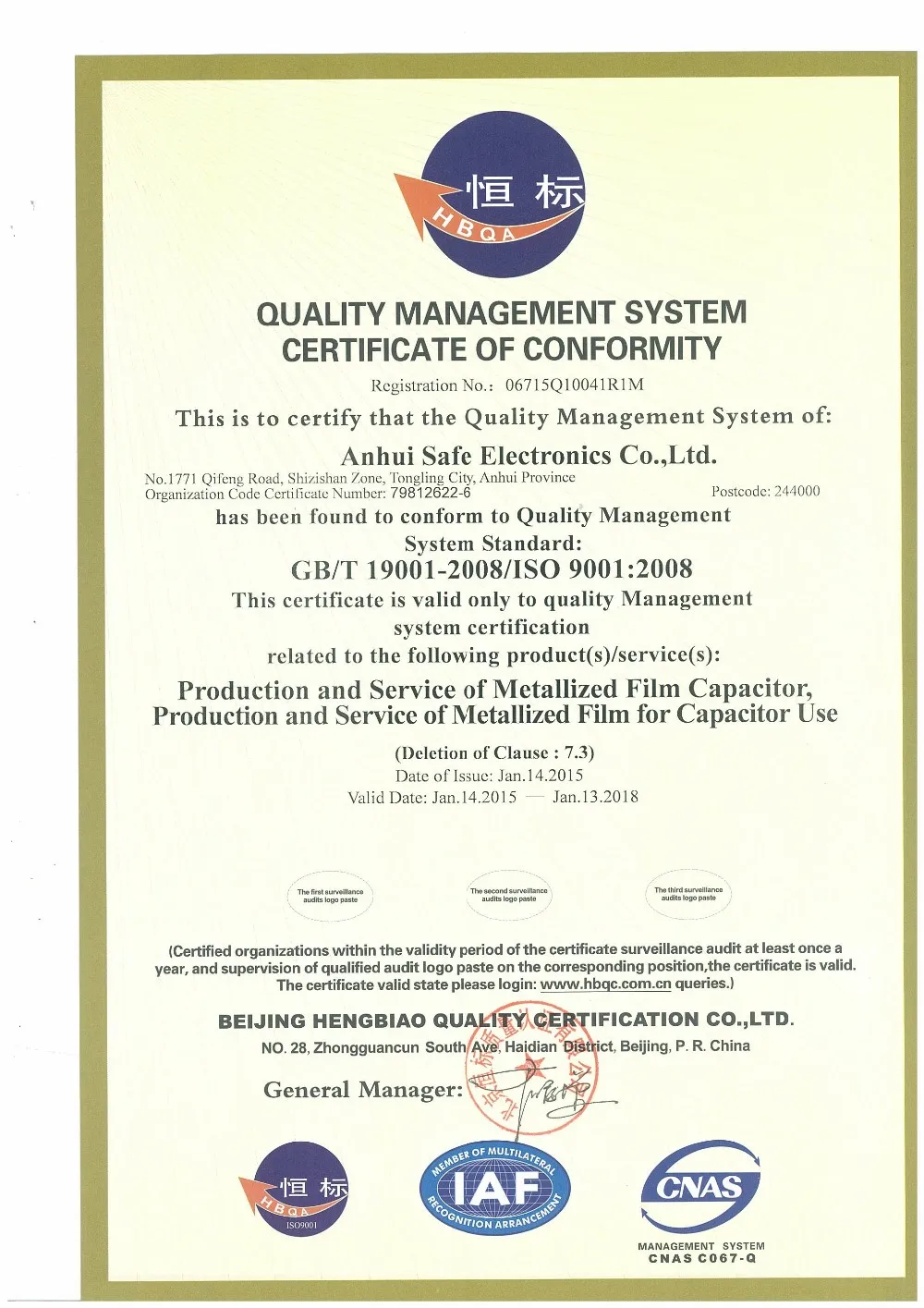

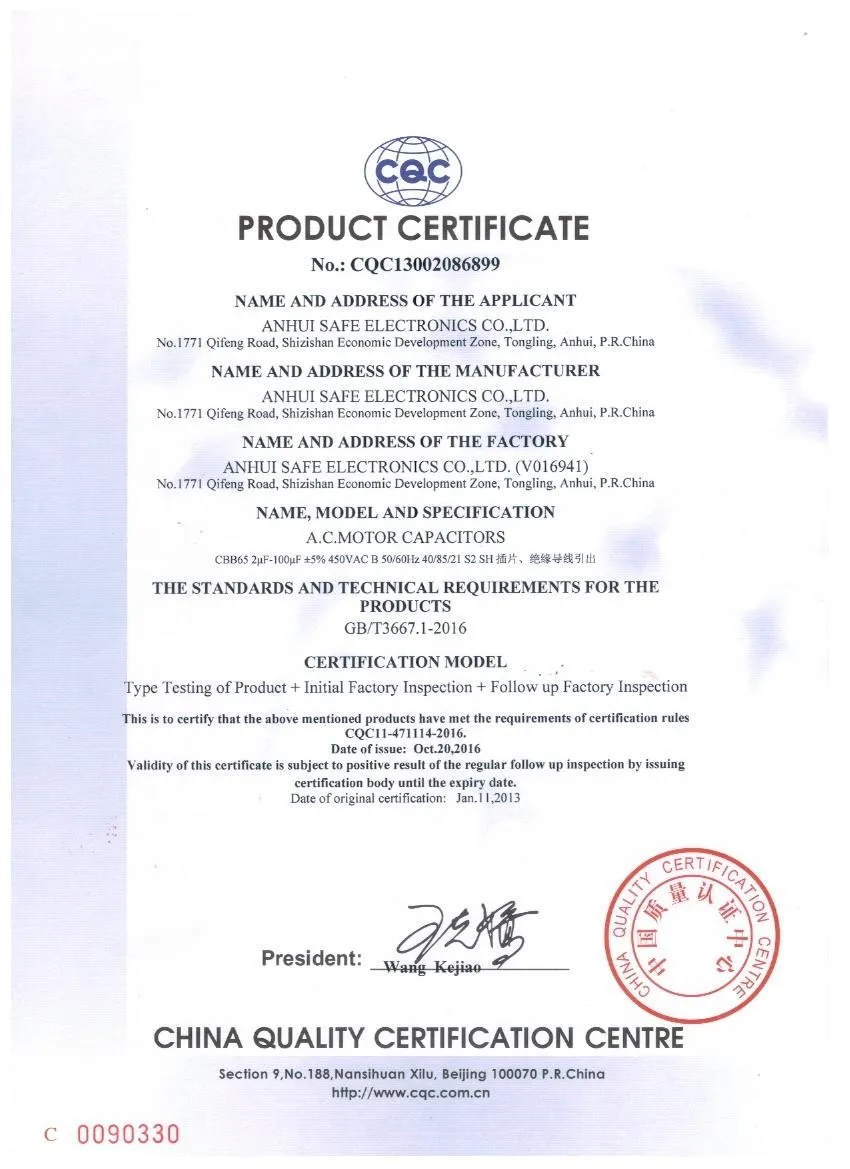

Honor&Certifications
Our Service
1.As a national high-tech enterprise,we have 12 years experience in capacitor industry,nearly 80 industry patents and a number of invention patents.We have a team of professional designers who are well versed in the R&D and QUALITY CONTROL. We are specialized in the innovation, design and continual research to follow CUSTOMERS'DEMAND

2.To ensure the product quality and consistency,we have obtained the ISO 9001 quality system certificate and CQC,TUV product certificate

3.We have modern factories and purification plant,the world first class production equipment and the technical team consisted of a number of expert

4. 24 Hours Service,Fast Reply
