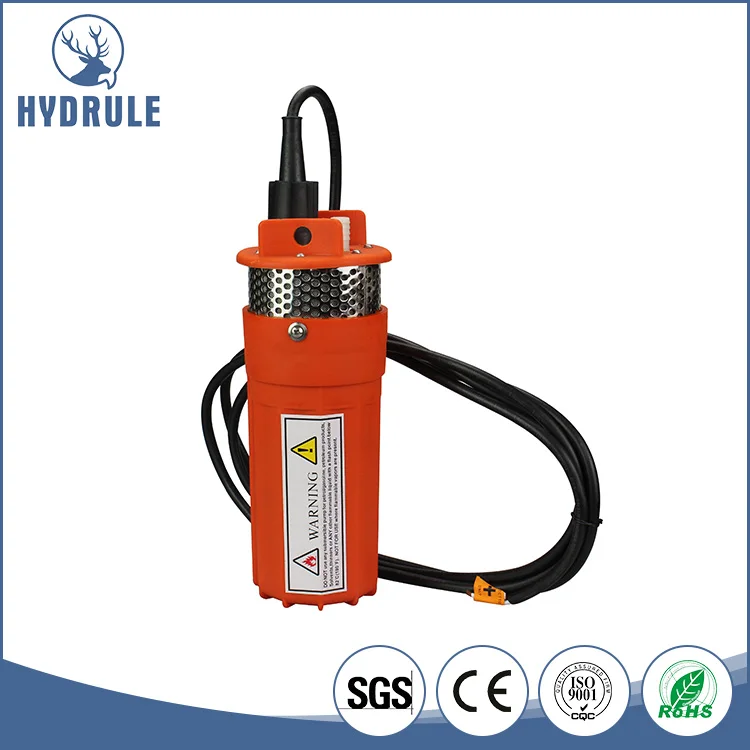

12v dc deep well solar powrerd submersible water pump for agriculture irrigation

FOB Reference Price:Get Latest Price
  • 1 - 99 Pieces
    US $103.00
  • >=100 Pieces
    US $86.00
Report Suspicious Activity
Overview
Quick Details
Brand Name:
HYDRULE
Model Number:
HYBP1-G96-08
Theory:
Reciprocating Pump
Structure:
Diaphragm Pump
Usage:
Water
Power:
Electric
Standard or Nonstandard:
Standard
Fuel:
ELECTRIC
Pressure:
High Pressure
Application:
Submersible
Packaging & Delivery
Packaging Details
dc solar submersible pump 1/pc a box, 10pcs/carton, carton gross weight :36kgs
Single package size: 37X15X14 CM
Single gross weight: 3.2 KG
Port
XIAMEN
Lead Time :
7days when order confirmed

12v dc deep well solar powrerd submersible water pump for agriculture irrigation

Overview

Specifications

Theory: electromagnetic pump

structure: diaphragm pump

fuel: dc power supply

Pressure: no

application  submersible ,livestock watering, irrigation, deep well remote homes and cabines

internal Bypass: 105-110psi max (7.2-7.5BARS)

Product Description



The solution to your remote water pumping needs.

This pump is rugged durable and built to last.

The pump delivers a steady 95GPH(360LPH) at its maximum depth of 230feet(70m) when supplied with 24VDC

Its unique water-tight power connector stops water wicking and prevents potential condensation problems.
Great for livestock watering . irrigation , pondaeration , remote homes and cabins



Features:

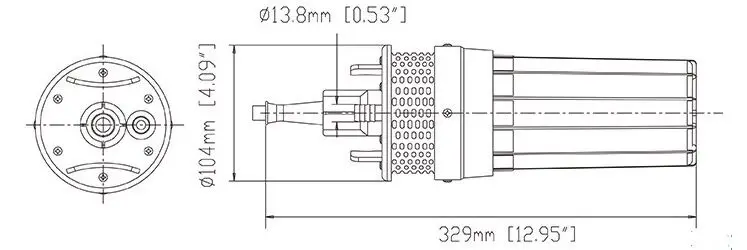

1. For 4" wells or larger
2. Quick disconnect with "Watertight-Gland" Design Pat Pend
3. Corrosion-proof housing with stainless-steel fastener
4. Run dry without damage
5. State of the art solid diaphragm
6. Stainless Steel Fastener

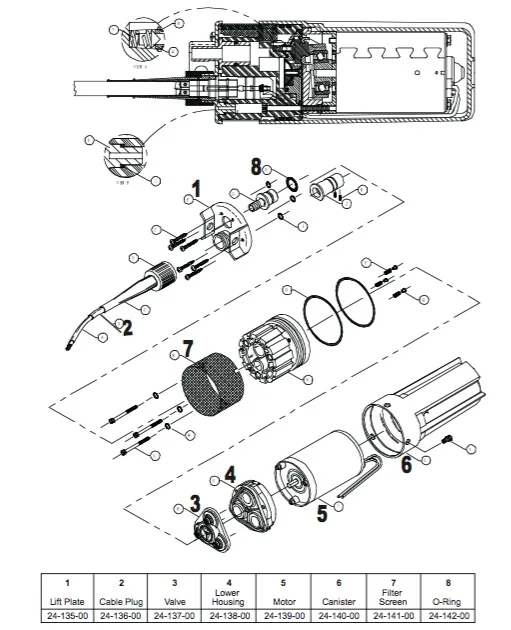

7. Pump Design: Positive Displacement 3 Chamber Diaphragm Pump
8. Motor: Permanent Magnet Thermally Protected

9. Wire Length:3M

Setting the pump working time: work 2.5hours, resting 30 minutes.If work with battery together, the rest time can charge the battery.When the sunshine is not good or at night, the pump can work with the battery automatically.
If you use the pump without battery, you can connect the solar panel wire to the battery button in the controller directly, it also can work in 2.5hours rest 30 minutes duty cycle







Notice:

1.       If you want to connect with the solar panel, the power of solar panel suggest 150w.for the solar pump is 96w.

2.       Also we recommend you to match the controller ,for the controller can stable the current and voltage, so that the pump can use longer.

3.       All the warranty is 1 year.



Technical date:



Pump Design

Positive Displacement 3 Chamber Diaphragm Pump

Motor

Permanent Magnet, Thermally Protected

Voltage

24VDC Nominal

Amps

4.0A Maximum

Internal Bypass

105-110PSI Max.(7.2-7.5 Bars)

Maximum Lift

230 feet Maximum (70 Meters)

Maximum Submersion

100 Feet Maximum (30 meters)

Outlet Port

1/2'' (12.7mm) Barbed Fitting

Inlet:

50Mesh Stainless Seel Screen

Materials

High Strength Engineered Plastics,Stainless Steel Fasteners

Typical Applications

Potable Water Well Pump
