13.3,14,15,15.6,17,17.3,18.5 inch capacitive touch panel touch overlay for raspberry pi

FOB Reference Price:Get Latest Price
$43.27 - $62.35 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
HX1561704
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Screen Size:
15.6 inch
Type:
Capacitive
Interface Type:
USB, IIC
Resolution:
1920x1080
Brand Name:
Grahowlet
Place of Origin:
Zhejiang, China (Mainland)
Product name:
15.6 inch usb multi panel capacitive touch screen panel
Size:
15.6 inch
Keywords:
tablet touch screen
Application:
Industrial Application
Touch points:
10 Points
Interface:
USB 2.0(full-speed)/IIC
Operating System:
XP Win7 8 Android Linux
Structure:
G+G
Power Supply Voltage:
5 V
Warranty:
1 year
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month touch screen
Packaging & Delivery
Packaging Details
Standard anti-static packaging or as per customer's requirement.
Port
China's major ports
Video Description
Product Description

Customize CTP/CTP+ LCD DISPLAY 1.3-65 inch
Full range of standard product in stock (no need customization)

PCAP(projected capacitive)

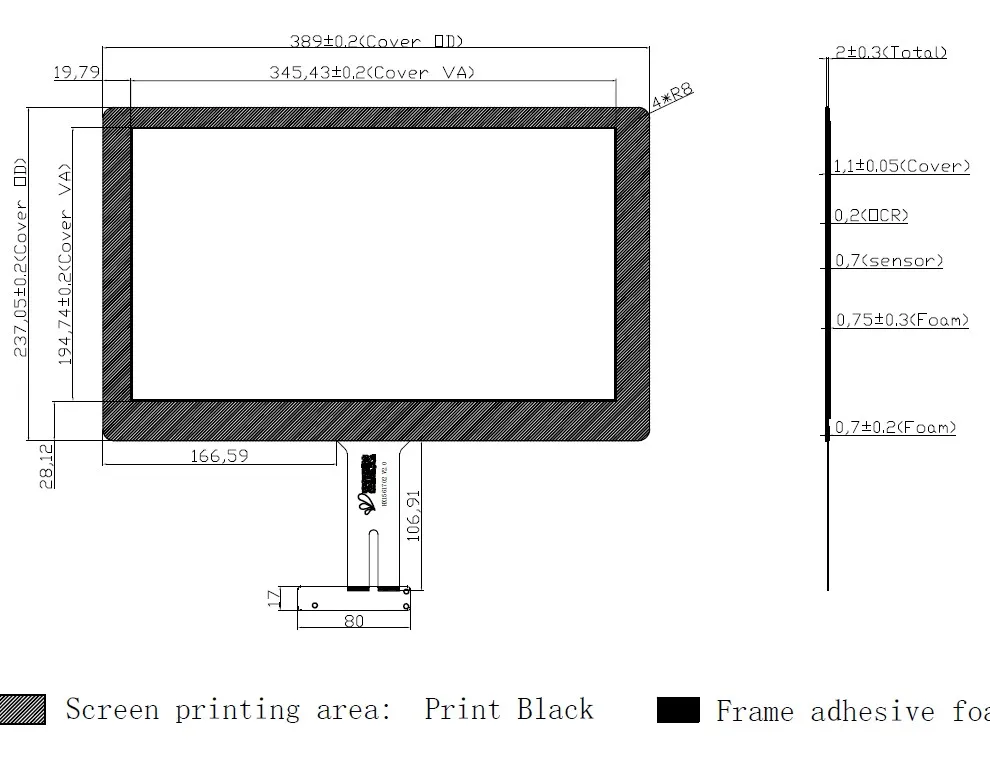

Model Number:HX1561704
Size:15.6 inch
Interface Type:USB
Controller IC :ILITEK
Touch Points:1-10 Points
Power Supply Voltage:5V

PCAP(projected capacitive)

Light Transmittance:≥85%
Surface Hardnness:≥6H
Operating Temperature:-20℃ ~ 70℃
Storage Temperature:-30℃ ~ 80℃
Support Systems:Windows/Android/Linux etc.
Application

Courier handheld terminal

Portable medical machine

Front loading Vehicle control system

Industrial Data Detection Equipment

1.Support Touch with glove of all materials and thickness with 6mm

2.Support Touch with water/brine

3.Cover glass Support -8mm thickness--explosion-proof

4.Cover glass surface treatment--AG, AR, AF

Anti Glare (AG) processing could eliminate screen surface mirror problem through converting direct light to diffuse light on the touch screen.
AR processing means adding a type of coating that could reduce reflected light on the cover glass,which dereases screen reflection and increases visual effects
significantly in the sun.
Related Products

Model Number:HX1501705
Size:15.0inch
Resolution:1024x768
Interface Type:LVDS
Luminance:420cd/m²
Viewing Angle:80/80/80/80


Model Number:HX1331703
Size:13.3 inch
Interface Type:USB/IIC
Structure:G+G
Controller IC:EETI
Touch Points:1-10 points


Model Number:HX1561707
Size:15.6 inch
Resolution:1920x1080
Interface Type:LVDS
Luminance:400 cd/m²
Viewing Angle:80/80/70/70


Model Number:HX1561705
Size:15.6 inch
Resolution:1920x1080
nterface Type:EDP
Luminance:220 cd/m²
Viewing Angle:45/45/20/40


Model Number:HX1701701
Size:17.0inch
Interface Type:IIC/USB
Structure:G+G
Controller IC:ILITEK
Touch Points:1-10 points


Model Number:HX1851801
Size:18.5 inch
Resolution:1366x768
Interface TypeLVDS
Luminance250 cd/m²
Viewing Angle:45/45/25/40


We can provide USB controller and HDMI/VGA driver board.

If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please Click here.


Our Company
Our Service
programe evsluation
1 to 2 morking days
Drawings
2 to 3 working days
Customized products
3 to 4 weeks(after drawings confirmed)
Mass Production delivery
4 to 6 weeks
Software debugging
Capacity
100K per month(10.1 inches as a reference)
Process capability
G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 ") Cover glass surface treatment AR, AG, AF
Technical support

Engineers to provide door-to-door or remote access service within 24 hours
Stable supply chain for at least 3 years guarantee
One year warranty time for all of our products
Certifications
Packing & Delivery
FAQ

Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry.  From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
