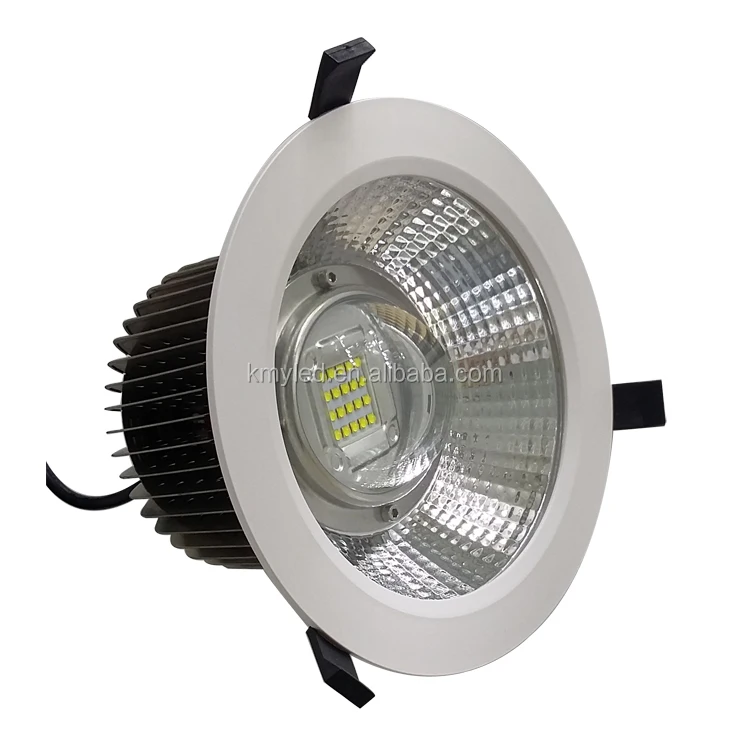

130lm/W creexte 5 inch 6 inch 8 inch 9 inch 10 inch 60W led retrofit recessed downlight

Feedback Ratings
  • 6-99 Pieces
    US $52.50
  • >=100 Pieces
    US $49.00
Emitting Color:
Cold White
- +
available
White
- +
available
Warm White
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Downlights
LED Light Source:
Cree XTE
Warranty(Years):
3 Years
Input Voltage(V):
AC100V-305V
Lamp Luminous Flux(lm):
5700
Lamp Luminous Efficiency(lm/w):
95
CRI (Ra>):
80
Color Temperature(CCT):
Pure White
Working Temperature(℃):
-40 - 55
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP44
Certification:
CCC, CE, EMC, FCC, LVD, PSE, RoHS
Model Number:
KW-SD60W-A
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TengSeaKai
Product Name:
Led Recessed Downlight
Power Factor:
0.9
Lighting Color:
Warm White:2700-3000K,Pure White:4000-4500K,Cool White:5700-6500K
Beam Angle:
35/60/90/120 degree
Dimmable:
Non-dimmable
Downlight Diffuser:
Transparent
6 inch Dimension:
Dia200*120mm
Cut Out:
170mm
N.W.:
0.48kg
Install:
recessed mounted
Lamp Power(W):
60

Packaging & Delivery

Selling Units:
Single item
Single package size:
35X30X26 cm
Single gross weight:
4.0 KG
Package Type:
130lm/W creexte 5 inch 6 inch 8 inch 9 inch 10 inch 60W led retrofit recessed downlight Neutral packing 6 PCS downlight per Carton
Lead Time :
5

130lm/W creexte 5 inch 6 inch 8 inch led retrofit recessed downlight

Product Description



COB LED Downlight

KW-SD High Power LED Downlight Advantages:



1.High quality Cree led chip ,high lumen 130lm/W.

2.High power factor, high energy efficiency.

3.Go Green ,energy saving ,low carbon environmental protection ,no mercury pollution.

4.Instant start up , silent operation and flicker-free,effectively protecting the eyes.

5.Selection of dimming :Non-dimmable, 0-10V dimmable,1-10V dimmable, DALI dimmable ,triac dimmable

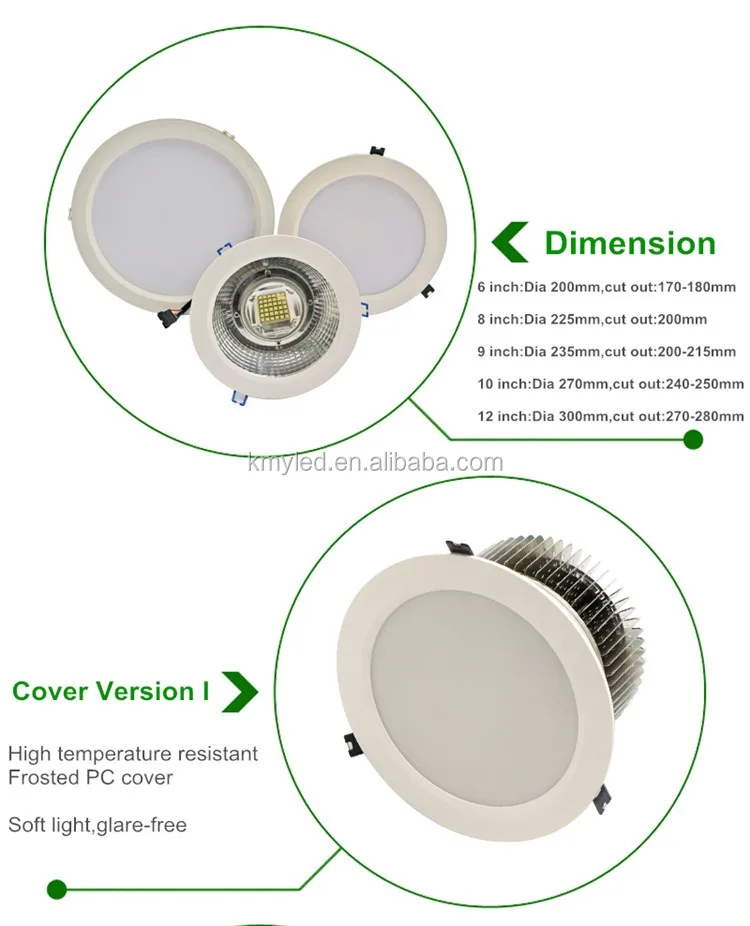

6.Designed as a direct retrofit to most LED Down Light,6 inch ,8 inch ,10 inch and 12 inch diameter are available.







Specifications Sheet

Type:KW-SD60W-ALuminous Flux: 5400-6000LM
Power:60WCRI: ≥80
Power Factor:>87 %LED Chips:CHIP
Input Voltage:AC85V-305VLight Color:warm/pure/cold white
Frequency range:50Hz-60HzBeam Angle:60°  90°   120°
Power Factor>0.95Hole Size:170MM
Working Life:≥50,000 hrsDimension:200*120mm(6 inch)
Material: Aluminum Alloy                                N.W.:0.48kg

100w led downlight pc white lens.jpg



**Lamp Size can made as your demand.

8 inch recessed led downlights.jpgLINDEN LED Downlighter Brussels 4000K.jpg

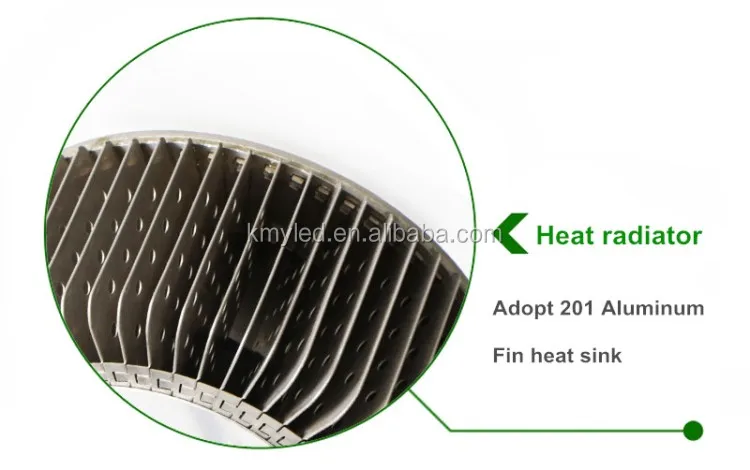

Fin heat sink led lamp.jpg

8 inches led downlight.jpg

230V 240V led downlights.jpg



Key Features and Benefits

>High power:30W  40W 50W 60W 70W 80W 100W 120W 150W
>Mount: Ceiling Recessed

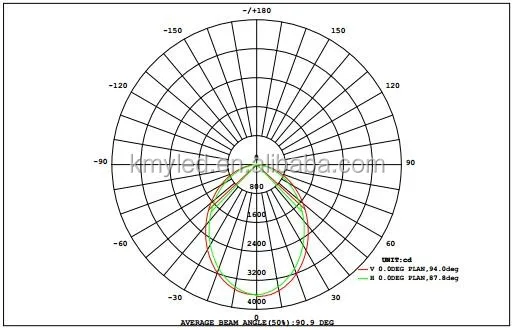

>35/60 /90 /120 degree beam angle

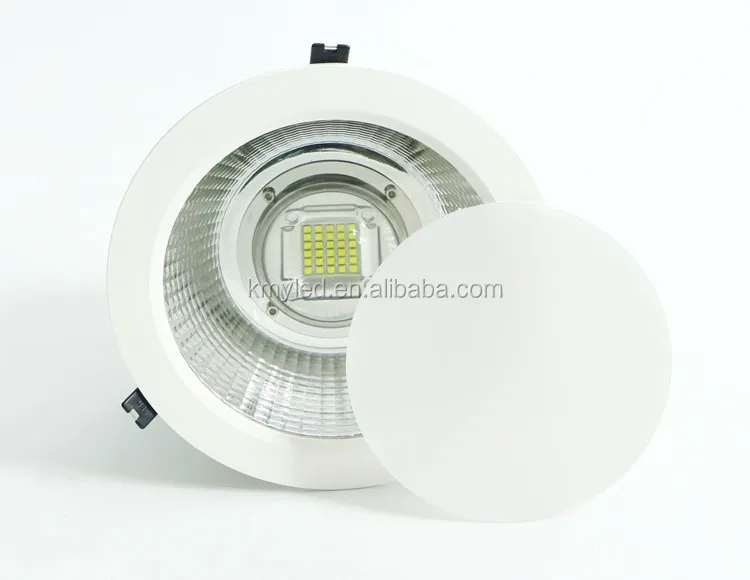

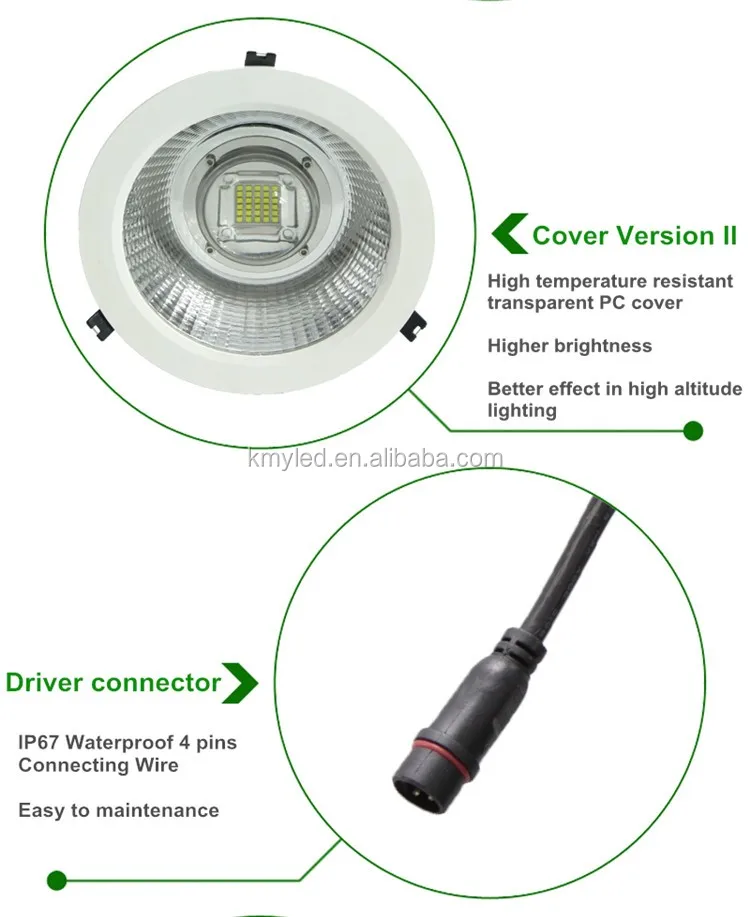

>Transparent(model:A) /Frosted Cover (model:B)
>AC100~305V ,DC12V 24V ,AC180V-480V(347V/380V) 50/60HZ input voltage

>Total Harmonic Distortion<9%

>50,000 hours lifetime
>UV , NIR radiation free, and Mercury free

>3 years Light Emission Technology Guarantee and Lifetime technical support

>Available in free different colour temperatures:
Warm white:2700-3000K
Neutral white:4000-4500K

Cool white:5700-6300K

Other lighting colours  can be customized ,dual functions of lighting and decorating.





Family Model No.PowerLamp lumenBeam angleCut OutDimensions N.W.
 KW-SD40W-A/B 40W 3600-4000lm 60/90/120 degree 170mm 200*120mm 0.48kg
 KW-SD50W-A/B 50W 4500-5000lm 60/90/120 degree 170mm 200*120mm 0.48kg
 KW-SD60W-A/B 60W 5400-5700lm 60/90/120 degree 170mm 200*120mm 0.48kg
 KW-SD80W-A/B 80W 6800-7600lm 60/90/120 degree 170mm 200*120mm 0.48kg
KW-SD100W-A/B100W8500-9500lm60/90/120 degree200mm225*130mm0.98kg
KW-SD120W-A/B120W10200-11400lm60/90/120 degree250mm270*130mm0.98kg
KW-SD150W-A/B150W12750-14250lm60/90/120 degree250mm270*130mm0.98kg



Packaging & Shipping

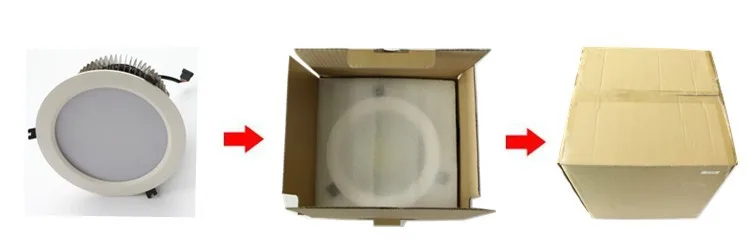

100w led downlight package



 * Standard export package,safe Packing with high density PE foam.

 * 6PCS/Carton      G.W.:20KG/Carton    Carton Size: 57.5*46.5*36CM

payment

Company Information



Shenzhen Kaiming led light factory

Shenzhen Kaiming led light.jpg





Our Services



1.  Your inquiry will be replied in the shortest time,no more than 24hrs.

2.Any problem about the products will be handle at first-time.

3. All our products give a warranty of 3 years.

4.OEM design and R&D production is available.

5.Lead time:3-7 working days after receipt of payment for samples;10-20 working days after receipt of payment for wholesale orders.

6.Packaging: Neutral package or color box package .Also can be customized according to customer requirements of  Logo, Brand and etc..



FAQ



Q:How about the warranty?



A:Our products are with 3 years Warranty . All products are gone through strict test by our experienced QC before shipment.





Q: How long will the driver last?

A: We are using quality isolated drivers and lifespan can last up to minimum 5 years with no worries.



Q: How big should the cut-out hole be?

A: Kindly refer to the cut-out/hole size, if it is not big enough, you can always expand it.





Q: How to proceed an order for led light?

A: Firstly, let us know your requirements(wattage,voltage,lighting color,quantity) or application.

Secondly, We quote according to your requirements or our suggestions.

Thirdly ,customer confirms the samples and arrange the payment for formal order.

Fourthly ,We arrange the production and delivery to you.



Welcome to contact us any time!
