1325 4*8ft DSP Mach 3 CNC Wood Router Engraver Machine Price Acrylic Wood MDF Engraving Cutting Routing Router CNC China

Feedback Ratings
  • 1-2 Sets
    $4,500.00
  • 3-4 Sets
    $4,300.00
  • >=5 Sets
    $4,200.00
Model Number:
ATF-1325
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
20 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Contact Supplier
Samples - $5,200.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Alpha
Voltage:
220V/380V
Dimension(L*W*H):
1300*2500*200mm
Certification:
CE ISO9001
Warranty:
2 Years
Control system:
Mach 3/DSP/NC-Studio
Spindle:
3.5/4.5/6kw spindle
Application:
Wood, MDF, Acrylic, Aluminum
Motor:
Stepper motor/Servo motor/Hybrid setvo motor
Driving system:
XY helical rack and gear, Z ballscrew
Software:
ARTCAM/ASPIR
Inverter:
DELTA/FULING/BEST/SUNFAR
Spindle speed:
0-24000RPM
Keywords:
cnc router
Rotary axis:
0-300mm for option
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
3-7kw
Weight:
1800kg

Packaging & Delivery

Selling Units:
Single item
Single package size:
320X225X120 cm
Single gross weight:
1500.0 kg
Package Type:
Plywood Package
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 5 6 - 20 >20
Est. Time(days) 20 30 To be negotiated
Video Description
Product Description

1325 4*8ft DSP Mach 3 CNC Wood Router Engraver Machine Price Acrylic Wood MDF Engraving Cutting Routing Router CNC China


AlphaCNC Transformers series is special designed for the international market. The most notable features are the removable machine legs, which saving 40%-80% of shipping cost, and the adopting of the Patent design 1:4 gear reducer on the driving motors, which makes the machine more powerful.
A 40HQ container can load 18 sets of 1300*2500mm Size CNC Router.

Product Application

* Sign Industry: Acrylic sign making, Wood Sign making, ABS board sign making.

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.



Main Features

▷Leg Removable Frame

▷Patent design 1:4 gear reducer

 ▷1300*2500mm, 1500*3000mm, and 2000*4000mm standard sizes (Special sizes available upon request.)
▷ 3.5kw high-frequency  spindle
▷Stepper motors.
▷ Automatic tool calibration easy and accurate "Z" zero position for single and multiple tool changes
▷  Aluminum T-Slot table
▷ Easy to use DSP controller  with all industry standard CAD/CAM software

▷Rotary axis 80-300mm (for option)

Descriptions
                                                                     Parameters
Model
ATF-1325
ATF-1530
ATF-2030
ATF-2040
Custom made
Working area
1300*2500mm
1500*3000mm
2000*3000mm
2000*4000mm
Custom made
Accuracy
±0.03mm
Table Surface
Aluminum T-slot (or  T-slot Table& vacuum table combined )
Frame
Thicken steel Square Tube Heavy structure , 10mm thicken steel
X, Y Structure
Gear and rack transmission, Taiwan PMI Linear Rail
Z Structure
Taiwan TBI Ball Screw, Taiwan PMI Linear Rail
Max. Rapid Travel Rate
45000mm/min
Max. Working Speed
25000mm/min
Spindle Power
3.5kw(4.5kw, 6kw for option)
Spindle Speed
0-18000(0-24000RPM)
Drive Motors
Stepper motor and driver(Yaskawa servo motor optional)
Working Voltage
Custom made
Command Language
G Code
Operating System
Mach 3 (DSP or Nc-studio optional)
Computer Interface
Ethernet (or USB)
Inverter
Fuling (Taiwan DELTA optional)
Software
Vectric Aspire/Type 3 /Artcam /Ucancam

Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.

Sample
Detailed Images

Reserved Position for Forklift

Reserved the position for forklift, loading and unloading the machine will be easier, and it can protect the machine body, and it can increase the mechanical strength of the machine

Leg Removable Frame

The machine main body and the machine legs are freely separable, when delivery the legs are disassembled and put on the table, which will reduce the machine's package size, then will save the shipping cost.

High Frequency Powerful spindle

The High quality BP series CNC Router machine comes with 3.5kw high frequency spindle. This precision spindle requires no maintenance, uses industry standard ER collets and ISO tool holders. Fully programmable speeds from 6000 to 24000 RPM, and comes complete with pneumatically retractable vacuum hood.

Anodized Aluminum Spindle Fixing plate

The spindle is fixed on the high quality aviation aluminum T061/6063 plate, and it is Anodized Aluminum processing,
the plate is machined by high precision CNC machining center.

Dust cover for the guide rail and the helical rack gear

The machine is designed with the dust cover for the guide rail and the helical rack and gear, to reduce friction,  make the rail and the rack have longer service life.


Double Insurance Emergency Stop Button

There is double insurance emergency stop switch. In case of any emergency, the worker can press any emergency stop button and the machine will stop working.

TBI High-Precision Ball-screw Transmission (Taiwan)

High Quality, less noise, longer service life.

Machine Base Frame

The machine frame is heavy duty, the main body is welded by 200*300mm square tubes, side arranged structure, heavy gantry support, and the gantry square tubes is 150*200mm.


Mach 3 controller

Mach3 is designed to control the CNC machine. The program is installed on a computer connected to the control machine. Mach3 was developed by American programmers, both for professional and amateur use, so it is the most common software for CNC machines in the world. Using Mach3, it is possible to control the following types of machines: turning, milling, routers, laser and plasma plotter, engraving.
We use Ethernet interface, high reliability, anti-interference.


Patent design 1:4 gear reducer + Stepper 450B driving motor

Patent design 1:4 gear reducer install on the driving motor, makes the motor is more powerful, and having a longer time service life.
The stepper motors are installed on all axes to ensure precise positioning of the gantry and the spindle in accordance with a predetermined program at high speed. Stepper motors are well proven high degree of reliability.
The machine is installed 4 pieces of motors.

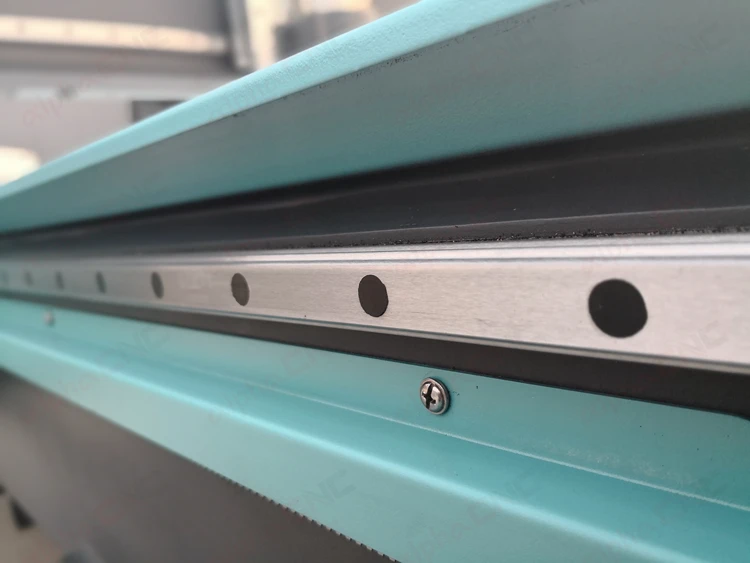

Hiwin square rail&High quality helical rack pinion

The machine adopts Taiwan Hiwin square rail, which is more than twice durable. And the use of high quality helical rack pinion, makes it high precision.

CNC Tool Calibration

Automatic tool calibration pad allows for easy and accurate "Z" zero position for single and multiple tool changes through the program.

Vectric Aspire Software

Aspire is built on the same platform as Vectric's VCarve Pro software, sharing the intuitive interface and ease of use for production design and routing. In addition to the powerful drawing and production routing tools of VCarve Pro, Aspire also has tools to let you transform 2D sketches, photos, drawing and digital artwork into detailed 3D relief models and then to calculate 3D Roughing and Finishing toolpaths to accurately cut these shapes.

Optional Parts

CNC Router Vacuum Pumps

5.5kw (totally enclosed fan-cooled). Rotary Vane Vacuum Pump.


Dust Collector

3kw double bags dust collector.

Oil mist Coolant System

The Oil mist Coolant System is ideal for coolant tools for cutting metal. The result is higher material removal rates, improved finish, tighter tolerances and increased productivity.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
3200 (L) * 2300 (W) * 1900 (D)
Weight
1500KG



Packaging Details
The normal package is plywood box.

Company

Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, fiber laser marking machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.
Anyone is interested in our product, welcome to be the partner of Alpha.

Agent and distributor wanted all over the world!
