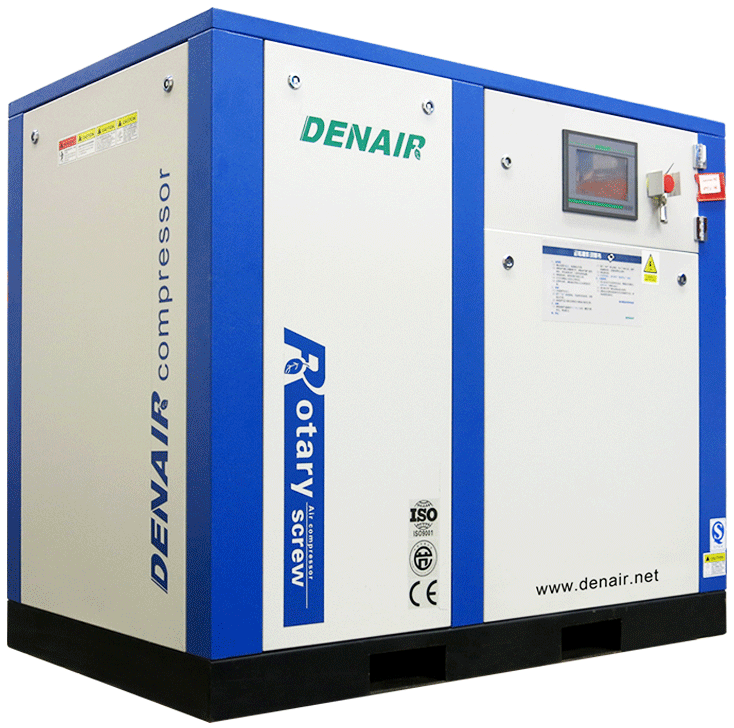

15-400kW Oil Inject Direct Drive Coupled Screw Air Compressor

FOB Reference Price:Get Latest Price
$6,000.00 - $49,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
DA Seires
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Garment Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Food Shop
Condition:
New
Type:
SCREW
Configuration:
Stationary
Power Source:
AC POWER
Lubrication Style:
Lubricated
Mute:
No
Place of Origin:
Shanghai, China
Brand Name:
DENAIR
Dimension(L*W*H):
1650*1050*1400 mm
Warranty:
One Year for the Whole Machine
After-sales Service Provided:
Field maintenance and repair service
Product Name:
Direct Drive Coupled Stationary Rotary Screw Air Compressor
Air End:
DENAIR
Motor Power:
15-400 kW
Driven method:
Direct Driven
Frequency:
50/60 HZ
Protection Grade:
IP54/IP55
Working Pressure:
7-13 Bar
Weight:
300-8500 kg
Certification:
CE; ISO 9001, GC
Voltage:
Customers' Requirements
Product Certification Verified
CE Certified.
Valid from 2017-08-09 until 2049-12-31
Supply Ability
Supply Ability:
500 Set/Sets per Month Direct Drive Coupled Stationary Rotary Screw Air Compressor
Packaging & Delivery
Packaging Details
Standard Wooden Package for Direct Drive Coupled Stationary Rotary Screw Air Compressor
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 To be negotiated

Oil-injected Rotary Screw Air Compressor

Advantages

1.State-of-the-art-screw element,original Germany DENAIR air end,advanced SAP profile design,superior Sweden SKF element bearings.
2. Adopts world-renowned components,such as Schneider electronics from France,DENAIR filters , Danfoss pressure sensor from Denmark,etc. contribute to guarantee the compressor longer service life.
3. High-precision flexible coupling for direct driven compressor,1:1 transmission ratio, lower energy consumption , higher efficiency.
4. Intelligent controller and  multi-language LCD keep the outstanding safety performance.

5.Stainless steel oil pipe and air pipe,high temperature resistant (400℃=752℉) and low temperature resistant (-200℃=518℉),high pressure resistant.=Ultra-long life(80years),completely leak free and maintenance free Conform to CE,ISO9001 and energy saving certification,etc.

Product description

Oil Injected Screw Air Compressor
♦  Efficient Motors.
♦  Intelligent Control System.

♦  Coupling Design.
♦  Stainless Steel Pipe Connections.
♦  High Efficiency,Low Energy Cost.



Efficient Motors

Using the latest standard: GB18613-2012 small and mediumthree-phase asynchronous motor energy efficiency of limitedvalue and energy efficiency rating, motor with new nationalenergy-efficiency motors, high degree of protection IP54, Fclass insulation grade, B grade temperature assessment,using imported SKF bearings.

Technical Parameters
Model

Maximum

Working Pressure

Capacity FAD*

Installed

Motor Power

Driving Mode&
Cooling Method

Dimensions(mm)

Weight*
(kg)
bar(e)psigm³/mincfmkWhpL*W*H
DA-77.51091.04 37 7.510Belt Driven900*660*960200
8.51230.98 34 7.510900*660*960200
10.51520.89 32 7.510900*660*960200
131890.72 25 7.510900*660*960200
DA-117.51091.76 62 1115900*660*960255
8.51231.73 61 1115900*660*960255
10.51521.37 48 1115900*660*960255
131891.12 40 1115900*660*960255
DA-187.51093.00 106 18.525 Direct Driven
Air Cooling
1330*840*1030375
8.51232.94 104 18.5251330*840*1030375
10.51522.90 102 18.5251330*840*1030375
131892.02 71 18.5251330*840*1030375
DA-377.51096.50 230 37501600*1000*1400680
8.51236.47 228 37501600*1000*1400680
10.51526.32 223 37501600*1000*1400680
131895.10 180 37501600*1000*1400680
DA-457.51097.65 270 45601600*1000*1400840
8.51237.60 268 45601600*1000*1400840
10.51526.57 232 45601600*1000*1400840
131896.39 226 45601600*1000*1400840
DA-757.510913.91 491 751001800*1200*14001350
8.512312.66 447 751001800*1200*14001350
10.51529.51 336 751001800*1200*14001350
131899.24 326 751001800*1200*14001350
DA-90(W)7.510916.90 597 90120Direct Driven
Air Cooling
W-Water Cooling
2450*1800*17002100
8.512316.70 590 901202450*1800*17002100
10.515214.50 512 901202450*1800*17002100
1318912.50 441 901202450*1800*17002100
DA-110(W)7.510920.80 734 1101502450*1800*17002500
8.512320.00 706 1101502450*1800*17002500
10.515217.50 618 1101502450*1800*17002500
1318914.50 512 1101502450*1800*17002500
DA-160(W)7.510928.00 989 1602152650*1700*17603150
8.512327.00 953 1602152650*1700*17603150
10.515224.00 847 1602152650*1700*17603150
1318920.00 706 1602152650*1700*17603150
DA-315(W)7.510953.03 1872 3154253700*2300*24506700
8.512352.50 1854 3154253700*2300*24506700
10.515246.69 1649 3154253700*2300*24506700
1318942.82 1512 3154253700*2300*24506700
DA-400W7.510968.78 2429 4005503700*2300*24508500
8.512366.95 2364 4005503700*2300*24508500
10.515252.50 1854 4005503700*2300*24508500
1318946.54 1643 4005503700*2300*24508500

*)FAD in accordance with ISO 1217 : 2009, Annex C: Absolute intake pressure 1 bar (a), cooling and air intake

temperature 20°C
**) Noise level as per ISO 2151 and the basic standard ISO 96142, operation at maximum operating pressure and

maximum speed; tolerance: ± 3 dB(A)

*) Specifications are subject to change without prior notice
More models, pls chat with  us online!
