15 Meters Parking Access Control long range uhf rfid reader

  • 1-9 Pieces
    $160.00
  • 10-99 Pieces
    $155.00
  • >=100 Pieces
    $145.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 10 Pieces)
Customized packaging (Min. Order: 10 Pieces)

More

Graphic customization (Min. Order: 10 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ACM
Model Number:
ACM 801A
Product Name:
15 Meters Parking Access Control long range uhf rfid reader
Read Distance::
8-15 METER
Antenna::
linear polarization antenna,12dbi
Operation Mode::
Fixed Frequency or FHSS or Software Programmable
RF Power Output:
0~30dBm
Interface::
RS232,RS485,Wiegan26
Highest data read rates::
Muti-tag (10-100pcs tag per time to read)
Power Consumed::
DC-9V±0.5V Adapter, less than 3 Amps
Read range::
reading/writing range is not less than12M
Dimension ::
460X460X45MM

Packaging & Delivery

Selling Units:
Single item
Single package size:
35X32X31 cm
Single gross weight:
6.000 kg
Package Type:
one pc in box 10pcs in carton carton weight 60kg
Lead Time :
Quantity(Pieces) 1 - 1 2 - 10 11 - 100 >100
Est. Time(days) 3 7 10 To be negotiated
Product Description

15 Meters Parking Access Control long range uhf rfid reader

-1, Capability of Reading/Writing agreement of ISO18000-6B ,EPC Passive tags and software programmable.

-2, Able to decode ISO-18000B, EPC.

-3, Reading Rang(Max).: 5M Reading

-4 Free SDK and configuration software shapes.

Product Parameter
Parameter Description
Model
ACM 801A UHF long range reader
Frequency
1Sm 902-928MHZ
Operation Mode
Fixed Frequency or FHSS or Software Programmable
RF Power Output Adjustable
Access antenna power 1W(adjustable)
Built- in Antenna Type
12dbi, linear polarization antenna
Communication Ports
1)RS-232 2)RS-485 3)Weigand 26 bits \ 32bits
RF Power Output
0~30dBm
Reading/Writing Capability
reading/writing range is not less than12M,the longest reading range is 30M
Reading Rate
Software Programmable,can identify fast-moving electronic lables whose speed is greater than 120km/h
Power Consumed
DC-9V±0.5V Adapter, less than 3 Amps

Product Advantages

1. Wake up tags:the tag which only be waked up can communicate with reader, prevent the disturbing from other tags, ensure
the correct information between reader and system's tag.
2. Read data:it can get the ID number of tag, and also get the data which in the specify area, multi tags
reading will be available.
3. Write data: can write data in specify tag's storage area.
4. Can connect with the device which has W26 and W34 interface, no need to develop.
5. Communicate with controller or PC, that can get the data; provide SDK development kit, user can develop it.

Detailed Images

Wiring Diagram of RFID UHF reader and writer

Power
GND
485+
485-
WG D0
WG D1
Trigger T+
Trigger T-
RXD
TXD Ground
RED
BLACK
BROWN
ORANGE
YELLOW
GREY
ROSE RED
BLACK
PURPLE
white black

Quality Warranty

 - Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative products.
- On the contrary, ACM Goldbridge will cahrge extra if repair.
- More information, please browse our service center.

Click here to order and have your FREE SAMPLE in 3 days!!!
We are professional comprehensive security access control products supplier with 20 years experience, we make sure to offer the best solution of access control system solution! So, send your inquiry details in the below, click "Send" now!
We are looking forward to forming successful business relationships with new clients around the world in the future.

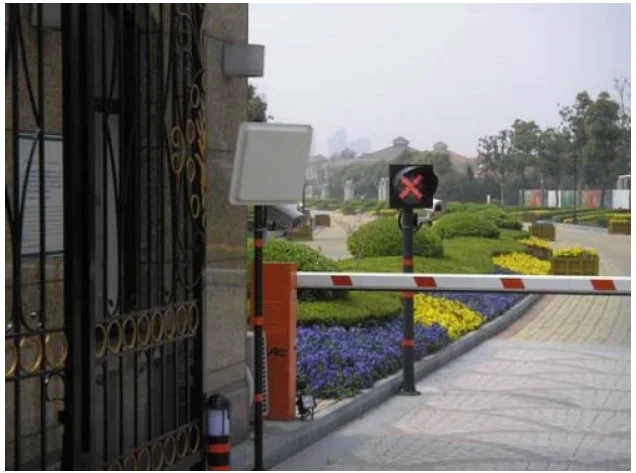

Application

Application of RFID UHF reader and writer
1, Transportation management
2, Vehicle management
3, Road and bridge toll
4, Custom management
5, Warehouse management
6, Car parking management
7, Access control management
8, Production management

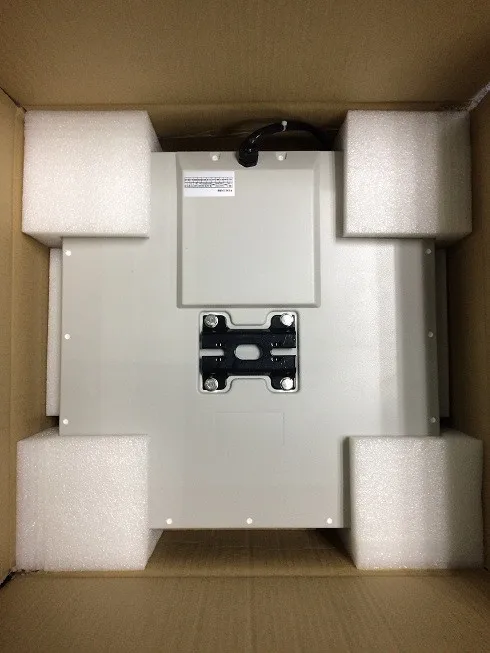

Packing & Delivery

Packaging

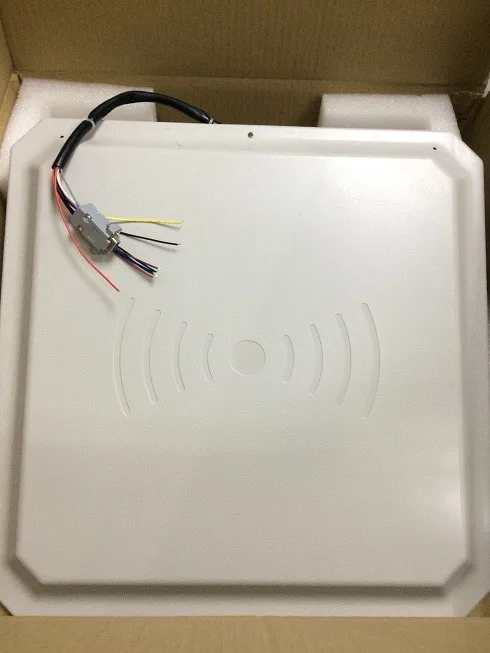

UHF reader packaging: 1unit per box, 10pcs per carton,
Single size : 32*32*6cm , Gross Weight :6kg.

Shipping Way


We are one of the leading exporter of RFID products in China since 2000 years . With rich international trade experience we know the international shipping very well , We know which express or air/sea line is cheap and safe to your country . We can supply various certificate for you to clean your custom to such as CO , FTA , Form F , Form E ...Ect . We wil provide our professional suggestion for your shipping . EXW , FOB , FCT , CIF , CFR ...trade term are ok for us . We can be your reliable partner for products and shipping .

Related Products

  We are Professional uhf reader manufacturer , Except the ACM812A , we also can supply ACM802A , ACM818A , ACM801A . The main difference of them are the reading distance . Also , ACM801A can be used to read multi-tag(200 pcs at one time ) . For more detail , please click following picture .

ACM812A
2-5m reading range UHF reader
Wiegand 26 output, RS232/485

ACM818A
10-20m long range UHF reader
Wiegand 26 output, RS232/485

ACM802A
8-10m reading range UHF reader
Wiegand 26 output, RS232/485

ACM801A
10-15m UHF reader
Wiegand 26 output, RS232/485

ACM 8017
UHF Handheld Reader
UHF+WIFI+GRPS

ACM 918K
UHF 4-Antenna Channel High Performance Fixed Reader

ACM-UHF-M . UHF tag 860-915mhz RFID anti-metal tag 148*25*4mm ;ACM-UHF-S UHF stikcer 860-915mhz RFID sticker 86*54mm;ACM 217 UHF USB Desktop Reader/Writer; ACM 26C 125Khz EM Long range reader ; ACM09G Active 2.4G Reader Long Range ,distance 10~50meter,weigand 26/34 output

ACM 217
UHF USB Desktop Reader/Writer

ACM 26C
125Khz EM Long range reader
70cm-1meter distance

ACM09G
Active 2.4G Reader Long Range distance 10~50meter,weigand 26/34 output

UHF anti-metal tag
ACM-UHF-M . UHF tag 860-915mhz RFID anti-metal tag 148*25*4mm

UHF stikcer
ACM-UHF-S UHF stikcer 860-915mhz RFID sticker 86*54mm

ACM S001
UHF ETC Sticker
Anti-tamper /Anti-fake Sticke
