15 ton capacity Galvanized hopper silo

FOB Reference Price:Get Latest Price
$600.00 - $2,200.00 / Sets | 2 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Capacity:
2-34ton
Dimension(L*W*H):
3.8-8.5m
Condition:
New
Material:
Steel
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Hairun
Model Number:
HR
Weight:
based on the capacity
Silo type:
Assembly feed silo
Materials:
Hot dip galvanized steel sheet
Application:
chicken, poultry farm used feed storage
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard packing or according to customers' request
Port
Qingdao
Lead Time :
Shipped in 15 days after payment
Specification
Technical  Parameters
Model
HR36701
Diameter
367cm
Tonnage
15 ton
Height
580cm
Capacity
23.5 m³
NO.of stents
8
Lifetime
>30 years
Fodder weight/m³
0.65 tons / m³

2016 poultry feed silo

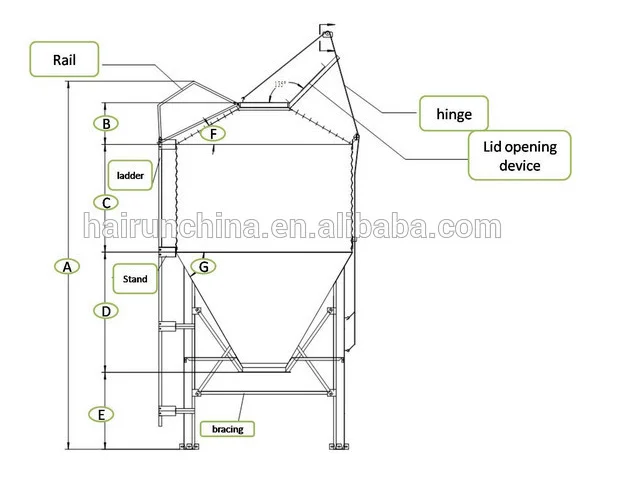

Hairun feed tower chicken farm cosists of silo body sheets, silo lid, collar, hopper sheets, roof panels, silo legs, ladder system. All parts are manufatured to engineering design specifications and quality checked to ensure hassle-free assembly and use

Features of Feed silo

As a professional manufacturer of storage equipment, we have developed, designed and manufactured assembly steel silos


The standard ladder and fence is safe and reliable.

The feed bin is fastened strongly and sealed.

Our feed bin made by high quality galvanized steel sheet.

Bin lever indicators at bottom and roof

Advantages

1). Silo standard ladder which has a guard railing and is safe and reliable;

2). Firm connection and good sealing performance;

3). High-quality plates, for more than 30-year service life


Model
Diameter(CM)
Tonnage(T)
Height(M)
Capacity(m³)
NO. of stents
HR18301
183
2.7
3.8
4.1
4
HR18302
183
4.2
4.7
6.5
4
HR18303
183
5.8
5.6
8.9
4
HR18304
183
7.3
6.5
11.3
4
HR27501
275
7.5
4.9
11.6
6
HR27502
275
11
5.8
17
6
HR27503
275
14
6.7
22.4
6
HR27504
275
18
7.6
27.8
6
HR36701
367
15
5.8
23.5
8
HR36702
367
21.5
6.7
33
8
HR36703
367
27.5
7.6
42.5
8
HR36704
367
33.5
8.5
52
8
Product Description

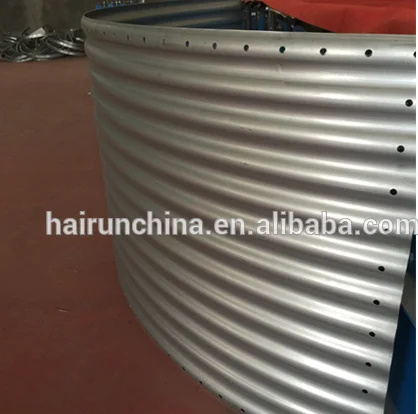

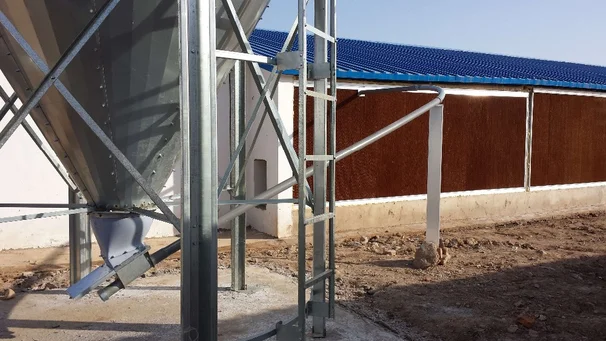

Silo body

constructed with hot-galvanized corrugated steel plate;zn-coat thickness≥275g per square meter.

Silo body is 1250mm wide,fit for different thickness requirements(1.0-1.5mm)

All steel plate joints are fixed by Grade8.8,M10 bolt and seal gums,ensuring no leaking seams,security and long operating life

Transparent viewing window

Transparent viewing window is good for observing feed delivery condition in the silo clearly.


Use high strength plastic


fastened strongly and sealed.


Non-friable  more secure and durable

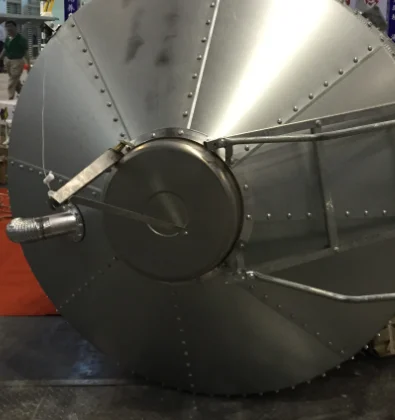

automatic torsion spring controlling


With our special automatic torsion spring controlling and steel wire rope design,

customers can easily open and close stainless steelroof cover on the ground.


Optional anti-block ball is available as per your requirement to convey feed flow more smoothly.

Transparent feed opening


Use high strength plastic


fastened strongly and sealed


Non-friable more secure and durable

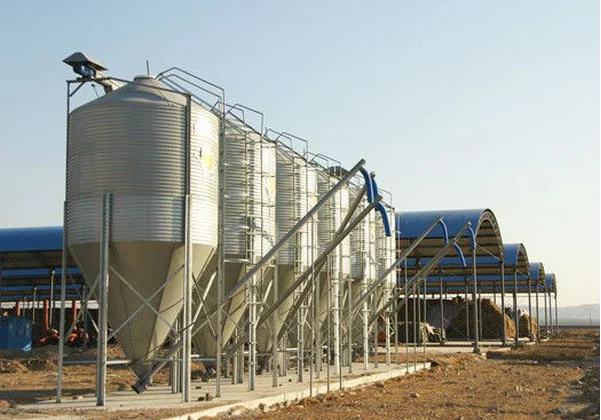

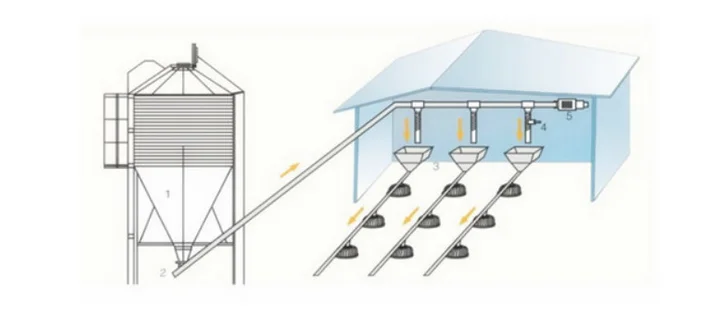

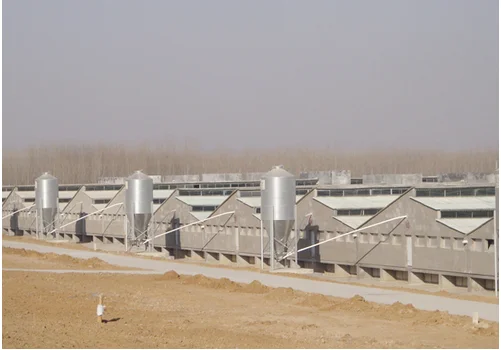

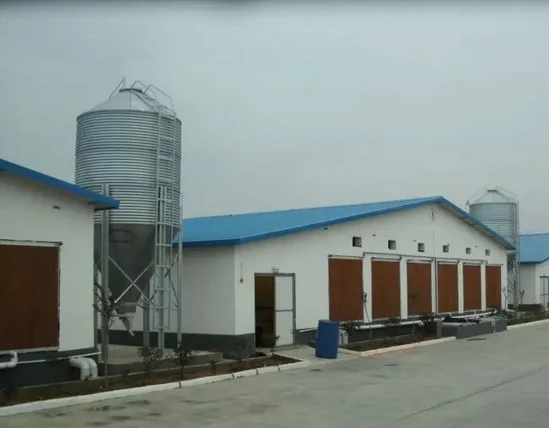

Applications

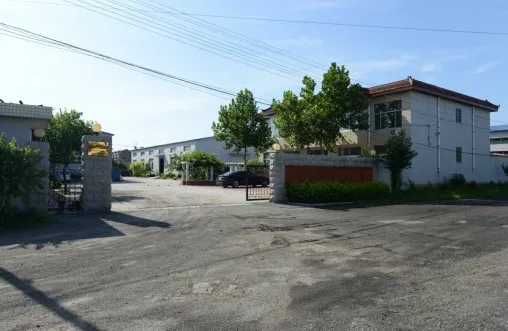

Company Information

Qingzhou Hairun Environmet Control Devices Co., Ltd.

  Qingzhou Hairun Environmet Control Devices Co., Ltd. is located in Qingzhou city, Shandong province with advantageous location and convenient transport. For many years it has committed itself to national energy-saving and environmental protection. Owing to having excellent staff, strong ability of production exploitation and development ability, comprehensive professional knowledge and customized design, we will fully meet with relevant customer’s demand.
Corporate Concept: Top Credit, Constant Innovation; Customer Uppermost. Quality First, Corporate Tenet; Credit-based, Commitment stressed, Contract-abiding, Top Quality, Perfect Service

Our services

1. Quotation within 24hours after getting your reply!

2. Advise the most economic equipment -setting way for your chicken house!

3. All the production will be finished within 20days after getting order!

4. All the shipping documents will be expressed after shippment!

5. Always available to offer guide about installation or raising chickens!
