150lm/w module White module 200W Led Street Light

$125.00 / Set | 1 Set (Min. Order)
Emitting Color:
Cold White
$125.00
- +
available
Warm White
$125.00
- +
available
White
$125.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Input Voltage(V):
AC100-277V
Lamp Luminous Flux(lm):
22000
CRI (Ra>):
70
Working Temperature(℃):
-40 - 60
Working Lifetime(Hour):
50000
IP Rating:
IP66
Certification:
CCC, CE, CQC, LVD, RoHS, SAA, SASO
Warranty(Year):
5
Place of Origin:
Zhejiang, China
Brand Name:
BOPIN
Model Number:
BSL64Z-F7W
Application:
ROAD, Street / Factory / Subway / Square
Lamp Body Material:
Aluminum Alloy
LED Light Source:
Lumileds
Lamp Luminous Efficiency(lm/w):
110
Lamp Power(W):
200
LED Driver make:
Meanwell/BOPIN/INVENTRONICS
Colour:
Black & White & OEM
Power Factor:
>0.95
warranty time:
5 years
IK Rating:
IK10

Packaging & Delivery

Selling Units:
Single item
Single package size:
83X42X22 cm
Single gross weight:
11.0 kg
Package Type:
1PC lamp with PE bag / Each lamp packed with 1 CTN with foam for reinforcement / Outside with protective films & packing belt & wooden tray.
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Specification
Setting Information
LED Source
 Lumileds Chips
rated voltage
100-270V
watts
200W
light color
Black & White &Grey for option
C.R.I
70
C.C.T
4000K / 5000K / 6000K
Luminous Flux
22000lm
Warranty year
5years
Product Description

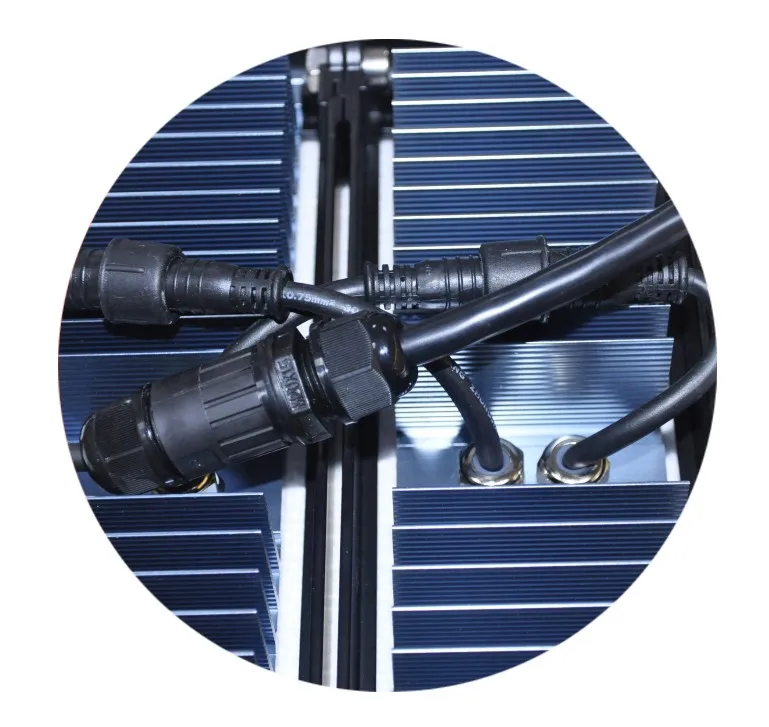

Independent led module

Lamps adopt modular design,both dust cover and modules are modular which can be easily for regular stock up,so that the demand for different customized specifications can be achieved.Use waterpoof conntecors.

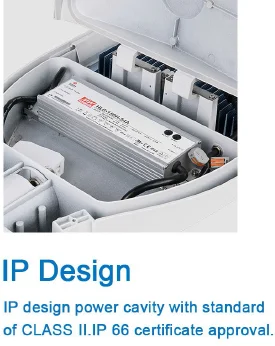

Meanwell driver and IP design

Lamps driver use stable constant current drive case of international renowned companies,and can achieve 30%-100% brightness intelligent lighting control according to customer demand,to make lamps more energy efficient and environmentally friendly.IP design power cavity with standard of CLASSII.IP66 Certificate approval.

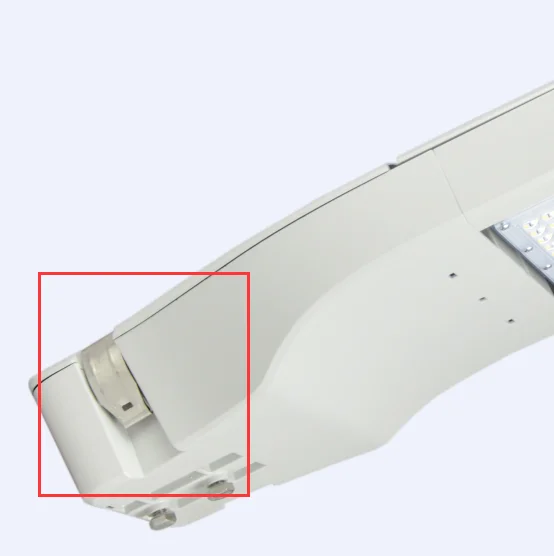

Buckle Design

Lamps covers use buckle design,make the replacement and maintenance more quickly and easily,as well as have simple and beautiful appearances

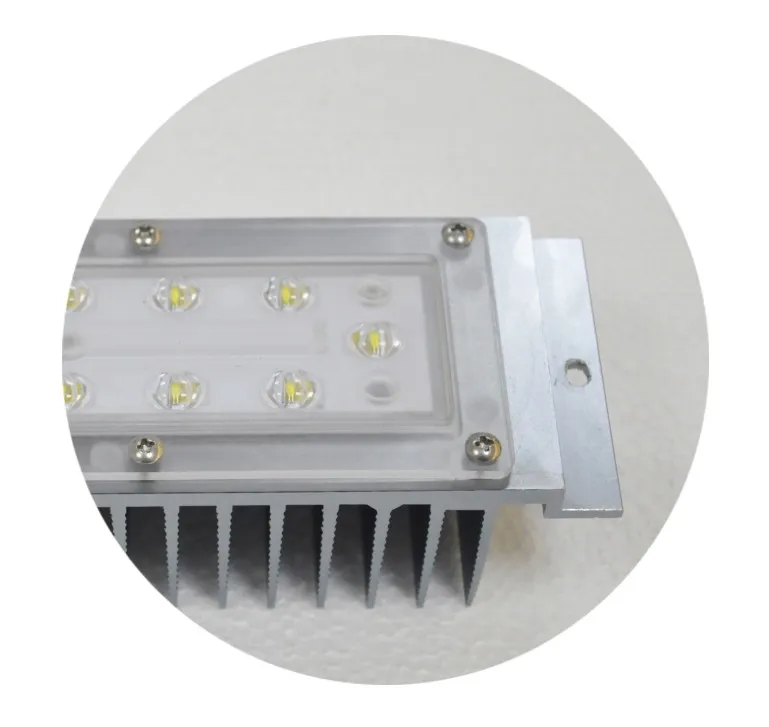

LED Lens

Imported PC lens (UV Resistance) with 140 degrees beam angle

Page design anti-dust cover

Die-casting aluminum material anti-dust cover with prefer treatment on bird dung page design for tool free maintenance

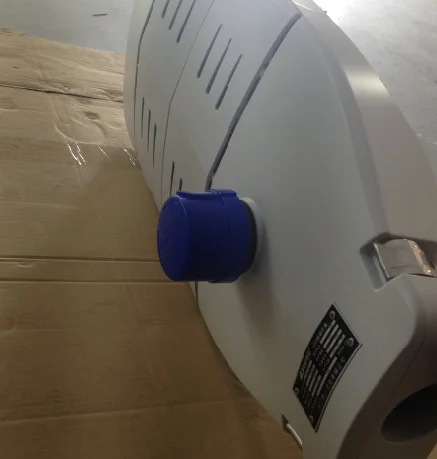

Photocell option

Photocell sensor is optional.The street light can turn on/turn off automatically by sunset/sunrise.

Model NO.
BSL18Z-F7W
BSL32Z-F7W
BSL36Z-F7W
BSL48Z-F7W
BSL54Z-F7W
BSL64Z-F7W BSL72Z-F7W
BSL80Z-F7W
BSL90Z-F7W
LED Watt
50W/60W
100W/120W
150W / 180W
200W / 240W
260W / 300W
Input Voltage
90-305Vac
180-295Vac
180-295Vac
180-295Vac
90-295Vac
Module nos
1 module
2 modules
3 modules
4 modules
6 modules
LED Driver
Meanwell /Inventronics/BOPIN driver
IP
IP66
IP66
IP66
IP66
IP66
LED Chips
Lumileds
Lumileds
Lumileds
Lumileds
Lumileds
Light effect
100lm/w-150lm/w
C.C.T
3,000-6,000K
3,000-6,000K
3,000-6,000K
3,000-6,000K
3,000-6,000K
C.R.I
80
80
80
80
80
Power Factor
0.95
0.95
0.95
0.95
0.95
IK Rating
IK10
IK10
IK10
IK10
IK10
Szie(mm)
596*350*130
596*350*130
740*350*130
740*350*130
884*350*130
Certificate
CE RoHS SAA
CE RoHS SAA
CE RoHS SAA
CE RoHS SAA
CE RoHS SAA

200w-250w led street light

70w -120w led street light

130w-180w  led street light

30w-60w small watt street light

Adjustable angle street light

IP66 street light with photocell

Applications
Certifications
Company Information

Zhejiang Boshang Optoelectronic Co.,Ltd (Founded in 2008). is a leading designer and manufacturer in modular high power LED outdoor lighting industry & Commercial indoor lighting field in China.We offers a wide range of LED solutions to make the world full of energy-saving.

Based on top-of-the-line patented IP68 LED modules, we have developed a series of modular LED lighting products including street lights, solar led street light ,high bay lights, tunnel lights, flood/spot lights and garden lights, which are CE, RoHS, TUV, SAA, CCC, CQC, CB, LM-79,LM-82 approved.

BOPIN LED Streetlights, with rich revolutionary and creative ideas, is the perfect combination of technology,creativity and light. Let the BOPIN LED release the maximum brightness; Design for road and street lighting, it is a total subversion of the traditional concept of road and street lighting.

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 5-7 days, mass production time needs 20-25 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
