156 inch raspberry pi full hd touchscreen with capacitive touch

FOB Reference Price:Get Latest Price
$174.30 - $342.70 / Pieces | 1 Piece/Pieces (Min. Order)
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
grahowlet
Model Number:
HX1561707
Type:
LCM
programe evsluation:
1 to 2 morking days
Drawings:
2 to 3 working days
Customized products:
3 to 4 weeks(after drawings confirmed)
Mass Production delivery:
4 to 6 weeks
Capacity:
85K per month
Application:
Industrial Application
Service:
Provde technical support at any time
Stable supply chain:
at least 3 years guarantee
r warranty:
One yea
LCD Type:
TFT
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard anti-static packaging or as per customer's requirement.
Port
any seaport or airport in China
Video Description
Product Description

Customize CTP/CTP+ LCD DISPLAY 1.3-65 inch
Full range of standard product in stock (no need customization)

MODULE PRODUCT DETAILS

Model Number:HX1561707
Size:15.6 inch
Operating Temperature:-10℃ ~ 70℃
Outline Dimension:389.00(W)x237.05(H)x14.75(D) mm
Viewing Area:345.43(W)x194.74(H) mm
Active Area:344.16(W)x193.59(H) mm
Support Systems:Windows/Android/Linux etc.

Light Transmittance:≥85%
Surface Hardness:≥6H
Interface Type:USB
Controller IC :ILITEK
Touch Points:1-10 Points
Power Supply Voltage:5V

TFT LCD DISPLAY

Resolution:1920x1080

Interface Type:LVDS
Luminance:400 cd/m
Viewing Angle:80/80/70/70
Warranty:1 year
Application

Courier handheld terminal

Portable medical machine

Front loading Vehicle control system

Industrial Data Detection Equipment

If you want USB interface, we can supply IIC to USB Bridgeboard Click here

1.Support Touch with glove of all materials and thickness with 6mm

2.Support Touch with water/brine

3.Cover glass Support -8mm thickness--explosion-proof

4.Cover glass surface treatment--AG, AR, AF

Anti Glare (AG) processing could eliminate screen surface mirror problem through converting
direct light to diffuse light on the touch screen.

AR processing means adding a type of coating that could reduce reflected light on the cover
glass,which dereases screen reflection and increases visual effects
significantly in the sun.
Related Products

Model Number:HX1501705
Size:15 inch
Resolution:1024x768
Interface Type:LVDS
Luminance:420cd/m²
Viewing Angle:80/80/80/80


Model Number:HX1561705
Size:15.6 inch
Resolution:1920x1080
nterface Type:EDP
Luminance:220 cd/m²
Viewing Angle:45/45/20/40


Model Number:HX1701702
Size:17.0 inch
Resolution:1280*1024
Interface Type:LVDS
Luminance:350 cd/m²
Viewing Angle:85/80/85/85


Model Number:HX1851801
Size:18.5 inch
Resolution:1366x768
Interface TypeLVDS
Luminance250 cd/m²
Viewing Angle:45/45/25/40


Model Number:HX1901702
Size:19.0 inch
Resolution:1280X1024
Interface Type:LVDS
Luminance:350 cd/m²
Viewing Angle:85/85/80/80


Model Number:HX2151705
Size:21.5 inch
Resolution:1920x1080
Interface Type:LVDS
Luminance:250 cd/m²
Viewing Angle:ALL

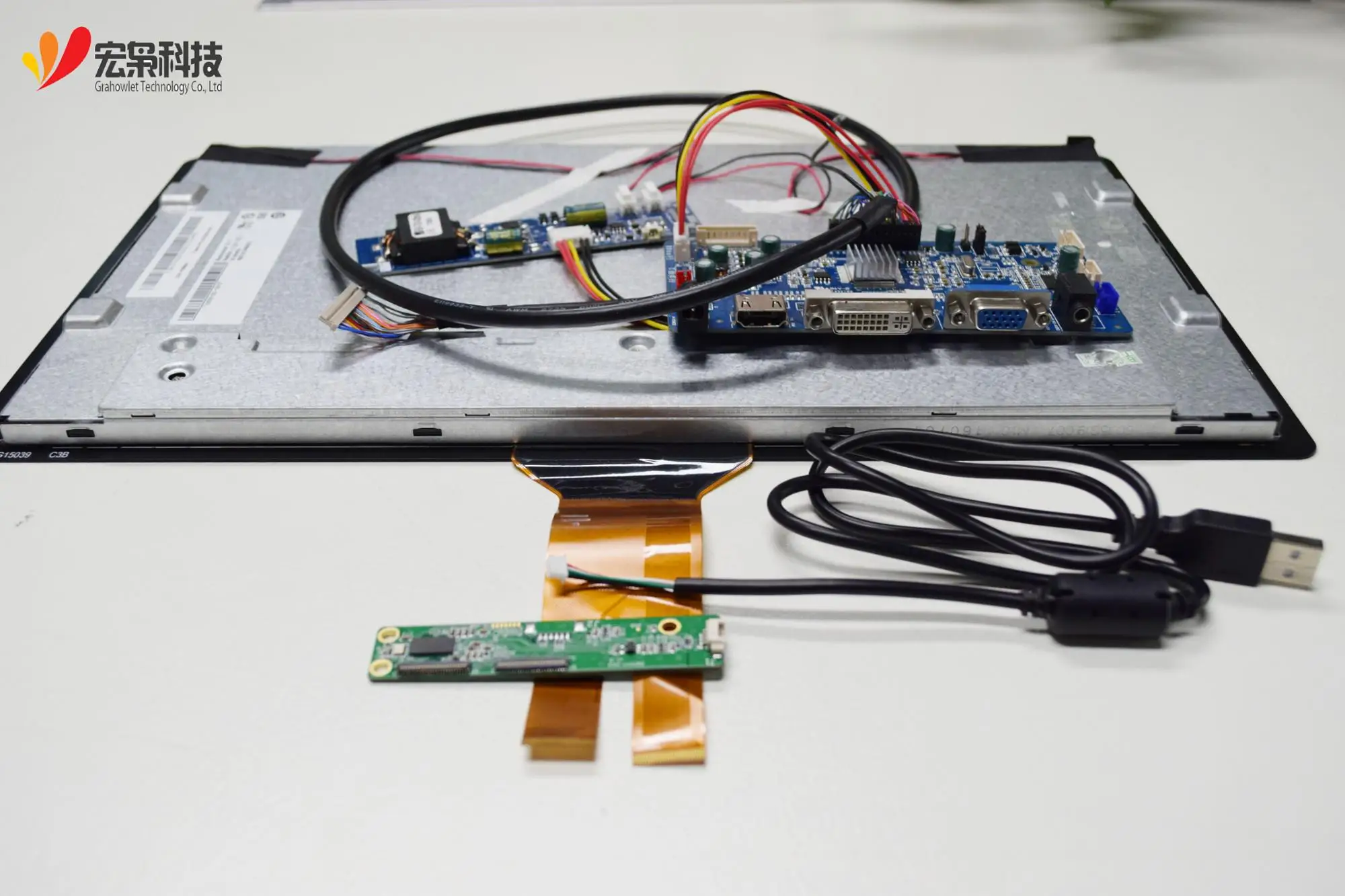

We can provide USB controller and HDMI/VGA driver board.

If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please Click here.

Our Company
Our Service
programe evsluation
1 to 2 morking days
Drawings
2 to 3 working days
Customized products
3 to 4 weeks(after drawings confirmed)
Mass Production delivery
4 to 6 weeks
Software debugging
Capacity
100K per month(10.1 inches as a reference)
Process capability
G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 ") Cover glass surface treatment AR, AG, AF
Technical support
Engineers to provide door-to-door or remote access service within 24 hours
Stable supply chain for at least 3 years guarantee
One year warranty time for all of our products
Certifications
Packing & Delivery
FAQ

Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry.  From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
