15A 12/24V high efficiency PWM AC DC solar hybrid charger controller 150W

  • 50-199 Pieces
    $60.50
  • >=200 Pieces
    $55.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Samples: $80.50 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $80.50 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
SUNS
Model Number:
SDH24150
Application:
Charger Controller
Maximum Current:
15A
Rated Voltage:
24V
Item::
150W solar hybrid charger controller
Charge mode::
PWM
Charging current::
15A
Max.output power::
150W
Max.impact power::
200W
AC input voltage::
AC 170-265V
AC input frequency::
47-63Hz
Working Temperature::
Industrial:-20℃ TO +50℃
Guarantee::
2 years
Certificate::
CE,RoHS,ISO9001

Packaging & Delivery

Selling Units:
Single item
Single package size:
18X14X8 cm
Single gross weight:
1.05 kg
Package Type:
Inner box: 180*140*80mm 50pcs/carton
Lead Time :
2

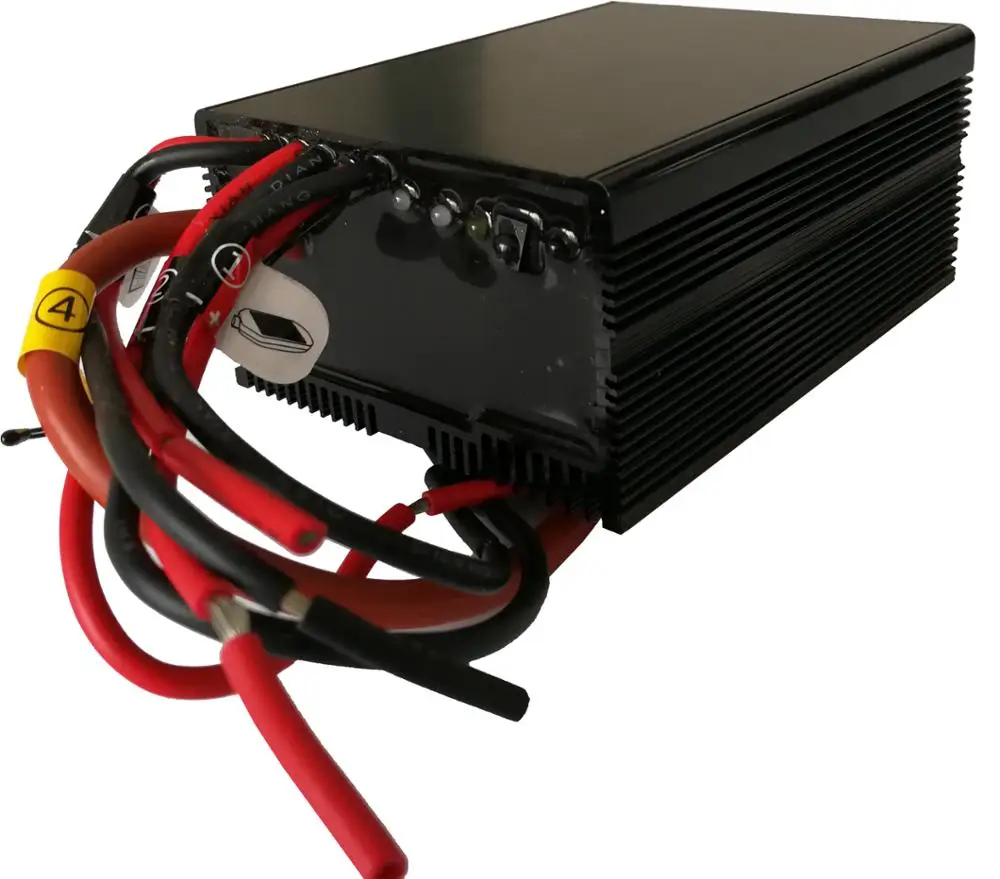

150W solar hybrid charger controller

15A 12/24V high efficiency PWM AC DC solar hybrid charger controller 150W

Product Description

Model number: SDH24150

SDH-24100-1

Application

    Solar home system

    Solar lighting system

    Solar road signals

    Solar surveillance

    Small solar power station

Remarks

Solar hybrid controller is new generation programmable charge regulator. All the models adopt aluminum heat sink which enables the reliability in high temperature enviroments.

SDH-24100-4

Options

1.SDH1260,     12V,     60W output

2.SDH2460,     24V,     60W output

3.SDH12100,   12V,    100W output

4.SDH24100,   24V,    100W output

5.SDH12150,   12V,    150W output

6.SDH24150,   24V,    150W output

1. PV indicator(green)   2. battery indicator(red/green)

3. load indicator(yellow)   4. IR Communication connector

5. PV Connection terminal  6. battery connection terminal

7. load connection terminal 8. Grid AC

9. Ground cable connection  10. installation hole

Features

1.The controller provides the load power from solar and grid. Solar supply the power first, and grid will be the supplement of the system when solar is not enough.

2.High efficiency PWM charge mode Temperature compensation

3.Electronic protection,over load,short circuit,reverse polarity(battery)

4.1-13h working hours optional

5.Load Work model: Dusk to Dawn, Light ON+Timer, Test, Manual ON/OFF

6.Waterproof IP67 for small power.

7.aluminum housing for better cooling.

8. 20℃ TO +50℃  wide temperature range.



Specifications



Mode

SDH1260
(12V 10A 60W)

SDH2460
(24V 10A 60W)

SDH12100

(12V 10A 100W)

SDH24100

(24V 10A 100W)

SDH12150

(12V 15A 150W)

SDH24150

(24V 10A 150W)

Rated working voltage

DC 12V

DC 24V

DC 12V

DC 24V

DC 12V

DC 24V

Output voltage

DC 11.1-14.4V

DC 22.2-28.8V

DC 11.1-14.4V

DC 22.2-28.8V

DC 11.1-14.4V

DC 22.2-28.8V

Rated Charging current

10A

15A

10A

Continued output power(25)

50W

50W

80W

80W

120W

120W

Max.output power

60W

60W

100W

100W

150W

150W

Max.impact power

100W

100W

180W

180W

200W

200W

AC input voltage

AC 170-265V

AC input frequency

47-63Hz

Low voltage disconnect

DC 11.1V

DC 22.2V

DC 11.1V

DC 22.2V

DC 11.1V

DC 22.2V

Low voltage reconnect

DC 12.6V

DC 25.2V

DC 12.6V

DC 25.2V

DC 12.6V

DC 25.2V

Equalisation voltage

DC 14.8V

DC 29.6V

DC 14.8V

DC 29.6V

DC 14.8V

DC 29.6V

Boost Voltage

DC 14.4V

DC 28.8V

DC 14.4V

DC 28.8V

DC 14.4V

DC 28.8V

Float voltage

DC 13.7V

DC 27.4V

DC 13.7V

DC 27.4V

DC 13.7V

DC 27.4V

Low voltage reconnect

DC 13.2V

DC 26.4V

DC 13.2V

DC 26.4V

DC 13.2V

DC 26.4V

Temperature compensation

   - 5mv//2V

Charging mode

PWM

Protection

Overload,short circuit,battery reverse polarity protection

Working Temperature

Industrial:-20 TO +50
