15HP 11KW 220V/380V/415V(customizable)Voltage electric AC air compressor machines

FOB Reference Price:Get Latest Price
$1,250.00 - $1,280.00 / Pieces | 1 Piece/Pieces 220V/380V/415V Voltage electric AC air compressor machines (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ZAKF
Model Number:
BD-15HP
Dimension(L*W*H):
1080*750*1000MM
Discharge pressure:
1.6/0.8M3/min/Mpa
Voltage:
220V/380V/415V, 230V
Cooling:
Air cooling/water cooling
Starting method:
Y-star
Max pressure:
7-16Bar
HZ:
50HZ/60HZ
MOQ:
1 set
Air outlet:
3/4"
Weight:
300KG
After-sales Service Provided:
No overseas service provided
Warranty:
One Year
Configuration:
Stationary
Lubrication Style:
Lubricated
Type:
Screw
Condition:
New
Certification:
CCC
Power Source:
AC Power
Mute:
68dB(A)
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month 220V/380V/415V Voltage electric AC air compressor machines
Packaging & Delivery
Packaging Details
220V/380V/415V(customizable)Voltage electric AC air compressor machines with wooden box or salver
Port
shenzhen port
Product Description

15HP 11KW 220V/380V/415V(customizable)Voltage electric AC air compressor machines

1. ZAKF screw machine, using 5:6 asymmetric tooth design. The "Line" to "Seal belt" design optimization, is conducive to the formation  of oil film, reduce internal leakage greatly, the efficiency of gas production increased by 5%-10%, the diameter of the rotor. High speed, low noise, ensure that the host is small. long service life, which is recongnized as the reliable global head, durable, continuous 24 hours when long-term efficient operation.

the interests of customers: the perfect combination of technilogy and art, achieve unparalleled reliability and economy.

2. ZAKF machine controller consists of a fully automated computer system as a whole. the key points of each installation with a variety of sensors can be. the measurement of the running state and the all Chinese display on the screen, simple operation, high reliability. It has the function of self checking root, according to the user demand volume, automatic adjustment of running state.

the interests of customers: monitoring and advanced communication systems make the operation of the compressor is more reliable, higher efficiency and lower maintenance costs, the computer control system to make the machine unload loss minimum, prolong the service life of the compressor.

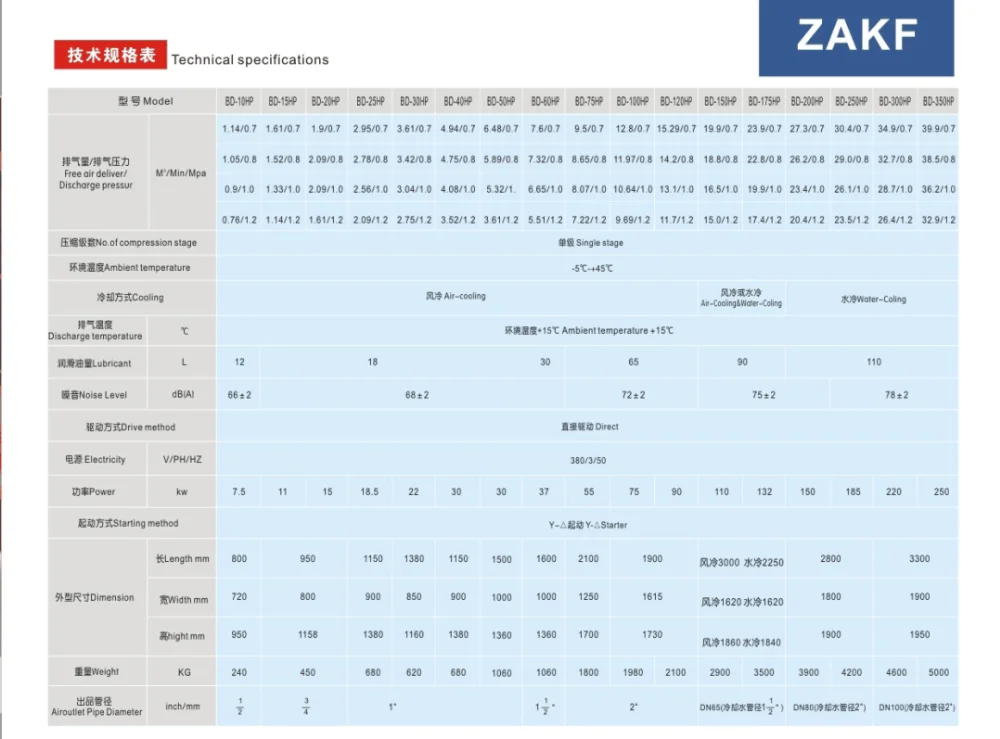

MODEL: 7.5KW Direct Air cooling compressor Parameter
Free air deliver(M3/Min/Mpa)
1.7/0.7  1.6/0.8    1.4/1.0   1.2/1.2
Discharge pressure
0.7/0.8/1.0/1.2MPa(a)
Motor power
11KW
Motor speed
2935rpm
Voltage/HZ
220V/380V/415V/50HZ/60HZ
Motor protection grade/insulation grade
IP23/F grade
Driving method
Direct drving
Noise level
68dB(A)
Cooling method
Air cooling
Lubricant
12L
Outlet air carry lubricant oil
<3ppm
Starting method
Y-DELTA
Rp1/2”Air outlet pipe diameter
Rp3/4”
Temperature of cooled outlet compressed air
-5C+-45C
Dimension/weight
1080*750*1000MM/300KG

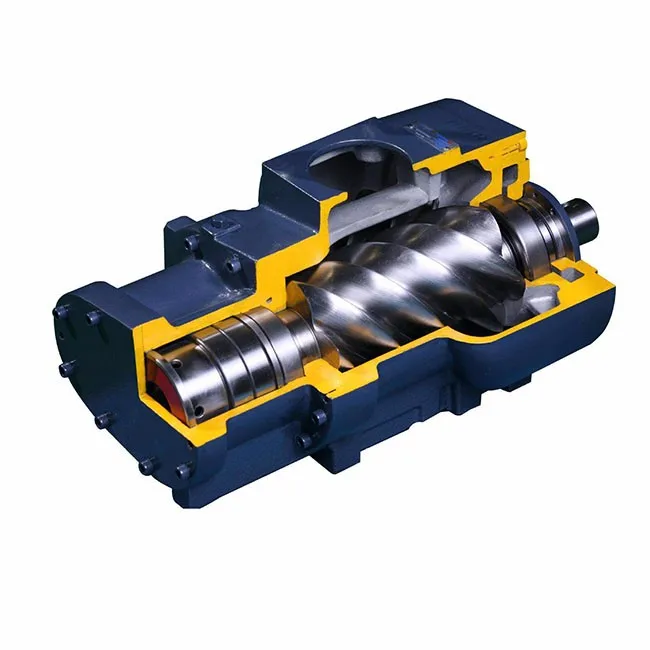

Airend

Airend: BAOSI AIREND, HANBELL AIREND, ROTOCOMP AIREND FOR YOUR CHOOSE.


Air cooling

The Heavy load of low temperature ( 6-8c ) of large oil cooling and air cooler, unique structure design and reasonable lay out, low noise, designed to meet the air, the principle of gas flow, the heat radiating area is greatly increased. The cooling effect is more ourstanding.

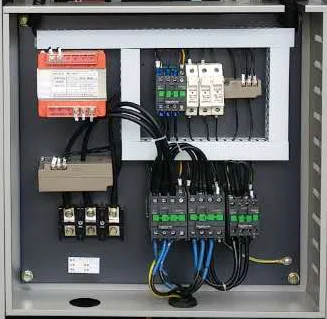

Reliable quality of Schneider electric element, to ensure the long-term, without machine avoidance operation, low energy concumption.

Long life filter design, filter large area, small air breath resistance, indeed keep air clean and free of impurities.

Roraty type oil fiter, completely filter out the impurity in the lubricating oil, ensure clean prolong the service life.

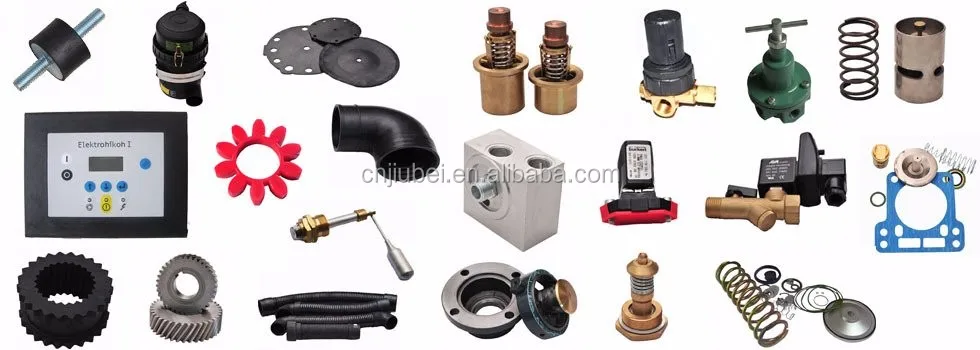

We also deal other replacement parts

          Coupling

          Solenoid valve

          Regulator

          Service Kits

          Drain valve

          Sensor

          Controller

          ......

Hot Sale Products
Other Parts We Sale

Cooler Parts

A-1613836400

A-1622376800

A-1623712100

A-V1621848700

A-1614959000

A-1614958900

A-1614958800

Sensor Parts

A-1089057578

A-1089962512

A-1089057573

A-1089057471

L-2200702805

A-1089957903

A-1089051505

 Controller Parts

A-1900071071

A-1900002009

A-1900520032

A-1900070101/2/3/4/5/6

A-1900070125/24

A-1900071032/31/12/11

MAM-860

Intake valve Parts

A-1622515680

A-1622171380

I- 54747899

S-02250073-227

S-02250130-050

A-1622351300

A-1613900800

A-1613679300

A-1613814400

A-1622316200

A-1613815000

Soleoid valve Parts

A-1089042821

A-2200599753

A-1089062157

A-1089062140

A-1089062101

I-39137492

I-22282529

I-54579248

K-A11030074

K-A11383974

A-1089943924

Coupling Parts

A-2903101601

A-1614983600

S-88290003-403

S-02250152-674

10R/20R/30R/40R/50R/60R/70R/80R

GS Seires coupling

A-1613948800

A-1614873900

E series coupling

A-1615418500

K-A100009329

Our Service

BETTER SERVICE

1)Pre-sale services:
24 hours' online service for the prompt reply.

2)Sale services:
Our professional engineer team will provide you the satisfied scheme according to your demand.

3)After-sale services:
To offer the better service, we will do the satisfaction survey for each sale experance and regularly pay return visit to customers.

Packing & Delivery
Packaging
Size
100(L) *100 (W) *100 (H)
Weight
350KG



Packaging Details
we also have other packing for choose:
1. tray.
2. snap-gauge
3. Bubble cotton

Shipping

we recommend the shipping via sea for you if you buy scrwe air compressor.
We near by the ShenZhen Port.
