15kg parallel beam type IP68 waterproof load cell

FOB Reference Price:Get Latest Price
$1.00 - $18.95 / Pieces | 2 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
HT-sensor
Model Number:
TAL201A
Usage:
electronic counting weighing
Theory:
Resistance Sensor
Output:
Analog Sensor
Capacity:
3-120kg
Material:
aluminum-alloy
Defend grade:
IP68 waterproof
Type:
parallel beam type
Item:
single point load cell
Rated output:
2.0 ± 0.2mV/V
Excitation voltage:
9~ 12Vdc
Combined error:
± 0.03%FS
Application:
electronic price computing and counting scale
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Inner pack: 1pcs/plastic bag, 10pcs/ box
Outper pack: standard exporting carton
Port
Xi'an China
Welcome to HT Sensor

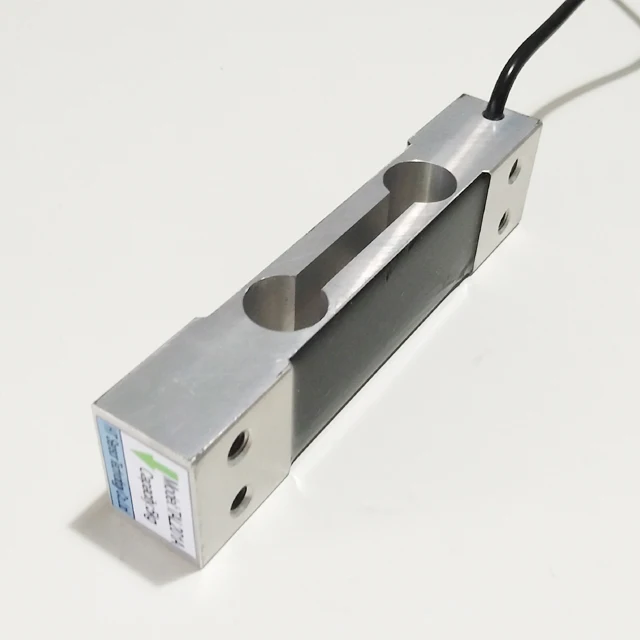

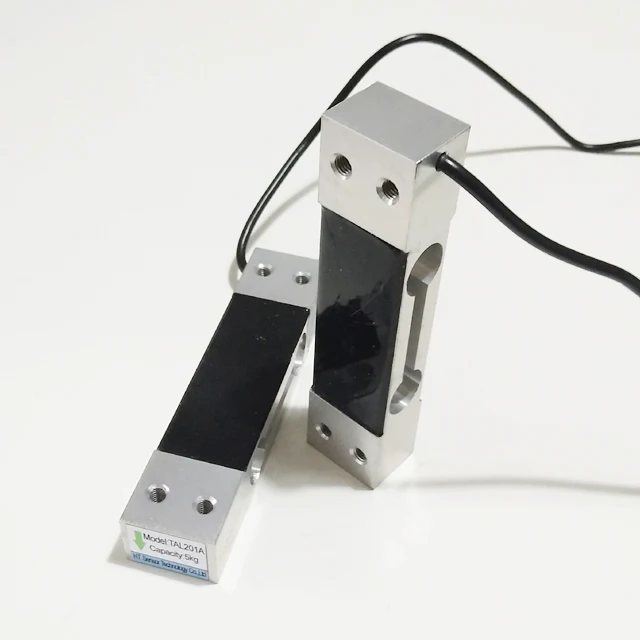

TAL201A 15KG PARALLEL BEAM TYPE IP68 WATERPROOF LOAD CELL
◆Capacity :3~120kg
◆Material: aluminum-alloy
◆Type: Parallel beam type
◆Defend grade: IP68 waterproof
◆Recommended platform size:250x350mm

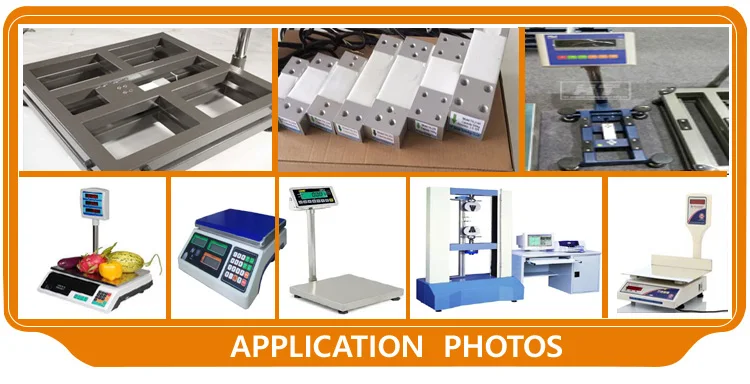

◆Application: electronic price computing scale, electronic counting scale, electronic balance and other electronic weighing devices

Product Description

TAL201A    15KG PARALLEL BEAM TYPE IP68 WATERPROOF LOAD CELL


◆Capacity :3~120kg
◆Material: aluminum-alloy
◆Type: Parallel beam type
◆Defend grade: IP68 waterproof
◆Recommended platform size:250x350mm
◆Application: electronic price computing scale, electronic counting scale, electronic balance

and other electronic weighing devices


Dimensions
Specifications
capacity
kg
3,5,10,15,20,30,40,50,100,120
safe overload
%FS
120
ultimate overload

%FS
150
rated output

mV/V
2.0 ± 0.2
excitation voltage

Vdc
9~ 12
combined error
%FS
± 0.03
zero balance

%FS
± 2.0
non-linearity

%FS
± 0.02
hysteresis

%FS
± 0.02
repeatability

%FS
± 0.01
creep
%FS/30min

± 0.02
input resistance
Ω
405 ± 10
output resistance

Ω
350 ± 3
insulation resistance
M Ω
≥ 5000 @ 50 Vdc
operating temperature range

-20 ~ +60
compensated temperature range

-10 ~ +40
temperature coefficient of SPAN

%FS/10℃

± 0.02
temperature coefficient of ZERO

%FS/10℃

± 0.03

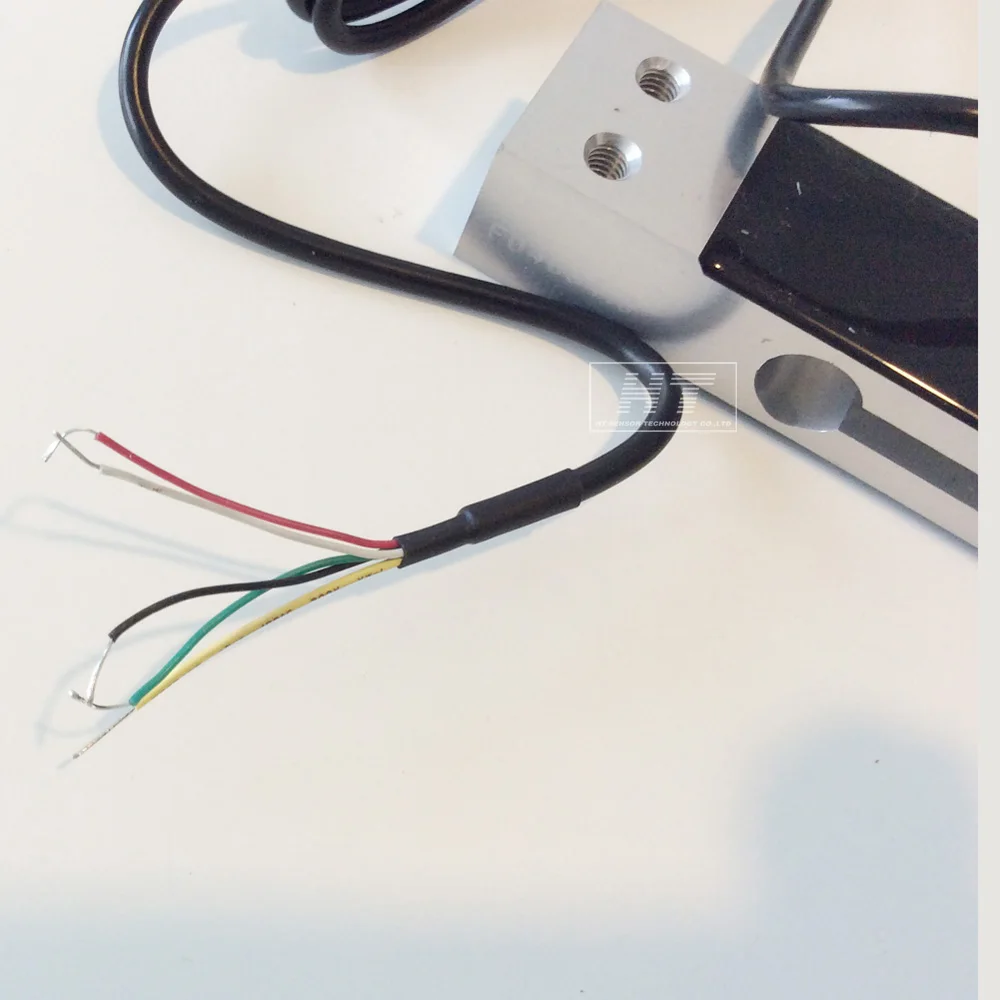

Electrical    connection
cable
4 core shielded PVC cable, Ø 4.5 × 420 mm
excitation(+):Red  excitation(-):Black  signal(+):Green  signal(-):White
