16 Ch HD H.264 Video Encoding to ATSC-T ISDB-T IDVB-T DVB-C RF Encoder Modulator COL5011H

FOB Reference Price:Get Latest Price
$999.00 - $2,599.00 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 3 >3
Est. Time(days) 3 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China
Brand Name:
COLABLE
Model Number:
COL5011H
Input:
8/12/16/24 * HDM (optional) + ASI
Video encoding:
MPEG-4 AVC/H.264
Audio Encoding:
MPEG-1 Layer 2
IP output:
IP (SPTS&MPTS) over UDP and RTP
RF output optional:
DVB-C/ DVB-T/ ISDB-T/ ATSC-T optional
DVB-C Constellation:
J.83A, J.83B, J.83C
DVB-T/ISDB-T Constellation:
QPSK, 16QAM, 64QAM
ATSC-T:
8VSB
Network Management:
Web-based Management
Features:
for Free system
Supply Ability
Supply Ability:
500 Piece/Pieces per Month hd h.264 Encoder Modulator
Packaging & Delivery
Packaging Details
h.264 hd encoder Modulator with Standard export carton
Port
Chengdu
Lead Time :
Quantity(Pieces) 1 - 3 >3
Est. Time(days) 3 To be negotiated
Product Description

     16 Ch HD H.264 Vdieo Encoding to ATSC-T ISDB-T IDVB-T DVB-C RF Encoder Modulator
                                                           Model:  COL5011H

                * Optional *      Input: 8/12/16/24 HD     Output: 4*DVB-C/DVB-T/ISDB-T/ATSC-T RF


Outline


COL5011H HD H.264 Encodulator is a professional high integration device which includes encoding, multiplexing, and modulation. It supports 8/12/16/24 HDMI input, 1000M IP output,4 number RF output (ATSC, ISDBT, DVB-C/-T),5 MPTS output and SPTS output. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.



Features

   8/12/16/24 HD input, MPEG-4 AVC/H.264 Video encoding

   1000M IP output over UDP and RTP protocol(MPTS and SPTS)

   RF output ,(ATSC, ISDBT, DTMB, DVB-C/-T)
   2 ASI inputs
   2 ASI Independent output (optional) as copy of 5MPTS
   Support "Null PKT Filter" function
   Support PID Remapping/ PCR accurate adjusting
   PID pass
   LCD, key function
   Control via web management, and easy updates via web



Specifications

Input
HD (8/12/16/24 HDMI)
2 ASI inputs
output
4RF output(DVB-C/DVB-T/ATSC/ISDBT)
2 ASI output
IP output(SPTS and MPTS)IP output over UDP and RTP protocol
Video
Encoding
MPEG-4 AVC/H.264
Resolution
Input:1920*1080_60P, 1920*1080_60i,1920*1080_50P, 1920*1080_50i,1280*720_60P, 1280*720_50P,
720*576_50i,720*480_60i,
Output:1920*1080_30P,1920*1080_25P,1280*720_30P,
1280*720_25P,720*576_25P,720*480_30P
Bit-rate
1Mbps~13Mbps(each channel)
Rate Control
CBR
Audio
Encoding
MPEG1 Layer2
Sampling rate
44.1KHz and 48Khz
Bit-rate
64kbps ,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps
Resolution
24-bit
Audio Gain
0-255 Adjustable
Multiplexing
Maximum PID Remapping
180 output pids per channel
Function
PID remapping ( automatically or manually)
Accurate PCR adjusting
Modulator
DVB-T
RF number
4 DVB-T
Standard
EN300744
FFT mode
2K
Bandwidth
6M, 7M, 8M
Constellation
QPSK, 16QAM, 64QAM
Guard Interval
1/4, 1/8, 1/16, 1/32
FEC
1/2, 2/3, 3/4, 5/6, 7/8
MER
≥42 dB
RF frequency
50~960MHz, 1KHz step
RFoutput level
-34~ -10 dBm, 0.1db step
DVB-C
RF number
4 RF output
Standard
EN300 429/ITU-T J.83A/B/C
MER
≥40db
RF frequency
50~960MHz, 1KHz step
RFoutput level
-34~-10dBm , 0.1dBm step
Symbol Rate
5.0Msps~7.0Msps,1ksps stepd
J.83A
J.83B/J.83C
Constellation
16/32/64/128/256QAM
64/256 QAM
Bandwidth
8M
6M
ATSC-T
RF number
4 RF output
Standard
ATSC A/53
Bandwidth
6M
Constellation
8VSB
FEC
RS(208 188)+
Trellis
MER
≥40dB
RF frequency
50~960MHz, 1KHz step
RFoutput level
-34~-10dBm , 0.1dBm step
ISDB-T
RF number
4 RF output
Standard
ARIB STD-B31
Bandwidth
6M
Constellation
QPSK, 16QAM, 64QAM
Guard Interval
1/32, 1/16, 1/8, 1/4
Transmission Mode
2K
Code rate
1/2, 2/3, 3/4, 5/6, 7/8
MER
≥40dB
RF frequency
50~960MHz, 1KHz step
RFoutput level
-34~-10dBm,
0.1dBm step
System function
Network management(WEB)
Chinese and English language
Ethernet software upgrade
Miscellaneous
Dimension
(W*L*H) 550mm*515mm*140mm
weight
6kg
Environment
0~45℃(work); -20~80℃(storage)
Power requirements
AC100~240V, 50/60Hz
Digital TV System

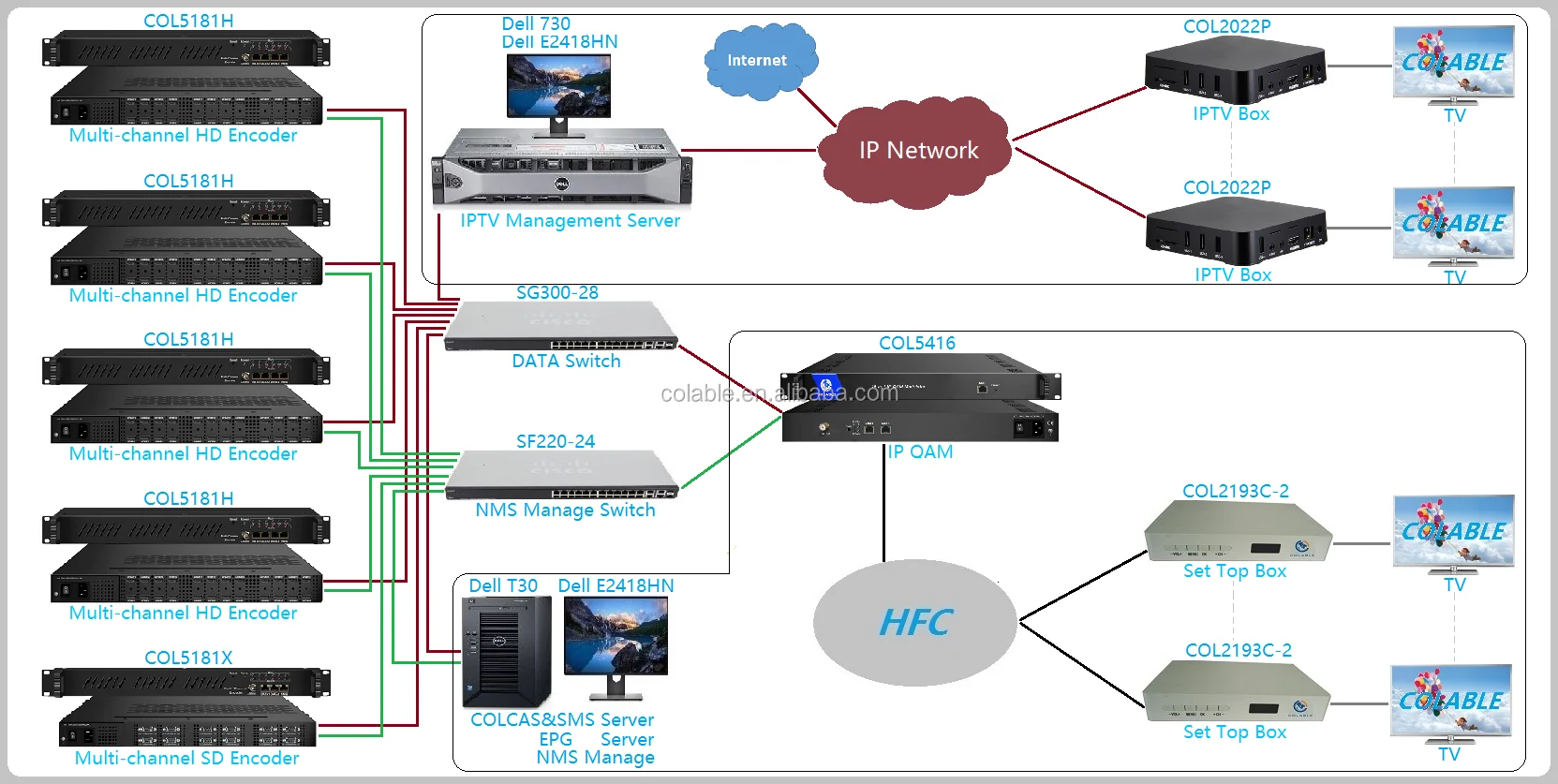

Case 1:  IPTV system and CATV system together, both of them are encryption system.


Case 2 : Hot - digital free system for Hotel, Hospital etc system with encoder modulator

Certifications
Packing & Delivery

Packing for HD to RF Encoder Modulator

With some accessories and User Manual. One unit for one carton, Export Carton with foam
Delivery for HD Encoder Modulator
Sample or small quantity, we suggest Express, such as Fedex, UPS, DHL, EMS etc.
If bulk order, we suggest you air transport or sea.

Remark: we can check freight for your reference, also support cash on delivery (freight) if you have courier account.
