16 Hilos Outdoor Fiber Optical Cable Distribution Box/Terminal Box

FOB Reference Price:Get Latest Price
$8.00 - $10.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
TUOLIMA
Model Number:
GFX-09A
Product Name:
16 Hilos Outdoor Fiber Optical Cable Distribution Box/Terminal Box
Dimension:
300*230*87mm
Material:
PC+ABS
Max. Core:
16 cores
Protection Grade:
IP65; UV protection
PLC splitter:
1*16 mini PLC splitter
Inlet/outlet port:
2 cable ports+16 drop cable ports
Color:
white, black or grey
Weight:
0.96KG; 1.36KG(full set)
Installation way:
wall mount, pole mount
Supply Ability
Supply Ability:
50000 Set/Sets per Month VIP and urgent orders first
Packaging & Delivery
Packaging Details
Package of 16 Hilos Outdoor Fiber Optical Cable Distribution Box/Terminal Box:
-10PCS/CTN/17.4KGS/0.1024CBM
Port
Shanghai, Ningbo or any port of China
Product Description

GFX-09A Fiber Optic Distribution Box


The distribution box can be used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

ITEM
GFX-09A Fiber Optic Distribution Box
Dimensions
LxWxH  300*230*87mm, fiber distribution box, fiber distribution box
Weight
0.96KG; 1.36KG(full set), fiber distribution box, fiber distribution box
Cable input capacity
Max. ports (Max. dia : 16 mm), fiber distribution box, fiber distribution box
Cable output capacity
Max. ports (Max. dia : 12mm), fiber distribution box, fiber distribution box
Max. capacity
24 cores, fiber cable distribution box, fiber cable distribution box
Material
PC+ABS or ABS new Material
Waterproof grade
IP68
Opration Temperature
-40°C~+85°C, fiber cable distribution box, fiber cable distribution box

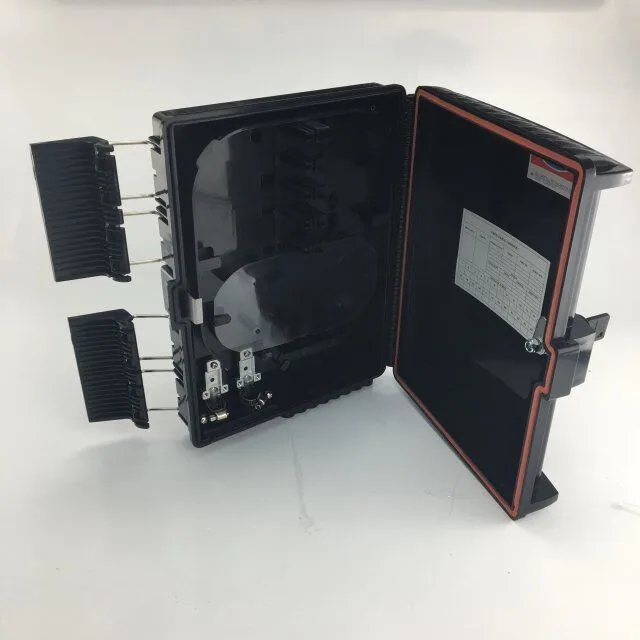

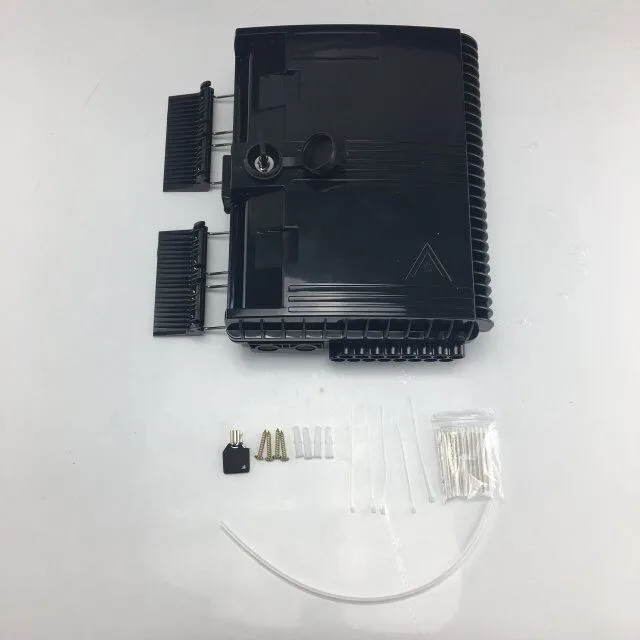

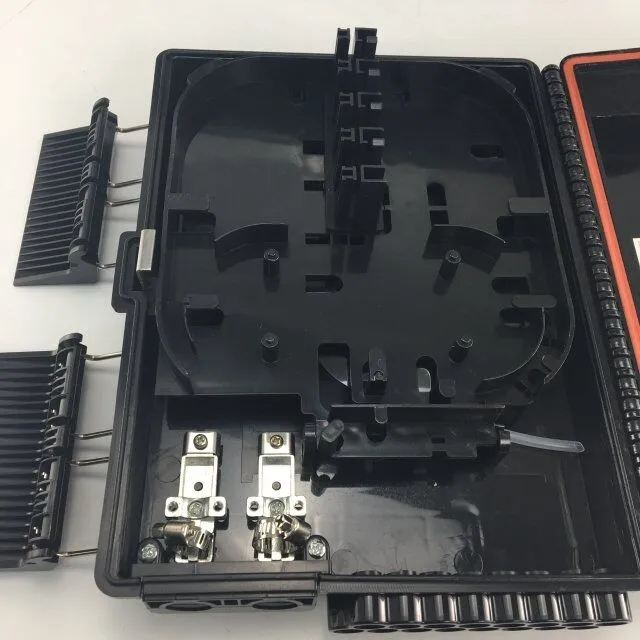

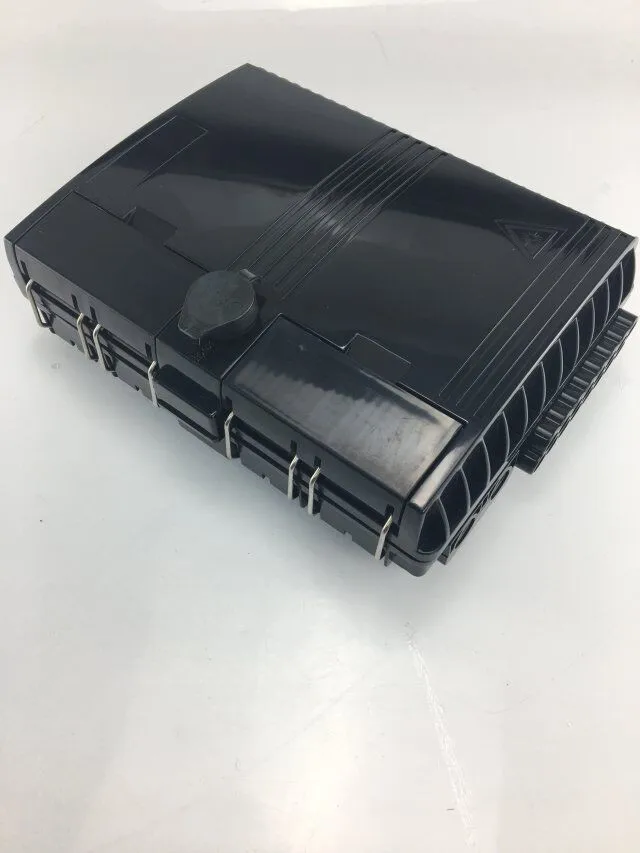

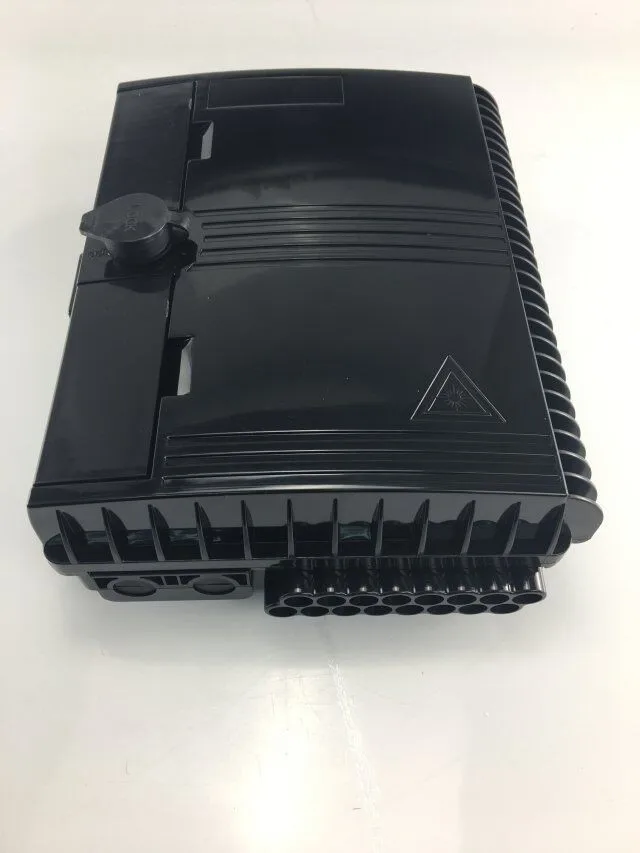

Detailed Images
