16 SFP + 16 RJ45 10/100M Rack mount SFP Ethernet Media Converter with Redundant AC inputs

  • 1-9 Pieces
    $355.00
  • 10-99 Pieces
    $335.00
  • >=100 Pieces
    $325.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 20 Pieces)
Samples: $355.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $355.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
E-link
Model Number:
LNK-R1600SFP-RP
Packet Buffer Memory:
128K bit
Max Packet Length:
1600 Bytes
10 /100Base-TX:
16 x RJ45
100Base-FX:
16 x SFP
Power Consumption:
100mA @220VAC
Casing:
Aluminum case
Mounting Options:
Rack Mount
MTBF:
> 200,000 hrs
Processing Type:
Converter Mode
Warranty:
5 Years

Packaging & Delivery

Selling Units:
Single item
Single package size:
43X25X10 cm
Single gross weight:
9.5 kg
Package Type:
16 SFP + 16 RJ45 10/100M Rack mount SFP Ethernet Media Converter with Redundant AC inputs Standard export package
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 10 To be negotiated

16 SFP + 16 RJ45 10/100M Rack mount SFP Ethernet Media Converter

with Redundant AC inputs

Product Description

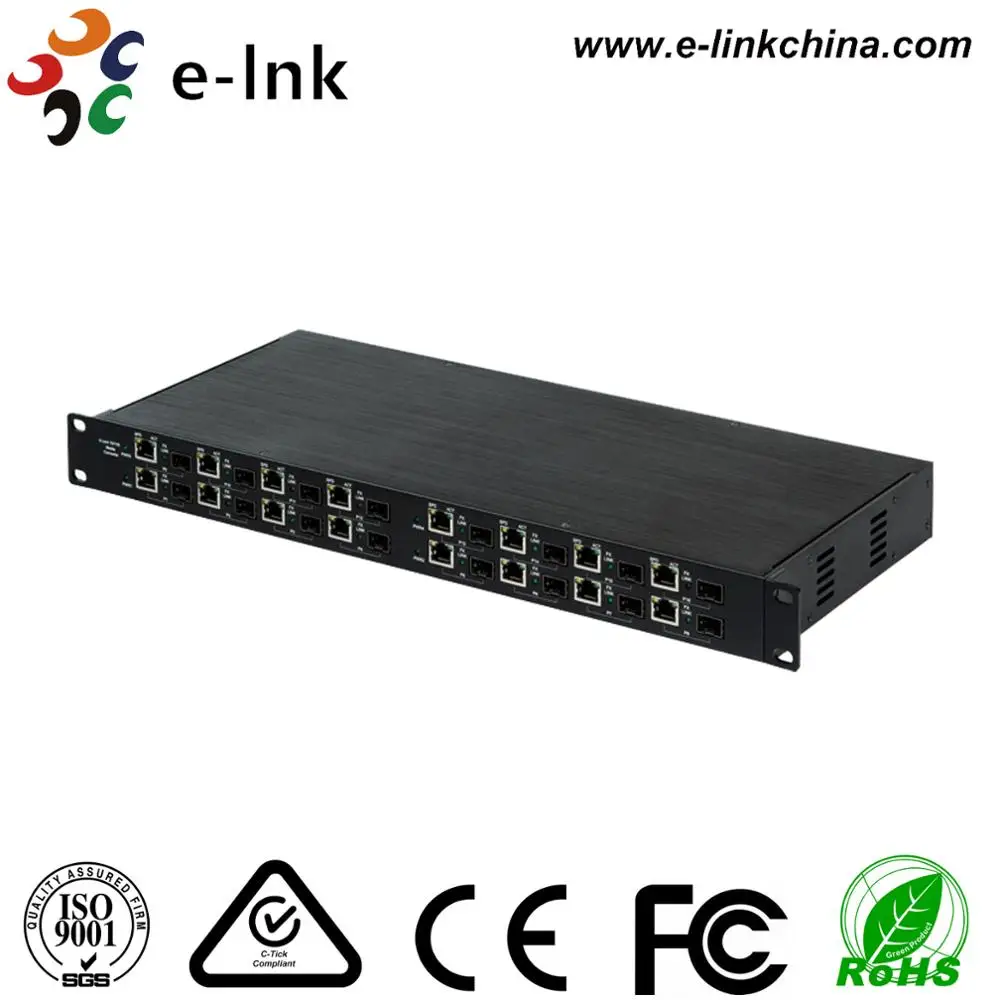

Model: LNK-R1600SFP-RP



Overview



LNK-R1600SFP have 16 ports and provide 10/100Base-TX to 100Base-FX media converter with Redundant AC inputs (Optional). The converter provides SFP ports to support the use of SFP (Small Form-factor Pluggable) transceiver module. User can chose different types of SFPs (100M only).

The converter supports 1or 2 core Single mode or Multi-mode fiber. The product operates at

temperatures ranging from -10°C to 60°C and at 1U high is designed to be installed in a 19” rack cabinet with limited space.







Features

  • 19” 1U Rack-mount
  • Converts 10/100Base-TX to 100Base-FX SFP
  • RJ45 Port Supports 10/100Mbps-Full/Half-duplex,Auto-negotiation, Auto MDI/MDIX
  • AC Power input (Redundant AC Power input Optional)
  • Supports external 100Base SFP
  • -10°C to 60°C (14°F to 140°F) operating temperature





Warranty

  •  5-Year Warranty

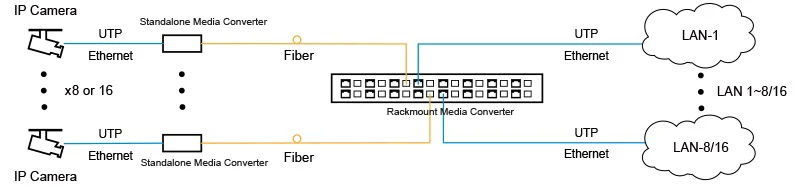

Typical Application










Technical Indexes



Ethernet

Standards

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

Processing Type

Converter Mode

Forward Filter Rate

14,880pps (10Mbps)

148,800pps (100Mbps)

Packet Buffer Memory

128K bit

Max Packet Length

1600 Bytes

Interface

10 /100Base-TX

16x RJ45

100Base-FX

16 x SFP

Electrical and Mechanical

Input Power

100~240VAC, 50/60Hz

(2 AC inputs Optional)

Power Consumption

100mA @220VAC

LED Indicators

Power

Power Status

Ethernet (Per Port)

LINK/Activity, Speed

SFP (Per Port)

LINK

Dimensions (W x D x H)

433 × 250 × 44 mm

Weight

1.5 Kg

Casing

Aluminum case

Mounting Options

Rack Mount

Environmental

Operation Temperature

-10°C to 60°C (14°F to 140°F)

Storage Temperature

-40°C to 85°C  (-40°F to 185°F)

Relative Humidity

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHs

EMI

EN55022:2010+AC: 2011, Class A

EN61000-3-2:2006+A1: 2009+A2:2009

EN61000-3-3: 2013

EN55024:2010

EMS

IEC 61000-4-2:2008(ESD)

IEC 61000-4-3:2010(RS)

IEC 61000-4-4:2012(EFT)

IEC61000-4-5: 2014(Surge)

IEC61000-4-6:2013(CS)

IEC 61000-4-8: 2009 (PFMF)

IEC 61000-4-11: 2004 (Voltage dips/variations)







Ordering Information



Model

Description

LNK-R1600SFP

Industrial Rack-mount 16-ch 10/100Base-TX to 100Base-FX SFP Ethernet Media Converter

LNK-R1600SFP-RP

Industrial Rack-mount 16-ch 10/100Base-TX to 100Base-FX SFP Ethernet Media Converter, Redundant AC inputs
