16 inch fuel tank clamped manhole cover

FOB Reference Price:Get Latest Price
$50.00 - $100.00 / Units | 5 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
YOJE
Model Number:
RKG-6305
Application:
Tank truck fuel, Industry
Emergency Exhausting Valve:
10"
Size:
16"
Installment Mode:
Hooped
Temperature Range:
-20℃~+70℃
Emergency Open Pressure:
21KPa~32KPa
Working Pressure:
0.254MPa
Material:
Steel, Steel
Seal:
NBR
Standard::
According to EN13317:2002
Dimensions:
Customized Size
Supply Ability
Supply Ability:
20000 Unit/Units per Month
Packaging & Delivery
Packaging Details
carton
Port
Ningbo or Shanghai
Lead Time :
5days after receiving deposit
Product Description

Usage:

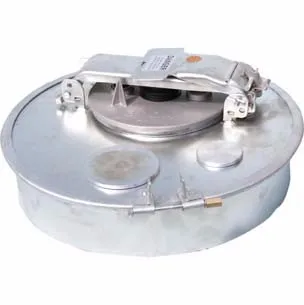

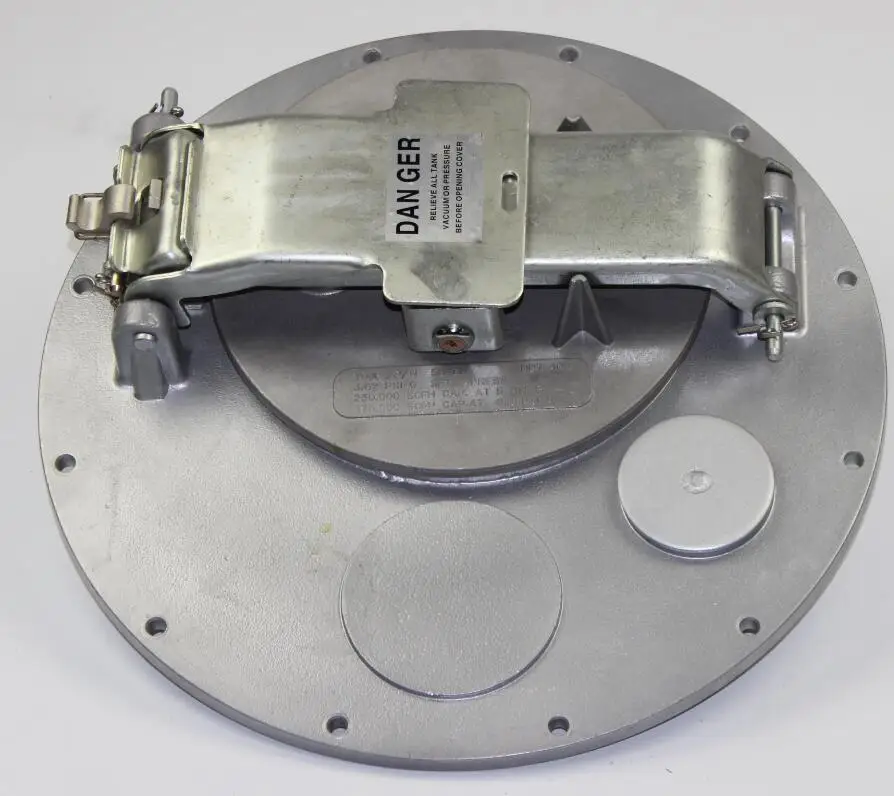

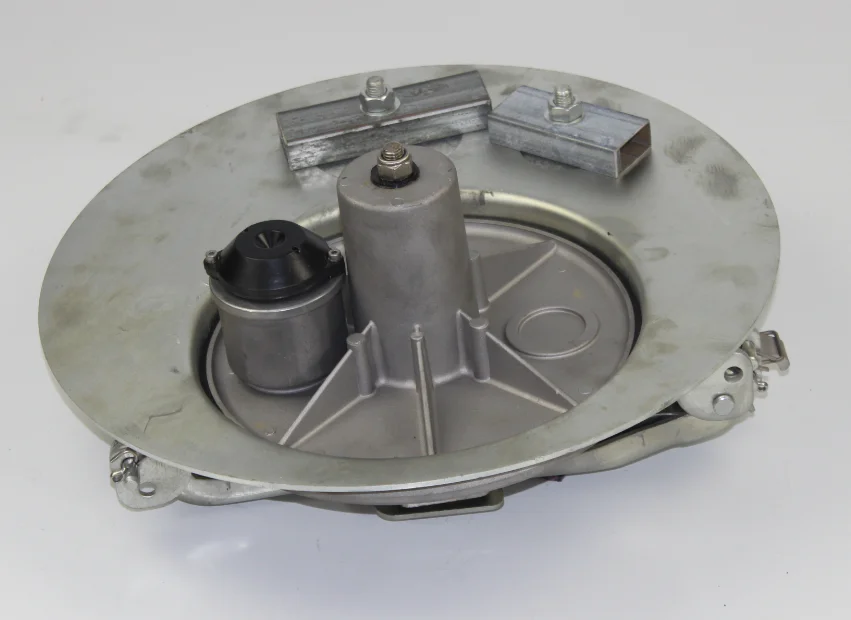

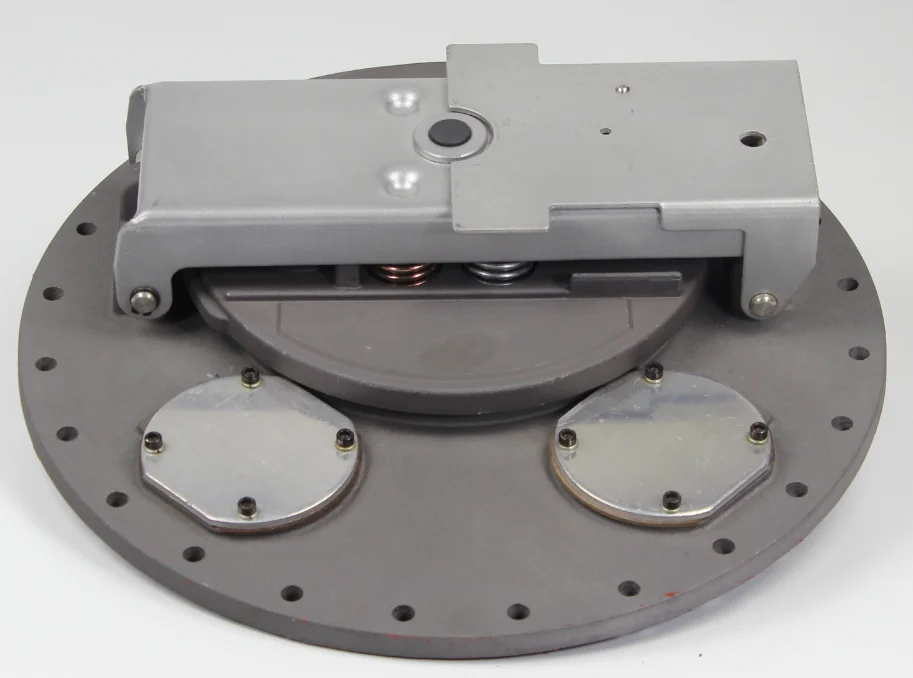

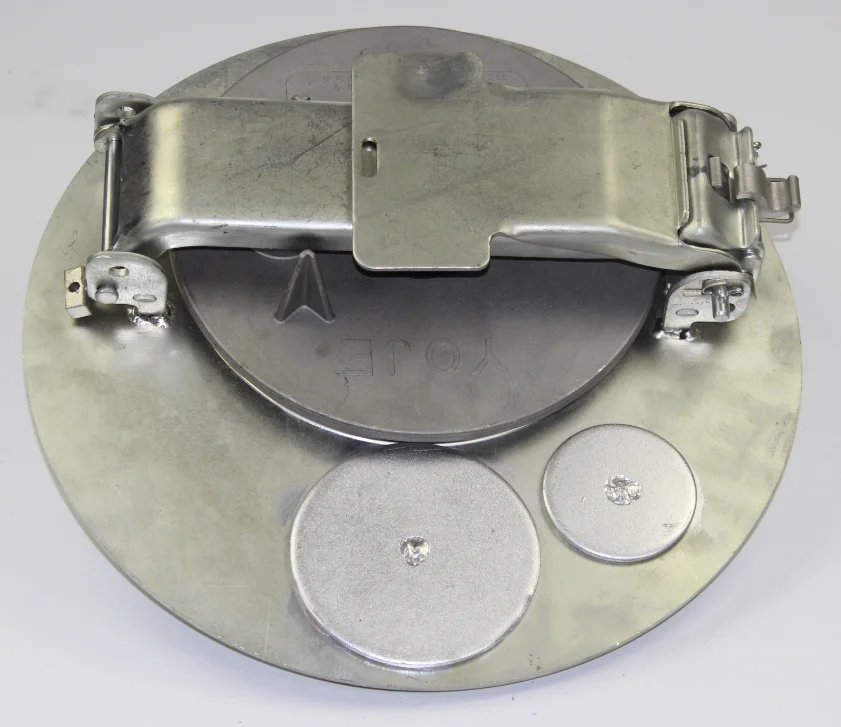

YOJE RKG series manhole cover is installed on the top of oil tanker. It is the internal inlet of loading, checking vapor recovery and tanker maintenance. It can protect the tanker from emergency.

Normally, the breathing valve is closed. However, when load unload oil external temperature changes, and the pressure of tanker will change such as air pressure and vacuum pressure. The breathing valve can automatically open at a certain air pressure and vacuum pressure to make the tank pressure in normal condition. If there is emergency like roll over situation, it will automatically close and it also can avoid the tanker explosion when in fires. As the emergency exhausting valve will automatically open when tank truck interior pressure increases to a certain range.


Material:

Body: Steel
Pressure handle: Steel
Exhaust valve: Aluminum alloy
Safety button: Stainless steel
Seal: NBR

Product Name
Manhole cover for tank truck
Model No.
RKG-6305
Body Meterial
Aluminum alloy
Body size
16 inches
Emergency Exhausting Valve Size
10inches
Working Pressure
0.254MPa
Emergency Open Pressure
21PMa~32PMa
Max Flow Rate
7000m3/h
Temperature Range
-20~70℃
Installment Mode
Hooped connection
Seal
NBR
Standard
EN13317:2002

Feature:

1. Each manhole cover emergency exhausting valve includes a breathing valve.
2. The breathing valve is installed as required to make the tanker ventilated. Different pressure settings suit different operation requirements.
3. Emergency Exhausting valve and breathing valve has automatic sealing to prevent danger and needless oil spillage.
4. Double open allows safe release of remaining gas before fully opening the cover board.
5. Two reserved blind holes on the main cover can be installed with vapor recovery valve and optic sensor.

Company Profile
Zhejiang Yongjie Petroleum Co.,Ltd , ( Yongjia Sanjiang Petroleum Machinery Factory )

is the professional manufacturer in producing tank truck parts, such as manhole cover, bottom emergency valve, API valve, vapor valve, optic sensor, ball valve, filters, acr gear pumps and petrol station equipment.

We were established since 1985(more than 30 years experience in this line) and now located at Binhai Industrial Zone with 18000sqm. Our brand "YOJE" is labeled as "Top quality" and enjoy a great fame, we cooperate with SINOPEC, CNPC, TOTAL, SHELL, BP and so on.

Our workshop.

Related Image
Our Exhibition
Our Advantage

1. Best quality & professional products with favorible price.


2. Three Years Quality Guarantee.


3. Strong Capacity with Quick Delivery.

Packing & Delivery
Packing Data
Item
RKG-6305
Packing Size
48x47x23cm/
Net Weight
14kg/18kg
Gross Weight
13kg/20kg
Packing
1pc/carton
Inner packing
Fixed by foam lining.

Custom required pallet packing.

Delivery in 5 days after get deposit payment.

FAQ

Q1: Are you trading company or manufacturer ?

A: We are factory in Wenzhou, Welcome to visit us.

Q2: What is your terms of payment ?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3: How long is your delivery time?

A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q4: What is  your terms of delivery?
A: FOB Ningbo or Shanghai.

Q5: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
