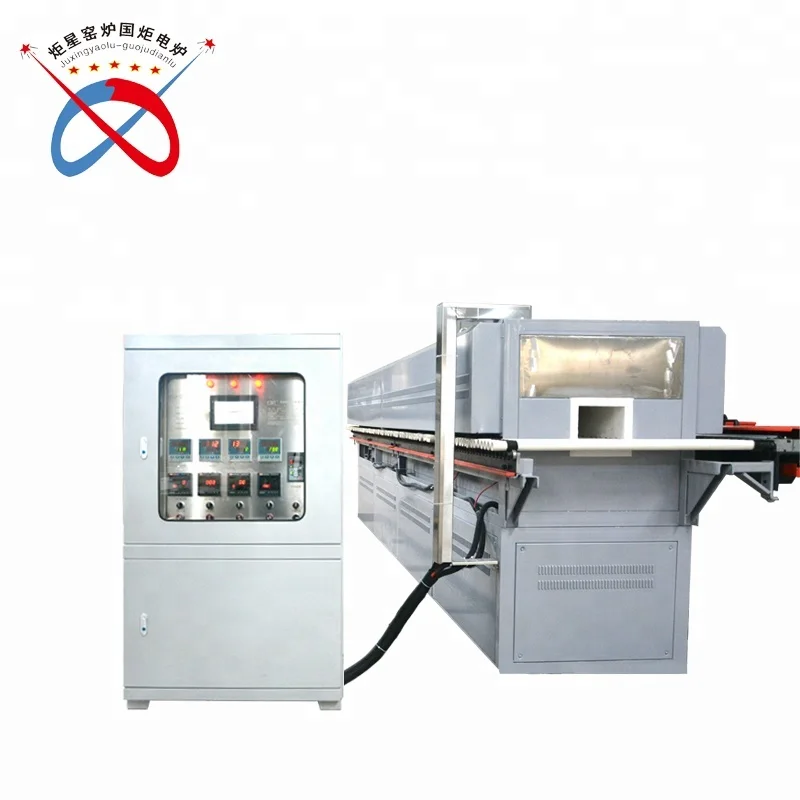

1600c Roller Kiln For Ceramic Tiles

FOB Reference Price:Get Latest Price
$5,000.00 - $50,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Resistance Furnace, Electric Resistance Furnace
Usage:
Sintering Furnace
Place of Origin:
Henan, China (Mainland)
Brand Name:
GWL
Voltage:
3 Phase 380V
Dimension(L*W*H):
Depands
Weight:
2T-35T
Certification:
CE ISO, Avic ISO9001
Long-term Working Temperature:
1600 ℃
Working Temperature Range:
800-1600℃
Heating Rate:
0-30 C/min
Temperature Accuracy:
±1℃
Temperature Uniformity:
±1℃(Base on furnace chamber dimension)
Furnace Chamber Dimension:
Can be customized
Furnace Appearance Dimension:
Can be customized
Temperature control:
PID Auto Control
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
Adjustable
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
he normal package is the wooden box(Size: L*W*H). If export to European countries, the wooden box will be fumigated.If the container is too tight, we will use pe film for packing or pack it according to customers special request.
Port
Qingdao;Tianjin'Ningbo
Lead Time :
10 days
Video Description
Product Description

Product Application

Our irreplaceable quality equipment designed for pyrolysis, melting, analysis and production ceramics, metallurgy, electronics, machinery, chemical, glass, refractories. The equipment is suitable for institutions of higher learning and laboratory of scientific research institute and industrial and mining enterprises for developing new material, special materials, construction materials and so on.

GWL-1600 SRK
( Working Temperature Range 800-1600℃ )
Heating Element
Silicon Molybdenum Rod(Mosi2)
Working Temperature
1600 ℃
Maximum Using Temperature
1650 ℃
Thermocouple
B Type
Temperature Accuracy
± 1℃
Refractory
High Purity Aluminum Fiber Board
Voltage
380V
Standard accessories
Heating Elements, Specification Certificate, Heat Insulation Brick, Crucible Pliers,
 High-Temperature Gloves.
Universal Furnace Chamber Dimension (Special Request Can Be Customize)
Furnace Chamber Dimension
4000*350*50 mm
Preheating Zone Length
1500 mm
Heating Zone Length
1000 mm
Cooling Zone Length
1500 mm
Other Standard Furnace Chamber Options(Can be Modify during Customer Requirements)
Option 1
3000x250x100 mm
Option 2
4000x250x100 mm
Option 3
5000x350x100 mm
Option 4
6000x250x150 mm
Option 5
8000x350x150mm
Limited space, individual sizes have not been marked, more details please contact with us.

Main Features

1) Temperature accuracy:±1℃; Constant temperature:±1℃(Base on Heating zone size).

2) Simplicity for operation, programmable automatic modify, automatic temperature rise, automatic temperature retaining, automatic cooling, unattended operation;

3) High-Speed Temperature rise rate. (temperature rise rate 1℃/h to 30℃/min can be modified);

4) Energy-saving (furnace hearth made up by import fiber material, excellent thermostability,)

5) Double layer loop protection. (over temperature protection, overpressure protection, overcurrent protection, thermocouple protection, Power supply protection and so on)

6)  Furnace surface after spraying plastics it will resistance acid and alkali and also having corrosion-proof, the furnace wall temperature approaching the indoor temperature.

7) Furnace hearth using Importing refractory material, high-temperature resistance, Tolerance the extreme heat and cold.

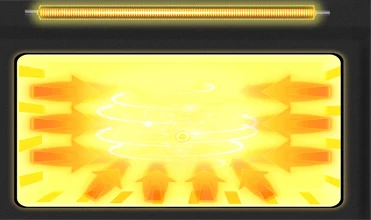

High Quality Heating Elements


  Using silicon molybdenum rod as heating elements, the silicon-molybdenum rod heating element is a kind of non-metallic heating element made of silicon molybdenum as the main raw material, with the characteristics of small expansion coefficient, not easily deformed, strong chemical stability, long service life, easy installation, and maintenance.

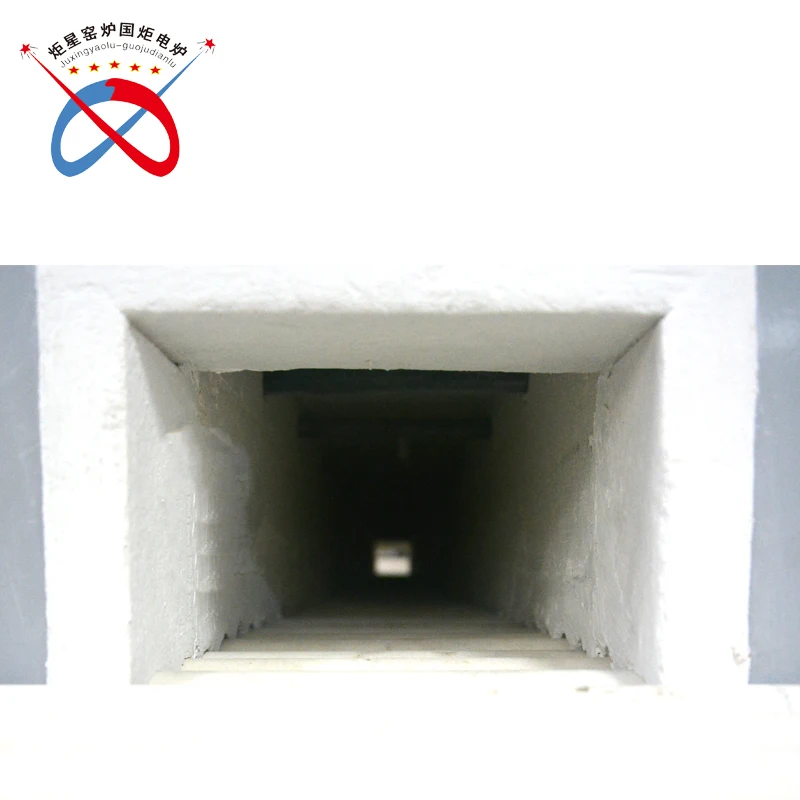

High Quality Furnace Lining

  The furnace chamber using high purity aluminum materials as the lining material, if the furnace chamber required high-temperature environments more then 1600℃, the Alumina polycrystalline fiber material will be selected. the materials have High-temperature stability, low thermal conductivity, low thermal capacity, thermal shock resistance, corrosion resistance, excellent insulation performance, excellent compression and flexural strength, simple use and easy to install.

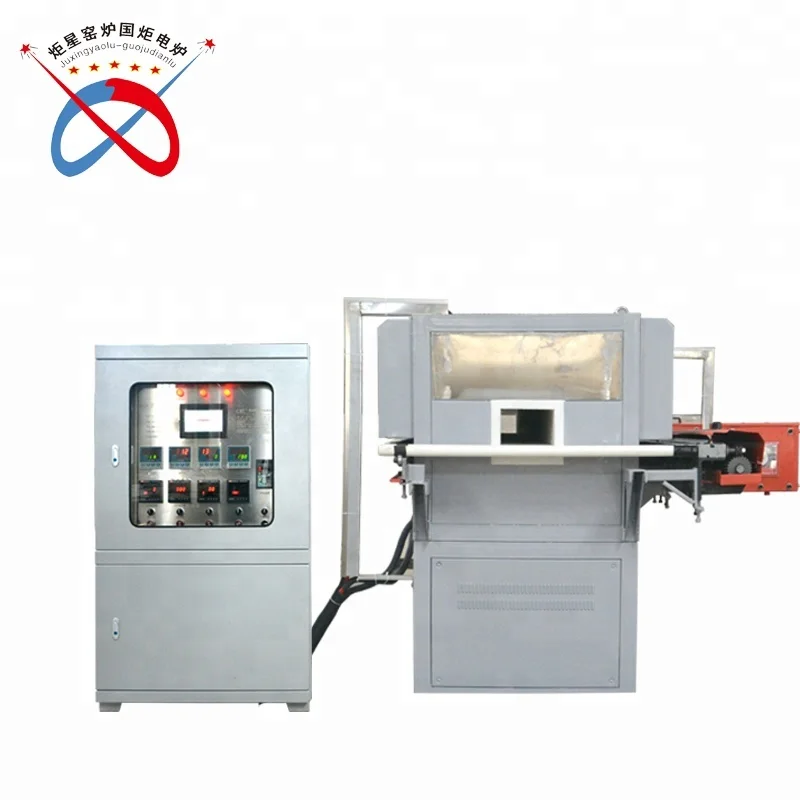

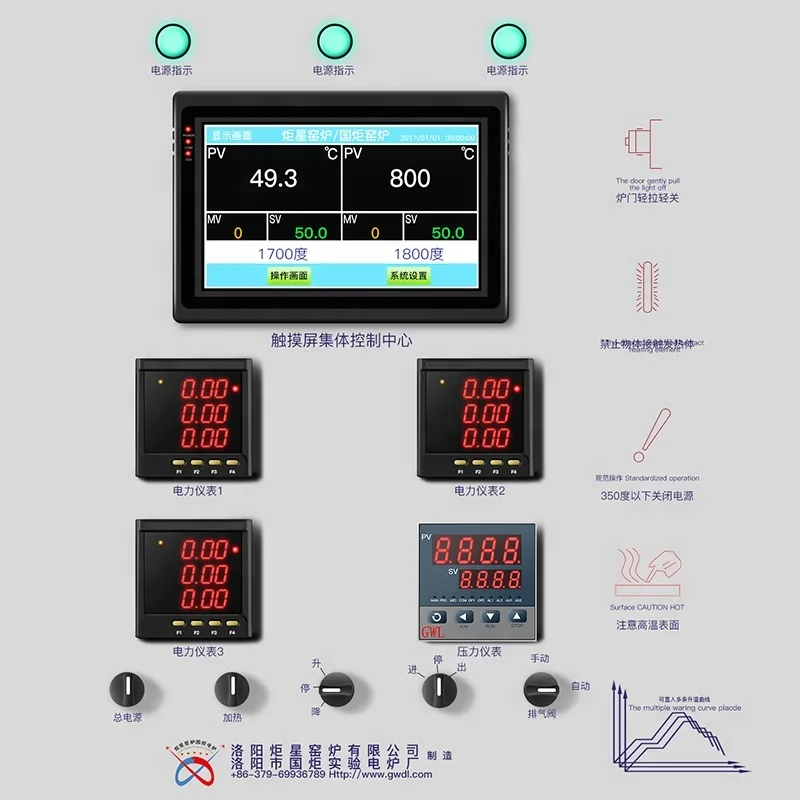

Intelligent Control

  The control panel is equipped with a touchscreen control system and intelligent temperature controller to control the power switch, main heating work/stop button, voltage, current meter, and computer interface so that the working status of the system can be observed at any time. This product uses a reliable integrated circuit, with excellent working environments, microcomputer control, programmable curve, automatic temperature rise, temperature cooling, the operation can be modified temperature control parameters and procedures, flexible and convenient, simple operation.

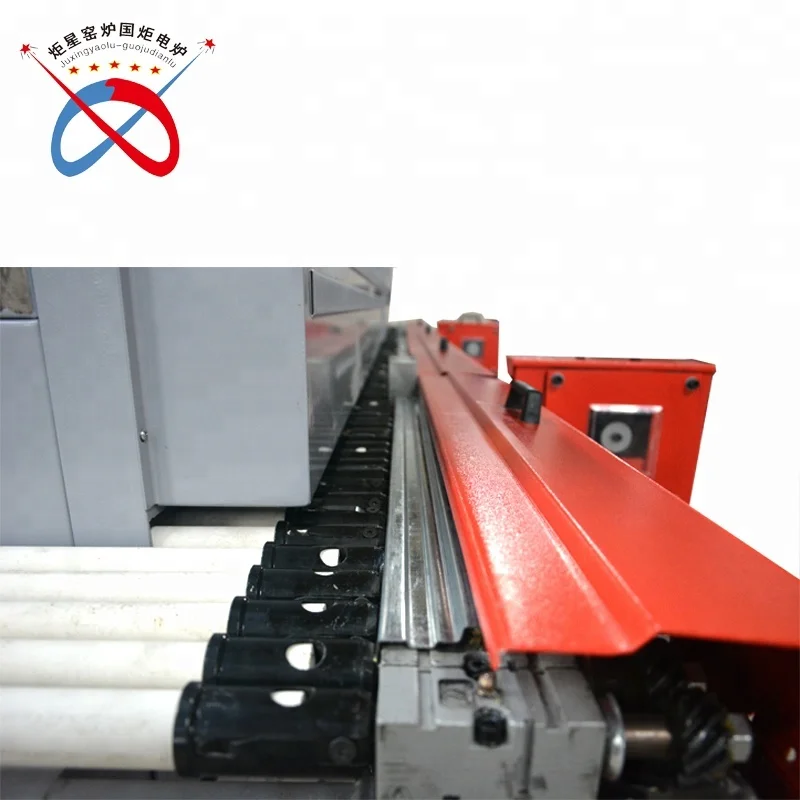

Ceramic Roller


High-temperature ceramic roller, better heat resistance, more stable. The roller manufactured using Numerical Control positioning. During the firing of the product, the material is conveyed steadily and the entire path of the material has not deviated.

Helical teeth drive

  Helical teeth drive, higher accuracy and more stable, Helical cylindrical gear transmissions are superior to straight teeth and can be used for high speed and heavy duty. The helical gear reducer is a novel reduction gearing. Adopting the optimization, the advanced design concept of the module combination system has the advantages of small size, light weight, large transmission torque, stable starting, fine classification of transmission ratio, and can be connected according to user requirements and a variety of installation positions.

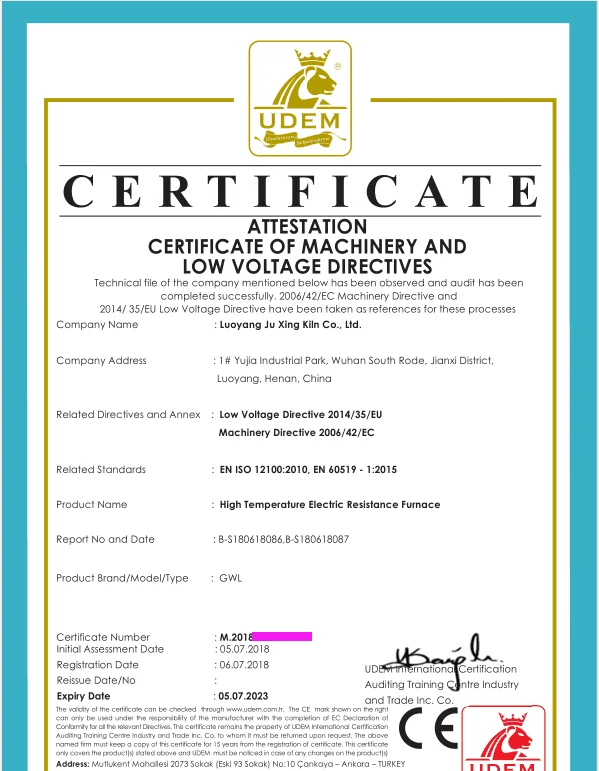

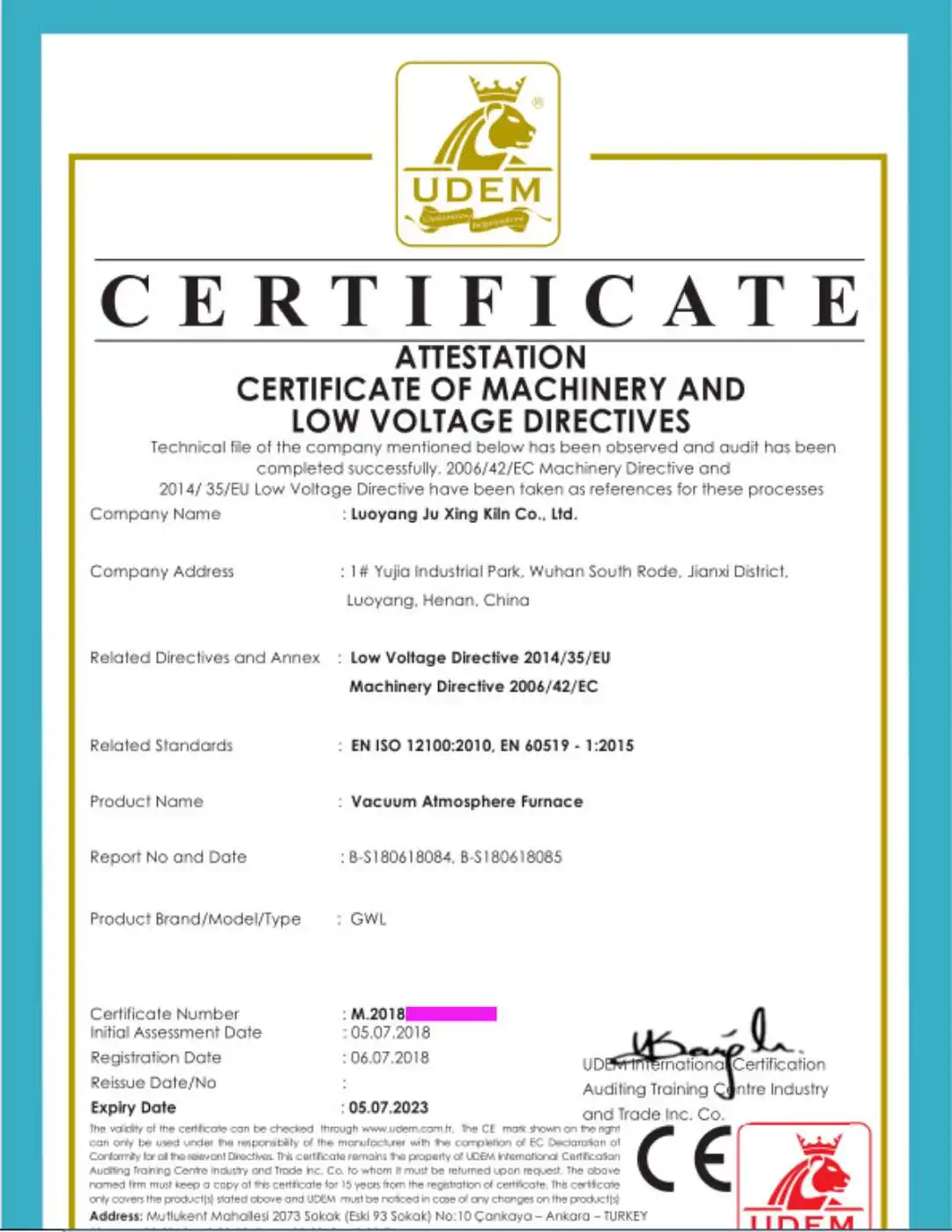

Certifications

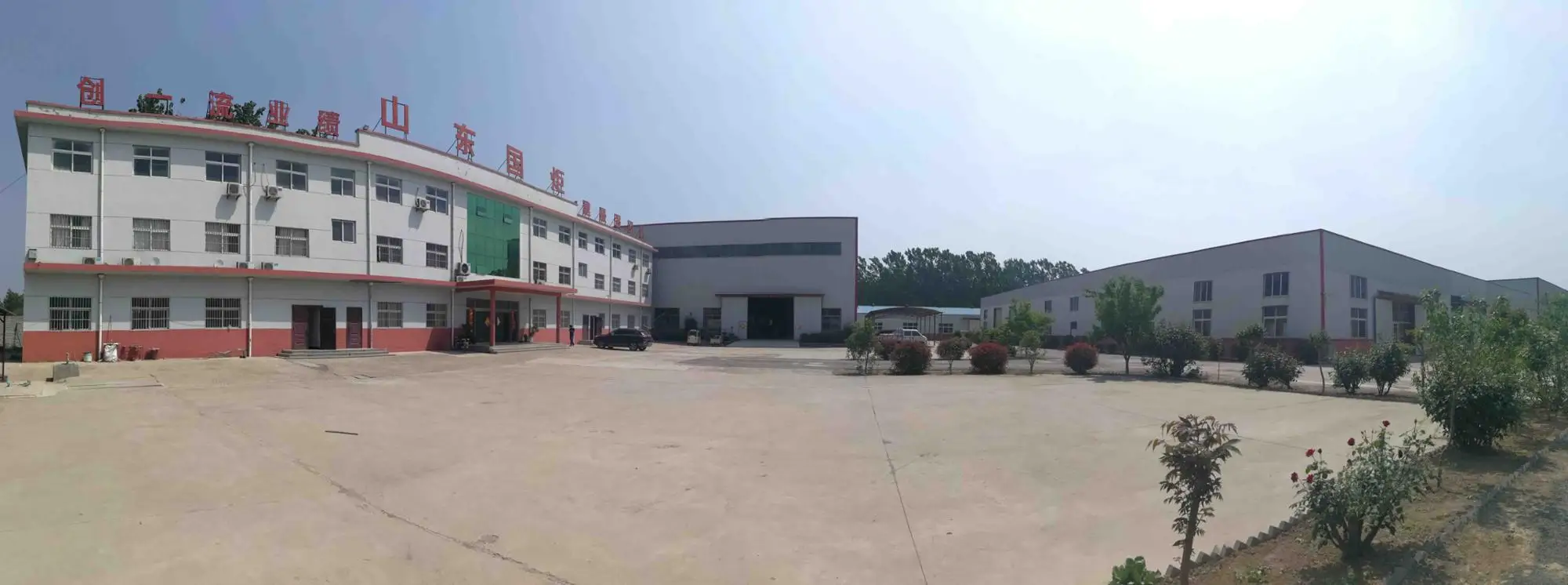

About Us

Luoyang Guoju International Trade Co.,Ltd.

Luoyang Guoju International Trade Co., Ltd. Is an integrated group corporation which constitutes by Luoyang Juxing Kiln Co., Ltd. Shandong Guoju Furnaces Co., Ltd. and the Shandong Keda New Materials Co., Ltd. to in-charge the group export business.

Civilized And Integrity Enterprise


Scientific And Technological Enterprises


Taxpaying Credited Grading Certification


Our Service

Pre-Sales Service

1. Provide technical consulting service for free.

2. Provide product sample book, company introduction and credit certificate.

3. Invite the client to our company to inspect product design, production technology, workshop, product testing machine and quality management system.

4. We can appoint experienced technical staff to offer you free design and model selecting according to actual using situation and specification.

5. Provide professional quoted price.

After-Sales Service

1.  Except for man-made or abnormal operation to cause damage, we carry out "three guarantees", the warranty period for the main engine is 3 years, call us and tell fault reason if the equipment is damaged.

2.  The free quality warranty period of the furnace is 1 years(except for heating element and easily smash and consumable matters), temperature controller, thermocouple, regulator, transformer and voltage regulator's guarantee period is 1 years, if heating element has natural damage within 3 months, we will change it for free.

3.   Training how to install the furnace, training how to use the furnace, Engineers available to service machinery overseas.

Packing&Delivery

Universal Furnace Packaging

The normal package is the wooden box(Size: L*W*H). If export to European countries, the wooden box will be fumigated. If the container is too tight, we will use pe film for packing or pack it.

Industrial Furnace Packaging



  For the large-scale industrial furnace, we will consider after testing the furnace, to separate the furnace into several parts, after that use pe film for packing or pack it and outside using the wooden box to package it. Once the customer received the product, we will arrange the engineer directly goes to the customer site to set the furnace.

Shipping Options

1.We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on.

2.You can also choose the appropriate one based on your timeline and budget.
3.You can choose to use your own shipping agent.

Exhibition
Related Products

Vacuum Hot Press Furnace

100% Response Rate

Bottom Loading Furnace

100% Response Rate

 VOC Off-Gas Purification Furnace

100% Response Rate

FAQ
Q: IF I NEED SPECIAL DESIGN ABOUT FURNACE CHAMBER DOES YOUR COMPANY CAN OFFER IT?
A: Don't worry about it, we have the excellent technical team, based on your requirement we can customize whatever you need.

Q: IF WE PURCHASE YOUR PRODUCT WOULD YOUR COMPANY GIVEN ANY TRAINING OR TECHNICAL SUPPORT?
A: LOL, that is a good question for us, just take relax, for sale is only the first step for us, we will give the basic training about how to use our product through Technical manual and operation videos, and also Engineer is 24hours standby your call, as we promised we provide the best service for our client.

Q: HOW IS YOUR PRODUCT AFTER-SALE GUARANTEE?
A: We provide one-year service for our product (except the heating element), the heating element we provide three-month service. And also, the engineer available doing service overseas.

Q: YOUR PRODUCT WITH ANY ACCESSORIES?
A: Yes, the standard accessories include (Heating Elements, Specification Certificate, Heat Insulation Brick, Crucible Pliers, High-Temperature Gloves).

Q: HOW TO CONTACT YOUR COMPANY?
A: Our Company address is:1# Yujia industrial zone, Wuhan south road, Jianxi District, Luoyang Henan, China.

Telephone:+86 0379-61299666-9-868 Mobile Phone:+86 15637962277 Fax:+86 0379-64896659 Wechat:gwdl69936789Semi-Automatic
