16mm sensor 40khz Piezoelectric Ultrasonic Transducer for UAV

FOB Reference Price:Get Latest Price
$0.30 - $0.80 / Piece | 100 Piece/Pieces (Min. Order)
Samples:
$0.79 /Piece | 1 Piece (Min. Order) | Buy Samples
Lead Time:
Quantity(Pieces) 1 - 1000 1001 - 100000 >100000
Est. Time(days) 16 20 Negotiable
Customization:
Customized logo (Min. Order: 10000 Pieces)
Customized packaging (Min. Order: 10000 Pieces)

More

Graphic customization (Min. Order: 10000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
I ultrasonic transducer
Model Number:
MSO-AT1640H12R
Usage:
distance measuring
Theory:
Ultrasonic Sensor
Output:
Digital Sensor
Product Name:
16mm sensor 40khz Piezoelectric Ultrasonic Transducer for UAV
Material:
Aluminum or plastic
Construction:
Open structure ultrasonic transducer
Function:
Transmitting or Receiving

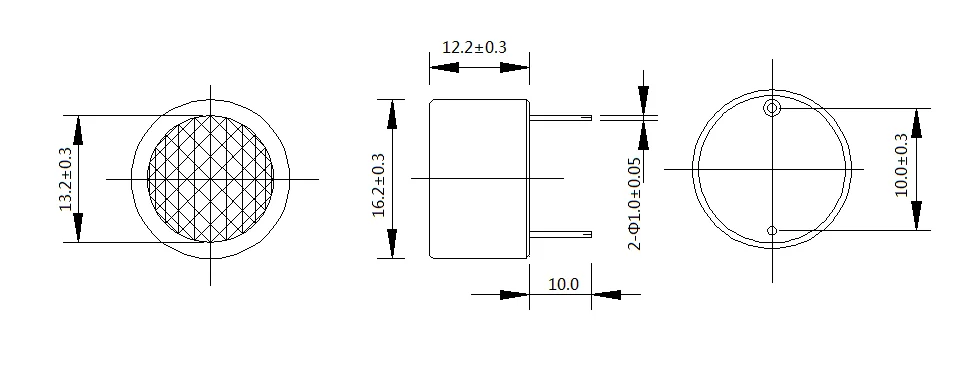

Size:
16*12mm ultrasonic transducer
Capacitance:
2100±20%pF
Directivity:
55° ultrasonic transducer
Center frequency:
40.0±1.0KHz ultrasonic transducer
SPL:
≥110dB ultrasonic transducer
Driving Voltage:
≤20Vrms ultrasonic transducer
Product Certification certification
CE Certified.
RoHS Certified.
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Export standard package for ultrasonic transducer
Port
China Port For Ultrasonic Transducer
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 1000 1001 - 100000 >100000
Est. Time(days) 16 20 To be negotiated
Video Description
Product Description
Center frequency
40.0±1.0KHz
SPL
≥115dB
Sensitivity
≥-65dB
Directivity
55°
Capacitance
2100±20%pF
Housing material
AL
Driving Voltage
≤20Vrms

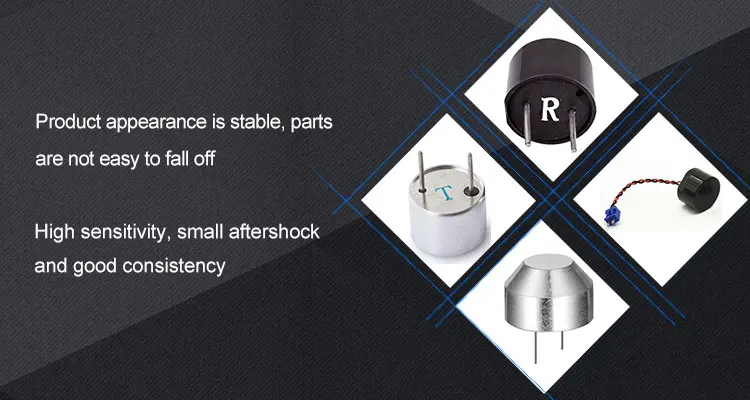

Ultrasonic Sensor Advantage
1.Automated machine dispensing,perfect product appearance .
2.Sound test, using decibels,frequency waveforms, impedance recognition, excellent product sound and good consistency.
Ultrasonic Sensor Application
Buzzer is generally used in intelligent wearable equipment, anti-theft system, medical equipment, industrial production, etc.

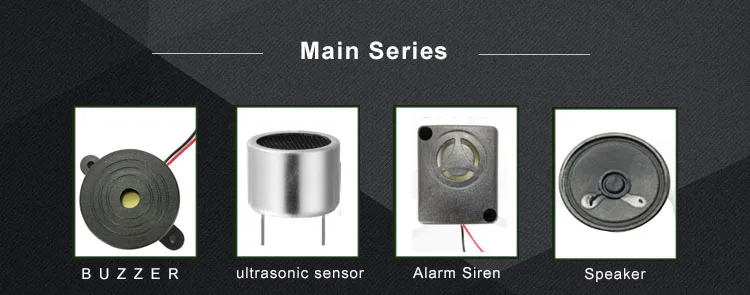

Main Series
Our main products are: Buzzer(piezo buzzer/magnetic buzzer/mechanical buzzer/SMD buzzer);Ultrasonic Sensor(open ultrasonic sensor/waterproof ultrasonic sensor/hcar parking sensor/high frequency sensor);Alarm Siren(piezo siren/ electronic siren/ backup alarm);Speaker(mylar speaker/mini speaker/mobilephone speaker).
Why Choose Us
Manorshi has strong technical R & D team, scientific production platform and strict quality control system. On the road of innovation, we have not been stagnant. We have constantly developed and produced products with beautiful appearance and excellent performance, energy conservation and environmental protection green products, aiming to meet the market demand. Products are widely recognized and trusted by users, and can meet the changing economic and social needs.
Packing&Delivery
1.We use matching packaging for different categories of products.At present, our packaging pictures are being gradually improved and displayed online.
2.We have long worked with courier companies to enjoy better shipping discounts.
FAQ
1.What's your MOQ?
MOQ depends on different series of products, pls contact with us.
2.Do you support OEM and ODM services?
Yes, we can customize products according to the drawing.
3.How about freight fee?
We cooperate with different express companies, enjoy the lowest discount.
4.Do you support after sales service?
The professional after-sales service team will solve all problems for you.
