17 inch industrial open frame touch screen monitor embedded frameless for POS Kiosk ATM

  • 2-49 Units
    $109.00
  • 50-299 Units
    $105.00
  • 300-499 Units
    $103.00
  • >=500 Units
    $99.00
Model Number:
HOP170
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 50 Units)
Customized packaging (Min. Order: 200 Units)

More

Graphic customization (Min. Order: 200 Units) Less
Contact Supplier
Samples - $109.00 /Unit, 1 Unit (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Screen Size:
17"
Type:
Resistive
Interface Type:
D-Sub, DVI, Serial, USB, HD
Resolution:
1280 x 1024, 1280*1024@75Hz
Brand Name:
OEM
Place of Origin:
Guangdong, China
Size:
17 inch
Color:
16.7M colors
Dot Pitch(mm):
0.264*0.264
Viewing angle:
85°/88°
Contrast:
1000:1
Interface:
VGA+HD+USB+DC
Brightness:
300cd/m2
Touch type:
Resistive
Operating System:
Win7/Win8/Android/Linux

Packaging & Delivery

Selling Units:
Single item
Single package size:
51X45X33 cm
Single gross weight:
5.0 kg
Package Type:
Safe Carton box for open frame touch screen monitor 17 inch
Picture Example:
package-img
Lead Time :
Quantity(Unit) 1 - 50 51 - 300 301 - 500 >500
Est. Time(days) 7 12 16 To be negotiated
Product Description

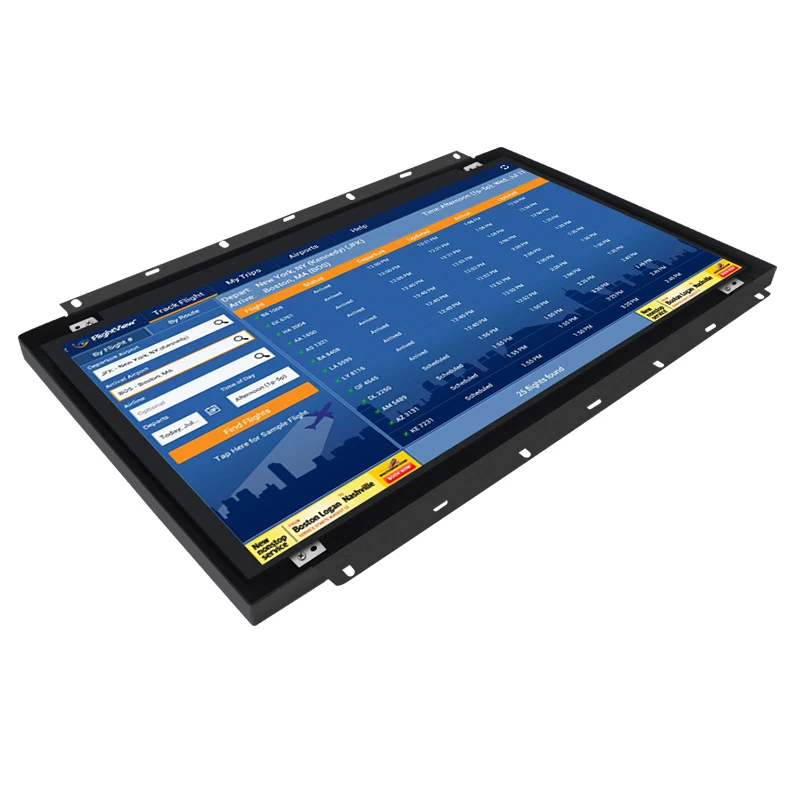

 17 inch industrial open frame touch screen monitor

  1. Flat Structure, Ergonomic design, Slim Frame,Streamline Moing, Sophisticated Craft.
  2. Integrated systematic in displaying, touching and PC using, with less than 40 mm thickness.
  3. Adopt the latest projected capacitive screen, it supports 10 points touch, available for both hand-writing and multi-points clicking.
  4. Response time is less than s,high accuracy, easy for operation and maintenance.
  5. Anti-light interference, to ensure the accuracy during the process of operation(it can be used normally even under strong lights).
  6. Flexible configuration, can be expanded to install all accessories and functions based on customers' requirements.
  7. Aluminium Alloy+Metal Plate, without sharp edge, wear-resisting and antiseptic baking technology, Whole Anti-riot function.
  8. Advanced design, Strict assembly technology, Stable quality, Low malfunction.
  9. On and Off controlled together by one button, free of installation and debugging.



Full specs:

General:
SeriesMetal-cased openframe
LCD Type17” TFT-LCD
Video InputVGA+HD
Power SupplyType: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max
Mount Interface1)VESA 75mm and 100mm
2)Mount bracket, horizontal or vertical
LCD Specification:
Active Area(mm)339.8(H)×272.5(V)
Resolution1280×1024@75Hz
Dot Pitch(mm)0.264×0.264
Nominal Input Voltage VDD+5.0V(Typ)
Viewing angle (v/h)85°/88°
Contrast1000:1
Luminance(cd/m2)300cd/m2, 1000cd/m2 / 2000cd/m2 is available
Response Time(Rising/Falling)5ms/5ms
Support Color16.7M colors
Backlight MTBF(hr)30000
Touchscreen Specification:
TypeRESISTIVE Touch screens
Resolution4096*4096
Light Transmission92%
Touch Life Cycle50 millions
Touch Response time5ms
Touch System InterfaceRS-232 and USB interface
Power consumption+5V@80mA
External AC Power Adapter:
OutputDC 12V /4A
Input100-240 VAC, 50-60 Hz
MTBF50000 hr at 25°C
Environment:
Operating Temp.0~50°C
Storage Temp.-20~60°C
Operating RH:20%~80%
Storage RH:10%~90%
Multiple application

 Real applications for Kiosk, CNC, ATM, Royal slot game etc.

Buyers's Review

 Real views from our customers:

Packaging & Shipping

Company Information

Shenzhen  Hopestar Sci-tech Co., Ltd. is a leading company of LCD and LED Monitor in shenzhen ,China ,As a High - tech enterprise, we have our own R&D, Factory,Marketing and after sales service department,We are specialized in LCD Monitor, Touch Screen Monitor,CCTV Monitor , Open Frame Monitor, All in one PC since 2002.



HOPESTRAR Factory

Area: 10,000M² Non-dust standard workshop
Worker: 300 workers
Annual :1,000,000pcs of monitors annually

Our Plant

HOPESTAR Sci-Tech CO.,LTD has experienced R&D engineers and a professional management team with over 10,000 square meters factory area,two advanced CBU assembly production lines and also complete series testing equipments.Its annual production capacity is over 100,000 pieces for LCD Monitors alone.

HOPESTAR has formed its own impeccable technology core,independent inoovation system,efficient management and comprehensive quality system.And thanks to a professional R&D engineer team,it realises the independent devpment and design compeletly,which makes HOPESTAR adapt to the market trend invariably and become a leading company can always go ahead to meet whatever you need.



Our Services


Sample Availability & Policy:
Paid samples are available in 3 - 7 days.
Buyer covers the shipping cost, Sample fee can be deducted from the first order
OEM & ODM sample lead time to be discussed.



Product Compliance :
All our Products can be compliant with RoHS, CE, FCC.
We can also do WEEE / REACH Complaint.
Recycle Material Compliant
UL / CSA Complaint can be done upon requirement
PSE / NCC can be done upon requirement



Warranty & Spare parts Conditions :
1. Our Products comes with 3 Year Warranty
2. We offer Premium Quality for Customer to make better profits
3. We maintain High Quality Standard
