175L High Pressure Cryogenic Dewar Flask Liquid Oxygen Nitrogen Gas Cylinder for Sale

  • 1 - 4 Sets
    $1,140.00
  • >=5 Sets
    $1,130.00
Model Number:
DPL450-175-1.4
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 5 Sets)
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Energy & Mining
Condition:
New
Capacity:
175L
Place of Origin:
Henan, China
Brand Name:
CNCD
Dimension(L*W*H):
508*508*1500mm
Weight:
110KG, 110kg
Certification:
ISO9001 CE
Warranty:
12 Months
After-sales Service Provided:
Online support, Overseas service center available
Model:
DPL450-175
Size(D*H):
508*1500mm
Working pressure:
1.4MPa
Safety activated pressure:
1.59MPa
Rupture burst pressure:
2.60MPa
Volume:
175L
Evaporation rate:
≤2.4%
Medium:
LOX,LIN,LAR,LNG
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Dewar's packing: nude or according to customers' requirement
Port
Tianjin, Qingdao, Shanghai port
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Video Description
Product Introduce

Dewar introduce

As a cryogenic adiabatic pressure vessel, gas cylinder is mainly used for storing and transporting liquid oxygen, liquid nitrogen, liquid argon liquid carbon dioxide and liquefied natural gas, and can supply gas continuously automatically. Cylinder is designed for double (vacuum) structure, the tank used for storage of cryogenic liquid, the outer wall with multilayer insulation, with super heat insulation performance, at the same time sandwich (the space between the two layers of container) is pumped into a high vacuum, together to form a good thermal insulation systems.
If more gas flow is required, several cylinders should be connected in parallel to a main pipe or an external carburetor to solve the problem, so as to avoid the shortage of gas supply.

Product Parameters

Product Model :DPL 450-175

Outside Size(D*H):508*1500mm

Working Pressure:1.40MPa

Safety activated pressure:1.59MPa

Rupture burst pressure :2.6MPa

Volume :175L

Effect Volume:166L

Evaporation Rate:≤2.4%

Weight:110kg

Oxygen Maximum Filling Weight:172 kg

Nitrogen Maximum Filling Weight :121kg

Argon Maximum Filling Weight:208kg

LNG Maximum Filling Weight :70.1kg

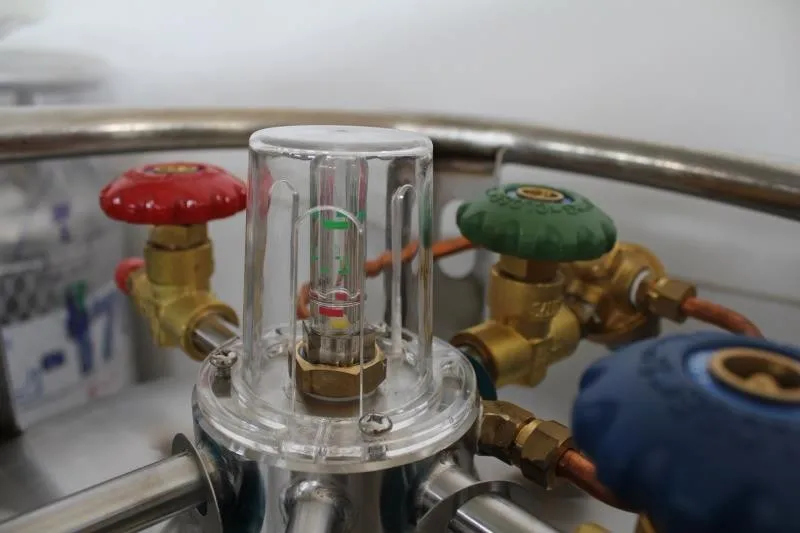

Product Details Show

Cryogenic liquid cylinders have an inner container and an outer container with an insulated vacuum space between them .Any abuse(dents,dropping.tip-over,etc.)can affect the integrity of the containers insulation system.
DPL series containers will allow you to use a hand truck or hoist to handle these loads properly.Do not attempt to move these cylinders by any other means.While moving the cylinder,the following precautions should be observed
1.Never lay the cylinder on its side.Always ship,operate and store the unit in a vertical or upright position.
2.When loading or unloading the container from a truck,use a hand truck,lift gate,crane or parallel loading dock.Never attempt to manually lift the unit.
3.To move the container over rough surfaces,or to lift the container,attach an appropri-ated sling to the lifting points cut into the welded support posts,and use a portable lifting device that will handle the weight of the container and its contente

Why Choose Us

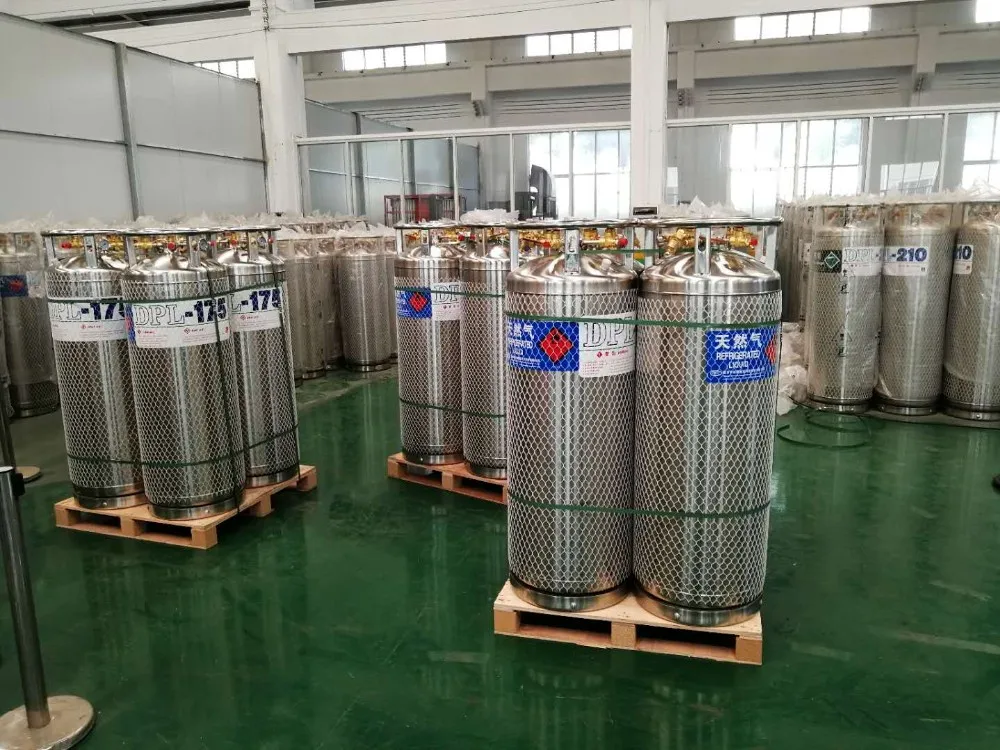

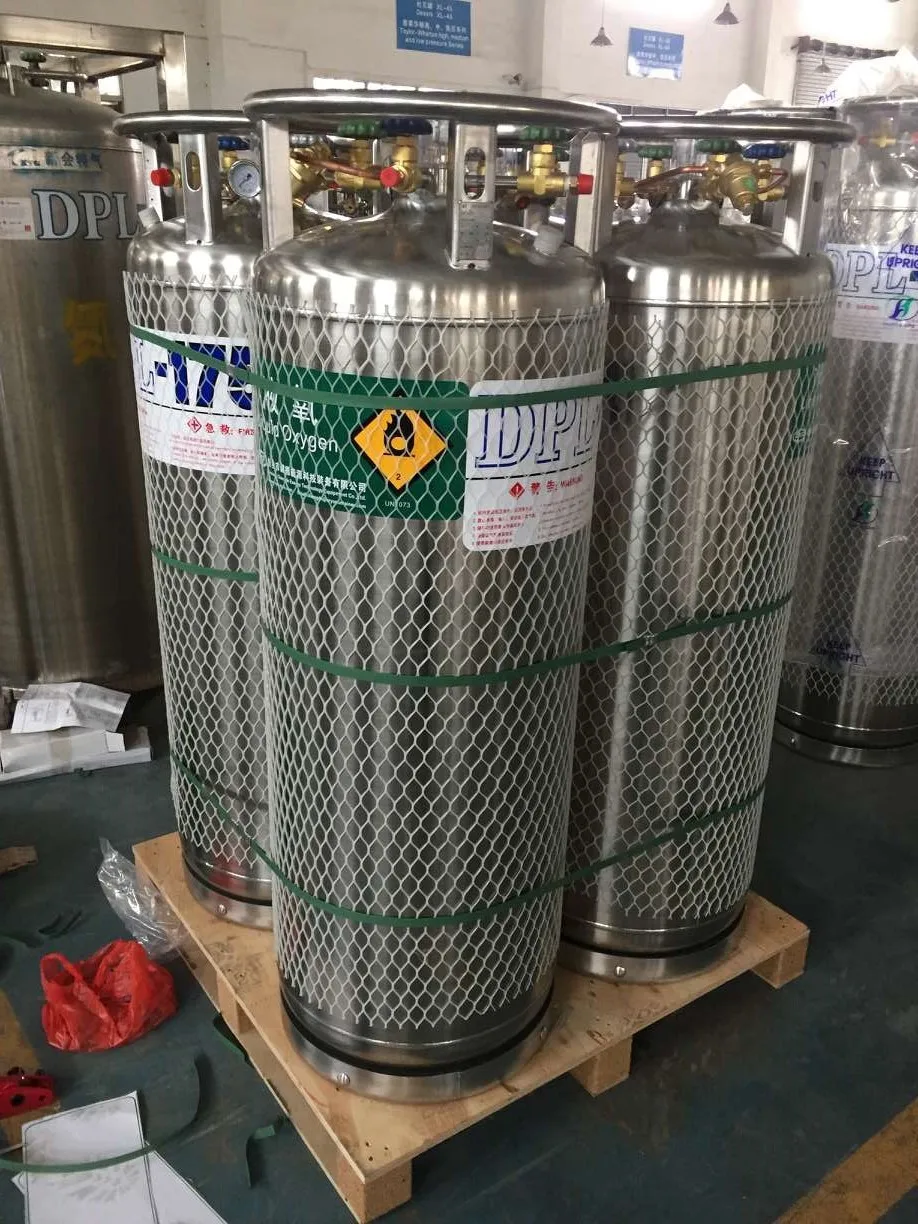

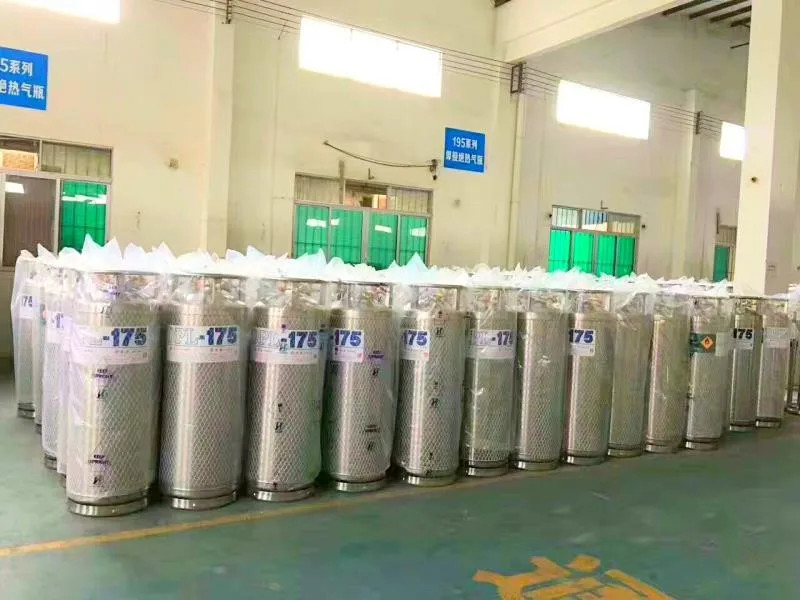

Product Packing
Main Products

Cryogenic Liquid Tank

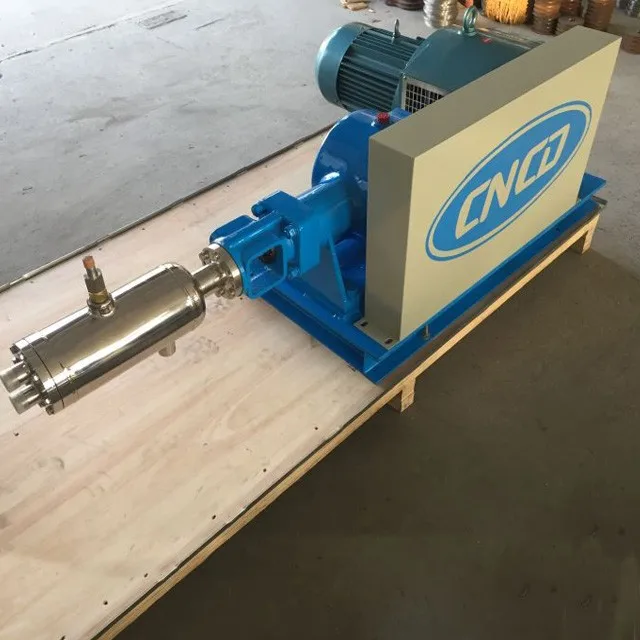

Cryogenic Liquid Pump

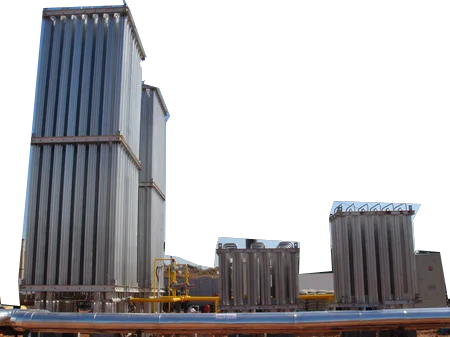

Ambient Vaporizer


LPG Tank


Gas Cylinder

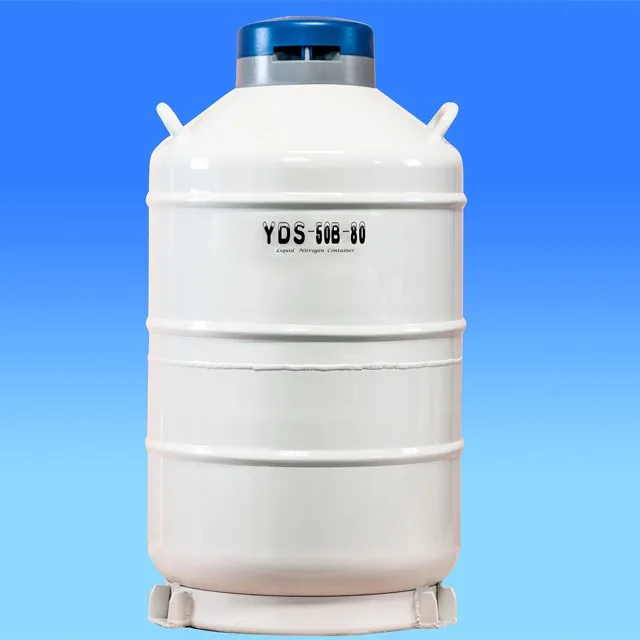

Liquid Nitrogen Container
