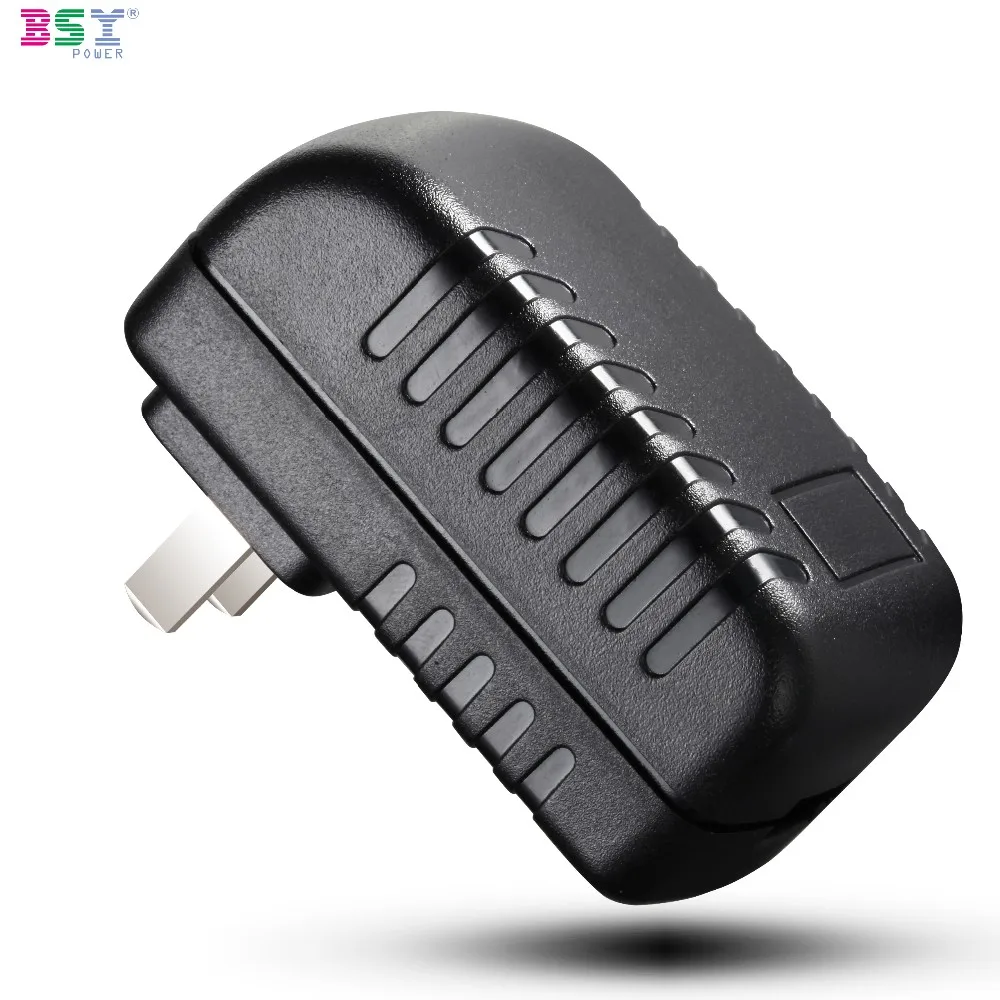

18W TUV CB ETL PSE GS CE SAA Approved USB Wall Charger Switching Power Supply 9V 2 Amp 18 Volt 1 Amp

FOB Reference Price:Get Latest Price
$0.99 - $2.99 / Units | 1000 Unit/Units (Min. Order)
Color:
Socket Standard:
Other EU/AU/UK/US
Lead Time:
Quantity(Units) 1 - 5000 >5000
Est. Time(days) 5 Negotiable
Customization:
Customized logo (Min. Order: 1000 Units)
Customized packaging (Min. Order: 1000 Units)

More

Graphic customization (Min. Order: 1000 Units) Less
Report Suspicious Activity
Overview
Quick Details
Brand Name:
BSY/OEM
Model Number:
K07DCT
Use:
Audio/Video/IT/Communication
Type:
Electric, Wall Mount
Place of Origin:
Guangdong, China (Mainland)
Port:
1 x USB
Certificate:
TUV-CB, ETL, FCC, CE, PSE, GS
Output Power:
18W Max
Input voltage:
90 ~ 264VAC
Warranty:
2 Years
Test:
100% Aging Test/Hi-Pot Test
AC plug:
US/Others Customized
Color:
Black White Customized
Protection:
OCP OVP SCP OPP
Material:
ABS
Supply Ability
Supply Ability:
20000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
white box/PE bag/blister pack/color box per request
Port
Shenzhen
Lead Time :
Quantity(Units) 1 - 5000 >5000
Est. Time(days) 5 To be negotiated
Video Description
Product Description

* 10-year power supply manufacturer

* Max power output 18W (9V/2A, 5V/3A, 12V/1.5A)

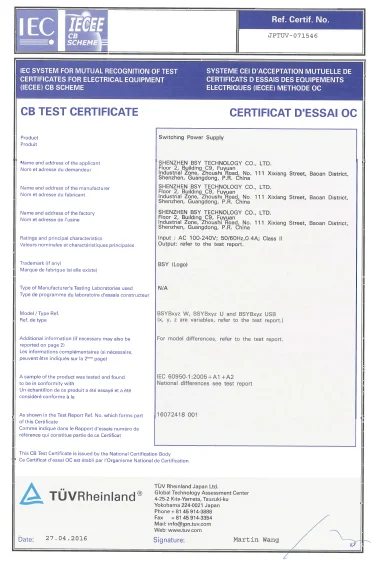

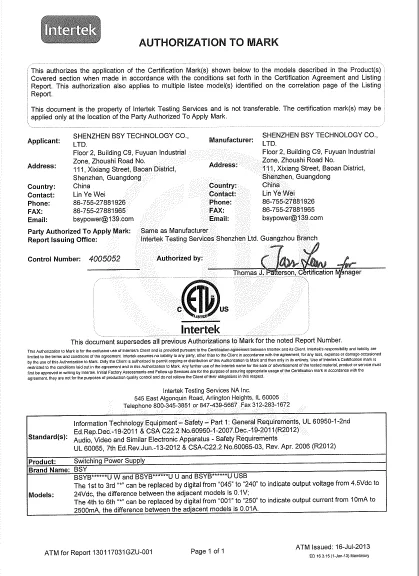

* Certification includes: TUV-CB, ETL, FCC, CE, RoHS, SAA, PSE, GS

* Testing standard: IEC 60065

* Size: 71x57x40mm

* Universal input: 90 ~ 264VAC

* 2 year warranty

* Pass LPS

* Fully enclosed plastic case

* Doe,Cec VI compliant

* No load power consumption<0.075W

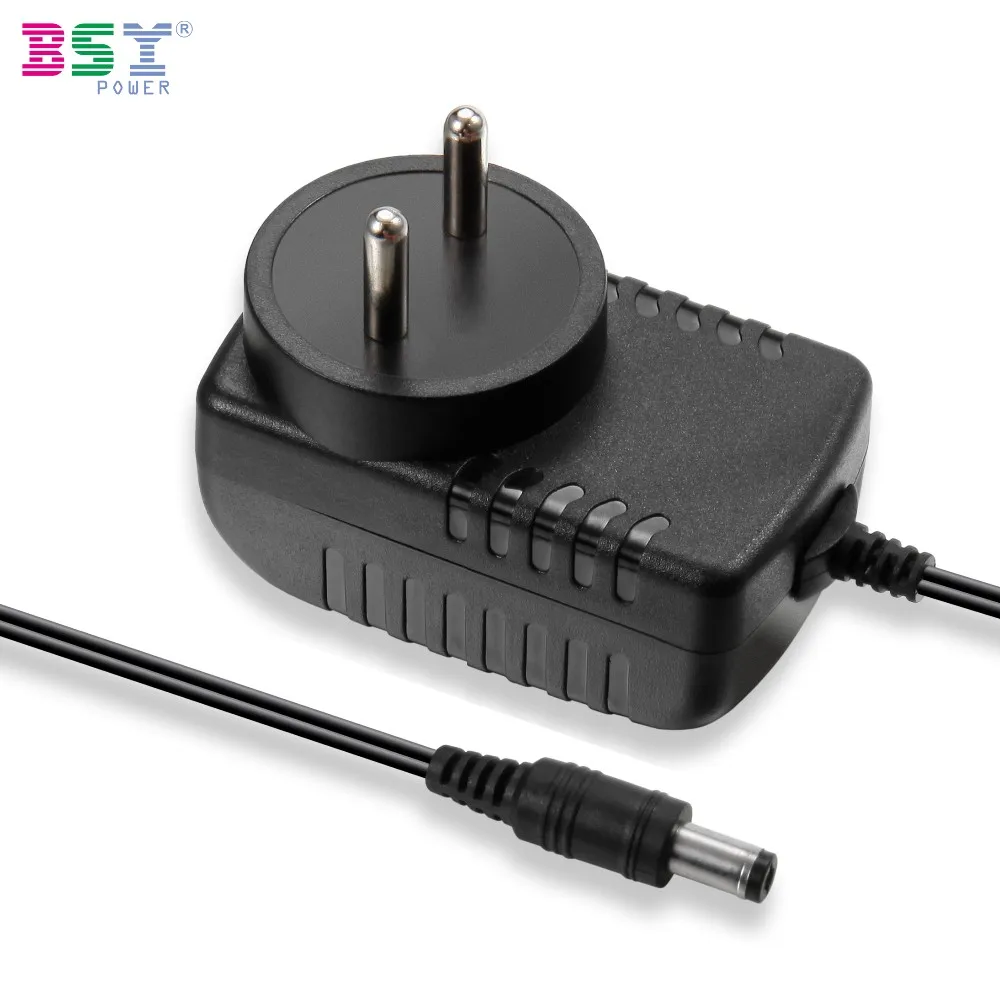

* USB output or DC connector with cable

* Protections: Short circuit / Overload / Over voltage

* Very price competitive



Specifications

ORDER NO.
OUTPUT
SAFETY MODEL NO.
DC VOLTAGENote.2
RATED CURRENT
CURRENT RANGE
RATED POWER (max.)
RIPPLE & NOISE (max.) Note.3
150mvp-p
150mvp-p
VOLTAGE TOLERANCENote.4
±5.0%
±5.0%
LINE REGULATION Note.5
±1.0%
±1.0%
LOAD REGULATIONNote.6
±5.0%
±5.0%
SETUP, RISE, HOLD UPTIME
500ms, 20ms, 50ms/230VAC at full load
INPUT
VOLTAGE RANGE
90 ~ 264VAC 135 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
83.62%
86.65%
AC CURRENT
0.2A / 100VAC
INRUSH CURRENT (max.)
25A / 115VAC
LEAKAGE CURRENT(max.)
0.25mA / 240VAC
PROTECTION
OVERLOAD
110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
105 ~ 150% rated output voltage
Protection type : Clamp by zener diode, output short
ENVIRONMENT
WORKING TEMP.
0 ~ +50℃ (Refer to Derating Curve)
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP.,HUMIDITY
-20℃ ~ +85℃ , 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% /℃ (0 ~ 50℃ )
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC(Note. 7)
SAFETY STANDARDS
UL60950-1, CSA C22.2, TUV-CB approved
WITHSTAND VOLTAGE
I/P-O/P:4242VDC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃ / 70% RH
EMC EMISSION
Compliance to CNS13438 class B
OTHERS
MTBF
500Khrsmin.MIL-HDBK-217F(25℃ )
DIMENSION
79*54*33mm (L*W*H)
PACKING
60g ; 300pcs / 18.5kg / CARTON
CONNECTOR
PLUG/USB

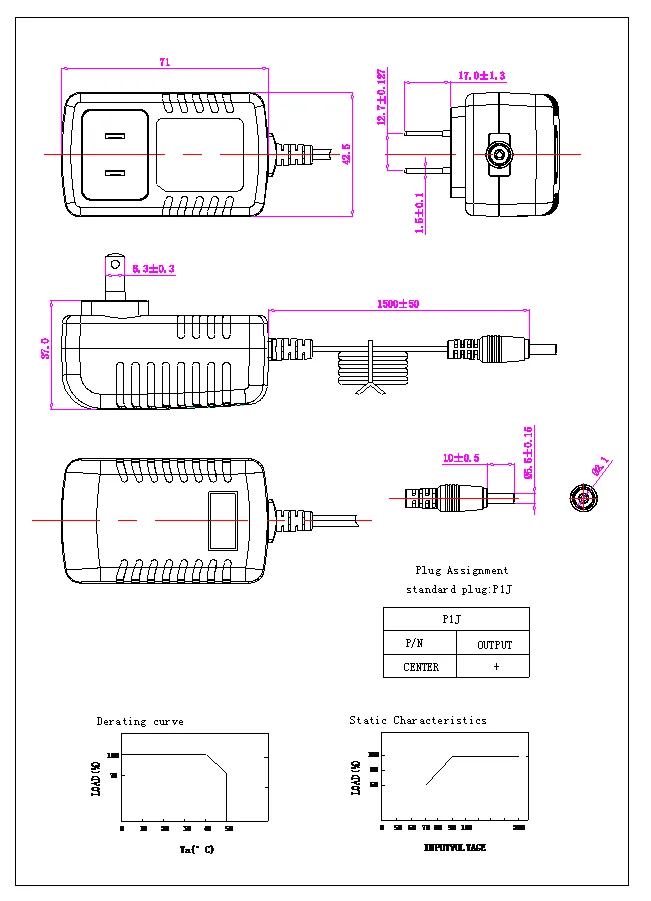

See page2
CABLE
See page2
NOTE
1. All parameters are specified at 115VAC input, rated load, 25℃ 70% RH ambient.
2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
4. Tolerance: includes set up tolerance, line regulation, load regulation.
5. Line regulation is measured from low line to high line at rated load.
6. Load regulation is measured from 20% to 100% rated load
7. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with theEMC directives.

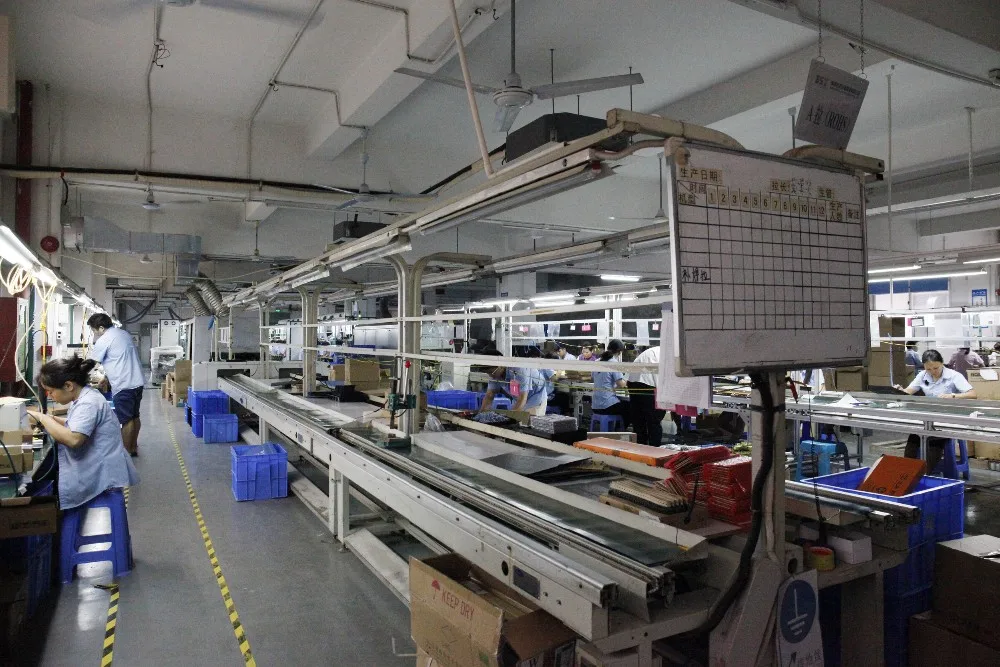

Neat, nice working environment with air conditioners

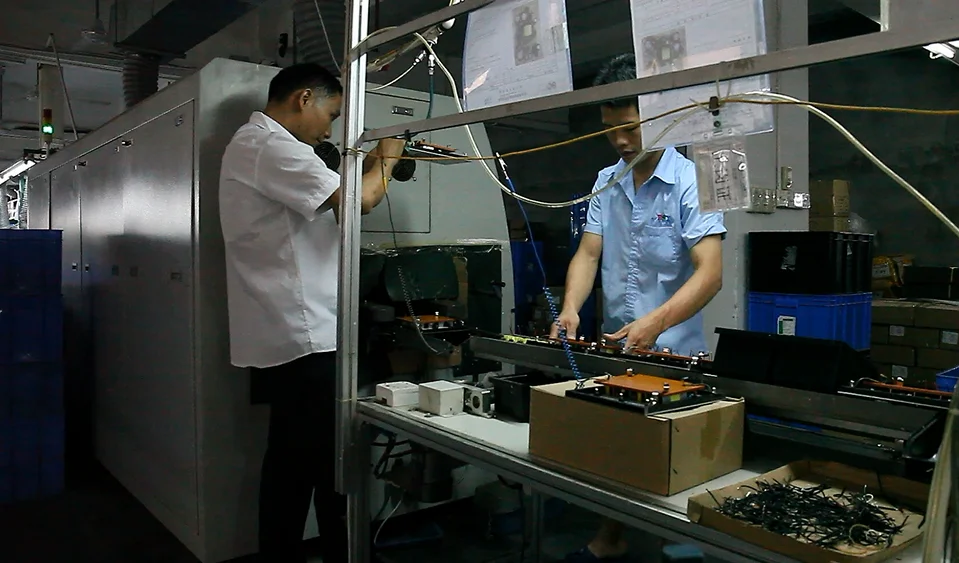

As much as possible work are done by auto machines. This improves cost  and product quality.
Investment on equipment including auto inserting machine, lead-free wave soldering machine, ultrasonic welding machine, fiber laser printer, CTHM, all standard testing equipments.
All semi-finished products and finished products are QC inspected before shipment. Burn-in test, electric withstand test, etc.
Related Products

Factory Price USB Charger

Portable USB Wall Charger


Foldable USB Charger

Our Company

With 10 years manufacturer of power supply, SHENZHEN BSY TECHNOLOGY CO.,LTD has 150 employees and 4000 square meters production facility. We produce wall chargers, USB chargers, car chargers, power adapters, power converters, which are widely used in consumer electronics, medical industries and other industry fields. With the long-term investment on product development, factory production facility, manpower input and supplier relationship, we produce chargers with full certifications which meets worldwide country's regulations. Continous spendings on auto-machine production and efficienct people management makes our prices more competitive and great product quality.

Packing & Delivery

Packing

Color box/blister pack/PE bag/white box subject to customer's request.

Delivery

It takes 5 to 30 business days by receiving the order confirmation. Specific delivery time depends on sku and order quantity.

FAQ

Q1: Are you a trading company or factory?

A: We are factory with 5 production lines and on-site audited by Alibaba.com.

Q2: What is your production capacity?

A: For general chargers, the max production output is around 20,000pcs per day. We have 150 workers and 4000 squre meter production facility.

Q3: We are on-line sellers of Amazon and eBay, can you support smaller MOQ and shipments to FBA warehouse?

A: Yes, we are glad to cooperate with online sellers. We can adjust the MOQ and make faster delivery.

Q4: What are your major clients?

A: Some big brands like Hisense, TCL, LG in different industries of TV, small appliances, LCD monitors, medical instruments, LED lights, etc. Also we are suppliers of some brand chargers of direct consumers.

Q5: Can you send us samples before order confirmation?

A: Yes, delivery cost will be at customer's.

Q6: What is your payment method?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of products and packages before pay the balance.

Q7: Do you have ODM items?

A: Yes, we develop our own moldings of chargers, especially the latest quick charger, type-c PD charger, multi port USB charger to catch up the market trend.
