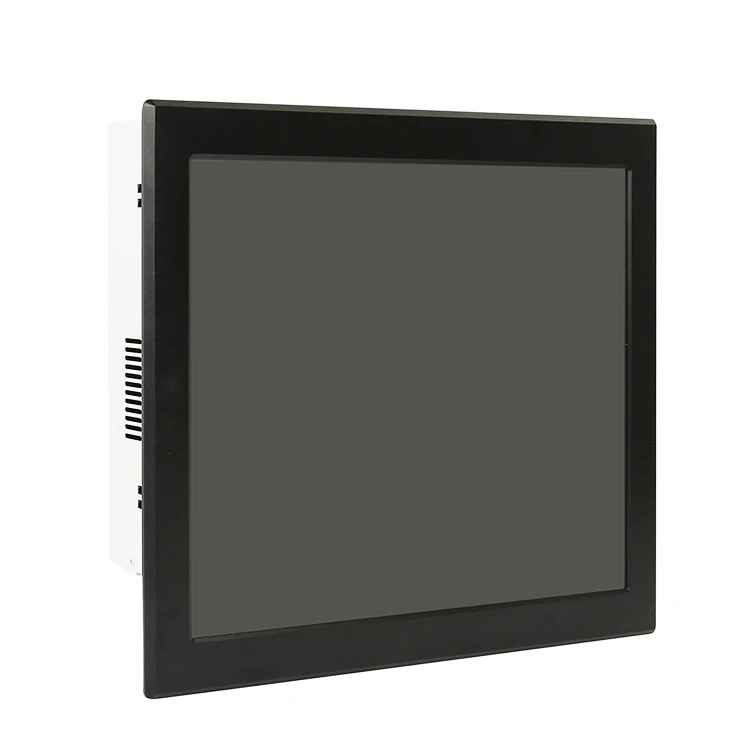

19" fanless intel J1900 quad core embedded touch screen industrial Panel PC all in one pc

  • 1-49 Pieces
    $499.00
  • 50-199 Pieces
    $489.00
  • 200-999 Pieces
    $469.00
  • >=1000 Pieces
    $399.00
Memory Capacity:
4g 8GB
Hard Drive Capacity:
500GB
- +
available
Other
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
12 day(s) after payment received
Customization:
Customized logo (Min. Order: 200 Pieces)
Customized packaging (Min. Order: 200 Pieces)

More

Graphic customization (Min. Order: 200 Pieces) Less
Contact Supplier
Samples - $399.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
All-In-One
Screen Size:
19"
Processor Brand:
Intel
Graphics Card Type:
Integrated Card
Display Type:
LCD
Widescreen:
Yes
Processor Main Frequency:
2.0GHz
Brand Name:
ECSUU
Model Number:
UU-1910V-L19
Place of Origin:
Guangdong, China
CPU:
Intel Celeron Bay trail J1900 2.0GHZ quad core
OS:
Wind7\8\8.1\10,Linux
Memory:
4GB DDR3(optional)
Storage:
SSD 64G(optional
Touch screen:
Five-wire resistance(optional)
Resolution:
1440*900
USB:
9*USB2.0 + 1USB3.0 (10 USB)
Ports:
10*RS232(or1*RS422/485)
Dispay:
HDM+VGA+LVDS
Warranty:
1Year

Packaging & Delivery

Selling Units:
Single item
Single package size:
50X50X10 cm
Single gross weight:
11.0 kg
Package Type:
cartons
Picture Example:
package-img
package-img
Lead Time :
Quantity(Piece) 1 - 20 21 - 50 >50
Est. Time(days) 12 15 To be negotiated
Video Description
ECSUU UU-1910V-L19
Intel Celeron Bay Trail J1900 quad core 2.0GHz all in one pc
Product Description

                                      Features

1.Fanless heat dissipation design(optional)

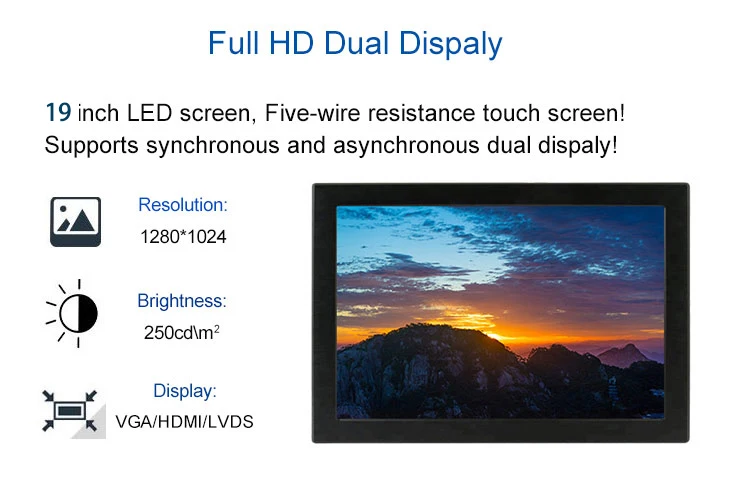

2.19"Industrial display screen, capacitive touch screen

3.Intel Celeron Processor J1900 quad-core processor (clocked at 2.0GHz)

4.10*USB,10*COM

5.Can be expanded to 8GB DDR3 memory.

6.The machine has a rich I / O interface, using ultra-thin design of magnesium alloy.

7.The entire machine panel is protected to IP68 and supports Windows 7 / 8 / 8.1 / 10, Linux and other operating systems.

product parameter
Model Number
UU-1910V-L19
Display Screen
19 inch TFT LED

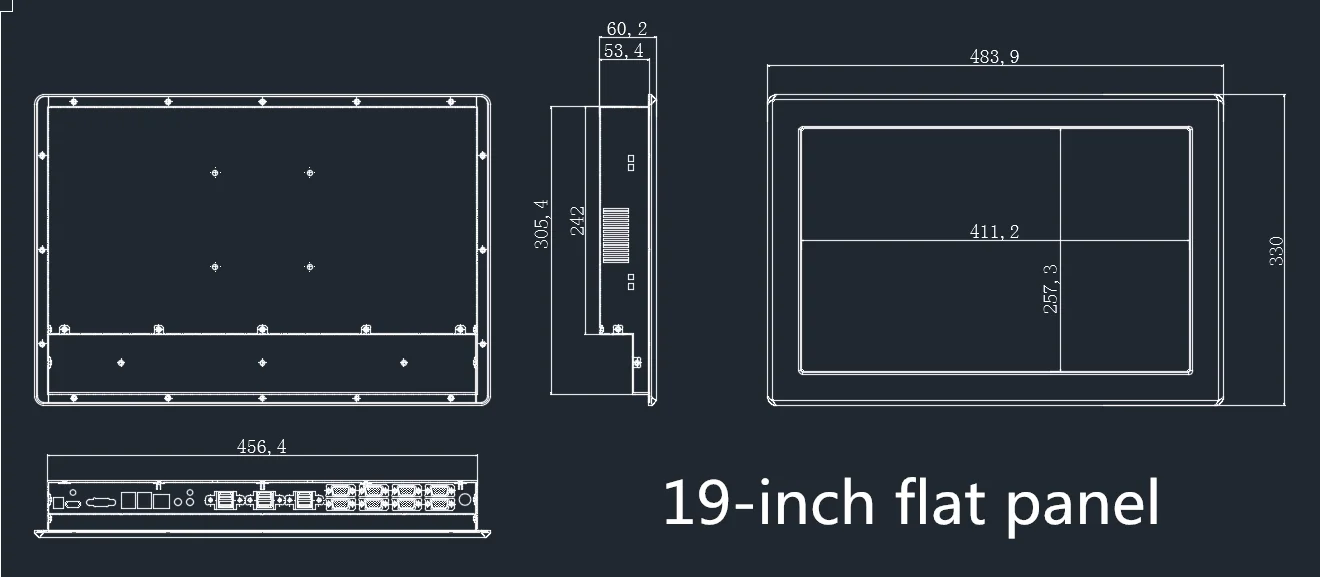

Dimensions
483.9*330*55.2mm(L*B*H)
Brightness
250cd\m2
Contrast Ratio
1OOO:1
Resolution
1440*900
Touch Screen
Five-wire resistance(choosable)
CPU
Intel Celeron Bay trail J1900 2.0GHZ
0S
Win 7\8\8.1\10,Linux
Memory
4GB DDR3(choosable)
Storage
SSD 64G(choosable)
USB
9*USB2.0 + 1USB3.0 (10 USB)
Port
10*RS232(or1*RS422/485)
I\O Interface
1*rtl811E(or2*rtl811E)
Dispay
three display
Audio
1
IP Protection Level
IP68
Reliability
MTBF≥50000h;MTTR≤0.5h
Network
2*Realtek 8111E/H,10/100/1000Ethernet
Power Supply
DC 12V
operating temperature
-10℃ -70℃
storage temperature
-20℃-80℃
Operating Humidity
95%@40℃
Application
Installation Method
Related Products
Our Company

Shenzhen Jiexingtong Technology Co., Ltd. was established in 2005 with a capital injection of 10 million, and has been applied and accumulated in the industrial control for more than 15 years.



We have passed ISO9001 quality management system certification and has become a qualified supplier of more than 30 listed companies. We have our own R&D department and factory. All our products are independently designed by our R&D  department and manufactured by our factory with all passed CCC/FCC/CE/ROHS Certification, etc. We have been focusing on providing customers with EPC,IPC,RISC motherboard system development and application solutions.

                 Pre-sale  service                                 After-sale service

             1. Inquiry and consulting support                         1. Replace or repair products during warranty period

              2. Sample testing support                                      2. Engineers available to provide technology support

              3. Application solutions                                         3. Fast response to reply any questions

              4. View our original factory


Certification
Payment and Shipping
FAQ

1,Q: Are you trading company or manufacturer?

A: we are professional manufacturer, which established in 2005,having 15 years production experience.


2,Q: How long is your delivery time?

A: Generally it is 2-7 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.


3,Q: Do you provide samples? is it free or extra?

A: Yes, we could offer the sample but not for free charge.


4,Q: What is your terms of payment?

A: Payment<=1 0000USD, 100% in advance.


5,Q: Do you support OEM or ODM?

A: OEM & ODM are welcomed. We have been offered OEM or ODM service for well-known brands.
